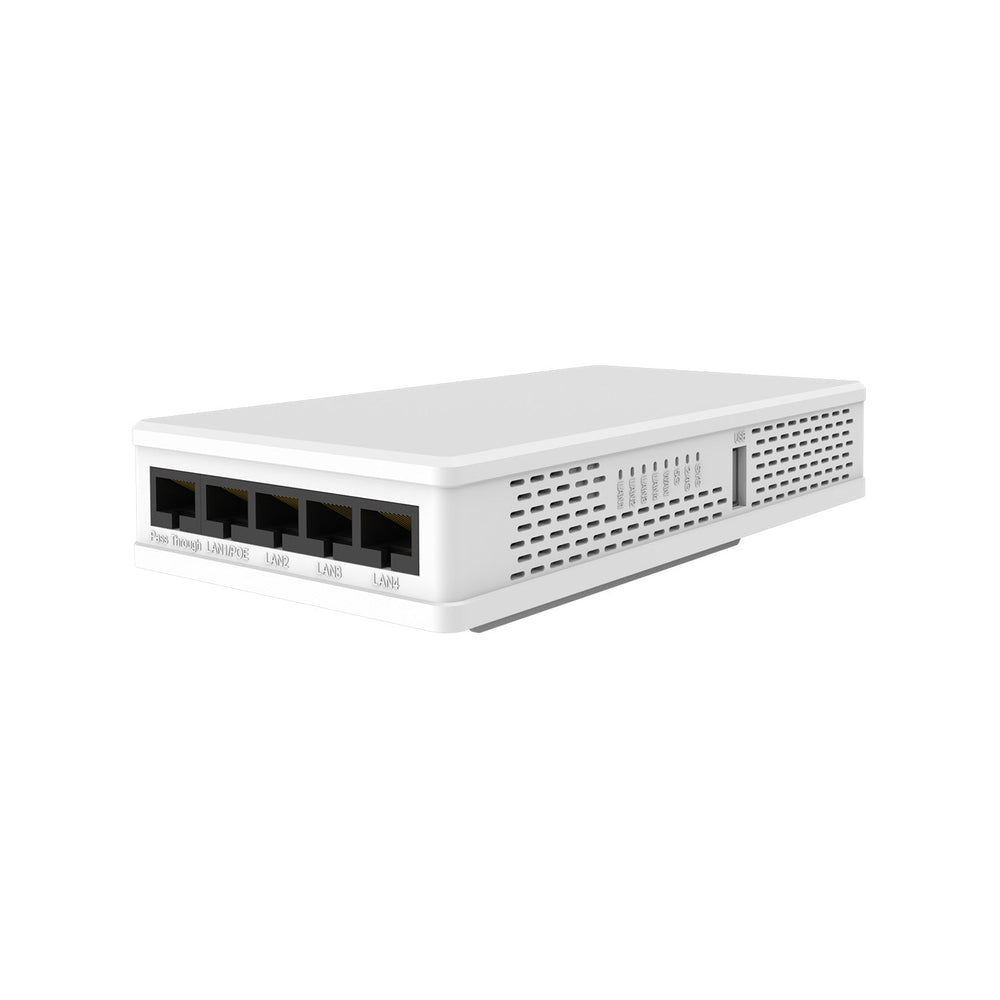

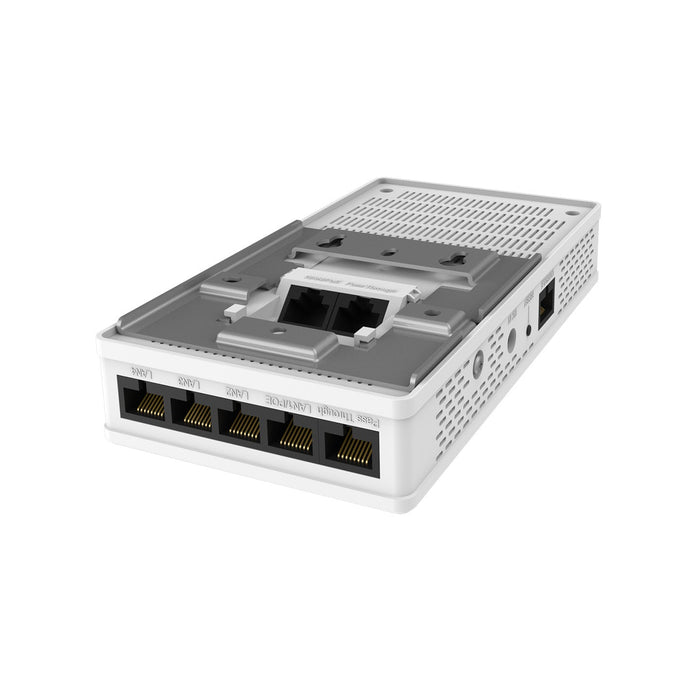

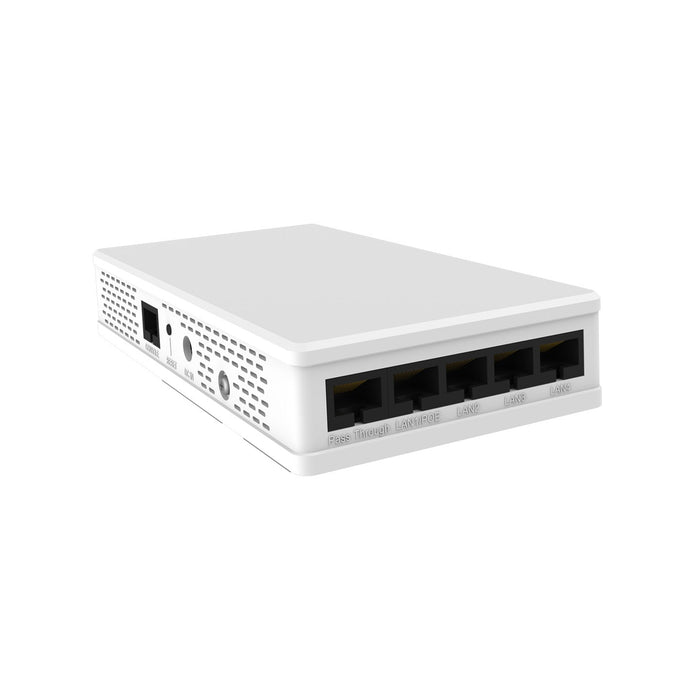

The NS FAP655 is a commercial-grade WiFi 6 (802.11ax) in-wall access point designed for enterprise and hospitality environments that require high-speed wireless coverage, multiple wired connections, and flexible cable passthrough within a single room.
Delivering AX3000 dual-band wireless performance, the FAP655 integrates four Gigabit LAN ports, a Gigabit uplink, and dual pass-through ports into a large 86×160 mm wall-mounted form factor. Supporting up to 128 concurrent devices, it is ideal for hotels, hospitals, dormitories, offices, and other room-based deployments with dense wired and wireless demands.
Overview
Highlights
-
Commercial-Grade WiFi 6 Performance
Delivers AX3000 dual-band throughput with OFDMA and MU-MIMO, ensuring stable and efficient connectivity in high-density indoor environments. -

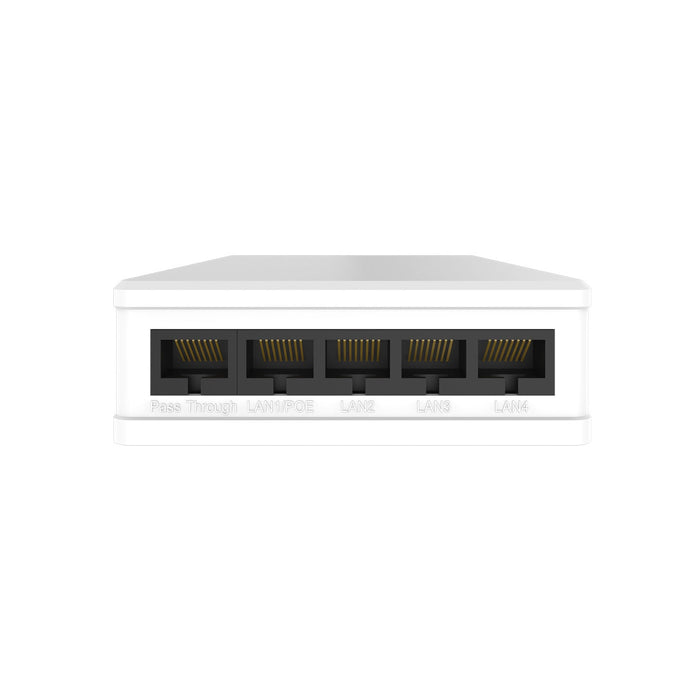

Integrated Multi-Port Wired Access
Provides 1× Gigabit uplink port and 4× Gigabit downlink ports, supporting IP phones, TVs, PCs, printers, and other wired endpoints. -

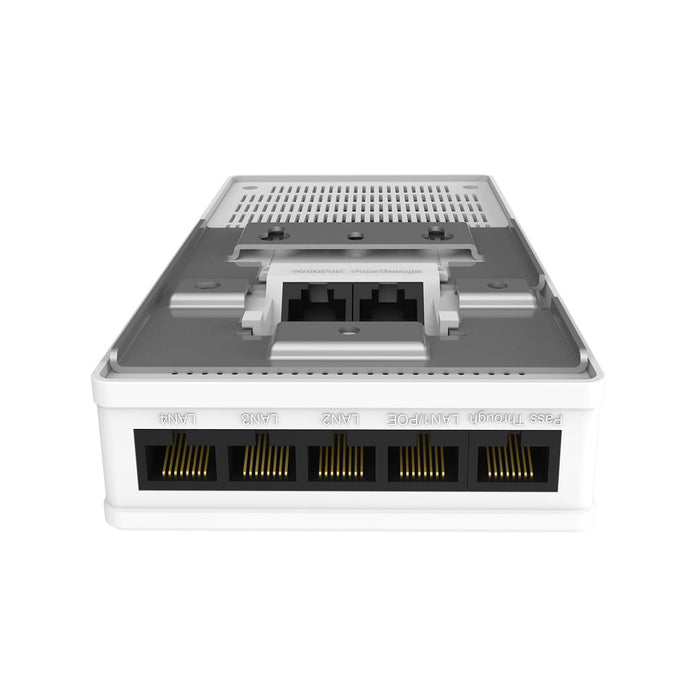

Dual Pass-Through Interfaces
Includes 1 pair of pass-through ports, allowing existing cables or services to pass through the wall box without additional junctions. -

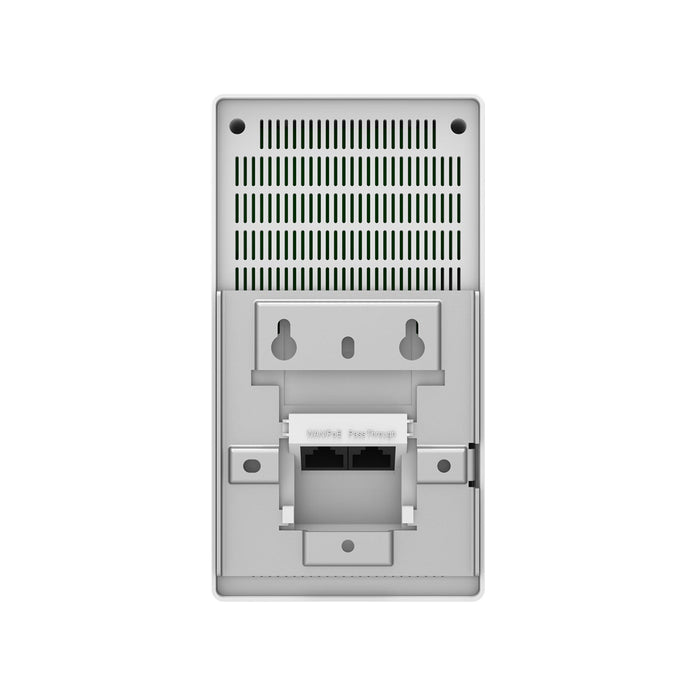

Large 86×160 mm In-Wall Design
Designed for 86×160 mm wall-mounted boxes, ideal for hospitality and enterprise installations with centralized weak-current wiring. -
PoE-Powered Simplified Deployment
Supports standard PoE power supply, enabling power and data transmission over a single Ethernet cable. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS FAP655 | NS FAP834 | H3C EWP-WA5650 | Huawei AirEngine 5762-12W |
|---|---|---|---|---|
| Wi-Fi Standard | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) | WiFi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| Ethernet Ports | 1×GE Uplink + 4×GE LAN | 1×GE WAN + 4×GE LAN | 1×GE + 4×GE | 1×GE + 4×GE |
| Pass-Through Ports | Yes (1 pair) | No | Optional | Optional |
| Panel Size | 86×160 mm | 86×86 mm | Large in-wall | Large in-wall |
| Max Concurrent Devices | 128 | 128 | 128 | 128 |
| Power Supply | PoE | PoE | PoE | PoE |
| Typical Positioning | Room AP with passthrough | Compact multi-port AP | Enterprise room AP | Enterprise room AP |
Positioning Summary:
-
FAP655: AX3000 large-format in-wall AP with multi-port wired access and pass-through support.
-
FAP834: Compact AX3000 multi-port in-wall AP for standard 86 mm boxes.
-
H3C / Huawei: Comparable enterprise-grade in-wall APs for hospitality and commercial deployments.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (WiFi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× internal omnidirectional antennas |
| Maximum Concurrent Devices | 128 |
| Ethernet Interfaces | 1×Gigabit uplink, 4×Gigabit LAN |
| Pass-Through Ports | 1 pair |
| Power Supply | Standard PoE |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Installation | In-wall (86×160 mm wall box) |
| Dimensions | 160 × 86 × 29 mm |
| Application Scenarios | Hotels, hospitals, dormitories, offices, enterprise rooms |
