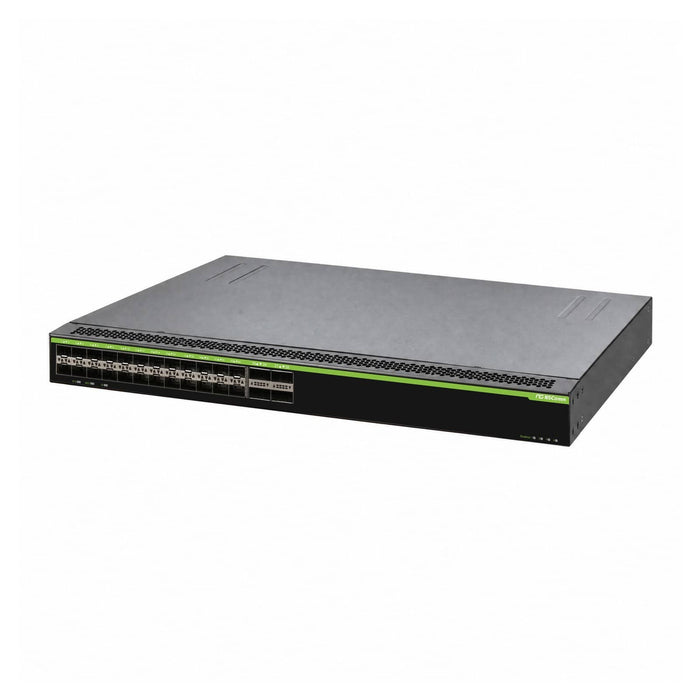

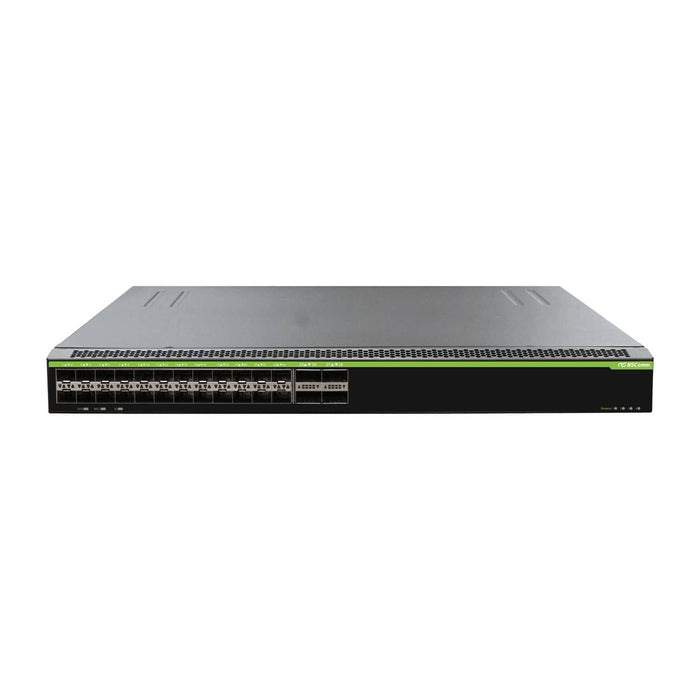

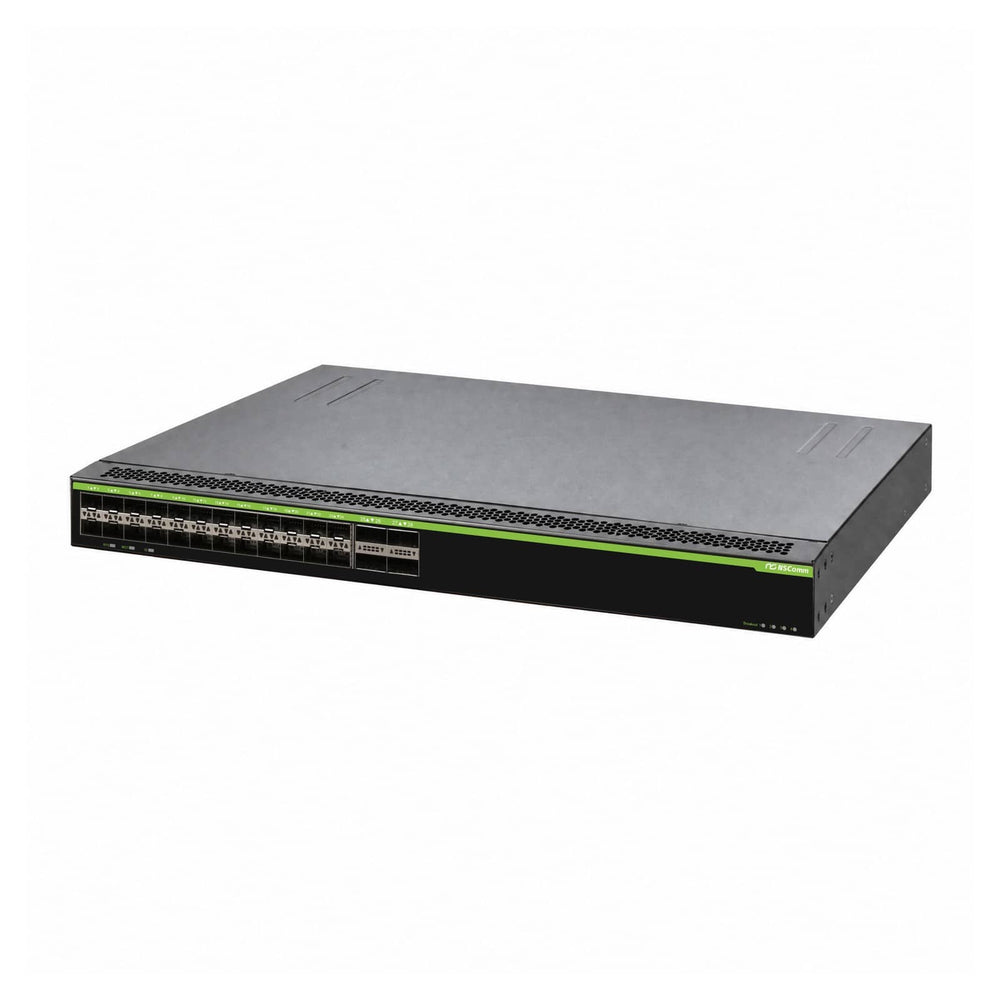

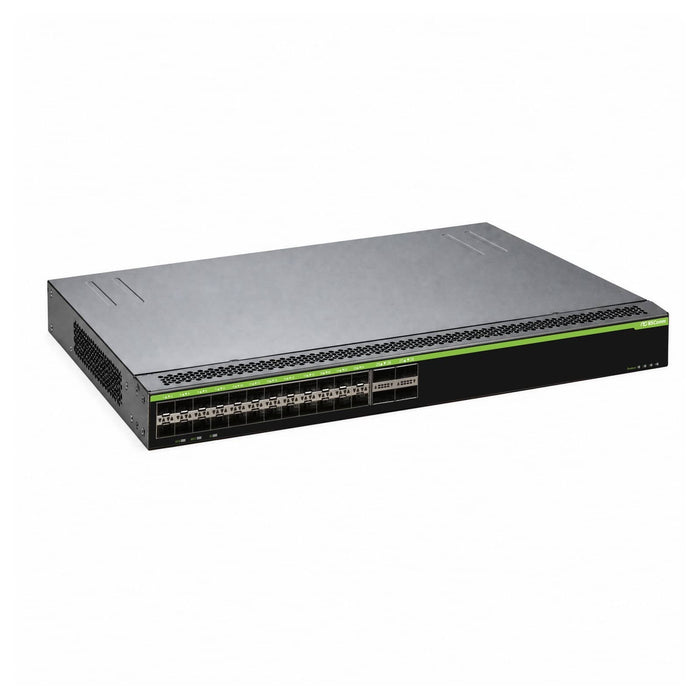

NSComm E680-24Y4C 24-Port 25G Data Center Leaf Switch with 100G Uplinks
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NSComm E680-24Y4C 24 x 25GE SFP28 + 4 x 100GE QSFP28 L2/L3 Managed Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm E680-24Y4C is a high-performance Layer 2/Layer 3 managed Ethernet switch designed for 25GE top-of-rack access and 100GE aggregation. It combines 24 x 25GE SFP28 with 4 x 100GE QSFP28 in a compact 1U platform.
Powered by a Dual-core ARM A53 processor with 2GB memory, 8GB flash, and a 36MB packet buffer, it delivers 2 Tbps switching capacity, 1488 Mpps forwarding performance, and 700 ns latency.
Core Highlights
- Access ports: 24 x 25GE SFP28
- High-speed uplinks: 4 x 100GE QSFP28
- Performance: 2 Tbps switching and 1488 Mpps forwarding
- Management: RJ45 console, out-of-band Ethernet, in-band management, and USB
- Resilience: Dual hot-swappable AC or DC power and 4 pluggable fans
- PoE: None
Application Scenarios
- 25GE top-of-rack access and 100GE aggregation
- Enterprise, metro, data-center, and HCI aggregation
- High-bandwidth optical access with redundant power and cooling
Comparison with Similar Models
| Model | Ports | PoE | Uplink | Platform | Best For |
|---|---|---|---|---|---|
| NSComm E680-24Y4C | 24 x 25GE SFP28 | None | 4 x 100GE QSFP28 | NSComm L2/L3 | 25GE top-of-rack access and 100GE aggregation |
| Cisco N9K-C93180YC-FX3 | 48 x 1/10/25GE SFP28 | None | 6 x 40/100GE QSFP28 | Cisco Nexus | Data-center leaf and spine fabrics |
| Huawei S6750-H48Y8C | 48 x 1/10/25GE SFP28 | None | 8 x 40/100GE QSFP28 | Huawei CloudEngine | Campus core and high-density aggregation |
Specifications
| Ports | 24 x 25GE SFP28 | Optical access |
| Uplinks | 4 x 100GE QSFP28 | 100GE aggregation |
| Switching Capacity | 2 Tbps | Non-blocking performance |
| Throughput | 1488 Mpps | Wire-speed forwarding |
| Packet Buffer | 36MB | Burst traffic handling |
| CPU | Dual-core ARM A53 | Control-plane processing |
| Memory / Flash | 2GB / 8GB | System resources |
| Latency | 700 ns | Low-latency forwarding |
| Power | 95W typical / 130W max | Redundant power input |
| Dimensions | 4.4 x 44.2 x 45.1 cm | 1U rack deployment |
| Device Weight | 8.35 kg | Including two PSUs |
| Operating Temperature | 0 to 45 degrees C | Enterprise environment |
Why Choose NSComm E680-24Y4C?
- High-density optical access with 100GE aggregation
- Layer 2/Layer 3 management for scalable network design
- Dual pluggable power supplies and intelligent fan modules
- Compact 1U platform for TOR, enterprise, metro, and HCI deployments
