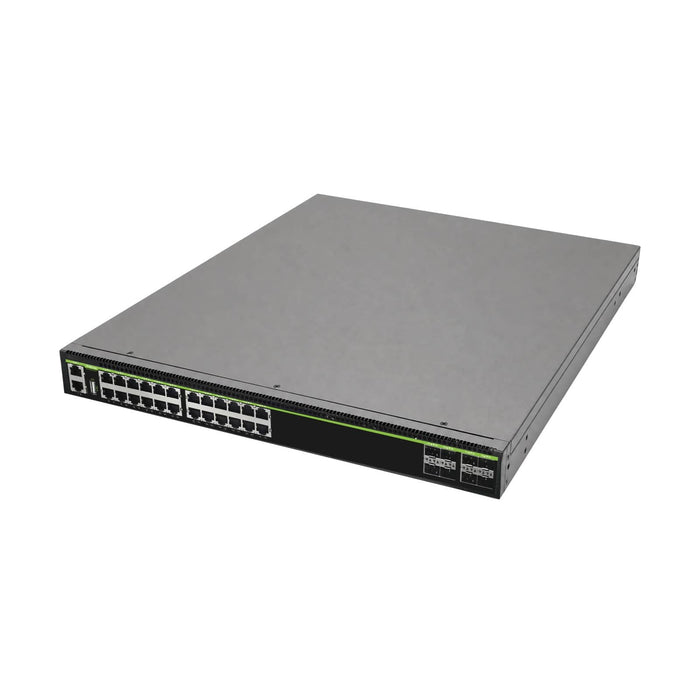

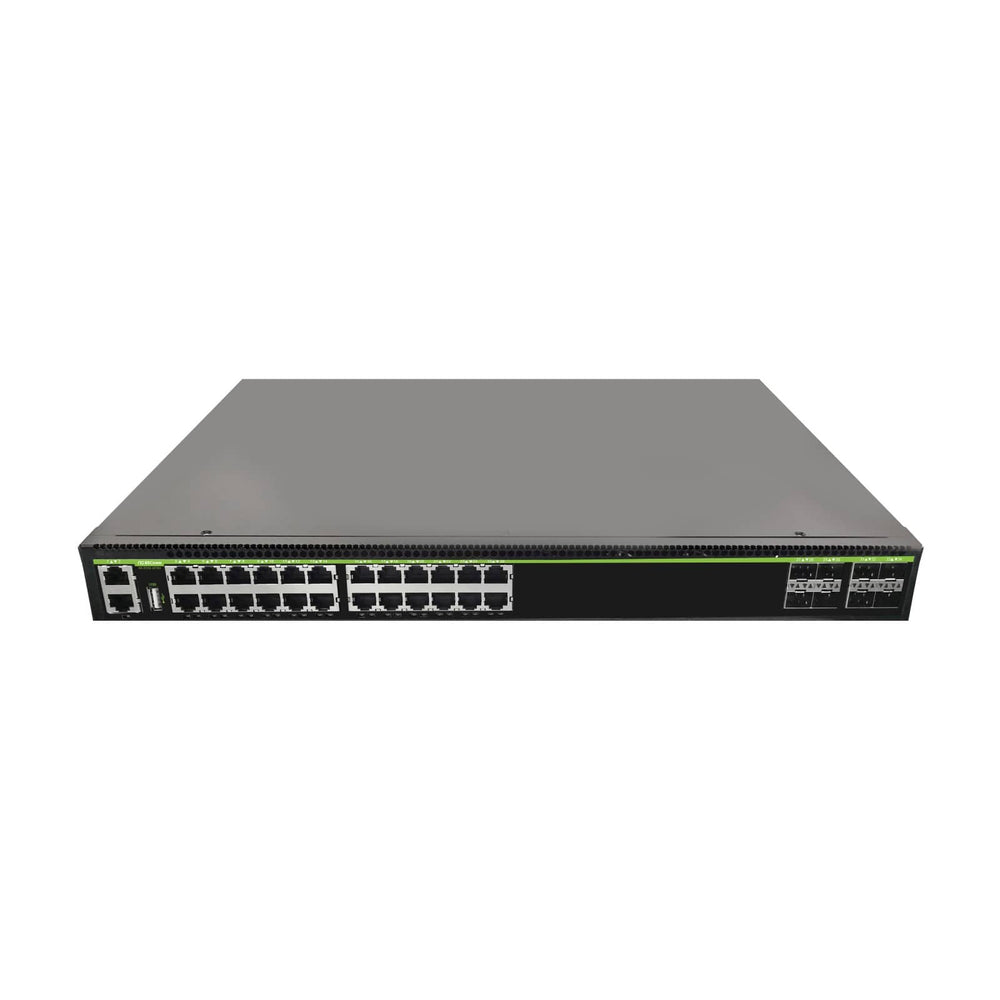

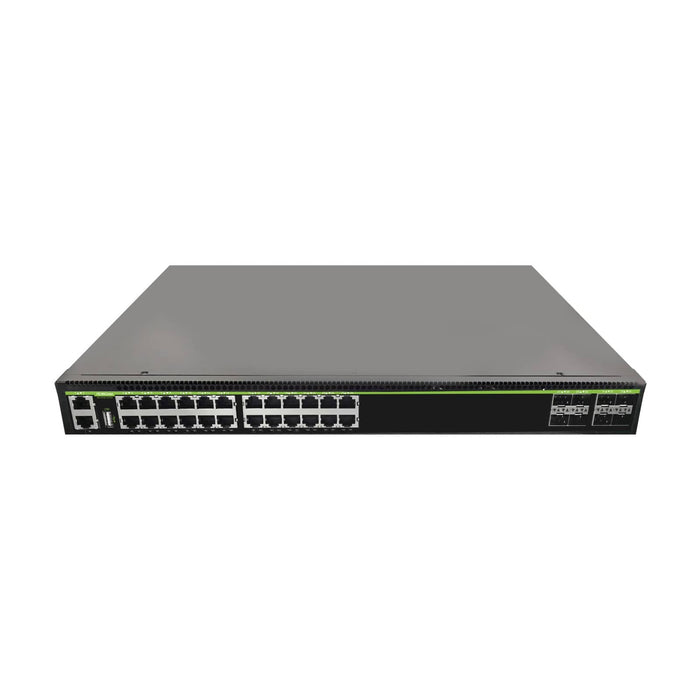

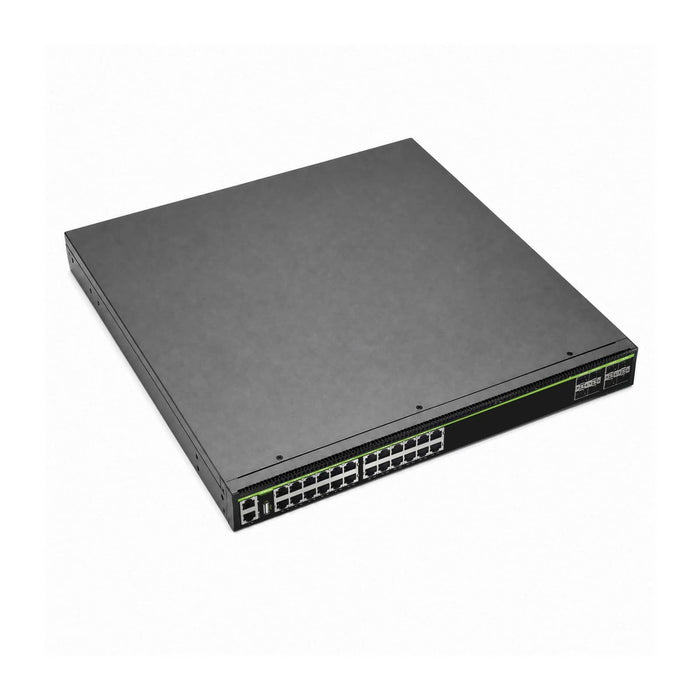

NSComm E530-24P6Y 24-Port PoE+ Campus Access Switch with 25G Uplinks
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NSComm E530-24P6Y 24 x 1GE PoE+ RJ45 + 6 x 25GE SFP28 L2/L3 Managed Switch
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm E530-24P6Y is a high-performance Layer 2/Layer 3 managed Ethernet switch designed for Wi-Fi, surveillance, branch, and enterprise PoE access. It combines 24 x 1GE PoE+ RJ45 with 6 x 25GE SFP28 in a compact 1U platform.
Powered by a dual-core ARM A53 SoC with 1GB memory, 8GB eMMC flash, and a 9MB packet buffer, it delivers 348 Gbps switching capacity, 258.91 Mpps forwarding performance, and 660 ns latency.
Core Highlights
- Access ports: 24 x 1GE PoE+ RJ45
- High-speed uplinks: 6 x 25GE SFP28
- Performance: 348 Gbps switching and 258.91 Mpps forwarding
- Management: RJ45 console, out-of-band Ethernet, in-band management, and USB
- Architecture: 1U rack-mount design with store-and-forward and cut-through switching
- PoE: 802.3af/at, 360W
Application Scenarios
- Wi-Fi, surveillance, branch, and enterprise PoE access
- Enterprise campus, branch, metro, or HCI deployments
- High-bandwidth access and aggregation with resilient management
Comparison with Similar Models
| Model | Ports | PoE | Uplink | Platform | Best For |
|---|---|---|---|---|---|
| NSComm E530-24P6Y | 24 x 1GE PoE+ RJ45 | 802.3af/at, 360W | 6 x 25GE SFP28 | NSComm L2/L3 | Wi-Fi, surveillance, branch, and enterprise PoE access |
| Cisco C9300-24P-A | 24 x 1GE PoE+ | PoE+ | Modular uplinks | Cisco Catalyst | Enterprise PoE access |
| Huawei S5735-S48P4X | 48 x 1GE PoE+ | PoE+ | 4 x 10GE SFP+ | Huawei CloudEngine | High-density PoE access |
Specifications
| Ports | 24 x 1GE PoE+ RJ45 | Primary access connectivity |
| Uplinks | 6 x 25GE SFP28 | High-speed aggregation |
| Switching Capacity | 348 Gbps | Non-blocking switching performance |
| Throughput | 258.91 Mpps | Packet forwarding rate |
| Packet Buffer | 9MB | Burst traffic handling |
| CPU | Dual-core ARM A53 SoC | Control-plane processing |
| Memory / Flash | 1GB / 8GB eMMC | System resources |
| Latency | 660 ns | Low-latency forwarding |
| Power | 360W PoE budget | Power requirement |
| Dimensions | 4.4 x 44.2 x 40.5 cm | 1U rack deployment |
| Device Weight | 7.969 kg | Hardware weight |
| Operating Temperature | 0 to 45 degrees C | Enterprise environment |
Why Choose NSComm E530-24P6Y?
- Flexible high-speed access and aggregation interfaces
- Layer 2/Layer 3 management for scalable network design
- Dedicated console, out-of-band, in-band, and USB management
- Compact 1U form factor for enterprise, metro, and HCI deployments
More Details
