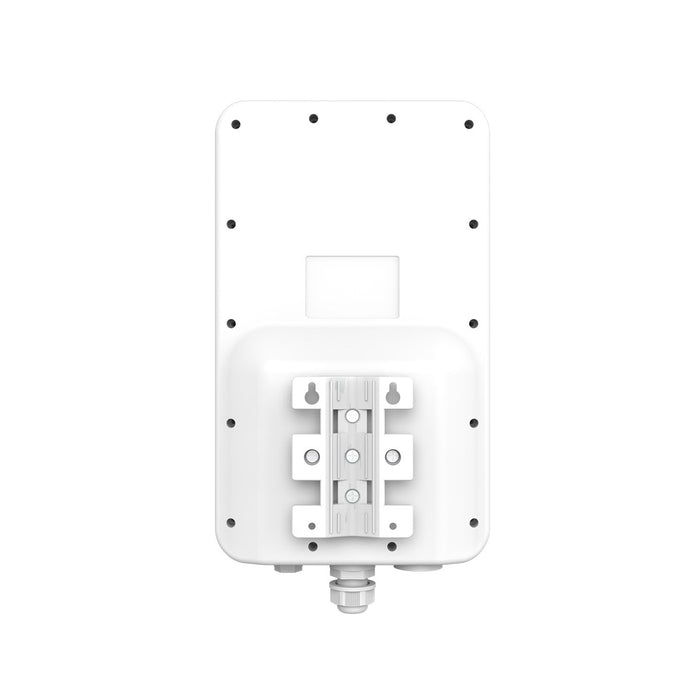

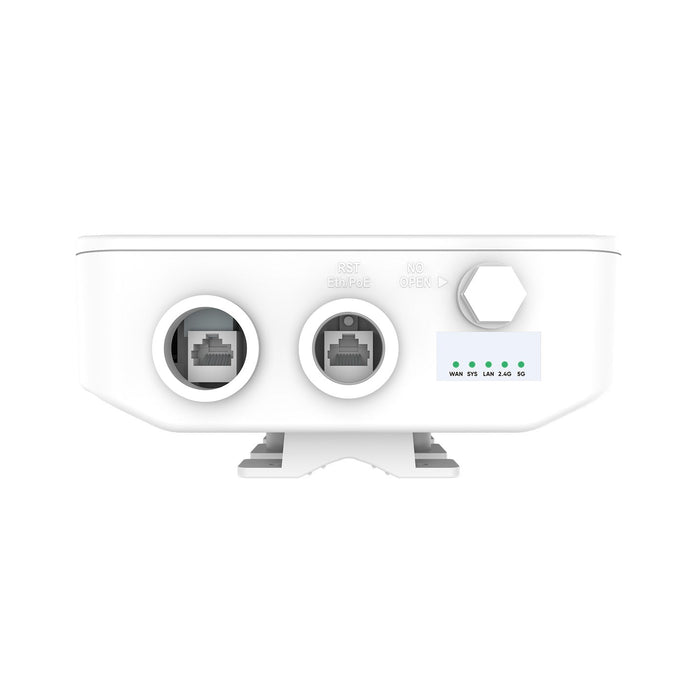

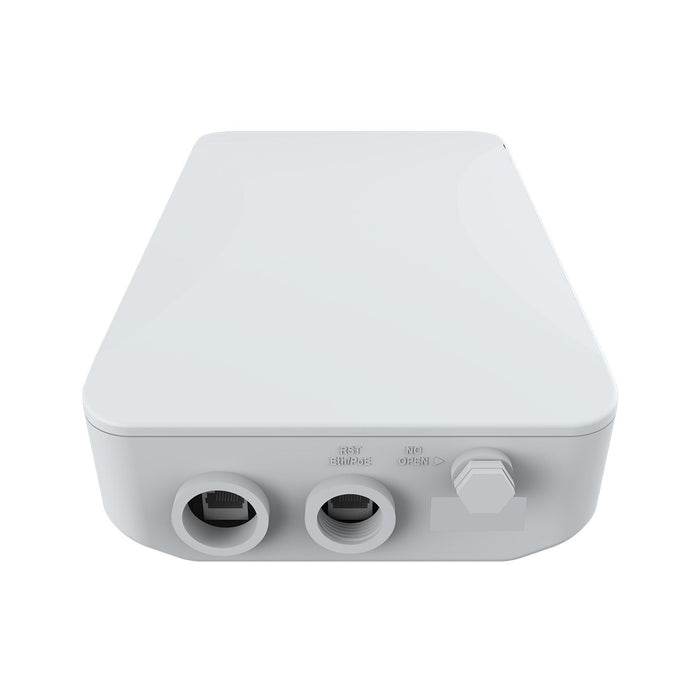

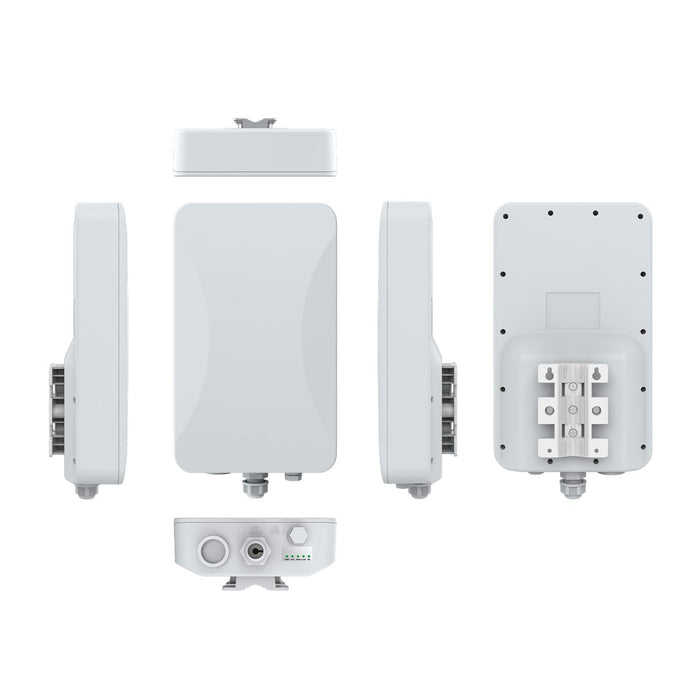

NSComm AX-HQ830-P5 WiFi 6 AX3000 Dual-Band Outdoor Access Point with 2.5G PoE
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- NS AX-HQ830-P5 WiFi 6 AX3000 Outdoor Access Point
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The NS AX-HQ830-P5 is a WiFi 6 (802.11ax) dual-band outdoor access point designed for enterprise and industrial wireless coverage in challenging outdoor environments.
Delivering AX3000 dual-band wireless performance, the AX-HQ830-P5 features a 2.5 Gbps uplink, rugged IP67-rated UV-resistant enclosure, and integrated lightning and surge protection. With a coverage radius of up to 60 meters and support for 128 concurrent users, it is ideal for campuses, parks, industrial sites, warehouses, and outdoor corridors.
Overview
Highlights
-
High-Performance Outdoor WiFi 6 Connectivity
Provides AX3000 dual-band throughput with OFDMA and MU-MIMO, delivering efficient and stable wireless access for outdoor users. -
Integrated High-Gain Omnidirectional Antennas
Built-in 360° omnidirectional antenna system ensures consistent signal coverage across open outdoor areas. -
Multi-Gigabit Backhaul Capability
Equipped with a 2.5 Gbps Ethernet uplink and an additional Gigabit LAN port to eliminate wired bottlenecks in outdoor deployments. -
Rugged IP67 Outdoor Design
UV-resistant enclosure with IP67 protection ensures reliable operation in rain, dust, heat, and harsh environmental conditions. -
Advanced Protection & Reliability
Features independent lightning and surge protection to safeguard equipment and network stability in outdoor installations. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS AX-HQ830-P5 | NS AX-HQ830-P2 | H3C WA6638-Outdoor | Huawei AirEngine 6761-Outdoor |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) | Wi-Fi 6 (802.11ax) |
| Wireless Rate | AX3000 | AX3000 | AX3000 | AX3000 |
| MIMO | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 | 2×2 + 2×2 |
| Uplink Interface | 1×2.5G + 1×GE | 1×GE | 1×2.5G | 1×Multi-GE |
| Outdoor Protection | IP67 | IP67 | IP67 | IP67 |
| Coverage Design | 360° omnidirectional | 360° omnidirectional | Omnidirectional | Omnidirectional |
| Max Concurrent Clients | 128 | 128 | 128 | 128 |
| Typical Positioning | High-power AX3000 outdoor AP | Entry outdoor AP | Enterprise outdoor AP | Enterprise outdoor AP |
Positioning Summary:
-
AX-HQ830-P5: AX3000 outdoor AP with 2.5G uplink and enhanced protection, designed for modern enterprise outdoor networks.
-
AX-HQ830-P2: Cost-effective outdoor WiFi 6 coverage with Gigabit uplink.
-
H3C / Huawei: Comparable enterprise outdoor APs focused on large-scale controller-based deployments.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11ax (Wi-Fi 6) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | AX3000 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4 built-in omnidirectional antennas, 360° coverage |
| Coverage Radius | Up to 60 m (typical outdoor environment) |
| Maximum Concurrent Clients | 128 |
| Ethernet Interfaces | 1×2.5 Gbps Ethernet, 1×Gigabit Ethernet |
| Power Supply | 48 V PoE (802.3at) |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Protection Rating | IP67, UV-resistant enclosure |

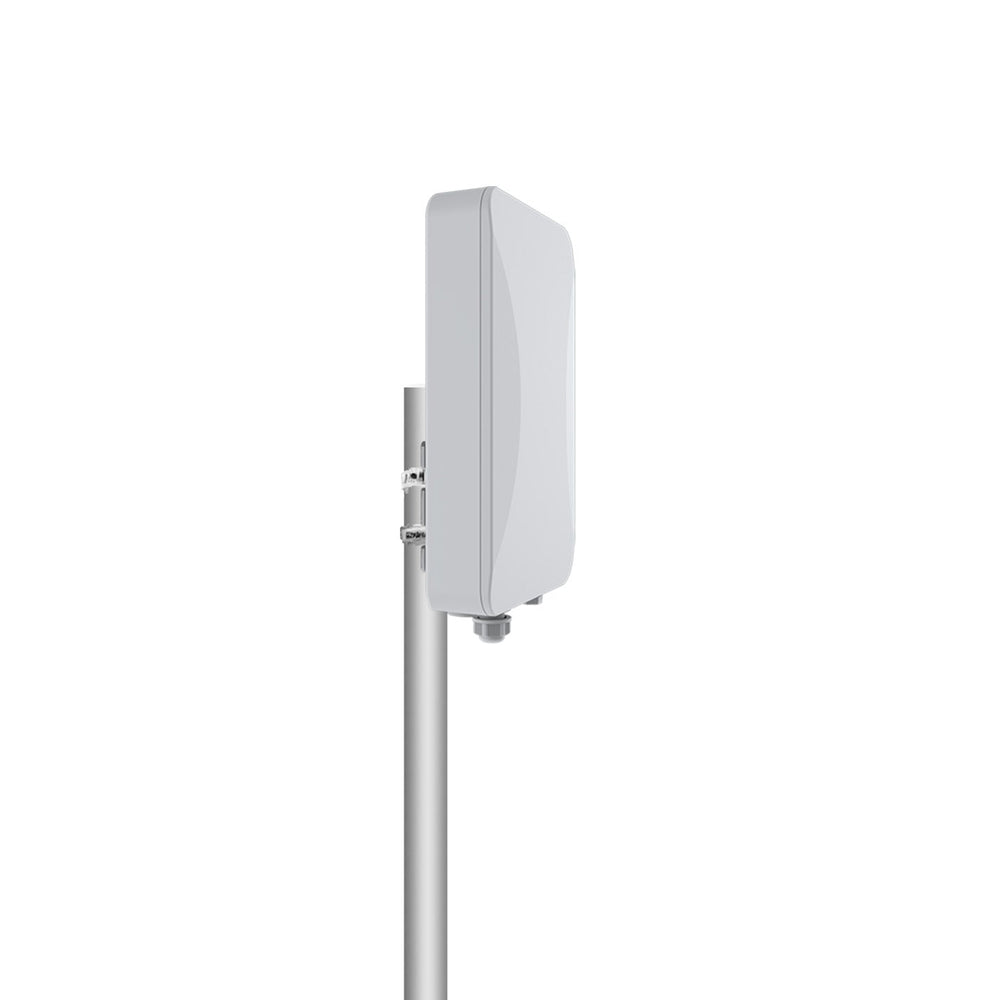

| Installation | Pole-mounted or wall-mounted |
| Dimensions | 304 × 181 × 88 mm |
| Application Scenarios | Campuses, parks, factories, warehouses, outdoor corridors |
