- NS APH6-BE3600 WiFi 7 BE3600 Outdoor High-Power Access Point
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
The NS APH6-BE3600 is a WiFi 7 (802.11be) dual-band outdoor high-power access point designed for long-range enterprise and industrial wireless coverage where extended distance, flexible antenna deployment, and rugged protection are required.
Delivering up to 3.6 Gbps of dual-band wireless throughput, the APH6-BE3600 features external high-gain omnidirectional antennas, a 2.5 Gbps Ethernet uplink, optional SFP fiber expansion, and an IP67-rated enclosure. With a coverage radius of up to 150 meters and support for 128 concurrent clients, it is ideal for campuses, industrial parks, logistics yards, ports, and outdoor public spaces.
Overview
Highlights
-
High-Power WiFi 7 Outdoor Performance
Built on the WiFi 7 (802.11be) standard, delivering higher efficiency, lower latency, and improved multi-user performance for outdoor enterprise networks. -
Extended Coverage with External Antennas
Equipped with 4 external fiberglass omnidirectional antennas, providing wide-area coverage with a typical outdoor radius of up to 150 meters. -
2.5G Multi-Gigabit Backhaul with Fiber Option
Includes a 2.5 Gbps Ethernet port and a Gigabit Ethernet port, with optional SFP fiber expansion for flexible backhaul in large outdoor deployments. -
Industrial-Grade IP67 Protection
UV-resistant plastic housing with IP67 rating ensures stable operation in rain, dust, heat, and harsh outdoor environments. -
Dedicated Lightning & Surge Protection
Designed with independent lightning and surge protection to ensure reliable operation in elevated and exposed outdoor installations. -
Enterprise WLAN Features & Cloud Management
Supports VLAN, adjustable transmit power, seamless roaming, unified Fat/Thin AP modes, and centralized cloud management.
Comparison with Similar Models
| Feature | NS APH6-BE3600 | NS BE-HQ830 | H3C WA7xxx-Outdoor | Huawei AirEngine 6776-Outdoor |
|---|---|---|---|---|
| Wi-Fi Standard | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) | Wi-Fi 7 (802.11be) |
| Wireless Rate | BE3600 | BE3600 | BE3600 | BE3600 |
| Antenna Type | External omnidirectional | Internal omnidirectional | External / Internal | External / Internal |
| Coverage Radius | Up to 150 m | Up to 100 m | ~100-150 m | ~100-150 m |
| Uplink Interface | 1×2.5G + 1×GE (SFP optional) | 1×2.5G + 1×GE | 1×2.5G | 1×Multi-GE |
| Outdoor Protection | IP67 | IP67 | IP67 | IP67 |
| Max Concurrent Clients | 128 | 128 | 128 | 128 |
| Typical Positioning | Long-range outdoor AP | Mainstream outdoor AP | Enterprise outdoor AP | Enterprise outdoor AP |
Positioning Summary:
-
APH6-BE3600: Wi-Fi 7 outdoor AP optimized for long-distance coverage and flexible antenna deployment.
-
BE-HQ830: Compact Wi-Fi 7 outdoor AP with integrated antennas for standard coverage areas.
-
H3C / Huawei: Comparable enterprise outdoor Wi-Fi 7 APs focused on controller-based large-scale networks.
Specifications
| Parameter | Specification |
|---|---|
| Wi-Fi Standard | IEEE 802.11be (Wi-Fi 7) |
| Frequency Bands | 2.4 GHz + 5 GHz |
| Maximum Data Rate | BE3600 |
| MIMO | 2×2 (2.4 GHz), 2×2 (5 GHz) |
| Antenna Design | 4× external omnidirectional antennas |
| Coverage Radius | Up to 150 m (typical outdoor environment) |
| Maximum Concurrent Clients | 128 |

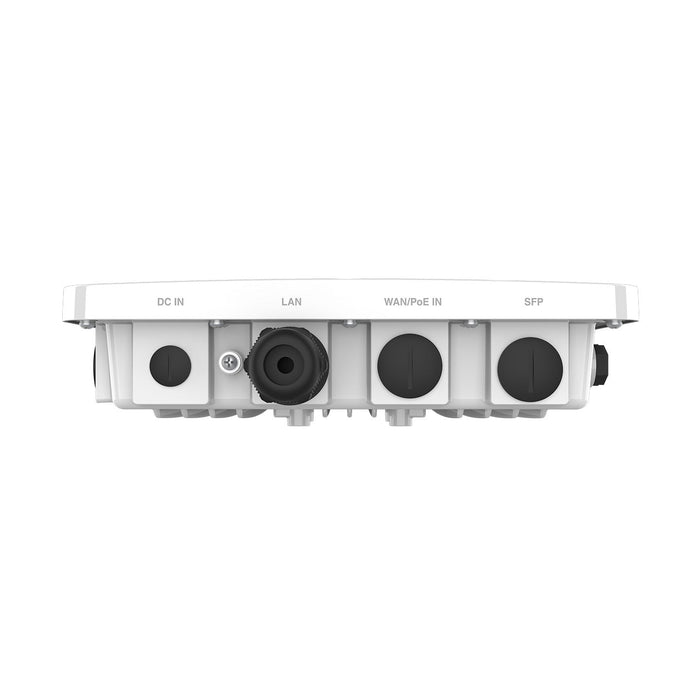

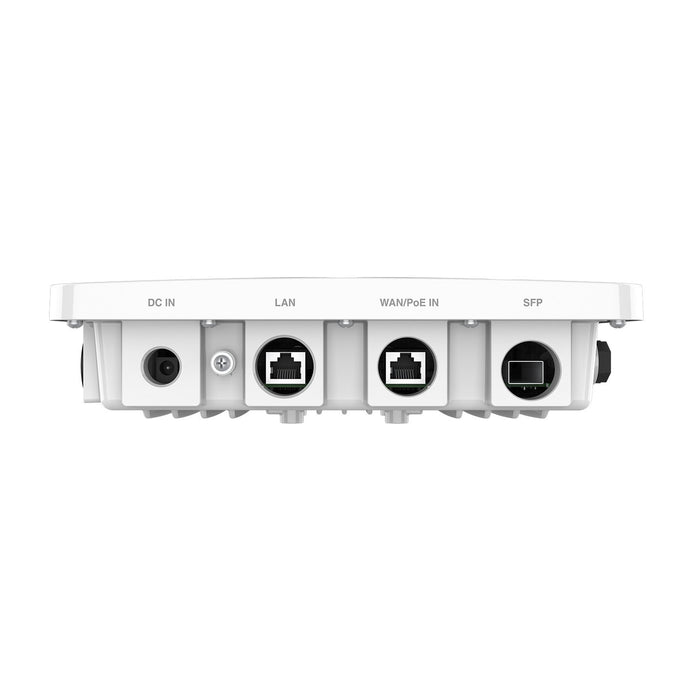

| Ethernet Interfaces | 1×2.5 Gbps Ethernet, 1×Gigabit Ethernet (optional SFP) |
| Power Supply | 48 V PoE (802.3at) |
| Deployment Modes | Fat AP / Thin AP |
| Network Features | VLAN, adjustable TX power, seamless roaming |
| Management | Cloud management platform |
| Protection Rating | IP67, UV-resistant enclosure |

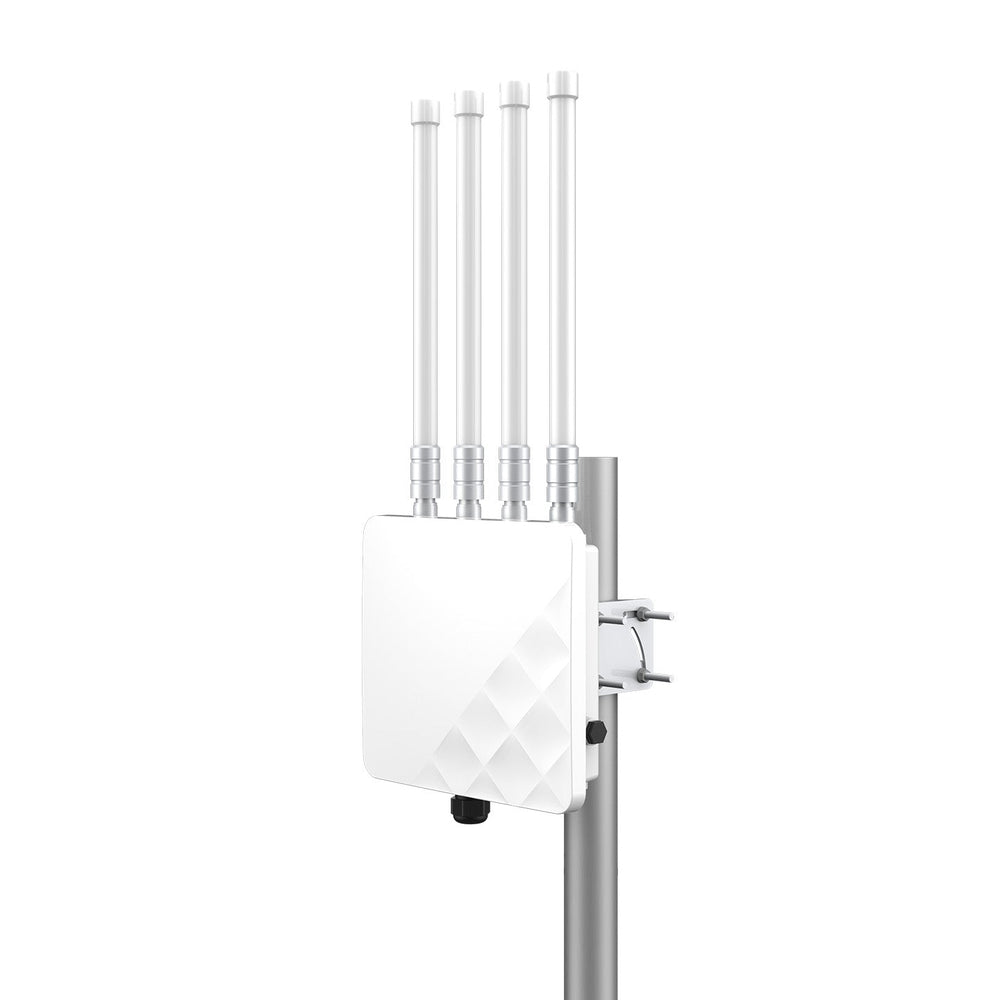

| Installation | Pole-mounted or wall-mounted |
| Application Scenarios | Campuses, industrial parks, logistics zones, outdoor public areas |
