- 40G QSFP+ to 4×10G SFP+ Direct Attach Copper Cable (DAC), Passive, up to 7 m (23 ft)
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview

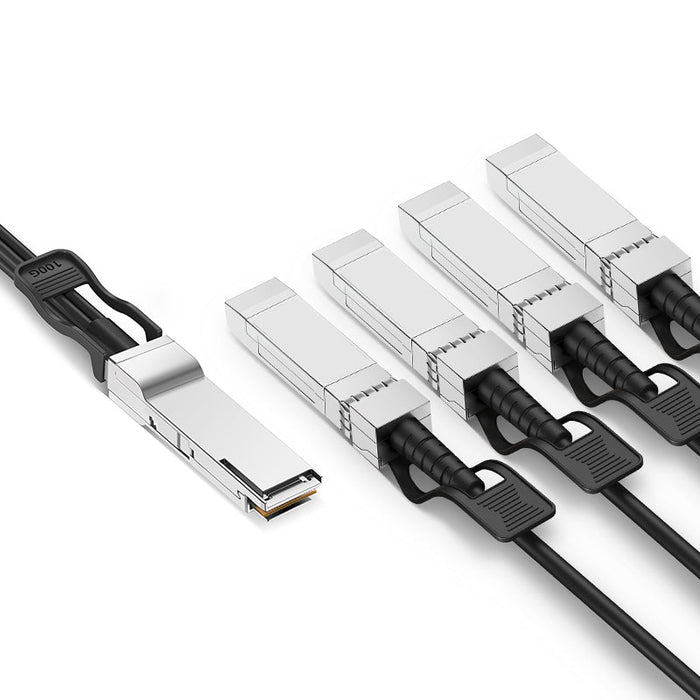

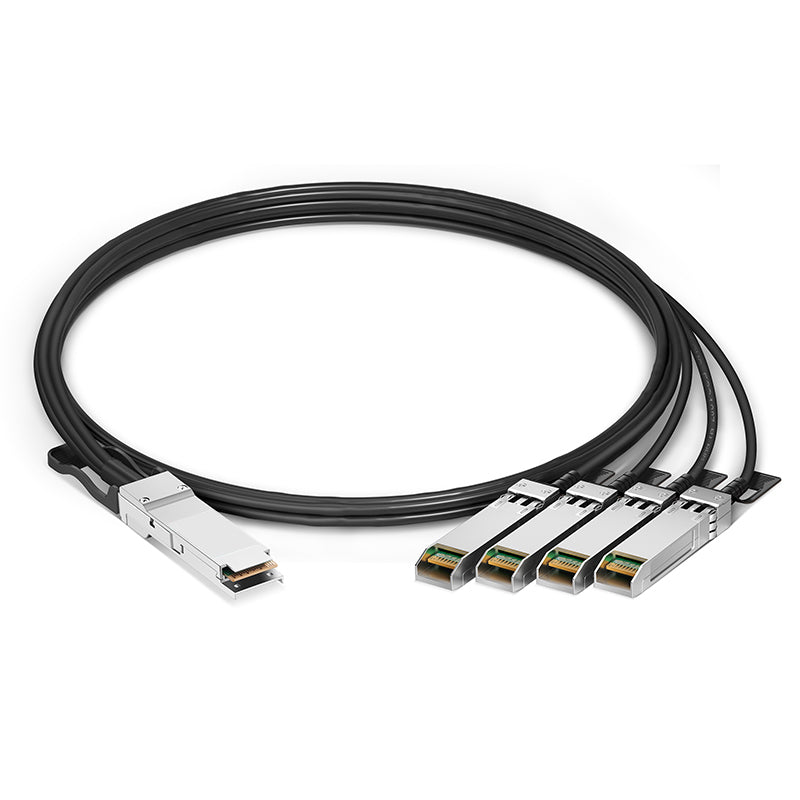

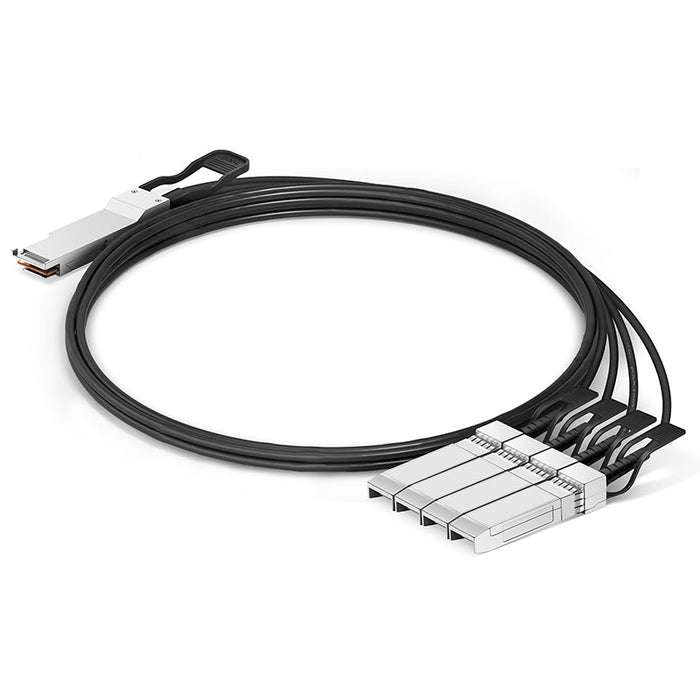

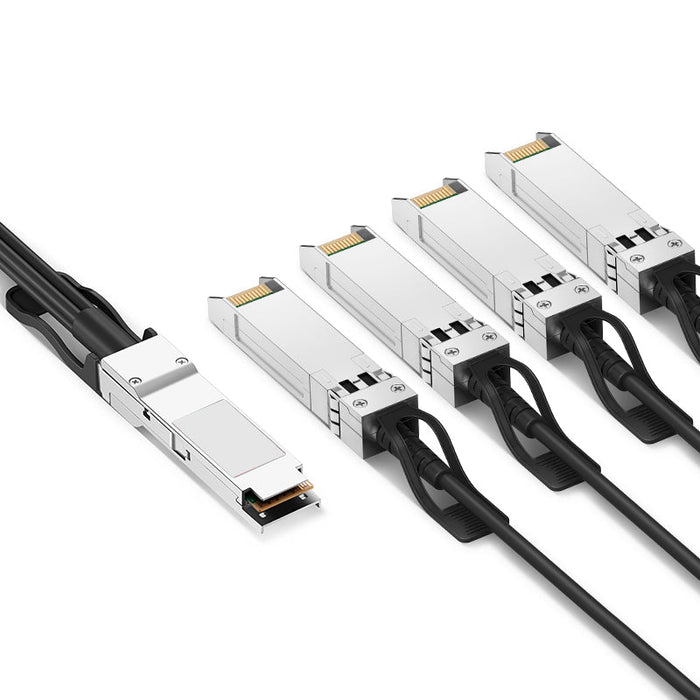

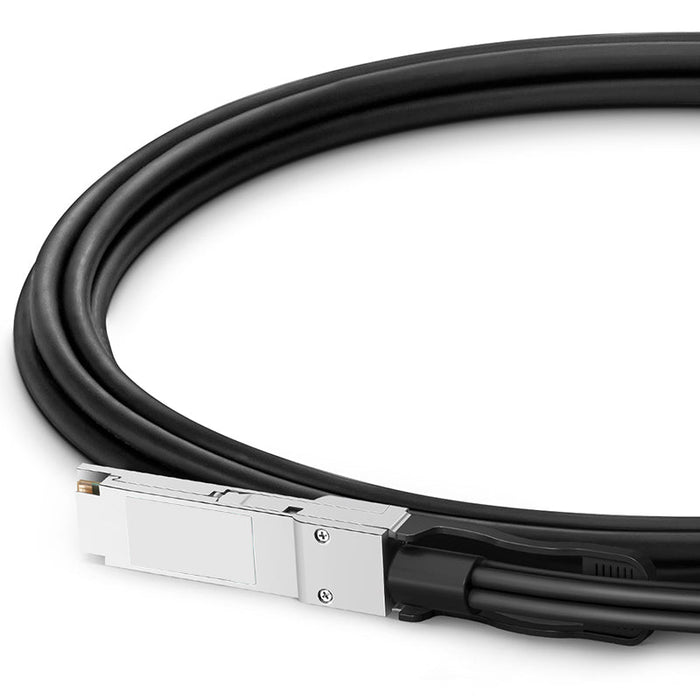

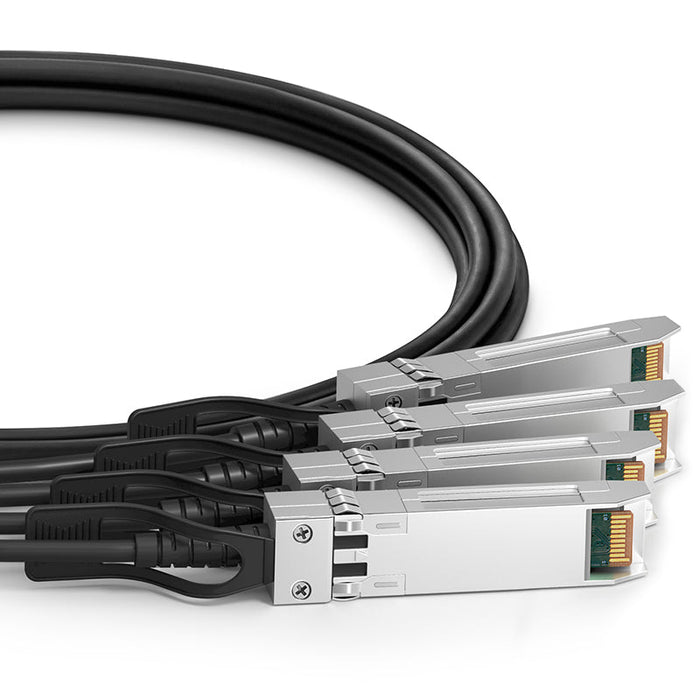

The NSComm 40G QSFP+ to 4×10G SFP+ Direct Attach Copper Cable (DAC) is a breakout copper interconnect designed for short-reach 40 Gigabit Ethernet to 4×10 Gigabit Ethernet connections.
With one QSFP+ connector on one end and four SFP+ connectors on the other, it enables seamless 40G-to-10G port breakout for top-of-rack (ToR) or middle-of-row (MoR) deployments.
Constructed with twinax copper cable, this DAC provides ultra-low latency and a cost-effective alternative to optical transceivers. The passive version supports lengths up to 7 m (23 ft), consuming virtually no power. Active versions extend reach to up to 10 m (33 ft) while keeping power consumption below 1.5 W.
Compatible Brands
The NSComm 40G QSFP+ to 4×10G SFP+ DAC is compatible with switches and servers from Cisco, Huawei, Juniper, Arista, Dell, Intel, and Extreme.
Need help confirming compatibility with your exact model? [Contact Us Now] for direct assistance.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 40G QSFP+ to 4×10G SFP+ Direct Attach Copper Cable (DAC) |
| Data Rate | 40 Gbps (4×10 Gbps breakout) |
| Cable Type | Twinax Copper, Passive/Active |
| Max Cable Distance | Passive: up to 7 m (23 ft); Active: up to 10 m (33 ft) |
| Conductor AWG Options | 30 AWG (≤ 3 m), 26 AWG (≤ 5 m), 24 AWG (≤ 7–10 m) |
| Connector Type | 1× QSFP+ to 4× SFP+ |
| Power Consumption | Passive ≈ 0 W, Active ≤ 1.5 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP+ MSA (SFF-8436), SFP+ MSA (SFF-8431/8432), IEEE 802.3ba, RoHS |
| Applications | 40G-to-10G breakout links, server-to-switch uplinks, aggregation nodes |
Why Choose NSComm 40G Breakout DAC?
-
Breakout efficiency: Maps one 40G port into four 10G channels.
-
Ultra-low latency: Direct copper design, no optical conversion.
-
Cost-effective: Cheaper than optical breakout modules + patch cords.
-
Flexible length options: Passive up to 7 m (23 ft); active up to 10 m (33 ft).
-
Wide compatibility: Tested across all major switch and server platforms.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft), 5 m (16 ft), 7 m (23 ft)
Extended (active) lengths:
10 m (33 ft)
