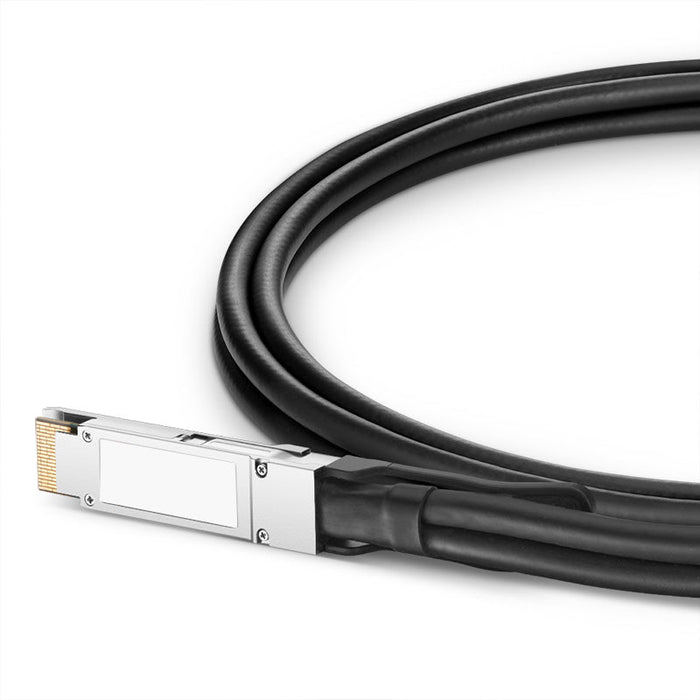

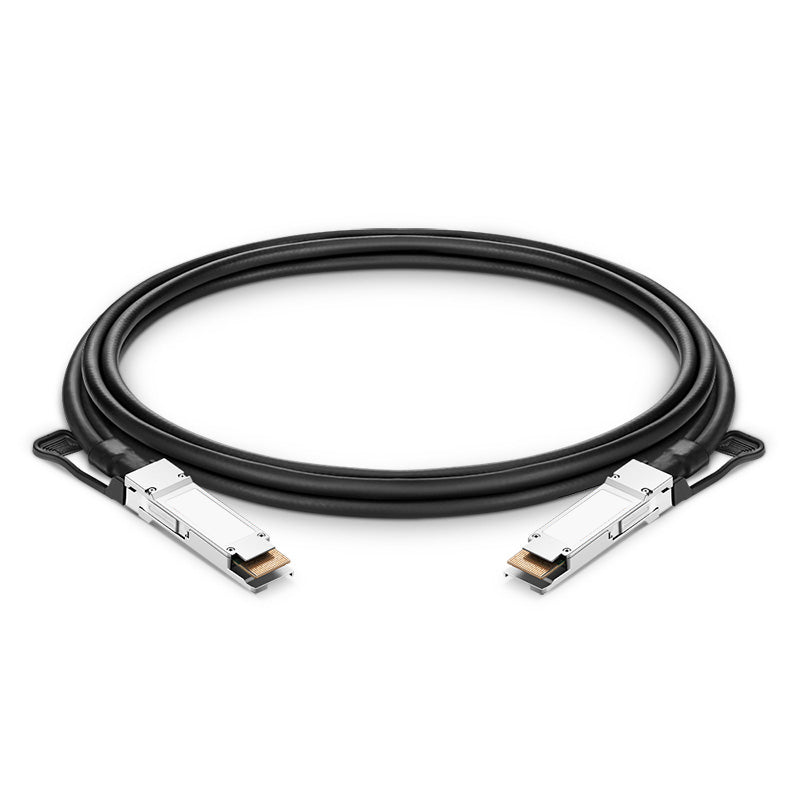

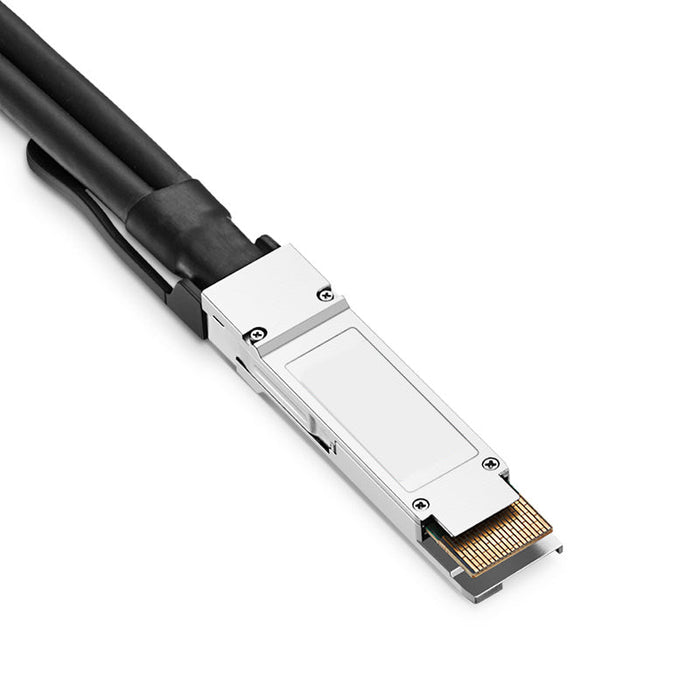

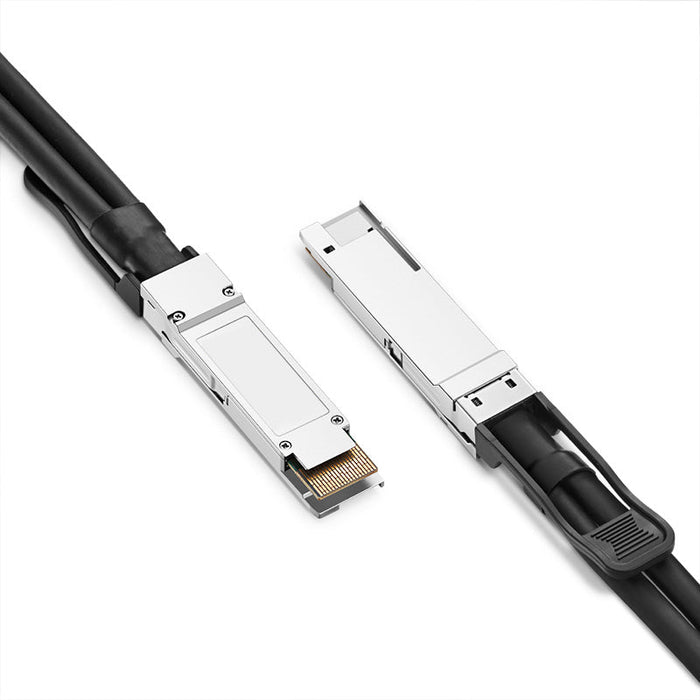

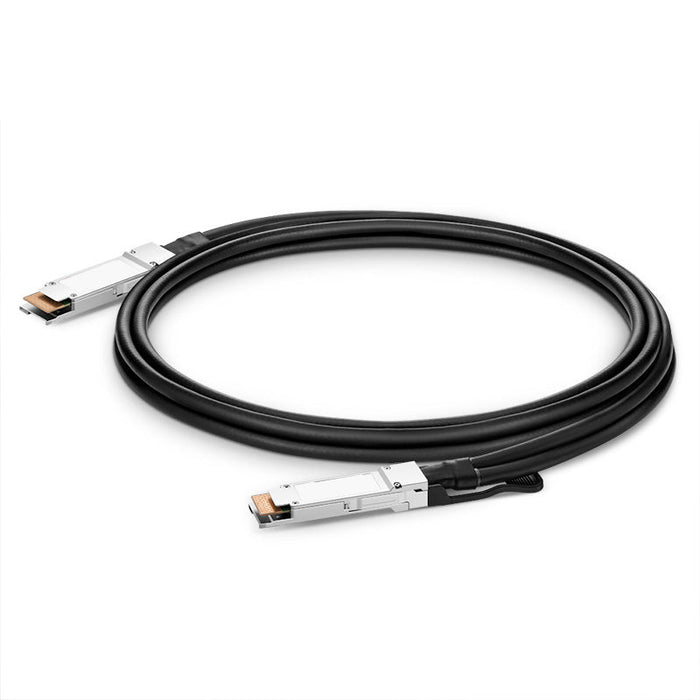

NSComm 400G PAM4 QSFP-DD to QSFP-DD Direct Attach PVC Copper Cable, up to 3m
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- 400G PAM4 QSFP-DD to QSFP-DD Direct Attach Copper Cable (DAC), PVC, Passive, up to 3 m (10 ft)
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm 400G PAM4 QSFP-DD to QSFP-DD Direct Attach Copper Cable (DAC) is a cost-effective, ultra-low latency solution for 400 Gigabit Ethernet short-reach interconnects in hyperscale data centers and high-performance computing clusters. Built with twinax copper cable and a durable PVC jacket, it delivers 400 Gbps of bandwidth across 8×50 Gbps PAM4 lanes, making it ideal for top-of-rack (ToR) and middle-of-row (MoR) deployments.
The passive DAC supports lengths up to 3 m (10 ft) with negligible power draw, while active DACs extend reach up to 5 m (16 ft) at ≤ 4 W per end. This design ensures excellent EMI immunity, consistent latency, and significant cost savings compared to optical transceivers.
Compatible Brands
The NSComm 400G QSFP-DD DAC is validated for compatibility with devices from Cisco, Huawei, Juniper, Arista, Dell and Nvidia.
Need help confirming compatibility with your hardware? [Contact Us Now] for tailored support.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 400G PAM4 QSFP-DD to QSFP-DD Direct Attach Copper Cable (DAC) |
| Data Rate | 400 Gbps (8×50 Gbps PAM4 lanes) |
| Cable Type | Twinax Copper, PVC Jacket, Passive/Active |
| Max Cable Distance | Passive: up to 3 m (10 ft); Active: up to 5 m (16 ft) |
| Conductor AWG Options | 30 AWG (≤ 2 m), 26 AWG (≤ 3 m), 24 AWG (active ≤ 5 m) |
| Connector Type | QSFP-DD to QSFP-DD |
| Power Consumption | Passive ≈ 0 W, Active ≤ 4 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP-DD MSA (SFF-8679), IEEE 802.3bs, RoHS |
| Applications | 400G switch-to-switch, server uplinks, spine-leaf aggregation |
Why Choose NS 400G QSFP-DD DAC?
-
Ultra-high bandwidth: 400 Gbps across 8×50 Gbps PAM4 lanes.
-
Cost-effective: Lower cost than optical transceivers and AOCs.
-
Ultra-low latency: Direct copper path with no optical conversion.
-
Energy efficiency: Passive consumes no power; active ≤ 4 W.
-
Broad compatibility: Tested with all major switch and server vendors.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft)
Extended (active) lengths:
5 m (16 ft)
