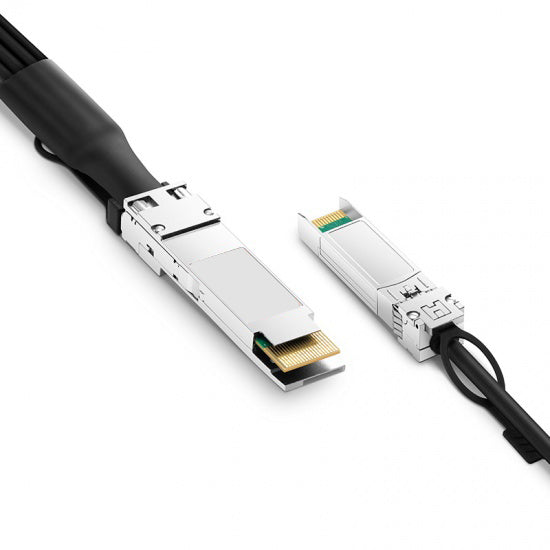

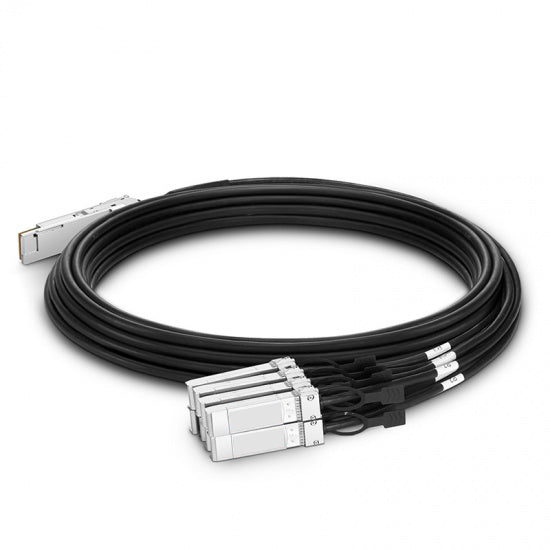

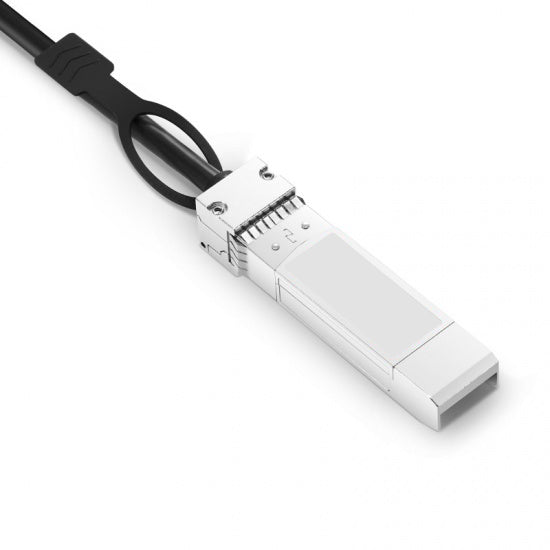

NSComm 400G PAM4 QSFP-DD to 8x50G SFP56 Direct Attach PVC Copper Cable, up to 3m
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- 400G PAM4 QSFP-DD to 8×50G SFP56 Direct Attach Copper Cable (DAC), PVC, Passive, up to 3 m (10 ft)
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm 400G PAM4 QSFP-DD to 8×50G SFP56 Direct Attach Copper Cable (DAC) is a high-density breakout copper solution designed for 400G-to-8×50G Ethernet applications in large-scale data centers, cloud environments, and HPC clusters. With one QSFP-DD connector on one end and eight SFP56 connectors on the other, it enables 400G-to-50G port breakout with unmatched cost efficiency.
Built with twinax copper conductors and a durable PVC jacket, this DAC ensures robust EMI immunity, ultra-low latency, and mechanical flexibility. The passive version supports distances up to 3 m (10 ft) with near-zero power consumption, while active copper versions extend reach up to 5 m (16 ft) consuming ≤ 4 W.
Need to confirm compatibility with your exact switch or NIC? [Contact Us Now] and our engineers will assist you.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 400G PAM4 QSFP-DD to 8×50G SFP56 Direct Attach Copper Cable (DAC) |
| Data Rate | 400 Gbps total, breakout into 8×50 Gbps channels (PAM4) |
| Cable Type | Twinax Copper, PVC Jacket, Passive/Active |
| Max Cable Distance | Passive: up to 3 m (10 ft); Active: up to 5 m (16 ft) |
| Conductor AWG Options | 30 AWG (≤ 2 m), 26 AWG (≤ 3 m), 24 AWG (active ≤ 5 m) |
| Connector Type | 1× QSFP-DD to 8× SFP56 |
| Power Consumption | Passive ≈ 0 W, Active ≤ 4 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP-DD MSA (SFF-8679), SFP56 MSA (SFF-8432), IEEE 802.3cd/bs, RoHS |
| Applications | 400G-to-50G breakout, server uplinks, switch aggregation, NIC-to-switch |
Why Choose NSComm 400G QSFP-DD to 8×50G DAC?
-
High-density breakout: Converts one 400G port into eight 50G channels.
-
Cost-effective: Significant savings over optics and AOCs.
-
Ultra-low latency: Direct electrical copper path.
-
Energy-efficient: Passive requires no power; active ≤ 4 W.
-
Multi-vendor support: Validated with all major networking platforms.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft)
Extended (active) lengths:
5 m (16 ft)
