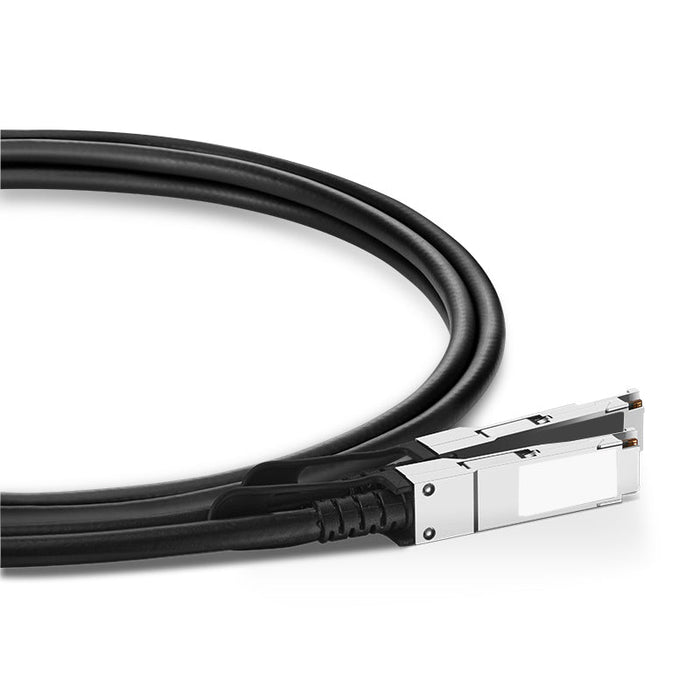

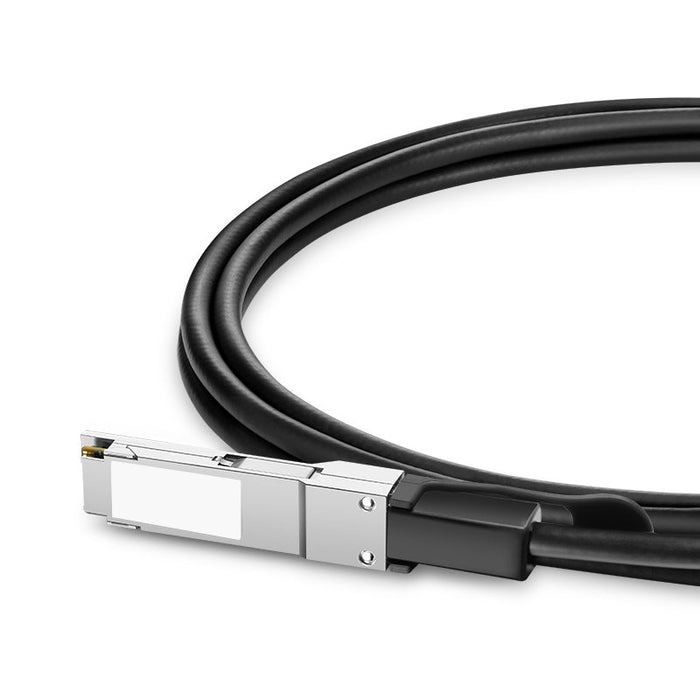

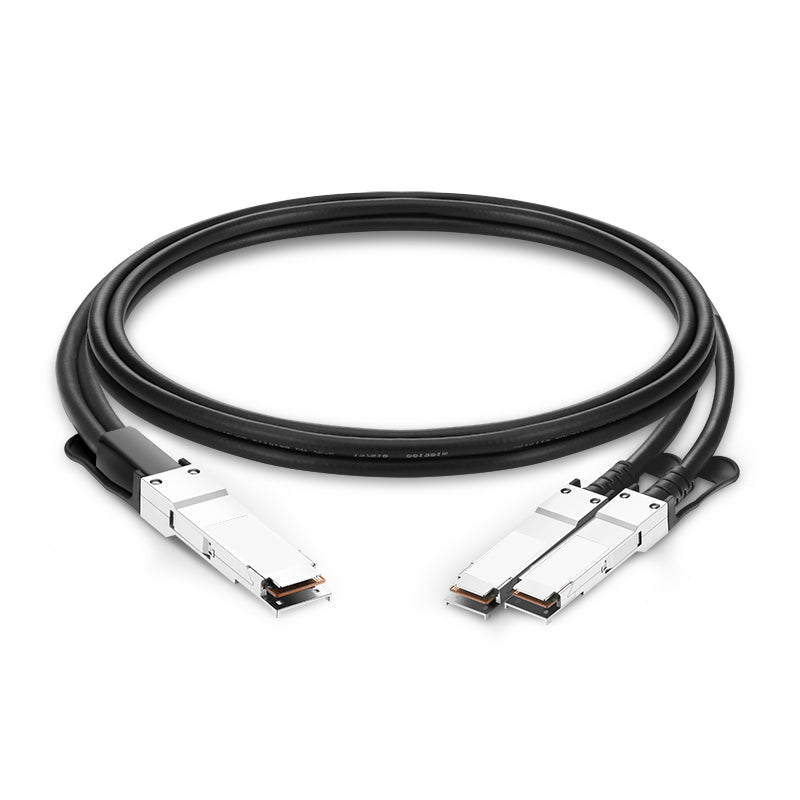

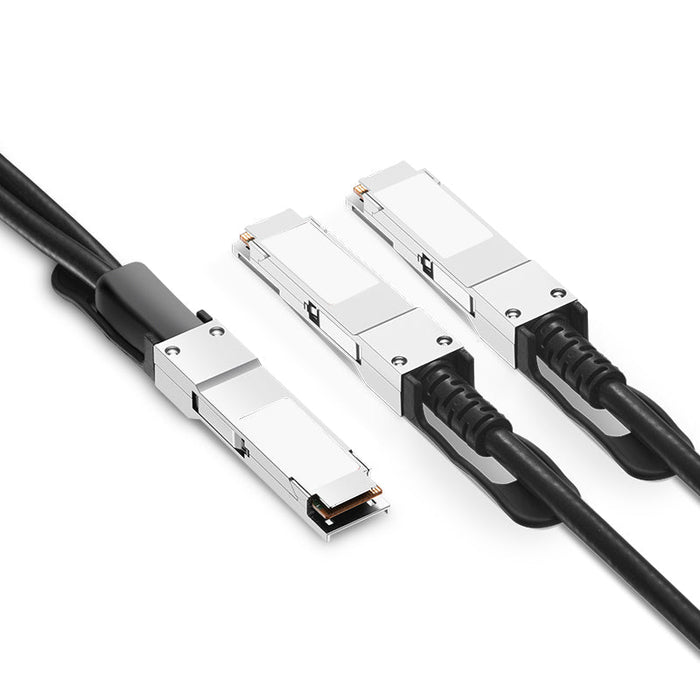

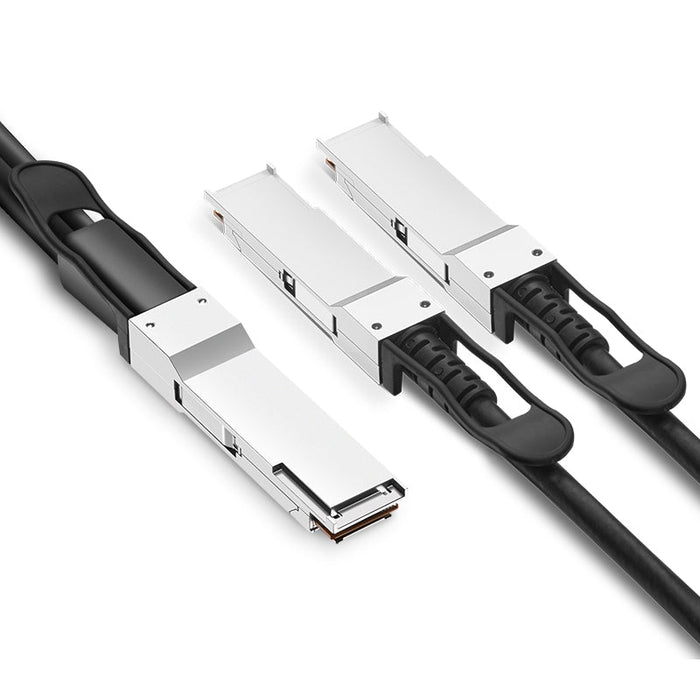

NSComm 400G PAM4 QSFP-DD to 2x200G QSFP56 Direct Attach PVC Copper Cable, up to 3m
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- 400G PAM4 QSFP-DD to 2×200G QSFP56 Direct Attach Copper Cable (DAC), PVC, Passive, up to 3 m (10 ft)
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm 400G PAM4 QSFP-DD to 2×200G QSFP56 Direct Attach Copper Cable (DAC) is a breakout copper interconnect designed for 400G-to-2×200G Ethernet connectivity in large-scale data centers, cloud infrastructures, and HPC environments.
Built with twinax copper cable and a PVC jacket, it offers 400 Gbps aggregate bandwidth split into two 200G channels via 8×50 Gbps PAM4 lanes. The passive version supports lengths up to 3 m (10 ft) with virtually zero power consumption, making it an ideal choice for short-range, in-rack deployments.
For extended reach, active DACs support up to 5 m (16 ft) while consuming ≤ 4 W per end. Its low latency, robust EMI immunity, and cost advantage over optical solutions make it perfect for high-density interconnect applications.
Compatible Brands
The NSComm 400G QSFP-DD to 2×200G QSFP56 DAC is validated to work seamlessly with switches and servers from Juniper, Arista and Dell.
Need assistance verifying compatibility with your equipment? [Contact Us Now] for direct support.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 400G PAM4 QSFP-DD to 2×200G QSFP56 Direct Attach Copper Cable (DAC) |
| Data Rate | 400 Gbps total, breakout into 2×200 Gbps channels (PAM4) |
| Cable Type | Twinax Copper, PVC Jacket, Passive/Active |
| Max Cable Distance | Passive: up to 3 m (10 ft); Active: up to 5 m (16 ft) |
| Conductor AWG Options | 30 AWG (≤ 2 m), 26 AWG (≤ 3 m), 24 AWG (active ≤ 5 m) |
| Connector Type | 1× QSFP-DD to 2× QSFP56 |
| Power Consumption | Passive ≈ 0 W, Active ≤ 4 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP-DD MSA (SFF-8679), QSFP56 MSA (SFF-8665), IEEE 802.3cd/802.3bs, RoHS |
| Applications | 400G-to-200G breakout, aggregation, server-to-switch interconnects |
Why Choose NSComm 400G QSFP-DD to 2×200G DAC?
-
Breakout performance: Splits one 400G port into two 200G channels.
-
Cost-efficient: Cheaper than optical breakout modules and AOCs.
-
Ultra-low latency: Direct copper design with no optical conversion.
-
Energy savings: Passive requires no power; active ≤ 4 W.
-
Broad interoperability: Validated with all leading switch and server vendors.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft)
Extended (active) lengths:
5 m (16 ft)
