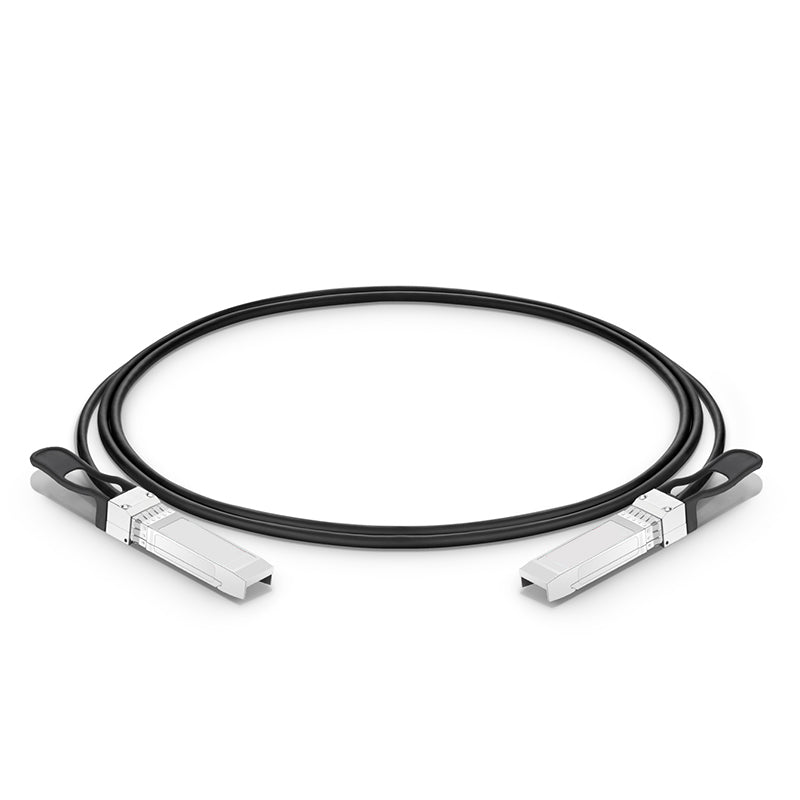

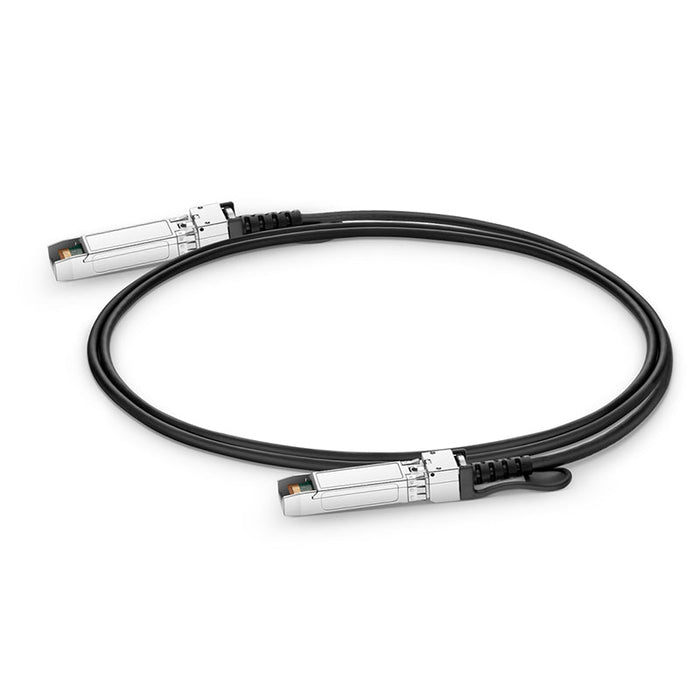

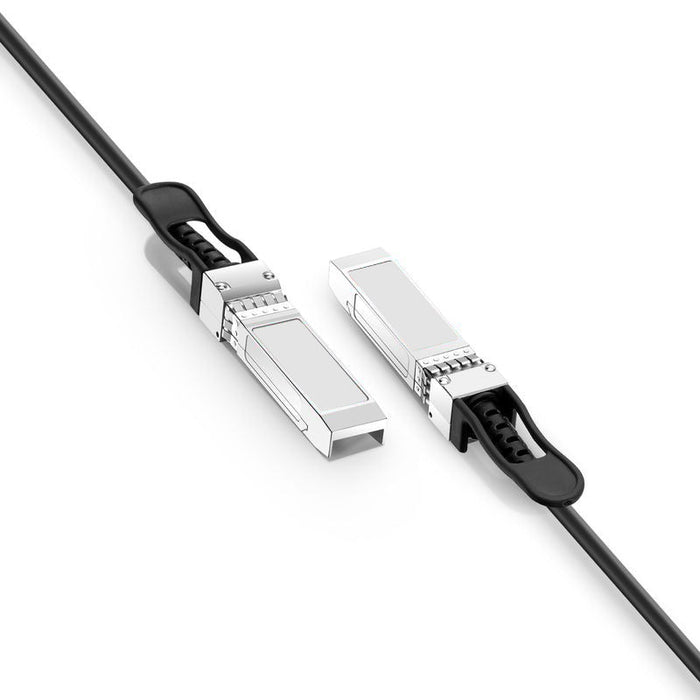

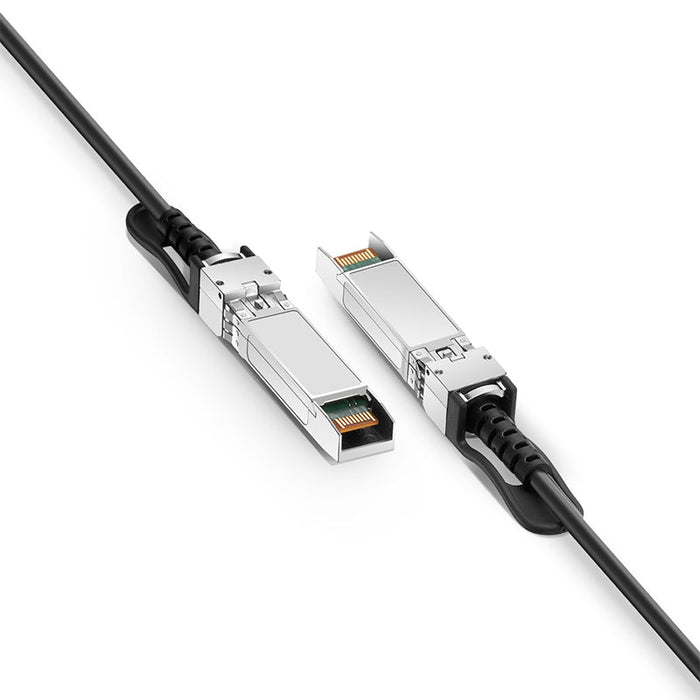

NSComm 200G PAM4 QSFP56 to QSFP56 Direct Attach Copper Cable, PVC, up to 3m
- Compra 100% segura
- Produtos originais com garantia
- Emitimos NFe • Faturamos a prazo p/ empresas
- Impostos inclusos • até 12x sem juros
- Site seguro · SSL
Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil e faturamos a prazo para empresas, com impostos inclusos. Emitimos NFe (nota fiscal eletrônica) e parcelamos em até 12x sem juros no cartão. Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.
- 200G PAM4 QSFP56 to QSFP56 Direct Attach Copper Cable (DAC), Passive, up to 3 m (10 ft)
- Informações e formas de pagamento
- Estabelecemos parcerias com revendas
Overview
The NSComm 200G PAM4 QSFP56 to QSFP56 Direct Attach Copper Cable (DAC) is a high-performance, short-reach interconnect designed for 200 Gigabit Ethernet applications in hyperscale data centers and HPC clusters.
Built with twinax copper cable and factory-terminated QSFP56 connectors, it delivers 200 Gbps bandwidth across 4×50 Gbps PAM4 lanes, offering ultra-low latency and cost-effective performance.
The passive DAC supports lengths up to 3 m (10 ft) with virtually zero power consumption. For deployments requiring longer reach, active DAC options extend distances up to 5 m (16 ft) while consuming less than 2 W. This makes it an ideal choice for top-of-rack (ToR) and middle-of-row (MoR) connectivity where cost and efficiency are critical.
Compatible Brands
The NSComm 200G QSFP56 DAC is interoperability-tested with devices from Cisco, Huawei, Juniper, Arista, Dell and Nvidia.
Need device-specific compatibility support? [Contact Us Now] and our engineers will confirm for you.
Key Specifications
| Specification | Details |
|---|---|
| Vendor Name | NSComm |
| Product Type | 200G PAM4 QSFP56 to QSFP56 Direct Attach Copper Cable (DAC) |
| Data Rate | 200 Gbps (4×50 Gbps PAM4 lanes) |
| Cable Type | Twinax Copper, Passive/Active |
| Max Cable Distance | Passive: up to 3 m (10 ft); Active: up to 5 m (16 ft) |
| Conductor AWG Options | 30 AWG (≤ 2 m), 26 AWG (≤ 3 m), 24 AWG (active ≤ 5 m) |
| Connector Type | QSFP56 to QSFP56 |
| Power Consumption | Passive ≈ 0 W, Active ≤ 2 W |
| Temperature Range | 0 °C to 70 °C |
| Standards Compliance | QSFP56 MSA (SFF-8665), IEEE 802.3cd, RoHS |
| Applications | 200G switch-to-switch, server uplinks, leaf-spine aggregation |
Why Choose NSComm 200G QSFP56 DAC?
-
High-bandwidth breakout: 200 Gbps PAM4 lanes.
-
Ultra-low latency: Direct copper path with no optical conversion.
-
Energy efficient: Passive consumes virtually no power; active ≤ 2 W.
-
Cost-optimized: More economical than optical AOCs or modules.
-
Wide compatibility: Interoperable with all leading network equipment vendors.
Length Options
Standard stocked lengths:
1 m (3 ft), 2 m (7 ft), 3 m (10 ft)
Extended (active) lengths:
5 m (16 ft)
