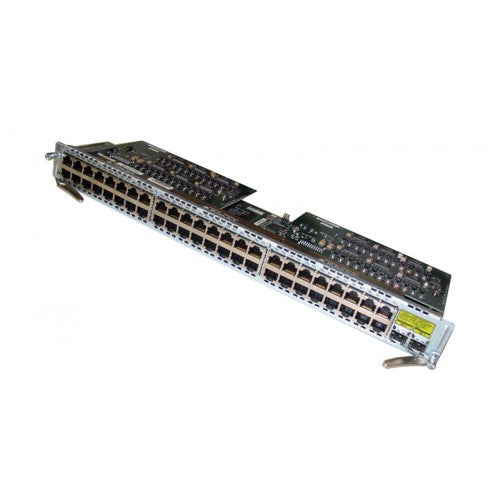

The Cisco NME-XD-48ES-2S-P EtherSwitch Service Module is a high-density Layer 2 switching module designed to extend the networking capabilities of Cisco Integrated Services Routers (ISR). Featuring 48 Fast Ethernet Power over Ethernet (PoE) ports and 2 Gigabit Ethernet SFP uplink slots, this service module delivers scalable LAN connectivity while integrating routing and switching into a single, space-efficient platform for enterprise branch offices.
Built for organizations that require reliable access-layer networking, the Cisco NME-XD-48ES-2S-P enables the deployment of IP phones, wireless access points, IP cameras, and other PoE-enabled devices without the need for separate power sources. Supporting the IEEE 802.3af Power over Ethernet (PoE) standard, it simplifies infrastructure while reducing installation and operational costs.
The module provides up to 17.6 Gbps switching capacity and 13.1 million packets per second (Mpps) forwarding performance, ensuring efficient Layer 2 switching for high-density branch environments. Its 2 Gigabit Ethernet SFP uplink ports provide high-speed fiber connectivity for seamless integration with campus and enterprise backbone networks.
Running on Cisco IOS Software, the Cisco NME-XD-48ES-2S-P supports a comprehensive set of enterprise networking features, including IEEE 802.1Q VLANs, Link Aggregation (LACP), Spanning Tree Protocol (STP, RSTP, MSTP), IGMP Snooping, jumbo frames, and advanced Quality of Service (QoS). These capabilities help optimize traffic flow and maintain consistent performance for voice, video, and business-critical applications.
Enterprise security is strengthened through IEEE 802.1X authentication, Access Control Lists (ACLs), Port Security, and DHCP Snooping, providing secure access control and helping protect the network from unauthorized devices and common Layer 2 threats.
Designed as an internal service module for Cisco Integrated Services Routers, the Cisco NME-XD-48ES-2S-P consolidates routing and switching into a single chassis, reducing equipment footprint, simplifying network management, and lowering deployment costs. It is managed through Cisco IOS CLI, SNMP, and Cisco Prime Infrastructure, enabling centralized configuration, monitoring, and administration.
Ideal for enterprise branch offices, LAN expansion, unified communications, IP phone deployments, wireless access point connectivity, secure access layer networking, and business network modernization, the Cisco NME-XD-48ES-2S-P 48-Port EtherSwitch Service Module delivers enterprise-class performance, integrated PoE capabilities, and scalable switching for growing business networks.
Product Specifications - Cisco NME-XD-48ES-2S-P 48-Port EtherSwitch Service Module
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco NME-XD-48ES-2S-P 48-Port EtherSwitch Service Module |
| Manufacturer |
Cisco Systems |
| Part Number |
NME-XD-48ES-2S-P |
| Product Series |
Cisco EtherSwitch Network Module |
| Product Type |
EtherSwitch Service Module |
| Module Type |
Network Module Expansion Card |
| Port Configuration |
48 × 10/100 Fast Ethernet PoE Ports, 2 × Gigabit Ethernet SFP Uplink Slots |
| Ethernet Standards |
IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX |
| Uplink Interfaces |
2 × SFP Gigabit Ethernet Slots |
| Power over Ethernet |
IEEE 802.3af PoE |
| PoE Capability |
Delivers Power and Data over Ethernet Cables |
| Layer Support |
Layer 2 Managed Switching |
| Switching Capacity |
Up to 17.6 Gbps |
| Forwarding Rate |
Up to 13.1 Mpps |
| MAC Address Table |
Up to 8,000 MAC Addresses |
| VLAN Support |
IEEE 802.1Q VLAN Tagging |
| VLAN Capacity |
Up to 1,024 VLANs |
| Spanning Tree Protocol |
IEEE 802.1D STP, IEEE 802.1w RSTP, IEEE 802.1s MSTP |
| Link Aggregation |
IEEE 802.3ad LACP |
| Quality of Service (QoS) |
IEEE 802.1p Class of Service (CoS), Advanced QoS |
| Security Features |
IEEE 802.1X Authentication, Port Security, Access Control Lists (ACLs), DHCP Snooping |
| Multicast Support |
IGMP Snooping |
| Jumbo Frame Support |
Supported |
| Management |
Cisco IOS CLI, SNMP, Cisco Prime Infrastructure |
| Compatibility |
Cisco Integrated Services Routers (ISR) |
| Operating System Compatibility |
Cisco IOS Software |
| Module Installation |
Internal Network Module |
| Hot Swappable |
Supported (Platform Dependent) |
| Power Source |
Powered by Host Cisco ISR |
| Form Factor |
Plug-in Service Module |
| Cooling |
Router Chassis Cooling |
| Deployment |
Enterprise Branch and Remote Office Networks |
| Application |
LAN Expansion, Unified Communications and Access Layer Switching |
| Reliability |
Enterprise-Class Switching Platform |
| Condition |
Refurbished |
| Use Cases |
Enterprise Branch Offices, IP Phone Deployments, Wireless Access Point Connectivity, LAN Expansion, Unified Communications, Secure Access Layer Networking |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. How many ports does the NME-XD-48ES-2S-P provide?
It provides 48 Fast Ethernet PoE ports along with two SFP uplink slots for fiber connectivity.
Q2. Does this module support Power over Ethernet?
Yes. It supports IEEE 802.3af Power over Ethernet, allowing compatible devices to receive power directly through Ethernet cables.
Q3. Which Cisco platforms are compatible with this module?
The module is designed for supported Cisco Integrated Services Router (ISR) platforms that support EtherSwitch Service Modules.
Q4. What devices can be connected to this module?
It can connect IP phones, wireless access points, computers, printers, IP cameras, and other Ethernet-enabled devices.
Q5. What environments is the NME-XD-48ES-2S-P best suited for?
It is ideal for enterprise branch offices, retail locations, educational institutions, and organizations requiring integrated switching and PoE connectivity within a Cisco router.
