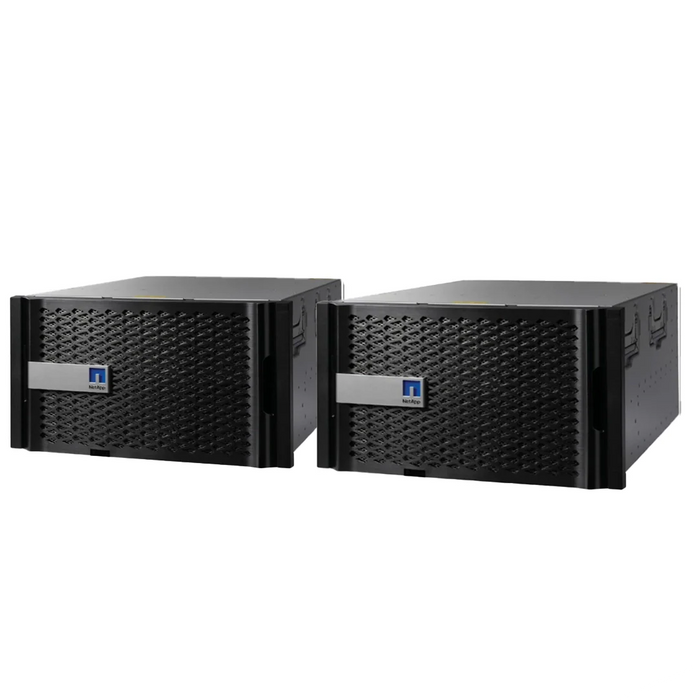

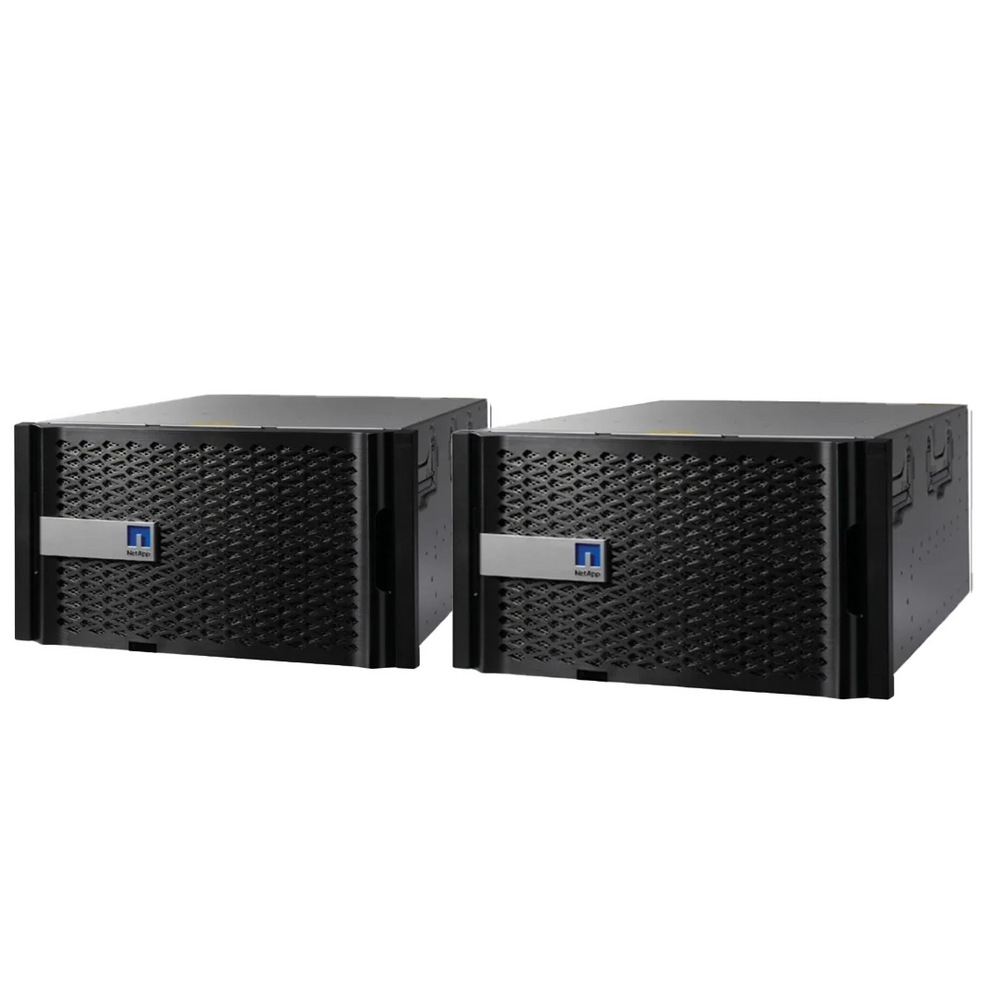

NetApp FAS8080 EX Dual Controller Filer Head w/ IOXM (HA)
Clique ou role para ampliar
Toque ou belisque para ampliar
NetApp FAS8080 EX Dual Controller Filer Head w/ IOXM (HA)
NetApp FAS8080 EX Dual Controller Filer Head w/ IOXM (HA)

NetApp FAS8080 EX Dual Controller Filer Head w/ IOXM (HA)

por NetApp
R$ 0,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Quick Specs

The NetApp FAS8080 is a high-performance storage system designed for enterprise environments, featuring a dual chassis configuration and dual high-availability (HA) controllers with IOXM. It is equipped with 1256GB of memory and four 64-bit, 10-core processors running at 2.80 GHz. With 24 PCIe expansion slots and support for up to 1440 drives, this system delivers robust scalability and flexibility for demanding workloads.

Connectivity options include eight 1Gb RJ45 Ethernet ports, eight 10Gb SFP Ethernet ports, and eight UTA2 SFP+ ports supporting both 10Gb and 16Gb speeds. Additionally, the system provides eight QSFP SAS ports for high-speed storage expansion. Supporting multiple disk shelves, including DS212C, DS2246, and DS460C, the FAS8080 can reach a maximum capacity of 15PB, making it an ideal solution for large-scale data storage needs.

The chassis has a 6U rack height per unit, measuring 10.2 inches in height, 17.6 inches in width, and 28.9 inches in depth, with a maximum weight of 121.5 lbs. Each controller features 12 PCIe slots, four 1Gb RJ45 ports, four 10Gb SFP ports, and four UTA2 ports. With advanced RAID options, including RAID 4, RAID 6 (RAID-DP), and RAID-TEC, the NetApp FAS8080 ensures high data availability and resilience for enterprise applications.

System Config
  • Model: NetApp FAS8080
  • Chassis: Dual Chassis
  • Total Rack Height: 12U
  • Controllers: Dual Controller (HA) w/ IOXM
  • Memory: 1256GB
  • Processor Model: 4x 64-bit 10-core 2.80 Ghz
  • Ethernet Ports: 8 x RJ45 (1Gb) + 8 x SFP (10Gb)
  • UTA2 Ports: 8 x SFP+ (10Gb/16Gb)
  • SAS Ports: 8 x QSFP (6Gb)
  • PCIe Expansion Slots: 24 x PCIe
  • Max Drives (total): 1440
  • Max Capacity: 15,000TB (15PB)
  • Disk Shelves: DS212C, DS2246, DS224C, DS4243, DS4246, DS4486, DS460C
  • Filer Heads: N/A
Dimensions & Weight
  • Chassis Rack Height: 6U
  • Chassis Heights: 10.2" (25.9 cm)
  • Chassis Width w/o Mounting Flanges: 17.6" (44.7 cm)
  • Chassis Depth w/ Cable Mgmt: 28.9" (73.4 cm)
  • Chassis Weight: up to 121.5 lb (55.1 kg)
IOXM Specs
  • PCIe Slots: 8
Controller Specs
  • Max Controllers: 1 (Per Chassis)
  • PCI Slot (per): 4 x PCIe
  • Ethernet Ports (per): 4 x RJ45 (1Gb) + 4 x SFP (10Gb)
  • Fibre Channel Ports (per): N/A
  • UTA2 Ports (per): 4 x SFP+ (10Gb/16G)
  • SAS Ports (per): 4 x QSFP (6Gb)
  • Remote Management: Yes
  • Processor Model (per): 2x 64-bit 10-core 2.80 Ghz
  • Memory (Single/HA): 128GB/256GB
  • NVRAM (Single/HA): 16GB/32GB
Storage
  • Max Number of Internal Drives: 0
  • Max Number Drives (total): 1440
  • Max Capacity: 15,000TB (15PB)
  • Max # of MSATA Drives: 1440
  • Max # of SATA Drives: 1440
  • Max # of NL-SAS Drives: 1440
  • Max # of SAS Drives: 1440
  • Max # of SSD Drives: 240
  • Drive Interface: MSATA, SATA, NL-SAS, SAS, SSD
  • RAID: RAID 4, RAID 6 (RAID-DP), RAID-TEC
  • Max # of DS212C Shelves: 60 external
  • Max # of DS2246 Shelves: 60 external
  • Max # of DS224C Shelves: 60 external
  • Max # of DS4243 Shelves: 60 external
  • Max # of DS4246 Shelves: 60 external
  • Max # of DS4448 Shelves: 30 external
  • Max # of DS460C Shelves: 24 external
FAS8080 Parts Lists NetApp FAS8080 Adapters View Adapters NetApp FAS8080 Transceiver(s)View Transceiver(s NetApp FAS8080 Data Cables View Data Cables NetApp FAS8080 Power Cables View Power Cables NetApp FAS8080 Rail Kits View Rail Kits
