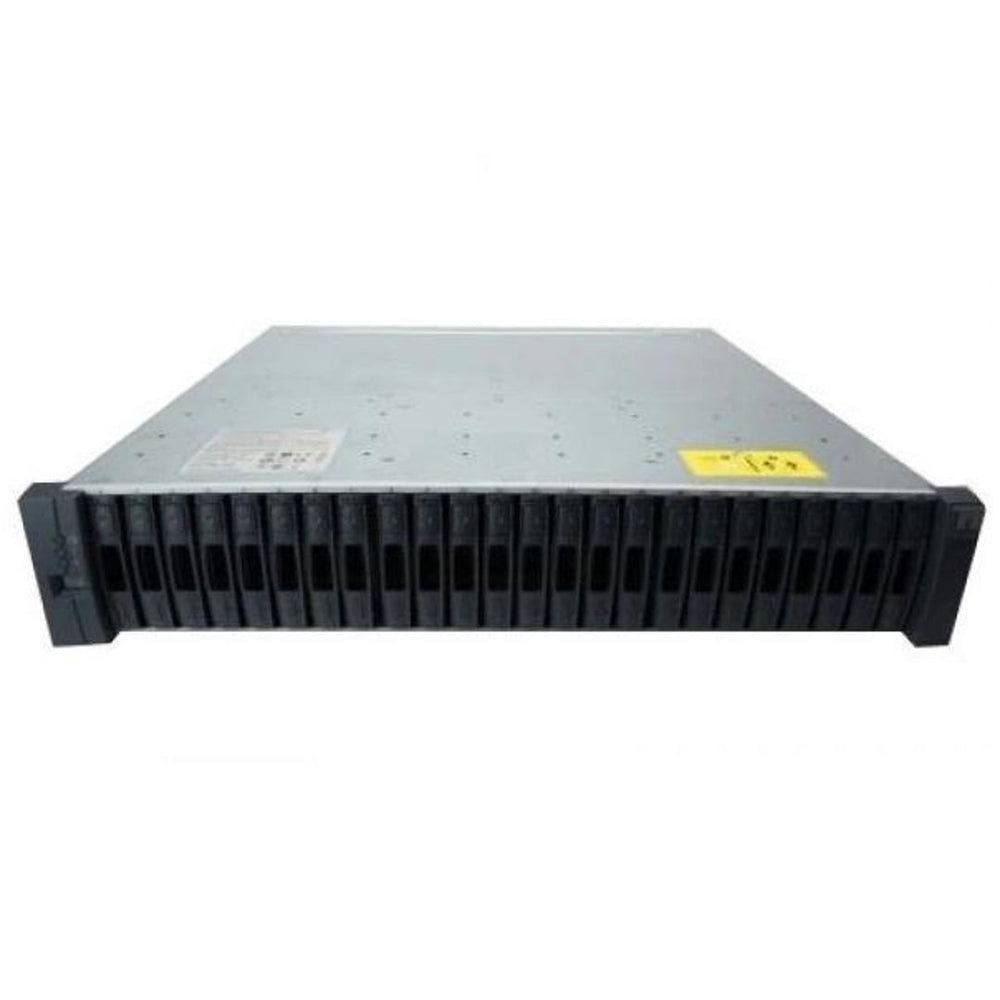

NetApp DS2246 Expansion Shelf with 4x 200GB SSD (X446A-R6) + 20x 900GB 10K sas HDDs (X423A-R5)
NetApp DS2246 Expansion Shelf with 4x 200GB SSD (X446A-R6) + 20x 900GB 10K sas HDDs (X423A-R5)

NetApp DS2246 Expansion Shelf with 4x 200GB SSD (X446A-R6) + 20x 900GB 10K sas HDDs (X423A-R5)

por NetApp
R$ 14.245,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
Quick Specs

NetApp DS2246 with 4x 200GB SSD (X446A-R6 & X446B-R6) + 20x 900GB SAS 10K X423A-R5 Disk Shelf achieves both storage and performance in a 2U form factor. The DS2246 has the ability to use performance SAS drives, SSD's or Self-Encrypting drives. This DS2246 is populated with four 200GB SSD's (X446A-R6 & X446B-R6) + twenty 900GB 10K SAS Drives (X423A-R5). Comes with all necessary parts and a 1-Year Parts Replacement Warranty as standard.

Parts Included:
  • 1x DS2246 Disk Shelf
  • 4x 200GB SSD (X446A-R6) + 20x 900GB 10K SAS 2.5" Disk Drives (X423A-R5)
  • 2x IOM6 Controller (X5713A-R5)
  • 2x Power Supplies with Fans - 750W, AC (X519A-R6)
  • 2x .5 QSFP to QSFP SAS Cables (X6557A-R6)
  • 1x Rail Kit II, Cab, R6 (X877B-R6)
  • 2x Power Cable (NA), -C, R6 (X800E-R6-C)

NetApp DS2246 Disk Shelf Specifications

NETAPP DS2246 DISK SHELF SPECIFICATIONS
Form Factor 2U
Drives per Enclosure 24
Drives per Rack Unit 12
Supported Drive Types 2.5" 450GB 10K SAS HDD
2.5" 600GB 10K SAS HDD
2.5" 900GB 10K SAS HDD
2.5" 1.2TB 10K SAS
2.5" 1.8TB 10K SAS

SSDs Supported
200GB, 400GB, 800GB, 1.6TB & 3.6TB

Mixed:
400GB SSD + 1.2TB SAS
800GB SSD + 1.8TB SAS
200GB SSD + 900GB SAS
400GB SSD + 900GB SAS
Supported Controllers FAS2000 Series
FAS/V3070
FAS/V3100 Series
FAS/V3200 Series
FAS/V6000 Series
FAS/V6200 Series
Data ONTAP Version Required For FAS2040: 7.3.4 or later & 8.0.1 or later

For other Controllers: 7.3.3P2 or later & 8.0P1 or later
Shelf architecture and I/O Bandwidth SAS 6Gbps
SAS 3Gbps with FAS2040 and FAS2050 systems

Connections require PCIe SAS HBA card or available embedded SAS port
Shelf I/O modules Dual IOM6 modules
Optical SAS Support Yes
Power Supplies and Cooling Dual redundant hot-pluggable power supplies and fan assembly
AC input Power Voltage 50 - 60 Hz
Weight (Fully Loaded) 49 lbs
Dimensions Height: 3.4"
Width: 19"
Depth: 19.1"
Temperature Operating Temp: 50ºF to 104ºF
Non-Operating Temp: -40ºF to 158ºF
Self-Encrypting Drives Supported 900GB 10K
1.8TB 10K
800GB SSD
1.6TB SSD
800GB SSD + 1.8TB 10K AES-256, FIPS 140-2 compliant
Operating Acoustic Noise 6.2 bels LwAd (2 PCMs)
Relative Humidity Operating:20% to 80% noncondensing
Non-operating:10% to 95% noncondensing
Altitude Operating:0 to 10,000ft (0 to 3,045m)
Non-operating:-1000ft to 40,000ft (-305m to 12,192m)
Compatible SAS Cables X6557-R6 - SAS Cable .5M (QSFP-QSFP) (112-00176)
X6558-R6 - SAS Cable 2M (QSFP-QSFP) (112-00177)
X6559-R6 - SAS Cable 5M (QSFP-QSFP) (112-00178)
Compatible Ethernet Cables X6560-R6 - RJ45 to RJ45 .5M CAT6 (112-00194)
X6561-R6 - RJ45 to RJ45 2M CAT6 (112-00195)
X6562-R6 - RJ45 to RJ45 5M CAT6 (112-00196)
Compatible Filers FAS6280, FAS6280A, FAS6240, FAS6240A, FAS6210, FAS6210A, FAS3270A, FAS3270, FAS3240A, FAS3240, FAS3210A, FAS3210, FAS6080A, FAS6080, FAS6070A, FAS6070, FAS6040A, FAS6040, FAS6030A, FAS6030, FAS3170A, FAS3170, FAS3160A, FAS3160, FAS3140A, FAS3140, FAS3070A, FAS3070, FAS3040, FAS3040A, FAS2240A, FAS2240 FAS2040A, FAS2040, V6280, V6280A, V6240, V6240A, V6210, V6210A, V3270A, V3270, V3240A, V3240, V3210A, V3210, V6080A, V6080, V6070A, V6070, V6040A, V6040, V6030A, V6030, V3170A, V3170, V3160A, V3160, V3140A, V3140, V3070A, V3070, V3040, V3040A
Alternate NetApp Part Number(s) DS2246-18TB-24M-0P-R6-C
DSK SHLF,4x200GB,20x900GB,Mixed,0P,-C
DS2246-18TB-24M-1P-SK-R6
DSK SHLF,4x200GB,20x900GB,Mixed,1P,SK
DS2246-18TB-24MQS-R6
DSK SHLF,4x200GB,20x900GB,Mixed,QS

NetApp DS2246 Configurations

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU/Hr Typical BTU/Hr Worst
Quickship Half Populated
DS2246-10.8TB-QS-R5 12x900GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 2.50 156 245 533 837
DS2246-10.8TB-QS-R5 12x900GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) .79 1.23 153 241 523 823
DS2246-1005-12S-QS-R5 12x450GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.64 2.55 160 249 547 850
DS2246-1005-12S-QS-R5 12x450GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) .81 1.25 157 245 536 837
DS2246-1007-12S-QS-R5 12x600GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.64 2.55 160 249 547 850
DS2246-1007-12S-QS-R5 12x600GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) .81 1.25 157 245 536 837
DS2246-12X1.8TB-QS-R6 12x1.8TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.98 2.69 194 263 663 898
DS2246-12X1.8TB-QS-R6 12x1.8TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .98 1.32 191 258 652 881
DS2246-14.4TB-QS-R6 12x1.2TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.03 2.73 198 267 676 912
DS2246-14.4TB-QS-R6 12x1.2TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.00 1.34 195 262 666 895
DS2246-AF-1.6-12N-0P-C 12x1.6TB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 2.29 156 224 533 765
DS2246-AF-1.6-12N-0P-C 12x1.6TB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .79 1.13 153 220 523 751
DS2246-SL-3.8-12S-QS 12x3.8TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 2.13 139 208 475 710
DS2246-SL-3.8-12S-QS 12x3.8TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .70 1.05 137 204 468 697
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 35.7 lb (16.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 2.33 139 228 475 779
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 35.7 lb (16.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) .70 1.15 137 224 468 765
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 37.5 lb (17.0 kg) 6.9 Bels 51 dBA 100 (100 to 120) .72 2.53 69 256 236 874
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 37.5 lb (17.0 kg) 6.9 Bels 51 dBA 200 (200 to 240) .55 1.26 70 251 239 857
DS2246-SL016-4S-QS-R6 4x400GB,SSD 2 39.7 lb (18.0 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.13 1.83 110 179 376 611
DS2246-SL016-4S-QS-R6 4x400GB,SSD 2 39.7 lb (18.0 kg) 6.9 Bels 51 dBA 200 (200 to 240) .56 .90 108 176 369 601
DS2246-SL024-12A-QS-R6 12x200GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL024-12A-QS-R6 12x200GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL048-12S-QS-R6 12x400GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.19 1.97 114 199 389 679
DS2246-SL048-12S-QS-R6 12x400GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .75 1.07 115 192 393 655
DS2246-SL096-12N-QS-R6 12x800GB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL096-12N-QS-R6 12x800GB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL096-12S-QS-R6 12x800GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL096-12S-QS-R6 12x800GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL192-12S-QS-R6 12x1.6TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 2.29 156 224 533 765
DS2246-SL192-12S-QS-R6 12x1.6TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .79 1.13 153 220 523 751
Quickship Fully Populated
DS2246-10-.8-1.8-24M-QS 20x1.8TB,NSE,4x800GB,NSE,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.58 281 350 960 1195
DS2246-10-.8-1.8-24M-QS 20x1.8TB,NSE,4x800GB,NSE,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.75 276 343 942 1171
DS2246-10-1.8-24N-QS 24x1.8TB,10K,SAS,NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.04 3.74 297 366 1014 1250
DS2246-10-1.8-24N-QS 24x1.8TB,10K,SAS,NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 1.84 292 359 997 1226
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA -40 (-60 to -40) 837 1468
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.76 4.28 274 428 936 1461
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.58 2.29 270 420 922 1434
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA -40 (-60 to -40) 847 1451
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.77 4.22 267 422 912 1441
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.64 2.29 266 418 908 1427
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA -40 (-60 to -40) 847 1451
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.77 4.22 267 422 912 1441
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.64 2.29 266 418 908 1427
DS2246-1021-24N-QS-R6 24x900GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.43 4.13 336 404 1147 1379
DS2246-1021-24N-QS-R6 24x900GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.69 2.03 330 396 1127 1352
DS2246-18TB-24M-QS-R6 20x900GB,SAS,4x200GB,SSD,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.92 3.44 277 334 945 1139
DS2246-18TB-24M-QS-R6 20x900GB,SAS,4x200GB,SSD,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.72 269 329 918 1122
DS2246-21.6TB-QS-R5 24x900GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.43 4.13 336 404 1147 1379
DS2246-21.6TB-QS-R5 24x900GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.69 2.03 330 396 1127 1352
DS2246-24x1.8TB-QS-R6 24x1.8TB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.04 3.74 297 366 1014 1250
DS2246-24x1.8TB-QS-R6 24x1.8TB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 1.84 292 359 997 1226
DS2246-28.8TB-QS-R6 24x1.2TB,10K,SAS 2 54.6 lb (24.8 kg) 6.0 Bels 51 dBA 100 (100 to 120) 2.85 3.55 283 354 966 1209
DS2246-28.8TB-QS-R6 24x1.2TB,10K,SAS 2 54.6 lb (24.8 kg) 6.0 Bels 51 dBA 200 (200 to 240) 1.46 1.80 276 348 942 1188
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS 24x1.6TB,SSD NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.63 2.34 161 230 550 786
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS 24x1.6TB,SSD NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) .93 1.30 159 224 543 766
DS2246-S-1.6-1.8-24N-QS 20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed 2 54.0 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.55 281 347 960 1185
DS2246-S-1.6-1.8-24N-QS 20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed 2 54.0 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.74 276 341 942 1164
DS2246-SL-3.8-24S-QS 24x3.8TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.91 2.62 187 256 639 874
DS2246-SL-3.8-24S-QS 24x3.8TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) .94 1.29 184 251 628 857
DS2246-SL001-24M-QS-R6 20x1.2TB,4x400GB,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.92 3.44 277 334 945 1139
DS2246-SL001-24M-QS-R6 20x1.2TB,4x400GB,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.72 269 329 918 1122
DS2246-SL002-24M-QS-R6 20x1.8TB,SAS,4x400GB,SSD,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.58 281 350 960 1195
DS2246-SL002-24M-QS-R6 20x1.8TB,SAS,4x400GB,SSD,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.75 276 343 942 1171
DS2246-SL009-24M-QS-R6 20x900GB,4x400GB,Mixed 2 52.5 lb (23.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.70 3.60 264 352 902 1202
DS2246-SL009-24M-QS-R6 20x900GB,4x400GB,Mixed 2 52.5 lb (23.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.33 1.77 259 345 884 1178
DS2246-SL048-24A-QS-R6 24x200GB,SSD 2 45.2 lb (20.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 3.41 161 343 550 1171
DS2246-SL048-24A-QS-R6 24x200GB,SSD 2 45.2 lb (20.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) .90 1.67 162 336 553 1147
DS2246-SL096-24S-QS-R6 24x400GB,SSD 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.75 2.40 174 240 594 819
DS2246-SL096-24S-QS-R6 24x400GB,SSD 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) .97 1.29 167 236 570 805
DS2246-SL192-24A-QS-R6 24x800GB,SSD 2 54.7 lb (24.8 kg) 6.9 Bels

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto
Quick Specs

NetApp DS2246 with 4x 200GB SSD (X446A-R6 & X446B-R6) + 20x 900GB SAS 10K X423A-R5 Disk Shelf achieves both storage and performance in a 2U form factor. The DS2246 has the ability to use performance SAS drives, SSD's or Self-Encrypting drives. This DS2246 is populated with four 200GB SSD's (X446A-R6 & X446B-R6) + twenty 900GB 10K SAS Drives (X423A-R5). Comes with all necessary parts and a 1-Year Parts Replacement Warranty as standard.

Parts Included:
  • 1x DS2246 Disk Shelf
  • 4x 200GB SSD (X446A-R6) + 20x 900GB 10K SAS 2.5" Disk Drives (X423A-R5)
  • 2x IOM6 Controller (X5713A-R5)
  • 2x Power Supplies with Fans - 750W, AC (X519A-R6)
  • 2x .5 QSFP to QSFP SAS Cables (X6557A-R6)
  • 1x Rail Kit II, Cab, R6 (X877B-R6)
  • 2x Power Cable (NA), -C, R6 (X800E-R6-C)

NetApp DS2246 Disk Shelf Specifications

NETAPP DS2246 DISK SHELF SPECIFICATIONS
Form Factor 2U
Drives per Enclosure 24
Drives per Rack Unit 12
Supported Drive Types 2.5" 450GB 10K SAS HDD
2.5" 600GB 10K SAS HDD
2.5" 900GB 10K SAS HDD
2.5" 1.2TB 10K SAS
2.5" 1.8TB 10K SAS

SSDs Supported
200GB, 400GB, 800GB, 1.6TB & 3.6TB

Mixed:
400GB SSD + 1.2TB SAS
800GB SSD + 1.8TB SAS
200GB SSD + 900GB SAS
400GB SSD + 900GB SAS
Supported Controllers FAS2000 Series
FAS/V3070
FAS/V3100 Series
FAS/V3200 Series
FAS/V6000 Series
FAS/V6200 Series
Data ONTAP Version Required For FAS2040: 7.3.4 or later & 8.0.1 or later

For other Controllers: 7.3.3P2 or later & 8.0P1 or later
Shelf architecture and I/O Bandwidth SAS 6Gbps
SAS 3Gbps with FAS2040 and FAS2050 systems

Connections require PCIe SAS HBA card or available embedded SAS port
Shelf I/O modules Dual IOM6 modules
Optical SAS Support Yes
Power Supplies and Cooling Dual redundant hot-pluggable power supplies and fan assembly
AC input Power Voltage 50 - 60 Hz
Weight (Fully Loaded) 49 lbs
Dimensions Height: 3.4"
Width: 19"
Depth: 19.1"
Temperature Operating Temp: 50ºF to 104ºF
Non-Operating Temp: -40ºF to 158ºF
Self-Encrypting Drives Supported 900GB 10K
1.8TB 10K
800GB SSD
1.6TB SSD
800GB SSD + 1.8TB 10K AES-256, FIPS 140-2 compliant
Operating Acoustic Noise 6.2 bels LwAd (2 PCMs)
Relative Humidity Operating:20% to 80% noncondensing
Non-operating:10% to 95% noncondensing
Altitude Operating:0 to 10,000ft (0 to 3,045m)
Non-operating:-1000ft to 40,000ft (-305m to 12,192m)
Compatible SAS Cables X6557-R6 - SAS Cable .5M (QSFP-QSFP) (112-00176)
X6558-R6 - SAS Cable 2M (QSFP-QSFP) (112-00177)
X6559-R6 - SAS Cable 5M (QSFP-QSFP) (112-00178)
Compatible Ethernet Cables X6560-R6 - RJ45 to RJ45 .5M CAT6 (112-00194)
X6561-R6 - RJ45 to RJ45 2M CAT6 (112-00195)
X6562-R6 - RJ45 to RJ45 5M CAT6 (112-00196)
Compatible Filers FAS6280, FAS6280A, FAS6240, FAS6240A, FAS6210, FAS6210A, FAS3270A, FAS3270, FAS3240A, FAS3240, FAS3210A, FAS3210, FAS6080A, FAS6080, FAS6070A, FAS6070, FAS6040A, FAS6040, FAS6030A, FAS6030, FAS3170A, FAS3170, FAS3160A, FAS3160, FAS3140A, FAS3140, FAS3070A, FAS3070, FAS3040, FAS3040A, FAS2240A, FAS2240 FAS2040A, FAS2040, V6280, V6280A, V6240, V6240A, V6210, V6210A, V3270A, V3270, V3240A, V3240, V3210A, V3210, V6080A, V6080, V6070A, V6070, V6040A, V6040, V6030A, V6030, V3170A, V3170, V3160A, V3160, V3140A, V3140, V3070A, V3070, V3040, V3040A
Alternate NetApp Part Number(s) DS2246-18TB-24M-0P-R6-C
DSK SHLF,4x200GB,20x900GB,Mixed,0P,-C
DS2246-18TB-24M-1P-SK-R6
DSK SHLF,4x200GB,20x900GB,Mixed,1P,SK
DS2246-18TB-24MQS-R6
DSK SHLF,4x200GB,20x900GB,Mixed,QS

NetApp DS2246 Configurations

Associated Part No. Configuration Rack Units Weight Sound Power Sound Pressure Line Voltage Actual (Min to Max) Amps Typical Amps Worst Watts Typical Watts Worst BTU/Hr Typical BTU/Hr Worst
Quickship Half Populated
DS2246-10.8TB-QS-R5 12x900GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 2.50 156 245 533 837
DS2246-10.8TB-QS-R5 12x900GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) .79 1.23 153 241 523 823
DS2246-1005-12S-QS-R5 12x450GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.64 2.55 160 249 547 850
DS2246-1005-12S-QS-R5 12x450GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) .81 1.25 157 245 536 837
DS2246-1007-12S-QS-R5 12x600GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.64 2.55 160 249 547 850
DS2246-1007-12S-QS-R5 12x600GB,10K,SAS 2 45.6 lb (20.7 kg) 6.9 Bels 51 dBA 200 (200 to 240) .81 1.25 157 245 536 837
DS2246-12X1.8TB-QS-R6 12x1.8TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.98 2.69 194 263 663 898
DS2246-12X1.8TB-QS-R6 12x1.8TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .98 1.32 191 258 652 881
DS2246-14.4TB-QS-R6 12x1.2TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.03 2.73 198 267 676 912
DS2246-14.4TB-QS-R6 12x1.2TB,10K,SAS 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.00 1.34 195 262 666 895
DS2246-AF-1.6-12N-0P-C 12x1.6TB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 2.29 156 224 533 765
DS2246-AF-1.6-12N-0P-C 12x1.6TB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .79 1.13 153 220 523 751
DS2246-SL-3.8-12S-QS 12x3.8TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 2.13 139 208 475 710
DS2246-SL-3.8-12S-QS 12x3.8TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .70 1.05 137 204 468 697
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 35.7 lb (16.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.42 2.33 139 228 475 779
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 35.7 lb (16.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) .70 1.15 137 224 468 765
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 37.5 lb (17.0 kg) 6.9 Bels 51 dBA 100 (100 to 120) .72 2.53 69 256 236 874
DS2246-SL008-4A-QS-R6 4x200GB,SSD 2 37.5 lb (17.0 kg) 6.9 Bels 51 dBA 200 (200 to 240) .55 1.26 70 251 239 857
DS2246-SL016-4S-QS-R6 4x400GB,SSD 2 39.7 lb (18.0 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.13 1.83 110 179 376 611
DS2246-SL016-4S-QS-R6 4x400GB,SSD 2 39.7 lb (18.0 kg) 6.9 Bels 51 dBA 200 (200 to 240) .56 .90 108 176 369 601
DS2246-SL024-12A-QS-R6 12x200GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL024-12A-QS-R6 12x200GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL048-12S-QS-R6 12x400GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.19 1.97 114 199 389 679
DS2246-SL048-12S-QS-R6 12x400GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .75 1.07 115 192 393 655
DS2246-SL096-12N-QS-R6 12x800GB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL096-12N-QS-R6 12x800GB,SSD,NSE 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL096-12S-QS-R6 12x800GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.08 2.98 203 292 693 997
DS2246-SL096-12S-QS-R6 12x800GB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.02 1.47 199 287 680 980
DS2246-SL192-12S-QS-R6 12x1.6TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 2.29 156 224 533 765
DS2246-SL192-12S-QS-R6 12x1.6TB,SSD 2 47.0 lb (21.3 kg) 6.9 Bels 51 dBA 200 (200 to 240) .79 1.13 153 220 523 751
Quickship Fully Populated
DS2246-10-.8-1.8-24M-QS 20x1.8TB,NSE,4x800GB,NSE,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.58 281 350 960 1195
DS2246-10-.8-1.8-24M-QS 20x1.8TB,NSE,4x800GB,NSE,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.75 276 343 942 1171
DS2246-10-1.8-24N-QS 24x1.8TB,10K,SAS,NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.04 3.74 297 366 1014 1250
DS2246-10-1.8-24N-QS 24x1.8TB,10K,SAS,NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 1.84 292 359 997 1226
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA -40 (-60 to -40) 837 1468
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.76 4.28 274 428 936 1461
DS2246-1011-24S-QS-R5 24x450GB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.58 2.29 270 420 922 1434
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA -40 (-60 to -40) 847 1451
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.77 4.22 267 422 912 1441
DS2246-1014-24N-QS-R5 24x600GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.64 2.29 266 418 908 1427
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA -40 (-60 to -40) 847 1451
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.77 4.22 267 422 912 1441
DS2246-1014-24S-QS-R5 24x600GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.64 2.29 266 418 908 1427
DS2246-1021-24N-QS-R6 24x900GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.43 4.13 336 404 1147 1379
DS2246-1021-24N-QS-R6 24x900GB,10K,SAS,NSE 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.69 2.03 330 396 1127 1352
DS2246-18TB-24M-QS-R6 20x900GB,SAS,4x200GB,SSD,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.92 3.44 277 334 945 1139
DS2246-18TB-24M-QS-R6 20x900GB,SAS,4x200GB,SSD,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.72 269 329 918 1122
DS2246-21.6TB-QS-R5 24x900GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.43 4.13 336 404 1147 1379
DS2246-21.6TB-QS-R5 24x900GB,10K,SAS 2 52.0 lb (23.6 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.69 2.03 330 396 1127 1352
DS2246-24x1.8TB-QS-R6 24x1.8TB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 3.04 3.74 297 366 1014 1250
DS2246-24x1.8TB-QS-R6 24x1.8TB,10K,SAS 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.49 1.84 292 359 997 1226
DS2246-28.8TB-QS-R6 24x1.2TB,10K,SAS 2 54.6 lb (24.8 kg) 6.0 Bels 51 dBA 100 (100 to 120) 2.85 3.55 283 354 966 1209
DS2246-28.8TB-QS-R6 24x1.2TB,10K,SAS 2 54.6 lb (24.8 kg) 6.0 Bels 51 dBA 200 (200 to 240) 1.46 1.80 276 348 942 1188
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS 24x1.6TB,SSD NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.63 2.34 161 230 550 786
DS2246-AF-1.6-24N-0P-C/DS2246-S-1.6-24N-QS 24x1.6TB,SSD NSE 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) .93 1.30 159 224 543 766
DS2246-S-1.6-1.8-24N-QS 20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed 2 54.0 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.55 281 347 960 1185
DS2246-S-1.6-1.8-24N-QS 20x1.8TB,SAS,NSE,4x1.6TB,SSD,NSE,Mixed 2 54.0 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.74 276 341 942 1164
DS2246-SL-3.8-24S-QS 24x3.8TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.91 2.62 187 256 639 874
DS2246-SL-3.8-24S-QS 24x3.8TB,SSD 2 54.6 lb (24.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) .94 1.29 184 251 628 857
DS2246-SL001-24M-QS-R6 20x1.2TB,4x400GB,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.92 3.44 277 334 945 1139
DS2246-SL001-24M-QS-R6 20x1.2TB,4x400GB,Mixed 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.43 1.72 269 329 918 1122
DS2246-SL002-24M-QS-R6 20x1.8TB,SAS,4x400GB,SSD,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.87 3.58 281 350 960 1195
DS2246-SL002-24M-QS-R6 20x1.8TB,SAS,4x400GB,SSD,Mixed 2 54.1 lb (24.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.41 1.75 276 343 942 1171
DS2246-SL009-24M-QS-R6 20x900GB,4x400GB,Mixed 2 52.5 lb (23.8 kg) 6.9 Bels 51 dBA 100 (100 to 120) 2.70 3.60 264 352 902 1202
DS2246-SL009-24M-QS-R6 20x900GB,4x400GB,Mixed 2 52.5 lb (23.8 kg) 6.9 Bels 51 dBA 200 (200 to 240) 1.33 1.77 259 345 884 1178
DS2246-SL048-24A-QS-R6 24x200GB,SSD 2 45.2 lb (20.5 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.60 3.41 161 343 550 1171
DS2246-SL048-24A-QS-R6 24x200GB,SSD 2 45.2 lb (20.5 kg) 6.9 Bels 51 dBA 200 (200 to 240) .90 1.67 162 336 553 1147
DS2246-SL096-24S-QS-R6 24x400GB,SSD 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 100 (100 to 120) 1.75 2.40 174 240 594 819
DS2246-SL096-24S-QS-R6 24x400GB,SSD 2 48.9 lb (22.2 kg) 6.9 Bels 51 dBA 200 (200 to 240) .97 1.29 167 236 570 805
DS2246-SL192-24A-QS-R6 24x800GB,SSD 2 54.7 lb (24.8 kg) 6.9 Bels
Informações e formas de pagamento

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.
