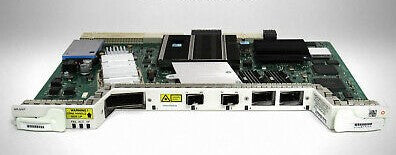

Cisco NCS2K-MR-MXP-LIC – 100G Multirate Muxponder Line Card
The Cisco NCS2K-MR-MXP-LIC 100G Muxponder Line Card is a high-performance, multirate optical transport solution designed for the Cisco NCS 2000 Series platform. Purpose-built for dense wavelength division multiplexing (DWDM) networks, this advanced muxponder delivers exceptional flexibility by aggregating multiple client protocols—including 10G, 40G, and 100G Ethernet, OTU2, and OTU4—into a single 100G OTN signal for long-haul transport.
Ideal for modern data centers and carrier networks, the NCS2K-MR-MXP-LIC enables efficient bandwidth utilization and offers seamless integration with 100G and 200G DWDM line cards. It features two SFP+ ports, two QSFP+ ports, and a CPAK interface, supporting a wide range of transceiver options for both short- and long-reach applications.
Built with Cisco’s advanced encryption technologies, this 100G muxponder line card ensures secure, reliable optical transport. It supports ODU-4 payload encryption, card-to-card authentication, and payload integrity verification, making it ideal for protecting sensitive traffic in financial, government, and enterprise networks.
With transparent multiplexing, robust DP-QPSK modulation, and coherent detection, this card empowers service providers to meet growing data demands with high throughput, low latency, and unmatched scalability. Backed by Cisco Trustworthy Systems, it aligns with industry-leading security and performance standards.
Product Specifications: Cisco NCS2K-MR-MXP-LIC – 100G Muxponder Line Card
| Category |
Specification |
| Form Factor |
Line card for Cisco NCS 2000 chassis |
| Dimensions (H x W x D) |
Standard NCS 2000 slot size |
| Weight |
Approx. 3.3 lbs (1.5 kg) |
| Line Rate |
100 Gbps |
| Supported Client Interfaces |
10G, 40G, 100G Ethernet, OTU2, OTU4 |
| Forwarding Mode |
Transparent muxponder for optical transport networks |
| Client Ports |
Multiple 10G/40G/100G interfaces |
| Line-Side Ports |
100G DWDM optical output |
| Modulation Support |
DP-QPSK (Dual-Polarization Quadrature Phase-Shift Keying) with coherent detection |
| Power Consumption |
Approx. 75W (typical) |
| Operating Temperature |
32°F to 122°F (0°C to 50°C) |
| Storage Temperature |
-40°F to 185°F (-40°C to 85°C) |
FAQs for Cisco NCS2K-MR-MXP-LIC
1. What is the function of the Cisco NCS2K-MR-MXP-LIC?
It acts as a 100G muxponder, aggregating multiple lower-speed client signals (10G/40G/100G) into a single 100G DWDM optical transport signal.
2. Is this module compatible with all NCS 2000 chassis?
Yes, it is designed for Cisco NCS 2000 Series optical transport platforms but requires proper software licensing.
3. What modulation and transmission technology does this muxponder use?
It utilizes DP-QPSK modulation with coherent detection, enabling long-haul optical transport with high spectral efficiency.
4. What types of client interfaces does this muxponder support?
It supports 10G Ethernet, OTU2, 40G Ethernet, OTU3, and 100G OTU4, making it flexible for various network deployments.
5. Does this module require a separate license for activation?
Yes, a valid software license is required to enable full functionality and service activation.
