The Cisco N7K-M224XP-23L is a 24-port 10 Gigabit Ethernet M2-Series XL module designed for compatible Cisco Nexus 7000 Series modular switches. Featuring 24 × 10GbE SFP+ ports and up to 240 Gbps of aggregate port bandwidth, it provides high-density connectivity for enterprise core networks, data center aggregation, and high-performance switching environments. Its SFP+ interfaces support compatible optical transceivers and direct-attach copper cables for flexible network connectivity.
Built for the Cisco Nexus 7000 modular switching platform, the N7K-M224XP-23L supports distributed forwarding and integration with compatible Nexus fabric modules, supervisors, and Cisco NX-OS software. The XL option provides enhanced scalability capabilities for supported configurations, making the module suitable for demanding enterprise and data center network architectures.
The Cisco N7K-M224XP-23L Nexus 7000 24-Port 10G SFP+ Module is ideal for data center aggregation, enterprise core switching, server connectivity, high-speed Ethernet infrastructure, and scalable modular network deployments. It is a suitable option for organizations expanding or maintaining compatible Cisco Nexus 7000 environments, subject to hardware and software compatibility requirements.

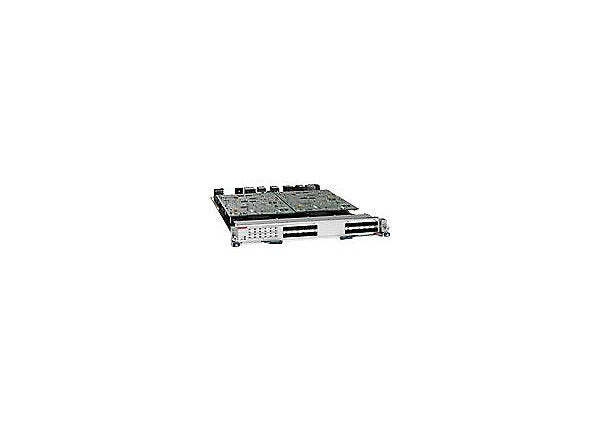

Product Specifications - Cisco N7K-M224XP-23L Nexus 7000 M2-Series 24-Port 10 Gigabit Ethernet XL Module
CLICK HERE FOR DATA SHEET
|
Specification
|
Details
|
|
Manufacturer
|
Cisco Systems
|
|
Product Name
|
Cisco Nexus 7000 M2-Series 24-Port 10 Gigabit Ethernet Module with XL Option
|
|
Part Number / SKU
|
N7K-M224XP-23L
|
|
Product Type
|
Modular 10 Gigabit Ethernet I/O Module
|
|
Series
|
Cisco Nexus 7000 Series
|
|
Module Family
|
M2-Series
|
|
XL Option
|
Yes — enhanced scalability features
|
|
Physical Ports
|
24 × 10 Gigabit Ethernet SFP+
|
|
Port Speed
|
10 Gbps per port
|
|
Total Port Capacity
|
240 Gbps aggregate port bandwidth
|
|
Interface Type
|
SFP+
|
|
Transceiver Requirement
|
Compatible SFP+ transceivers or supported direct-attach cables are required
|
|
Supported Optical Connectivity
|
Compatible 10GBASE-SR, LR, ER, LRM, ZR, and other supported SFP+ options, subject to Cisco compatibility requirements
|
|
Copper Connectivity
|
Supported through compatible SFP+ direct-attach copper cables
|
|
Fabric Compatibility
|
Cisco Nexus 7000 Fabric-1 and Fabric-2 modules, subject to chassis configuration
|
|
Fabric Bandwidth with Fabric-2
|
Up to 550 Gbps in each direction, distributed across up to five Fabric-2 modules
|
|
Fabric Bandwidth with Fabric-1
|
Up to 230 Gbps in each direction, distributed across up to five Fabric-1 modules
|
|
Switching Architecture
|
Distributed forwarding architecture
|
|
Supported Chassis
|
Compatible Cisco Nexus 7000 Series chassis
|
|
Supervisor Compatibility
|
Supervisor 1, Supervisor 2, and Supervisor 2 Enhanced, subject to system configuration
|
|
Minimum NX-OS Release
|
Cisco NX-OS Release 6.1 or later; verify release-specific compatibility
|
|
Power Consumption
|
Approximately 720W typical / 795W maximum
|
|
Module Weight
|
16.5 lbs (7.5 kg)
|
|
Installation
|
Modular I/O slot in a compatible Nexus 7000 chassis
|
|
Primary Function
|
High-density 10GbE connectivity for data center and enterprise networks
|
|
Deployment
|
Data center aggregation, core switching, server connectivity, and high-performance network infrastructure
|
|
Lifecycle
|
Legacy platform; verify current availability and software support
|
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. What is the Cisco N7K-M224XP-23L?
The Cisco N7K-M224XP-23L is a Nexus 7000 M2-Series 24-port 10 Gigabit Ethernet module with XL option, designed for compatible Cisco Nexus 7000 modular switches.
Q2. Who should buy the Cisco N7K-M224XP-23L?
The Cisco N7K-M224XP-23L is suitable for enterprises, data centers, service providers, and network operators requiring high-density 10 Gigabit Ethernet connectivity within a Nexus 7000 environment.
Q3. Is a refurbished Cisco N7K-M224XP-23L worth buying?
Yes. A professionally refurbished Cisco N7K-M224XP-23L can provide reliable 10GE connectivity and compatibility with existing Nexus 7000 infrastructure while offering a practical lower-cost alternative to new equipment.
Q4. What type of interfaces does the Cisco N7K-M224XP-23L use?
The Cisco N7K-M224XP-23L provides 24 × 10 Gigabit Ethernet ports using SFP+ interfaces, allowing compatible transceivers to be used for network connectivity.
Q5. What is the XL option on the Cisco N7K-M224XP-23L?
The XL option provides enhanced capabilities for supported Cisco Nexus 7000 deployments, allowing the module to be used in environments requiring additional scalability and advanced networking functionality.
