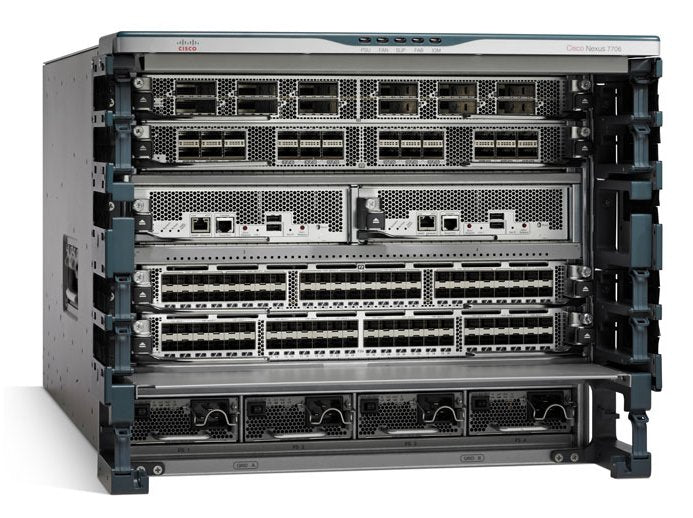

The Cisco Nexus 7706 Switch Chassis (N77-C7706) is a high-performance, modular data center switching platform engineered for scalable, mission-critical network environments. Designed as part of the Cisco Nexus 7000/7700 Series, the Nexus 7706 delivers exceptional throughput, low latency, and high availability to support modern enterprise, cloud, and service provider data centers.
Featuring a 6-slot modular architecture with 2 supervisor slots and 4 I/O slots, the Nexus 7706 supports a wide range of 10G, 40G, and 100G Ethernet line cards, enabling flexible, high-density connectivity. With the appropriate fabric modules installed, the chassis delivers up to 550 Gbps per slot and a system switching capacity of up to 17.6 Tbps, making it ideal for core, aggregation, and spine-layer deployments.
Running Cisco NX-OS, the Nexus 7706 provides advanced Layer 2 and Layer 3 services, including VLANs, VRFs, VDCs, OSPF, BGP, EIGRP, IS-IS, multicast routing, and robust security features such as ACLs, uRPF, DHCP snooping, and Control Plane Policing (CoPP). Virtualization capabilities like Virtual Device Contexts (VDCs) allow multiple logical switches to operate independently on a single physical chassis.
Built for nonstop operations, the Cisco Nexus 7706 supports redundant supervisor modules, fabric modules, power supplies, and fan trays, along with In-Service Software Upgrade (ISSU) and nonstop forwarding to minimize downtime. Advanced resiliency technologies such as Virtual PortChannel (vPC) ensure loop-free, high-availability network designs.
With front-to-back airflow, support for AC or DC power, and NEBS Level 3 compliance (with DC power), the Nexus 7706 is well suited for data centers requiring reliability, regulatory compliance, and future-ready scalability. It also integrates seamlessly into Cisco ACI and spine-leaf architectures, enabling policy-driven automation and simplified operations.
Product Specifications – Cisco Nexus 7706 Switch Chassis (N77-C7706)
CLICK HERE FOR DATA SHEET
| Category |
Specification Details |
| Product Name |
Cisco Nexus 7706 |
| Model Number |
N77-C7706 |
| Product Series |
Cisco Nexus 7000 / 7700 Series |
| Product Type |
Modular Data Center Switch Chassis |
| Intended Deployment |
Enterprise & Service Provider Data Centers, Core & Aggregation Layers |
| Chassis Form Factor |
Modular, Rack-Mountable |
| Total Slots |
6 Slots |
| Supervisor Slots |
2 Dedicated Supervisor Slots |
| I/O Module Slots |
4 Line Card / I/O Slots |
| Fabric Module Support |
Yes (Nexus 7700 Fabric Modules) |
| Airflow Design |
Front-to-Back Airflow |
| Fabric Bandwidth per Slot |
Up to 550 Gbps (Fabric Dependent) |
| System Switching Capacity |
Up to 17.6 Tbps (Fully Populated) |
| Forwarding Rate |
Up to 13.2 Billion Packets per Second (bpps) |
| Latency |
Sub-Microsecond (Line Card Dependent) |
| Supported Ethernet Speeds |
10 Gigabit, 40 Gigabit, 100 Gigabit Ethernet |
| Line Card Compatibility |
Cisco Nexus 7700 & 7000 Series I/O Modules |
| Supported Supervisor Modules |
Supervisor 2E, Supervisor 2, Supervisor 2T |
| Virtualization Support |
Virtual Device Contexts (VDCs) |
| Operating System |
Cisco NX-OS |
| Layer 2 Features |
VLAN, STP |
| Layer 3 Features |
VRF, OSPF, BGP, EIGRP, IS-IS |
| Multicast Support |
PIM-SM, MSDP, IGMPv3 |
| Security Features |
ACLs, uRPF, DHCP Snooping, Control Plane Policing (CoPP) |
| High Availability |
Redundant Supervisors, Fabrics, Power Supplies |
| Nonstop Forwarding |
Supported |
| In-Service Software Upgrade |
ISSU Supported |
| Link Resiliency |
Virtual PortChannel (vPC) |
| Power Supply Support |
Redundant, Hot-Swappable |
| Power Supply Types |
AC or DC |
| Maximum Power per PSU |
Up to 3000 W |
| Typical Power Consumption |
Configuration Dependent |
| Cooling System |
Redundant Fan Trays |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Storage Temperature |
−40°C to 70°C (−40°F to 158°F) |
| Operating Humidity |
5% to 95% (Non-Condensing) |
| Compliance |
RoHS |
| Certifications |
CE, UL, FCC, VCCI, ANATEL, ICES |
| NEBS Compliance |
NEBS Level 3 (with DC Power) |
| Data Center Architecture |
Supports Spine-Leaf Designs |
| ACI Compatibility |
Integrates with Cisco ACI |
| Scalability |
Designed for High-Density, Future-Ready Expansion |
| High Availability Use Case |
Mission-Critical Data Center Switching |
| Package Contents |
Chassis Only (Supervisors, Fabrics, Line Cards, PSUs Sold Separately) |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs for N77-C7706:
How many supervisor modules are supported?
The N77-C7706 supports two supervisor modules for redundancy.
Can this chassis support 100G Ethernet?
Yes, with supported 100G-capable I/O modules.
What is the airflow direction for this chassis?
It uses front-to-back airflow with optimized cooling for dense deployments.
Is NX-OS required for this chassis?
Yes, the Nexus 7706 runs Cisco NX-OS software exclusively.
Can I mix Nexus 7000 and 7700 line cards in this chassis?
Only Nexus 7700-specific line cards are supported; Nexus 7000 line cards are not interchangeable.
