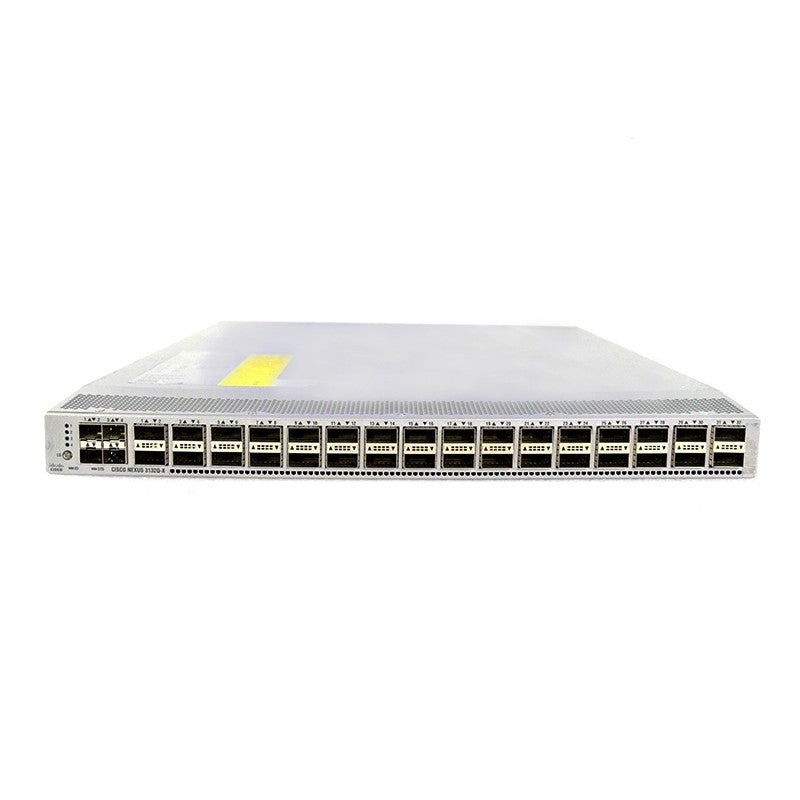

Get high-density, workload isolation, and wire-rate layer 2 and 3 switching on a data-center-class, Cisco NX-OS operating system. The Cisco Nexus 3132Q Switch, part of the Cisco Unified Fabric family, is a compact, 1-rack-unit (1RU), form factor switch for top-of-rack (ToR) data center deployments.
Features and Capabilities
Flexibility and High Performance
- Provides layer 2 and 3 switching of up to 2.5 terabits per second (Tbps) and more than 950 million packets per second (mpps)
- Phyless design on all ports to optimize latency
- 32 fixed 40 Gigabit Ethernet (GE) Quad small form factor pluggable plus (QSFP+) ports
- Supports mobility and tenant isolation with VXLAN (with a software upgrade)
Ease of Operations
The modular, resilient, Cisco NX-OS operating system is purpose-built with exceptional support for layer 3 unicast and multicast routing protocols. Manageability features promote ease of use and include:
- PowerOn Auto Provisioning (POAP) for touchless bootup and configuration of the switch, drastically reducing provisioning time
- Cisco Embedded Event Manager (EEM) and Python scripting
- Advanced software-defined networking (SDN) capabilities, including support for Open Flow and Cisco OnePK
- Integration with Cisco Prime Data Center Network Manager (DCNM) and XML management tools
Specifications at a Glance
Physical specifications:
- Dual redundant power supplies
- Redundant (3 plus 1) and hot-swappable fans
- One 10/100/1000 Mbps management port
- One RS-232 serial console port
- 32 QSFP+ - each supports native 40 Gigabit Ethernet and 4 x 10 Gigabit Ethernet modes
- 4 SFP+ ports that are internally multiplexed with the first QSFP+ port
- One USB port
Performance specifications:
- 2.5 Tbps switching capacity
- Forwarding rate of 950 mpps
- Configurable maximum transmission units (MTUs) of up to 9216 bytes (jumbo frames)
