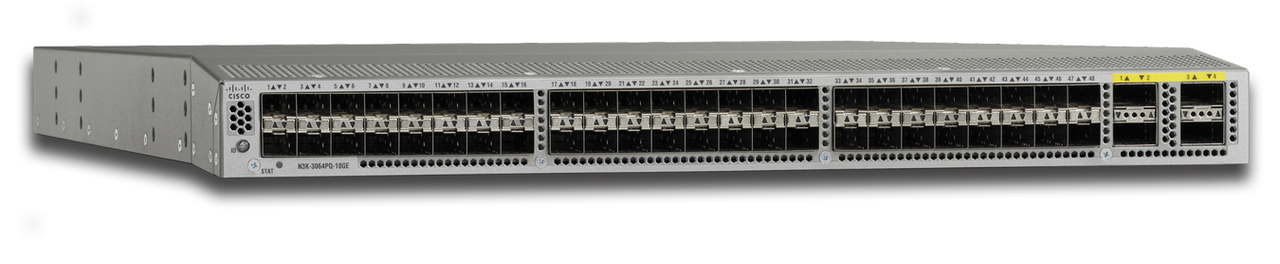

The Cisco N3K-C3064PQ-10GE-B-DC Nexus 3064-X Data Center Switch is a high-density, ultra-low-latency networking solution designed for demanding data center, cloud, enterprise, and service provider environments. Featuring 48 x 1/10 Gigabit Ethernet SFP+ ports and 4 x 40 Gigabit Ethernet QSFP+ ports, the switch delivers scalable, high-speed fiber connectivity for modern network infrastructures.
With a switching capacity of up to 1.28 Tbps and wire-speed packet forwarding, the N3K-C3064PQ-10GE-B-DC is optimized for bandwidth-intensive workloads and latency-sensitive applications. Its high-density port configuration makes it particularly suitable for Top-of-Rack (ToR) switching, server connectivity, high-speed fiber aggregation, and enterprise core networking.
The four 40GbE QSFP+ ports support compatible breakout configurations, enabling additional 10GbE connectivity and providing greater flexibility for evolving network requirements. This scalable architecture allows organizations to efficiently connect servers, storage systems, aggregation switches, and other high-performance network devices.
Powered by Cisco NX-OS, the switch provides advanced Layer 2 and Layer 3 networking capabilities, including IPv4, IPv6, VLANs, dynamic routing, link aggregation, multicast, advanced QoS, access control lists, and secure network management. NX-OS automation and programmability capabilities also help simplify data center operations and network management.
The N3K-C3064PQ-10GE-B-DC is equipped with dual DC power supplies for enhanced power redundancy and supports hot-swappable cooling components for improved serviceability. Its reverse airflow design with port-side intake makes it suitable for data center environments requiring specific front-to-back cooling configurations.
Housed in a compact 1U rack-mountable form factor, the Cisco N3K-C3064PQ-10GE-B-DC Nexus 3064-X Switch delivers high port density, low latency, and reliable performance while maximizing rack space efficiency.
Ideal for data center networking, Top-of-Rack deployments, cloud infrastructure, enterprise core networks, high-speed fiber aggregation, and service provider environments, the Cisco N3K-C3064PQ-10GE-B-DC provides the performance, scalability, and operational flexibility required for high-speed network deployments.
Product Specifications – Cisco N3K-C3064PQ-10GE-B-DC Nexus 3064-X 48-Port 10G SFP+ & 4-Port 40G QSFP+ Data Center Switch
CLICK HERE FOR DATA SHEET
| Specification |
Details |
| Product Name |
Cisco N3K-C3064PQ-10GE-B-DC Nexus 3064-X Data Center Switch |
| Manufacturer |
Cisco Systems |
| Part Number |
N3K-C3064PQ-10GE-B-DC |
| Product Series |
Cisco Nexus 3000 Series |
| Product Family |
Cisco Nexus 3064-X |
| Product Type |
Managed Data Center Switch |
| Port Configuration |
48 × 1/10 Gigabit Ethernet SFP+ + 4 × 40 Gigabit Ethernet QSFP+ |
| SFP+ Ports |
48 × 1/10GbE SFP+ |
| QSFP+ Ports |
4 × 40GbE QSFP+ |
| QSFP+ Breakout Support |
Supports 4 × 10GbE breakout on compatible QSFP+ ports |
| Maximum 10GbE Port Density |
Up to 64 × 10GbE connections using supported breakout configurations |
| Switching Capacity |
Up to 1.28 Tbps |
| Forwarding Rate |
Up to 950+ Mpps |
| Latency |
Ultra-Low Latency |
| Layer Support |
Layer 2 and Layer 3 |
| Operating System |
Cisco NX-OS |
| Switching Architecture |
Wire-Speed, Low-Latency Data Center Architecture |
| IPv4 Support |
Yes |
| IPv6 Support |
Yes |
| VLAN Support |
Yes |
| Routing Support |
Static and Dynamic Routing Features |
| Routing Protocols |
BGP, OSPF and other supported NX-OS routing protocols |
| Multicast Support |
Supported |
| Link Aggregation |
PortChannel / LACP Support |
| Quality of Service (QoS) |
Advanced QoS and Traffic Management |
| Security Features |
ACLs, Control Plane Protection, Secure Management |
| Network Virtualization |
Data Center Virtualization Features Supported |
| Management |
CLI, SNMP, XML/NETCONF and NX-OS Management Tools |
| Automation & Programmability |
Cisco NX-OS APIs and Automation Capabilities |
| Power Supply |
Dual DC Power Supplies |
| Power Redundancy |
Supported |
| Power Input Type |
DC |
| Airflow |
Reverse Airflow |
| Airflow Direction |
Port-Side Intake |
| Cooling |
Redundant Hot-Swappable Fan Modules |
| High Availability |
Redundant Power and Cooling Architecture |
| Hot-Swappable Components |
Power Supplies and Fan Modules |
| Form Factor |
1U Rack-Mountable |
| Deployment Type |
Top-of-Rack, Aggregation and Data Center Networking |
| Application |
Enterprise, Cloud and Service Provider Networks |
| Reliability |
Enterprise and Data Center Grade |
| Condition |
Refurbished |
| Use Cases |
Data Center Networking, Top-of-Rack Switching, Cloud Infrastructure, Enterprise Core, Fiber Aggregation, Service Provider Networks |
We offer free FedEx Ground shipping to all our customers in the continental US. If you need more information on expedited or international shipping please see our Shipping & Returns page or ask us directly via phone, email or using our Contact Form page.
FAQs
Q1. How many network ports does the N3K-C3064PQ-10GE-B-DC provide?
It features 48 10 Gigabit SFP+ ports and 4 QSFP+ ports that support 40 Gigabit Ethernet or breakout 10 Gigabit connectivity.
Q2. What is the purpose of the reverse airflow design?
Reverse airflow (port-side intake) improves cooling efficiency in data centers designed for back-to-front airflow.
Q3. Does this switch support DC power?
Yes. This model is equipped with dual DC power supplies for reliable enterprise and carrier-grade deployments.
Q4. Which operating system does the switch use?
It runs Cisco NX-OS, providing advanced Layer 2 and Layer 3 networking features.
Q5. Is this switch suitable for data center environments?
Yes. It is specifically designed for high-performance data centers, cloud infrastructure, and enterprise networks that require low latency and high-density 10 Gigabit connectivity.
