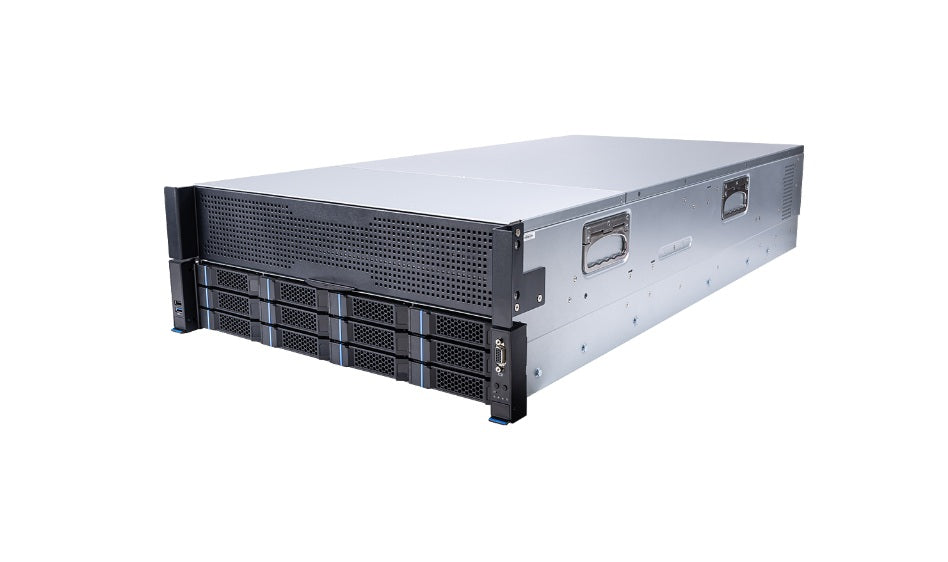

MSI G4201RAS10U2-P4-Pt 4U Intel Xeon 128-Core 256GB GPU Server

Overview

The MSI G4201RAS10U2-P4-Pt is a high-density 4U Rackmount GPU Server barebone designed for high-performance computing (HPC), AI training, and visual computing workloads. It is engineered to support up to eight dual-slot GPUs and features a switchless topology where all expansion slots are directly connected to the dual CPU sockets for low-latency performance.

Specifications

Model Number:  G4201RAS10U2-P4-Pt

Brand:MSI

Alt Part Number(s):  G4201RAS10U2-P4-Pt

Product Type:  GPU Server

Technical Description

Brand:MSI

Model Number:  G4201RAS10U2-P4-Pt

Series:  G4201

Processor Type:Dual Intel Xeon Scalable

Processor Socket: 2 x Intel LGA4677

Processor Core:  128-Core/256 Threads

Processor 4th Gen Speed:  4800 MT/s (1DPC), 4400 MT/s (2DPC)

Processor 5th Gen Speed:   5600 MT/s (1DPC), 4400 MT/s (2DPC)

Processor Power:  350W

Chipset Type: Intel C741

Motherboard:  MS-S370

Networking:  (1)1000Base-T Ethernet port (Intel I210AT)

Drive Bays:  (12) Hot-swap 3.5"/2.5" drive bays (2) U.2 PCIe 4.0 NVMe + (10) SATA 3.0

Internal Storage:  (2) M.2 2280/22110 PCIe 3.0 x2 from PCH

Graphics Controller:  ASPEED AST2600

GPU Model:  NVIDIA RTX 6000 Ada Generation or L40S PCIe cards

Memory Capacity:  256GB Per Slot

Memory Supported:  8TB

Memory Technology:  DDR5

Memory channels:  16 Channels

Memory Slots:  32 x DIMM

Expansion Slots:  (8) PCIe 4.0 x16 FHFL slots

Cooling:  (6) 6038, (4) 8038 rear Hot-swap fans, (8) 8038 Internal fans

Power Supply:  (3+1) Redundant 2000W CRPS 80PLUS Platinum

Form Factor:  4U Rackmount/GPU Server

*
