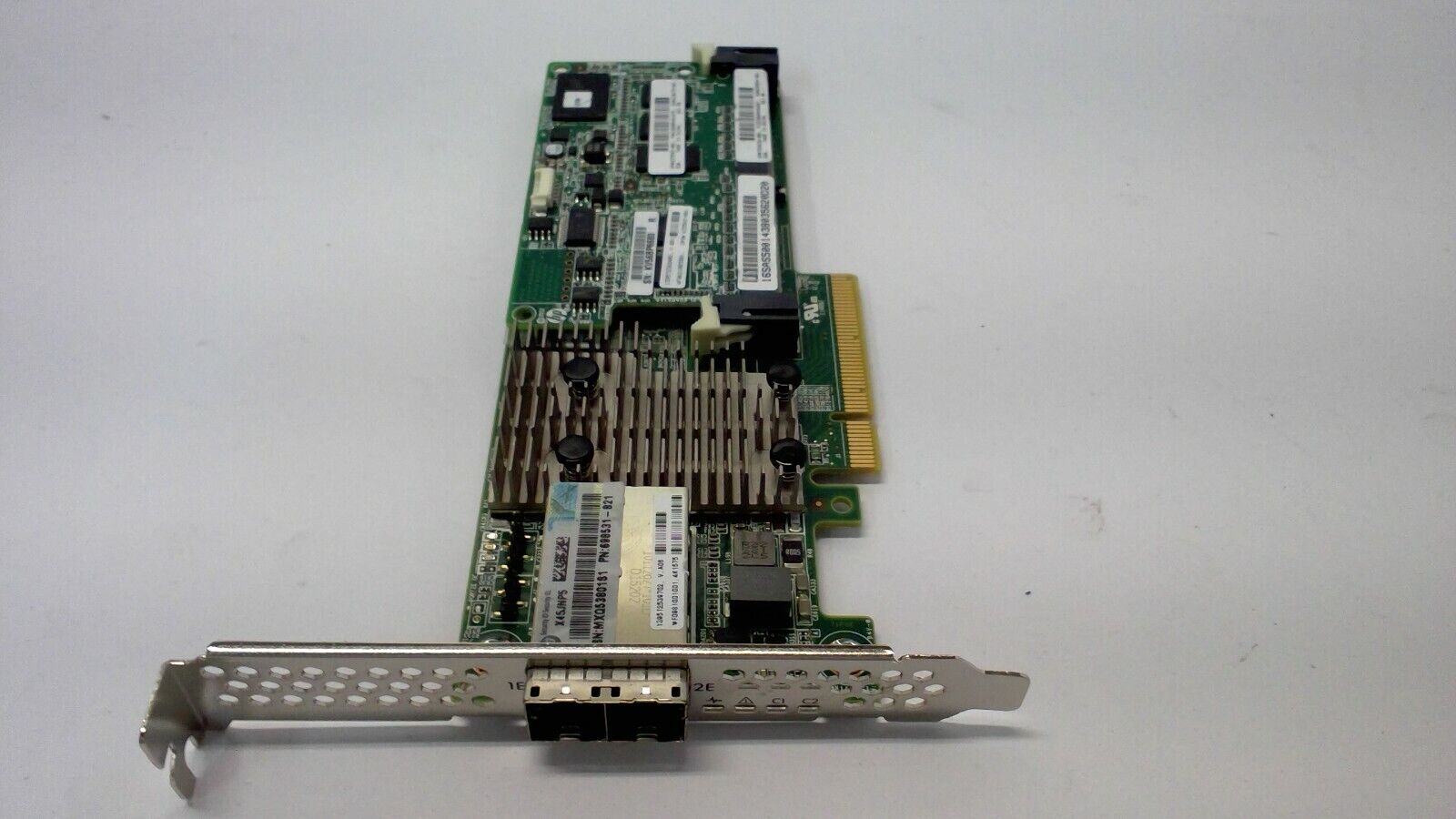

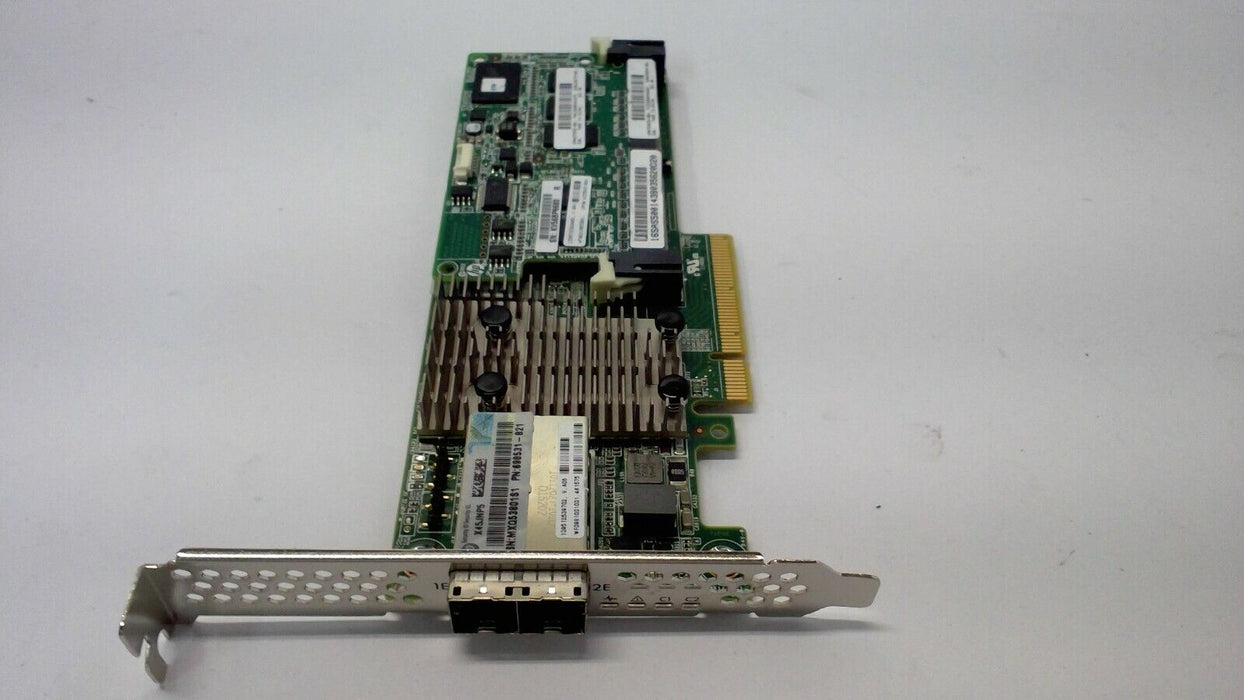

MSA1040

Esgotado
R$ 0,00
Description
Option Part Number
MSA 1040 pre-configured models
HPE MSA 1040 2-port Fibre Channel (FC) dual controller Large Form Factor (LFF) Storage1
E7V99A
HPE MSA 1040 2-port FC dual controller Small Form Factor (SFF) Storage2
E7W00A
HPE MSA 1040 2-port SAS dual controller LFF Storage3
K2Q90A
HPE MSA 1040 2-port SAS dual controller SFF Storage4
K2Q89A
HPE MSA 1040 2-port 1 GbE iSCSI dual controller LFF Storage5
E7W01A
HPE MSA 1040 2-port 1 GbE iSCSI dual controller SFF Storage6
E7W02A
HPE MSA 1040 2-port 10 GbE dual controller LFF Storage7
E7W03A
HPE MSA 1040 2-port 10 GbE dual controller SFF Storage8
E7W04A
Smart Buy (S-Buy) MSA 1040 Storage system
HPE MSA 1040 2-port FC dual controller LFF Storage/S-Buy9
E7V99SB
HPE MSA 1040 2-port FC dual controller SFF Storage/S-Buy9
E7W00SB
HPE MSA 1040 2-port 1G iSCSI dual controller LFF Storage/S-Buy9
E7W01SB
HPE MSA 1040 2-port 1G iSCSI dual controller SFF Storage/S-Buy9
E7W02SB
HPE MSA 1040 2-port 10G iSCSI dual controller LFF Storage/S-Buy9
E7W03SB
HPE MSA 1040 2-port 10G iSCSI dual controller SFF Storage/S-Buy9
E7W04SB
HPE MSA 1040 1Gb iSCSI w/12 300GB SAS 10K SFF (2.5 in) hard drive bundle/S-Buy9
K2Q05SB
HPE MSA 1040 1Gb iSCSI w/12 900GB SAS 10K SFF (2.5 in) hard drive bundle/S-Buy9
K2Q06SB
HPE MSA 1040 10Gb iSCSI w/12 300GB SAS 10K SFF (2.5 in) hard drive bundle/S-Buy9
K2Q07SB
HPE MSA 1040 10Gb iSCSI w/12 900GB SAS 10K SFF (2.5 in) hard drive bundle/S-Buy9
K2Q08SB
S-Buy disk enclosures
HPE D2700 disk enclosure/S-Buy9
AJ941SB
NOTE:
  1. Includes LFF array chassis + two MSA 1040 FC 2-port controllers, SFPs installed, drives not included
  2. Includes SFF array chassis + two MSA 1040 FC 2-port controllers, SFPs installed, drives not included
  3. Includes LFF array chassis + two MSA 1040 SAS 2-port controllers, drives not included
  4. Includes SFF array chassis + two MSA 1040 SAS 2-port controllers, drives not included
  5. Includes LFF array chassis + two MSA 1040 1 GbE 2-port controllers, SFPs installed, drives not included
  6. Includes SFF array chassis + two MSA 1040 1 GbE 2-port controllers, SFPs installed, drives not included
  7. Includes LFF array chassis + two MSA 1040 10 GbE 2-port controllers, SFPs installed, drives not included, DAC cables are supported in 10 GbE controller systems
  8. Includes SFF array chassis + two MSA 1040 10 GbE 2-port controllers, SFPs installed, drives not included, DAC cables are supported in 10 GbE controller systems
  9. S-Buys are pre-discounted SKU's available in participating North and South American countries. Please check with the local authorized partner for availability

top

Smart buys

Description
Option Part Number
HP MSA 300GB 12G SAS 10K SFF (2.5 in) dual port Enterprise 3 year warranty hard drive
J9F44SB
HP MSA 600GB 12G SAS 10K SFF (2.5 in) Dual Port Enterprise 3 year warranty hard drive
J9F46SB
HP MSA 900GB 12G SAS 10K SFF (2.5 in) Dual Port Enterprise 3 year warranty hard drive
J9F47SB
HP MSA 1.2TB 12G SAS 10K SFF (2.5 in) Dual Port Enterprise 3 year warranty hard drive
J9F48SB
HP MSA 1.8TB 12G SAS 10K SFF (2.5 in) 512e Enterprise 3 year warranty hard drive
J9F49SB
HP MSA 200GB 12G ME SAS SFF (2.5 in) Enterprise mainstream 3 year warranty Solid State Drive (SSD)
K2Q45SB

top

SAS or SAS MDL drive options

Description
Option Part Number
SAS drives (SFF 2.5-inch)
12G SFF 15K SAS HDDs
HPE MSA 300GB 12G SAS 15K SFF 2.5 inch enterprise 3 year warranty hard drive
J9F40A
HPE MSA 600GB 12G SAS 15K SFF 2.5 inch enterprise 3 year warranty hard drive
J9F42A
HPE MSA 450GB 12G SAS 15K SFF 2.5 inch enterprise 3 year warranty hard drive
J9F41A
HPE MSA 900GB 12G SAS 15K SFF 2.5 inch Enterprise 3 year warranty hard drive
Q1H47A
HPE MSA 146GB 6G SAS 15K 2.5 inch dual-port enterprise 3-year warranty hard drive
E2D54A
HPE MSA 300GB 6G SAS 15K 2.5 inch dual-port enterprise 3 year warranty hard drive
C8S61A
6G SFF 10K SAS HDDs
HPE MSA 300GB 6G SAS 10K 2.5 in dual-port enterprise 3 year warranty hard drive
E2D55A
HPE MSA 450GB 6G SAS 10K 2.5 in dual-port enterprise 3 year warranty hard drive
E2D56A
HPE MSA 600GB 6G SAS 10K 2.5 in dual-port enterprise 3 year warranty hard drive
C8S58A
HPE MSA 900GB 6G SAS 10K 2.5 in dual-port enterprise 3 year warranty hard drive
C8S59A
HPE MSA 1.2TB 6G SAS 10K SFF 2.5 in dual-port enterprise 3 year warranty hard drive
E7W47A
6G SFF 7.2K SAS Midline (MDL) HDDs
HPE MSA 1TB 6G SAS 7.2K 2.5 in dual-port MDL 1 year warranty hard drive
C8S62A
12G SFF 7.2K SAS MDL HDDs
HPE MSA 1TB 12G SAS 7.2K SFF (2.5 in) 512e MDL 1 year warranty hard drive
J9F50A
HPE MSA 2TB 12G SAS 7.2K SFF (2.5 in) 512e MDL 1 year warranty hard drive
J9F51A
NOTE: 512e drives require MSA 1040/2040 firmware version GL200P002 or newer.
12G SFF 10K SAS HDDs
HPE MSA 300GB 12G SAS 10K SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
J9F44A
HPE MSA 600GB 12G SAS 10K SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
J9F46A
HPE MSA 900GB 12G SAS 10K SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
J9F47A
HPE MSA 1.2TB 12G SAS 10K SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
J9F48A
HPE MSA 1.8TB 12G SAS 10K SFF (2.5 in) 512e enterprise 3 year warranty hard drive
J9F49A
NOTE: 512e drives require MSA 1040/2040 firmware version GL200P002 or newer.
Solid State Drives (SSDs) (SFF 2.5 inch)
12G SFF SAS SSDs Mainstream Endurance (ME)
HPE MSA 200GB 12G ME SAS SFF (2.5 in) Enterprise mainstream 3 year warranty SSD
K2Q45A
HPE MSA 400GB 12G ME SAS (2.5 in) SSD
J9F37A
HPE MSA 800GB 12G ME SAS (2.5 in) SSD
J9F38A
HPE MSA 1.6TB 12G ME SAS (2.5 in) SSD
J9F39A
12G SFF SAS SSDs (Mixed use)
HPE MSA 400GB 12G SAS mixed use SFF (2.5 in) 3 year warranty SSD
N9X95A
HPE MSA 800GB 12G SAS mixed use SFF (2.5 inh) 3 year warranty SSD
N9X96A
HPE MSA 1.6TB 12G SAS mixed use SFF (2.5 in) 3 year warranty SSD
N9X91A
HPE MSA 3.2TB 12G SAS mixed use SFF (2.5 in) 3 year warranty SSD
N9X92A
MSA LFF SAS MDL DP drives for MSA 1040 array and MSA 2040 3.5-inch disk enclosure
12G LFF 7.2K SAS MDL HDDs
HPE MSA 10TB 12G SAS 7.2K LFF (3.5 in) MDL 512e 1 year warranty hard drive
P9M82A
HPE MSA 8TB 12G SAS 7.2K LFF (3.5 in) 512e MDL 1 year warranty hard drive
M0S90A
HPE MSA 6TB 12G SAS 7.2K LFF (3.5 in) MDL 1 year warranty hard drive
J9F43A
HPE MSA 4TB 12G SAS 7.2K LFF (3.5 in) MDL 1 year warranty hard drive
K2Q82A
HPE MSA 2TB 12G SAS 7.2K LFF (3.5 in) MDL 512n 1-year warranty hard drive
N9X93A
NOTE: 512e drives require MSA 1040/2040 firmware version GL200P002 or newer.
6G LFF 7.2K SAS MDL HDDs
HPE P2000 1TB 6G SAS 7.2K LFF (3.5 in) dual-port MDL Hard Drive
AP861A
HPE P2000 2TB 6G SAS 7.2K LFF (3.5 in) dual-port MDL Hard Drive
AW555A
HPE P2000 3TB 6G SAS 7.2K rpm (3.5 in) MDL 1 year warranty hard drive
QK703A
HPE MSA 4TB 6G SAS 7.2K rpm LFF (3.5 in) MDL 1 year warranty hard drive
C8R26A
HPE MSA 6TB 6G SAS 7.2K (3.5 in) MDL 1 year warranty hard drive
J9F36A
MSA LFF SAS DP drives for MSA 1040 array and MSA 2040 3.5-inch disk enclosure
12G LFF 15K SAS HDDs
HPE MSA 300GB 12G SAS 15K LFF (3.5 in) converter enterprise 3 year warranty hard drive
J9V68A
HPE MSA 450GB 12G SAS 15K LFF (3.5 in) converter enterprise 3 year warranty hard drive
J9V69A
HPE MSA 600GB 12G SAS 15K LFF (3.5-inch) converter enterprise 3 year warranty hard drive
J9V70A
12G LFF SAS SSDs (SFF SSDs in LFF converters)
HPE MSA 400GB 12G SAS mixed use LFF (3.5 in) converter carrier 3 year wrranty SSD
P9M79A
HPE MSA 800GB 12G SAS mixed use LFF (3.5 in) converter carrier 3 year warranty SSD
P9M80A
HPE MSA 400GB 12G SAS ME LFF (3.5 in) Ent mainstream converter carrier 3 year warranty SSD
Q0F76A
HPE MSA 400GB 12G SAS ME LFF (3.5 in) Ent mainstream converter carrier 3 year warranty SSD
Q0F77A
6G LFF 15K SAS HDDs
HPE P2000 300GB 6G SAS 15K rpm LFF dual-port enterprise hard drive
AP858A
HPE P2000 450GB 6G SAS 15K rpm LFF dual-port enterprise hard drive
AP859A
HPE P2000 600GB 6G SAS 15K rpm LFF dual-port enterprise hard drive
AP860A
HPE ProLiant Server SAS drives (SFF 2.5-inch)
HPE 300GB 6G SAS 15K rpm SFF (2.5 in) hot-plug enterprise 3 year warranty hard drive
785099-B21
HPE 450GB 6G SAS 15K rpm SFF (2.5 in) hot-plug enterprise 3 year warranty hard drive
785101-B21
HPE 600GB 6G SAS 15K rpm SFF (2.5 in) hot-plug enterprise 3 year warranty hard drive
785103-B21
HPE 300GB 6G SAS 10K rpm SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
507127-B21
HPE 300GB 6G SAS 15K rpm SFF (2.5 in) hot-plug enterprise 3 year warranty hard drive
627117-B21
HPE 146GB 6G SAS 15K rpm SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
512547-B21
HPE 450GB 6G SAS 10K rpm SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
581284-B21
HPE 900GB 6G SAS 10K rpm SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
619291-B21
HPE 1.2TB 6G SAS 10K rpm SFF (2.5 in) dual-port enterprise 3 year warranty hard drive
718160-B21
HPE 1TB 6G SAS 7.2K rpm SFF (2.5 in) dual-port MDL 1 year warranty hard drive
605835-B21

top

Drive enclosure

Description
Option Part Number
HPE MSA 2040 LFF disk enclosure
C8R18A
HPE D2700 disk enclosure
AJ941A
HPE MSA 2040 energy star LFF disk enclosure
M0S96A

top

SAS cable

Description
Option Part Number
HPE external mini SAS 1 m cable ALL
407337-B21
HPE external mini SAS 2 m cable
407339-B21

top

Power cords

Description
Option Part Number
HPE ProLiant 3.65 m (12 ft) power cord
227099-001
Power cord, (Australia/China/New Zealand)
227098-001
Power cord, (Central Europe)
157215-001
Power cord, (United Kingdom/Hong Kong)
157216-001
Power cord, (Switzerland)
157219-001
Power cord, (Italy)
157217-001
Power cord, (Denmark)
157218-001
Power cord, (Japan)
139867-001
Power cord, (South East Asia/India)
157220-001

top

FC Host Bus Adapters (HBAs)

Description
Option Part Number
c-Class HBA
HPE QMH2572 8Gb FC HBA for BladeSystem c-Class
651281-B21
HPE LPe1205A 8Gb FC HBA for BladeSystem c-Class
659818-B21
BladeSystem c-Class FC Mezzanine HBAs
QLogic QMH2562 8Gb FC HBA for c-Class BladeSystem
451871-B21
Emulex LPe1205 8Gb FC HBA for c-Class BladeSystem
456972-B21
Emulex FC HBAs
HPE 81E 8Gb 1-port PCIe FC HBA
AJ762B
HPE 82E 8Gb 2-port PCIe FC HBA
AJ763B
QLogic FC HBAs
HPE 81Q 8Gb 1-port PCIe FC HBA
AK344A
HPE 82Q 8Gb 2-port PCIe FC HBA
AJ764A
SAS HBAs
HPE H241 12Gb 2-ports ext Smart HBA
726911-B21
HPE H221 PCIe 3.0 SAS HBA
729552-B21
HPE Modular Smart Array SC08e 2-ports ext PCIe x8 SAS HBA
614988-B21

top

FC switches

Description
Option Part Number
HPE 8/20q FC 8-ports active switch
AQ233B
HPE 8/20q FC switch
AK242B
HPE 8/8 base (0) e-port SAN switch
AM866B
HPE 8/8 (8) full fabric ports enabled SAN switch
AM867B
HPE 8/24 Base (16) full fabric ports enabled SAN switch
AM868B
HPE 1606 FCIP 16-pt enabled 8Gb FC 6-pt enabled 1 GbE power pack+ switch
AP864B
HPE 1606 FCIP 16-pt enabled 8Gb FC 6-pt enabled 1 GbE full switch
AP863B
HPE 1606 FCIP 4-pt enabled 8Gb FC 2-pt enabled 1 GbE base switch
AP862B
Brocade 8/12c SAN switch for BladeSystem c-Class
AJ820B
Brocade 8/24c SAN switch for BladeSystem c-Class
AJ821B
Brocade 8/24c power pack+ SAN switch for BladeSystem c-Class
AJ822B
HPE SN6000 stackable 8Gb 24-port single power Fibre Channel switch1
AW575B
HPE SN6000 stackable 8Gb 24-port dual power Fibre Channel switch
AW576B
HPE SN6000 stackable 12-port single power FC switch2
BK780B
Cisco MDS 9124 8-ports active fabric switch
AG646A
Cisco MDS 9124 16-ports active fabric switch
AG647A
HPE MDS 9124 24-ports active fabric switch
AG648A
Cisco MDS 8/12c fabric switch for HPE BladeSystem c-Class
AW563A
Cisco MDS 8/24c fabric switch for HPE BladeSystem c-Class
AW564A
Cisco MDS 9222i multiservice with 0 SFP transceiver modular fabric switch
AG851B
HPE SN6000C 8Gb 16-port FC switch
AW585A
HPE SN6000C 8Gb 32-port FC switch
AW586A
Switches
HPE 6Gb SAS switch single pack for HPE BladeSystem c-Class
BK763A
HPE 6Gb SAS switch dual pack for HPE BladeSystem c-Class
BK764A
NOTE:
  1. 20 device ports active/4 stacking (ISL) ports active.
  2. 8 device ports/4 stacking (ISL) ports active, upgradeable to 20 device ports active.

top

Cables

Description
Option Part Number
PremierFlexOM4 type cables
HPE premier flex LC/LC multi-mode OM4 2 fiber 1 m cable
QK732A
HPE premier flex LC/LC multi-mode OM4 2 fiber 2 m cable
QK733A
HPE premier flex LC/LC multi-mode OM4 2 fiber 5 m cable
QK734A
HPE premier flex LC/LC multi-mode OM4 2 fiber 15 m cable
QK735A
HPE premier flex LC/LC multi-mode OM4 2 fiber 30 m cable
QK736A
HPE premier flex LC/LC multi-mode OM4 2 fiber 50 m cable
QK737A
OM3 FC LC-LC cables
HPE LC to LC multi-mode OM3 2-fiber 0.5 m 1-pack fiber optic cable
AJ833A
HPE LC to LC multi-mode OM3 2-fiber 1.0 m 1-pack fiber optic cable
AJ834A
HPE LC to LC multi-mode OM3 2-fiber 2.0 m 1-pack fiber optic cable
AJ835A
HPE LC to LC multi-mode OM3 2-fiber 5.0 m 1-pack fiber optic cable
AJ836A
HPE LC to LC multi-mode OM3 2-fiber 15.0 m 1-pack fiber optic cable
AJ837A
HPE LC to LC multi-mode OM3 2-fiber 30.0 m 1-pack fiber optic cable
AJ838A
HPE LC to LC multi-mode OM3 2-fiber 50.0 m 1-pack fiber optic cable
AJ839A
Copper cable
HPE BladeSystem c-Class 10 GbE SFP+ to SFP+ 0.5 m direct attach copper cable
487649-B21
HPE BladeSystem c-Class 10 GbE SFP+ to SFP+ 1 m direct attach copper cable
487652-B21
HPE BladeSystem c-Class 10 GbE SFP+ to SFP+ 3 m direct attach copper cable
487655-B21
HPE BladeSystem c-Class 10 GbE SFP+ to SFP+ 5 m direct attach copper cable
537963-B21
HPE BladeSystem c-Class 10 GbE SFP+ to SFP+ 7 m direct attach copper cable
487658-B21
NOTE: Direct attached copper cables are supported in 10 GbE controller systems.
DAC Cable
HPE X242 10G SFP+ to SFP+ 1 m direct attach copper cable
J9281B
HPE X242 10G SFP+ to SFP+ 3 m direct attach copper cable
J9283B
HPE X242 10G SFP+ to SFP+ 7 m direct attach copper cable
J9285B
HPE X240 10G SFP+ to SFP+ 0.65 m direct attach copper cable
JD095C
HPE X240 10G SFP+ to SFP+ 1.2 m direct attach copper cable
JD096C
HPE X240 10G SFP+ to SFP+ 3 m direct attach copper cable
JD097C
HPE X240 10G SFP+ to SFP+ 5 m direct attach copper cable
JG081C
HPE X240 10G SFP+ SFP+ 7 m direct attach copper cable
JC784C
Mini-SAS HD to Mini-SAS fanout cables
HPE mini SAS high density to dual 2-lane mini SAS external fanout 1 m cables
K2R02A
HPE mini SAS high density to dual 2-lane mini SAS external fanout 2 m cables
K2R03A
HPE mini SAS high density to dual 2-lane mini SAS external fanout 4 m cables
K2R04A
NOTE: Recommended to utilize fanout cables when connecting to SAS HBAs for maximum future flexibility without downtime. The fanout cables are not supported on the MSA 2040.

Mini-SAS HD to Mini-SAS HD fanout cables
HPE mini SAS high density to dual 2-lane mini SAS high density external fanout 1 m cable
K2Q99A
HPE mini SAS high density to dual 2-lane mini SAS high density external fanout 2 m cable
K2R00A
HPE mini SAS high density to dual 2-lane mini SAS high density external fanout 4 m cable
K2R01A
NOTE: Recommended to utilize fanout cables when connecting to SAS HBAs for maximum future flexibility without downtime. The fanout cables are not supported on the MSA 2040.
Mini-SAS HD to Mini-SAS cables
HPE 1.0 m external mini-SAS high density to mini-SAS cable1
716189-B21
HPE 2.0 m external mini-SAS SAS high density to mini-SAS cable
716191-B21
HPE 4.0 m external mini-SAS SAS high density to mini-SAS cable
716193-B21
NOTE: Recommended to utilize standard cable when connecting to Blade enclosure switches.
Mini-SAS HD to Mini-SAS HD cables
HPE external 1.0 m (3 ft) mini-SAS HD 4x to mini-SAS HD 4x cable
716195-B21
HPE external 2.0 m (6 ft) mini-SAS HD 4x to mini-SAS HD 4x cable
716197-B21
HPE external 4.0 m (13 ft) mini-SAS HD 4x to mini-SAS HD 4x cable
716199-B21
NOTE:
  1. This cable is used to connect 6Gb SAS initiator to MSA 2040 SAS controller. This is not used for connecting to a disk enclosure.

top

Controller

Description
Option Part Number
HPE Smart Array P741m/4GB FBWC 12Gb 4-ports ext mezzanine SAS controller
726782-B21
HPE Smart Array P731m/512 FBWC 6Gb 4-ports ext mezzanine SAS controller
698536-B21
HPE Smart Array P721m/2GB FBWC 6Gb 4-ports ext mezzanine SAS controller
650072-B21
HPE Smart Array P721m/512 FBWC 6Gb 4-ports ext mezzanine SAS controller
655636-B21
HPE Smart Array P712m/256 6Gb 2-ports Int/2-ports ext mezzanine SAS controller
488348-B21
HPE Smart Array P711m/1G 6Gb FBWC 4-ports ext mezzanine SAS controller
513778-B21
HPE Smart Array P441/4GB FBWC 12Gb 2-ports ext SAS controller
726825-B21
HPE Smart Array P431/2GB FBWC 12Gb 2-ports ext SAS controller
698531-B21

top

Services (Software support)

Description
Option Part Number
MSA 1040 advanced virtualization functionality
HPE MSA advanced data services suite LTU
Q0H99A
HPE MSA advanced data services suite E-LTU
Q0H99AAE
HPE MSA 1040 advanced virtualized upgrade LTU
D4T78A
HPE MSA 1040 advanced virtualized upgrade E-LTU
D4T78AAE
HPE MSA 512-snapshot software LTU
TC462A
HPE MSA 512-snapshot software E-LTU
TC462AAE
HPE MSA remote snapshot software LTU
TC463A
HPE MSA remote snapshot software E-LTU
TC463AAE
HPE MSA 2040 perf auto tiering LTU
D4T79A
HPE MSA 2040 perf auto tiering E- LTU
D4T79AAE

top

Gateway storage

Description
Option Part Number
HPE StoreEasy 3850 gateway storage
K2R69A
HPE StoreEasy 3850 gateway single node
K2R70A
HPE StoreEasy 3850 gateway blade storage
K2R72A
