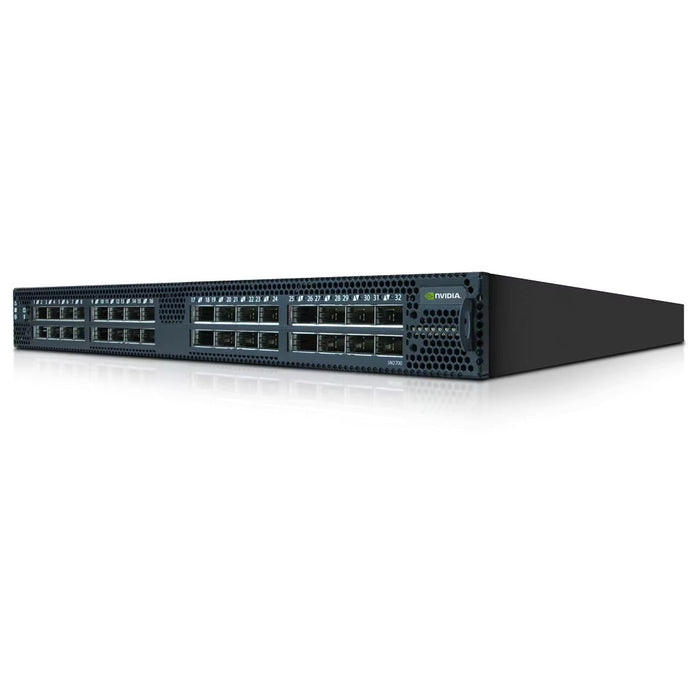

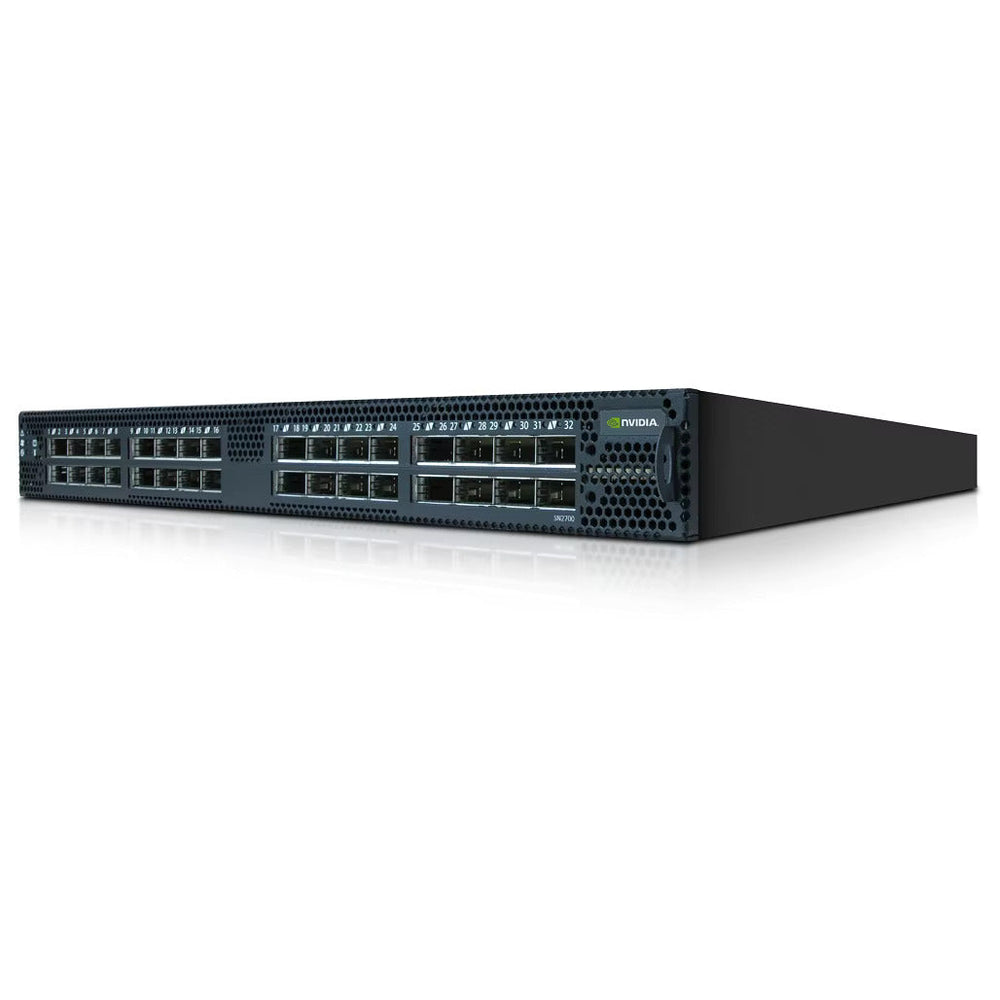

The NVIDIA MQM9700-NS2R is a high-performance Quantum-2 based NDR InfiniBand switch, designed to deliver industry-leading throughput and ultra-low latency across 64 NDR (400Gb/s) ports via 32 OSFP interfaces. Ideal for AI workloads, high-performance computing (HPC), and cloud infrastructure, this switch provides unmatched scalability and performance in a compact 1U form factor.
This version features Connector-to-Power (C2P) airflow — also known as reverse airflow — making it ideal for rack environments that require front-to-back cooling.
🔧 Product Specifications (Data Sheet)
| Feature |
Details |
| Brand |
NVIDIA |
| Model |
MQM9700-NS2R |
| Platform |
NVIDIA Quantum-2 |
| Switch Type |
Managed |
| Ports |
32x OSFP (supports up to 64x NDR 400Gb/s via splitter cables) |
| Speed |
NDR – 400Gb/s |
| Switching Capacity |
51.2 Tbps |
| Forwarding Rate |
25.6 Bpps |
| Latency |
Sub-300ns (ultra-low latency) |
| Airflow Direction |
Connector-to-Power (C2P) – Reverse airflow |
| Form Factor |
1U Rack-Mountable |
| Cooling |
Redundant, hot-swappable fans (rear-exhaust) |
| Power Supply |
Redundant, hot-swappable PSUs |
| Management Interfaces |
CLI, SNMP, Web GUI, out-of-band management |
| Compatibility |
OSFP optics, NVIDIA ConnectX NICs, DGX systems |
| Use Cases |
AI Clusters, HPC, Scientific Research, Hyperscale Data Centers |
❓ Frequently Asked Questions (FAQs)
Q1: What airflow does the MQM9700-NS2R support?
A: The MQM9700-NS2R features Connector-to-Power (C2P) airflow, which directs air from the connector side to the power supply side — perfect for environments with reverse airflow setups.
Q2: How many total NDR connections are supported?
A: The switch supports up to 64 NDR (400Gb/s) connections using 32 OSFP ports and breakout cables (2x NDR per port).
Q3: Is this model suitable for AI and HPC workloads?
A: Yes, it’s specifically built for AI training clusters, scientific computing, and cloud-native high-performance environments.
Q4: Can I hot-swap components like fans and power supplies?
A: Yes. Both fans and power supplies are hot-swappable, allowing for non-disruptive servicing.
Q5: What’s the difference between MQM9700-NS2R and MQM9700-NS2F?
A: The main difference is airflow direction. The NS2R model uses C2P (reverse airflow), while the NS2F model uses P2C (forward airflow).
