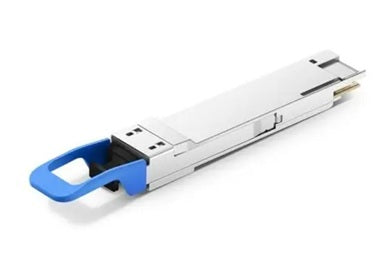

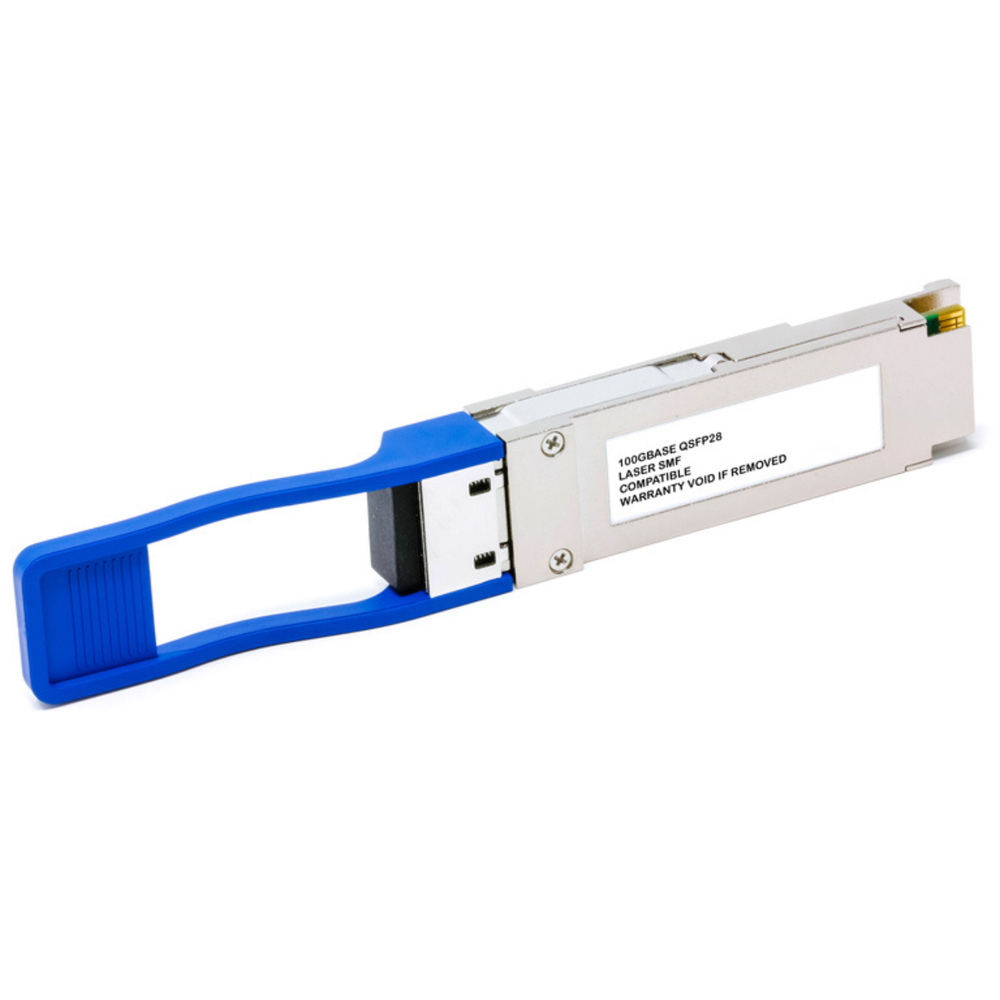

This third-party 100G QSFP28 LR4 transceiver is fully compatible with Mellanox MMA1L10-CR, delivering 100GbE connectivity over single-mode fiber (SMF) up to 10 kilometers. Ideal for enterprise networking, hyperscale data centers, and high-bandwidth Ethernet deployments requiring reliable long-range optical interconnects.
Built to MSA standards, it features an LC Duplex UPC connector and digital diagnostics (DOM) support. Backed by our lifetime warranty and rigorous testing—enjoy significant savings versus genuine Mellanox OEM optics while maintaining reliable, high-performance connectivity.
Key Features
-
Massive Cost Savings: Premium compatible optics at a fraction of OEM pricing—ideal for scaling enterprise and AI networking environments affordably.
-
Plug-and-Play Compatibility: Pre-programmed EEPROM enables seamless deployment with Mellanox/NVIDIA networking platforms.
-
High-Speed 100GbE Performance: Delivers reliable 100Gb Ethernet connectivity for enterprise networks, AI clusters, and data center fabrics.
-
Long-Range Single-Mode Reach: Supports up to 10km transmission over SMF.
-
Optimized for Data Centers: Ideal for hyperscale deployments, spine-leaf architectures, and high-throughput storage fabrics.
-
Digital Optical Monitoring: DOM/DDM support enables real-time monitoring of transceiver health and performance.
Technical Specifications
-
Data Rate: 100GbE
-
Form Factor: QSFP28
-
Wavelength: 1310nm
-
Connector: LC Duplex UPC
-
Reach: Up to 10km over SMF
-
Fiber Type: Single-Mode Fiber (SMF)
-
Power Consumption: 3.5W
-
Operating Temperature: 0°C to 70°C
-
Standards Compliance: QSFP28 MSA compliant
-
Features: Digital Optical Monitoring (DOM/DDM) support
Compatibility
Programmed for compatibility with Mellanox/NVIDIA and MSA-compliant systems, including:
- Mellanox/NVIDIA networking platforms
- NVIDIA/Mellanox ConnectX adapters
- Enterprise Ethernet networks
- AI and HPC cluster environments
- Hyperscale and cloud data center deployments
Requires LC Duplex single-mode fiber cabling (not included).
Need different reach options, compatible optics, or bulk quotes? Contact us—we specialize in high-performance networking solutions for AI, HPC, and data center environments.
MMA1L10-CR Cross-Reference: LR4 vs CWDM4 vs SR4
Short answer: MMA1L10-CR is NVIDIA/Mellanox's 100GbE QSFP28 LR4 module, with duplex LC on single-mode fiber up to 10km. For a link under 2km, a CWDM4 module (MMA1L30-CR in NVIDIA's lineup) usually costs less. Inside a building on multimode fiber, SR4 is the cheapest option. LR4 only links to LR4: both ends of the fiber need the same optic type.
| Distance / fiber |
Optic type |
At Resilient Tec |
| Up to 10km, single-mode |
LR4 (this) |
This listing · Cisco-coded LR4 for the far end on a Cisco switch |
| Up to 2km, single-mode |
CWDM4 |
100G CWDM4 (Mellanox coding on request) |
| Up to 100m, multimode |
SR4 |
MMA1B00-C100D compatible |
Mixed-vendor link (Mellanox on one end, Cisco or Arista on the other)? We code each end for its own switch. See why the same optic works in one switch and not another.
