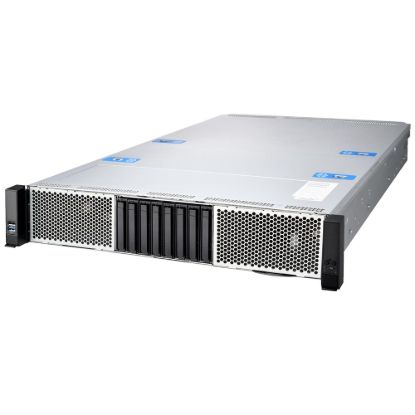

MITAC R2520G6U2BC is a 2U rackmount barebone server featuring dual LGA4710 sockets supporting Intel Xeon 6 processors with up to 350 W TDP, 32 DDR5 RDIMM slots supporting up to 8 TB memory, and eight hot swap SFF drive bays with NVMe U.2, SATA 6Gb/s, and SAS 4.0 support. It includes five PCIe Gen5 x16 expansion slots, dual OCP 3.0 mezzanine slots, and ASPEED AST2600 BMC remote management for scalable enterprise server deployments.
Specifications
Model Number: R2520G6U2BC
Brand: MITAC
Alt Part Number(s): R2520G6U2BC
Product Type: Barebone Server
Technical Description
Brand: MITAC
Model Number: R2520G6U2BC
Form Factor: 2U Rackmount
Processor Sockets: Dual LGA4710 (2-Socket)
Supported CPUs: Intel Xeon 6 (6700/6500 Series with P-Cores or E-Cores; Up to 350 W TDP)
Memory Capacity: Up to 8 TB via 32 DDR5 RDIMM Slots; Speeds up to DDR5-6400 1DPC
Storage Bays: 8 Hot-Swap SFF Drive Bays; Supports NVMe U.2, SATA 6Gb/s, SAS 4.0
Expansion Slots: 5 x PCIe Gen5 x16 Slots
Networking / OCP: 2 x OCP 3.0 Mezzanine Slots
Remote Management: ASPEED AST2600 BMC for IPMI
