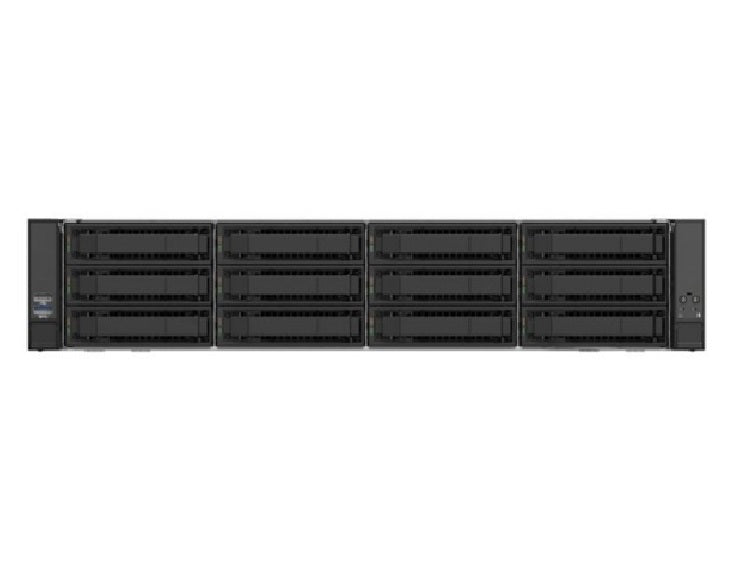

The Intel Server System M50CYP2UR312 (code-named Coyote Pass) is a mainstream 2U, 2-socket rackmount server designed for high-density, compute-intensive data center workloads. It is built around the Intel C621A chipset to support 3rd Generation Intel Xeon Scalable processors.
Specifications
Model Number: M50CYP2UR312
Brand: MITAC
Alt Part Number(s): M50CYP2UR312
Product Type: Barebone Server
Technical Description
Brand: MITAC
Model Number: M50CYP2UR312
Processor Type: Intel Xeon
Processor Core: 80-Core
Processor Power: 270 W per CPU
Processor Socket: 2 × Socket-P4 (LGA4189)
Chipset: Intel C621A
Max CPU TDP: 270W per CPU
Motherboard: M50CYP2SBSTD
Graphics Controller: ASPEED AST2600
Networking: 1 1000Base-T dedicated IPMI port
Number of Drive Bays: 12 x 3.5"(12-LFF) hot-swap SAS/SATA + 2 M.2
Expansion Slots: 1 × OCP 3.0 PCIe 4.0 x16
Memory Supported: Up to 12 TB
Memory Technology: DDR4
Memory Speed: Up to DDR4-3200
Memory Slots: 32 DIMM slots
Memory Channels: 8-Channels
Cooling: 8 × 4056 system fans
Power Supply: 1300W/1600W PSU (80+ Titanium), 2100W PSU (80+ Platinum)
Form Factor: 1U Rackmount
