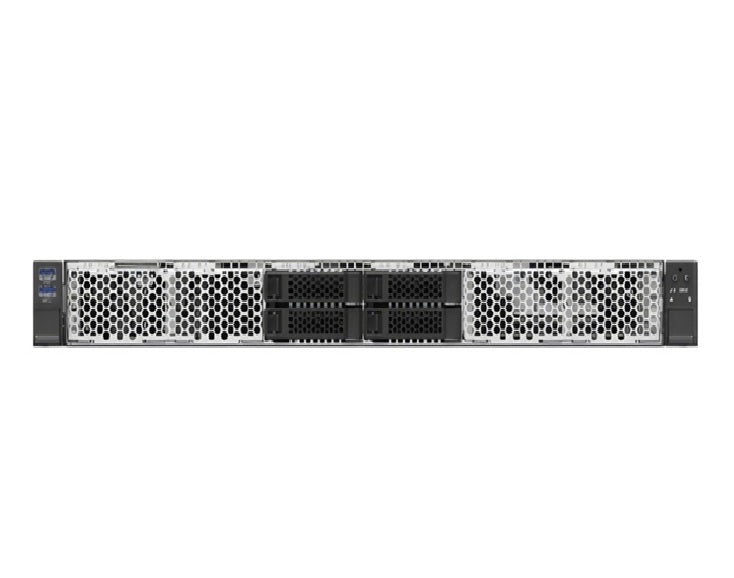

The Intel M50CYP1UR204 (code-named Coyote Pass) is a high-density, 1U dual-socket enterprise barebone server designed for demanding data center workloads [1]. It delivers mainstream computing power for cloud applications, database virtualization, and high-performance computing (HPC) by leveraging 3rd Generation Intel Xeon Scalable processors.
Specifications
Model Number: M50CYP1UR204
Brand: MITAC
Alt Part Number(s): M50CYP1UR204
Product Type: Barebone Server
Technical Description
Brand: MITAC
Model Number: M50CYP1UR204
Processor Type: Intel Xeon
Processor Core: 80-Core
Processor Power: 270 W
Processor Socket: LGA4189 (Socket P4)
Chipset: Intel C621A
Motherboard: M50CYP2SB1U
Graphics Controller: ASPEED AST2600
Networking: 1 × 1000Base-T IPMI/BMC port
Number of Drive Bays: 4 × Hot-Swap 2.5" SAS/SATA/NVMe
Expansion Slots: 1 × OCP 3.0
Memory Supported: Up to 12TB
Memory Technology: DDR4
Memory Speed: 3200 MT/s
Memory Slots: 32 DIMM slots
Memory Channels: 16-Channels
Cooling: 8 × 40 mm hot-swap fans
Power Supply: AC Hot-Swap PSU 1600W 80 PLUS Titanium
Form Factor: 1U Rackmount
