Overview

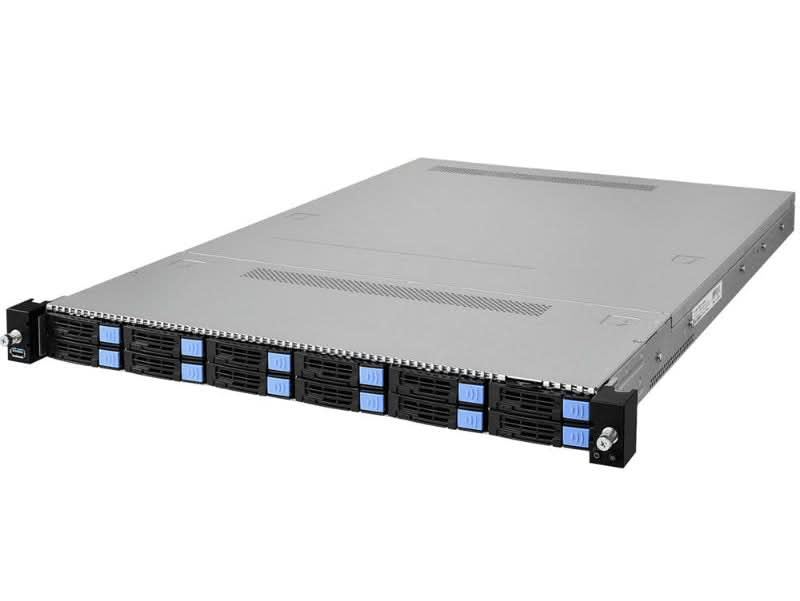

MITAC B8056G68CE12HR-2T is a 1U rackmount server powered by AMD EPYC 9004 Series CPUs, supporting up to 6TB DDR5 RDIMM across 24 slots and 12 NVMe U.2 hot-swap bays. It features dual PCIe Gen 5 x16 riser slots, redundant 860W Titanium PSUs, and AST2600 BMC for advanced remote management.
Specifications
Model Number: B8056G68CE12HR-2T
Brand: MITAC
Alt Part Number(s): B8056G68CE12HR-2T
Product Type: Server
Technical Description
Brand: MITAC
Model: B8056G68CE12HR-2T
Form Factor: 1U Rackmount, GPU Servers
Chassis Model: GC68C
Dimension (D x W x H): 26.77" x 17.26" x 1.69" (680 x 438.5 x 43mm)
Motherboard Name: S8056GM2NE-2T
Board Dimension: 14.18" x 12.16" (360.2 x 308.8mm)
Front Panel Buttons: (1) PWR w/ LED; (1) ID w/ LED
Front Panel LEDs: (1) ID; (1) PWR
I/O Ports: (1) USB 3.2 Gen.1 port
Processor Qty / Socket Type: (1) AMD Socket SP5
Supported CPU Series: (1) AMD EPYC™ 9004 Series Processor
Thermal Design Power Wattage: Max up to 400W* (cTDP)
Supported DIMM Qty: (24) DIMM slots
DIMM Type / Speed: AMD EPYC™ 9004: RDIMM: Up to 4800 MT/s (1DPC); 3600 MT/s (2DPC)
Memory Capacity: Up to 6,144 GB RDIMM/3DS RDIMM DDR5 4800 memory
Memory Channel: 12 Channels per CPU
Memory Voltage: 1.1V
PCIe Expansion Slots: (2) PCIe Gen 5 x16 slots
Pre-installed TYAN Riser Card (PCIe Gen.5): (1) M7136G68-L16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Left); (1) M7136G68-R16-1F riser card for (1) FH/HL PCIe Gen.5 x16 slot (Right)
Other Expansion Slots: (1) PCIe Gen 5 x16 OCP 3.0 mezzanine slot
External Drive Bay Qty / Type: (12) 2.5" hot-swap NVMe HDD/SSDs
Front Drive Bay Interface: (12) NVMe U.2
Front Drive Backplane Support: NVMe
Notification: PCIe Gen. 4.0 NVMe support
Power Supply Type: Slim 1U
Input Range: AC 100-127V/9.4-7.4A; AC 200-240V/4.8-4A
Frequency: 50-60 Hz
Output Watts: 860 Watts
Efficiency: 80 plus Titanium
Redundancy: 1+1
Serviceability: Hot-swap
System Cooling Configuration Fan: (3) 4028 fans; (3) 4056 fans
Air Duct: Tailored Air Duct
LAN Qty / Port: (2) 10GbE ports; (1) GbE dedicated for IPMI
LAN Controller: Intel X710-AT2
PHY: Realtek RTL8211F
Storage NVMe Connector (M.2): (2) 22110/2280 (by PCIe Gen 4 interface)
Storage NVMe Connector (U.2): (6) SFF-TA-1016 (MCIO 8x) for (12) front NVMe
Graphic Connector Type: D-Sub 15-pin
Graphic Resolution: Up to 1920x1200
Chipset: Aspeed AST2600
I/O Ports USB: (1) USB3.2 Gen.1 conn. (Type-A); (1) USB3.2 Gen.1 header; (1) USB3.2 Gen.1 port (@ front); (2) USB3.2 Gen.1 ports (@ rear)
COM Port: (1) DB-9 COM port
VGA Port: (1) D-Sub 15-pin port
RJ-45 Ports: (2) 10 GbE ports; (1) dedicated GbE for IPMI
Buttons: UID Button; Power Button
TPM Support: Please refer to our TPM supported list
TPM Interface: SPI
System Monitoring Chipset: Aspeed AST2600
Temperature Monitoring: Monitors temperature for CPU & system environment
Voltage Monitoring: Monitors voltage for CPU, memory, chipset & power supply
LED Indicators: Over temperature warning; Fan & PSU fail; Over voltage warning
Others: Watchdog timer support
Onboard Chipset: Aspeed AST2600
AST2600 iKVM Feature: 24-bit high quality video compression; Supports storage over IP and remote platform-flash; USB 2.0 virtual hub
AST2600 IPMI Feature: IPMI 2.0 compliant baseboard management controller (BMC); 10/100/1000 Mb/s MAC interface
BIOS Brand / ROM Size: AMI / 64MB
BIOS Feature: Hardware Monitor; FAN speed control automatic; Boot from USB device/PXE via LAN/Storage; Console Redirection; SMBIOS 3.3; PnP; Wake on LAN; ACPI 6.2; ACPI sleeping states S0, S5
Operating Temp.: 10° C ~ 35° C (50° F ~ 95° F)
Non-operating Temp.: -40° C ~ 70° C (-40° F ~ 158° F)
In/Non-operating Humidity: 90%, non-condensing at 35° C
Regulation FCC (SDoC): Class A
Regulation CE (DoC): Class A
Regulation CB/LVD: Yes
Regulation VCCI: Yes
Regulation C-Tick: Yes
Regulation BSMI: Yes
Operating System Supported: Please refer to our AVL support lists
RoHS 6/6 Compliant: Yes
*
