| Properties |

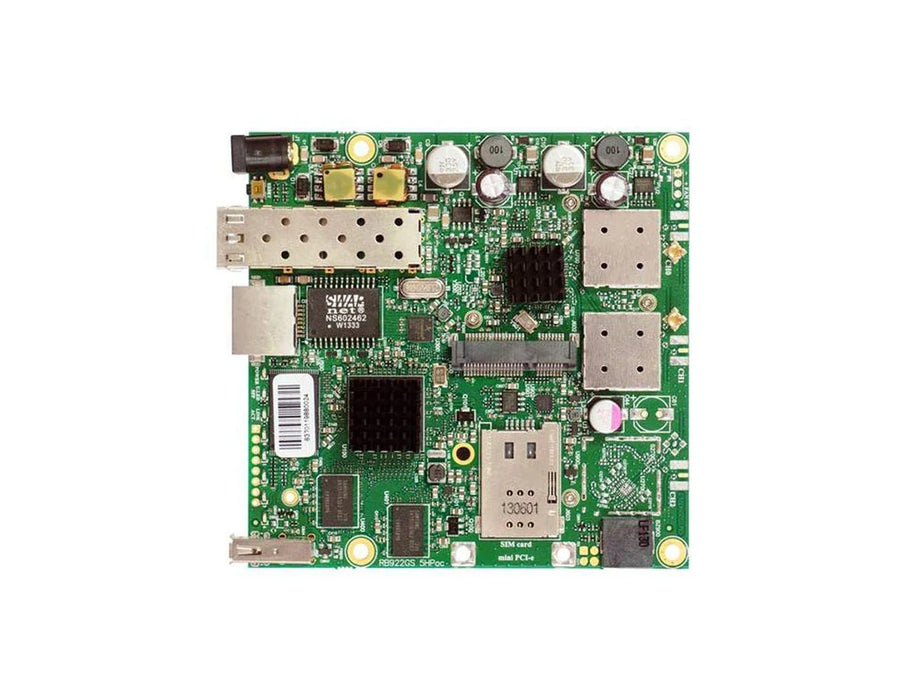

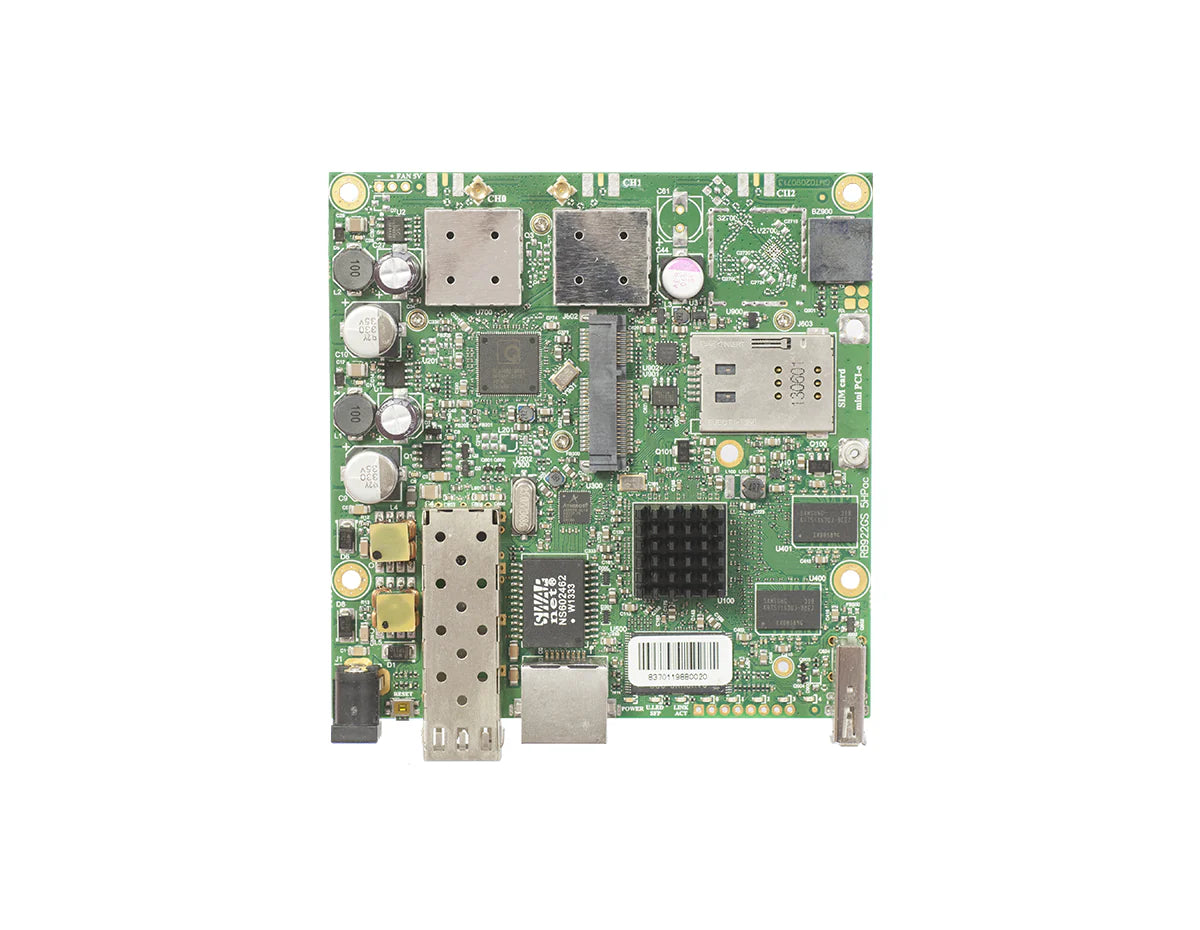

MikroTik RB922UAGS-5HPacD Router |
| Description |
The MikroTik RB922UAGS-5HPacD is a professional-grade dual-band wireless router with high-power output. It provides fast internet speeds, multiple Gigabit Ethernet ports, and advanced security features, making it ideal for demanding environments like ISPs, businesses, and enterprises. |
| Product Family |
Mikrotik RouterBOARD |
| Product Type |
Routerboard |
| Key Features |
• Dual-Band Wireless (2.4 GHz and 5 GHz)
• High-power output for extended coverage
• Multiple Gigabit Ethernet ports
• Advanced security features
• Professional-grade performance
• Ideal for ISPs, businesses, and enterprises |
[/properties] [specifications]
| Specifications |
MikroTik RB922UAGS-5HPacD Router |
| Product code |
RB922UAGS-5HPacD |
| Architecture |
MIPSBE |
| CPU |
QCA9557 |
| CPU core count |
1 |
| CPU nominal frequency |
720 MHz |
| Dimensions |
105x105mm |
| RouterOS license |
4 |
| Operating System |
RouterOS |
| Size of RAM |
128 MB |
| Storage size |
128 MB |
| Storage type |
NAND |
| MTBF |
Approximately 100'000 hours at 25C |
| Tested ambient temperature |
-40°C to 70°C |
| Powering |
| Number of DC inputs |
2 (DC jack, PoE-IN) |
| DC jack input Voltage |
8-30 V |
| Max power consumption |
17 W |
| Cooling type |
Passive |
| PoE in |
Passive PoE |
| PoE in input Voltage |
8-30 V |
| Wireless specifications |
| Wireless 5 GHz Max data rate |
867 Mbit/s |
| Wireless 5 GHz number of chains |
2 |
| Wireless 5 GHz standards |
802.11a/n/ac |
| Wireless 5 GHz chip model |
QCA9882 |
| Wireless 5 GHz generation |
Wi-Fi 5 |
| Ethernet |
| 10/100/1000 Ethernet ports |
1 |
| Fiber |
| SFP DDMI |
yes |
| SFP ports |
1 |
| Peripherals |
| Number of SIM slots |
1 Modem (Mini-SIM) |
| MiniPCI-e slots |
1 |
| Number of USB ports |
1 |
| USB Power Reset |
Yes |
| USB slot type |
USB type A |
| Max USB current (A) |
1 |
| Other |
| PCB temperature monitor |
Yes |
| Voltage Monitor |
Yes |
| Beeper |
Yes |
| Certification & Approvals |
| Certification |
CE, FCC, IC, EAC, ROHS |
| IP |
IP00 |
| Wireless specifications (2.4 GHz) |
| 6MBit/s |
Transmit (dBm): 31
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 27
Receive Sensitivity: -81 |
| MCS0 |
Transmit (dBm): 30
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 27
Receive Sensitivity: -77 |
| MCS9 |
Transmit (dBm): 22
Receive Sensitivity: -72 |
[/specifications] [accesories] [/accesories]
The RB922UAGS-5HPacD is a versatile wireless router that can be customized to meet individual needs. It supports the latest 802.11ac standard, providing high-speed wireless capabilities with a maximum data rate of 866Mbit and support for 20/40/80MHz channels. The device includes multiple ports and slots, such as a 1x SFP cage, a mini-PCIe slot with SIM for 3G/4G modem or an additional wireless card, a USB port, a Gigabit Ethernet port, and two MMCX connectors for the integrated powerful 802.11ac 2x2 radio. Moreover, it comes with a RouterOS L4 (AP) license. The RB922UAGS-5HPacD supports a range of 5150 MHz-5875MHz.
Quick Specs:
- 1x 10/100/1000 Ethernet Port
- 1x SFP uplink port / SFP DDMI
- QCA9557, 1 core, 720 MHz CPU
- 128 MB RAM
Please see the related tabs for the RB922UAGS-5HPacD datasheet and compatible accessories.
