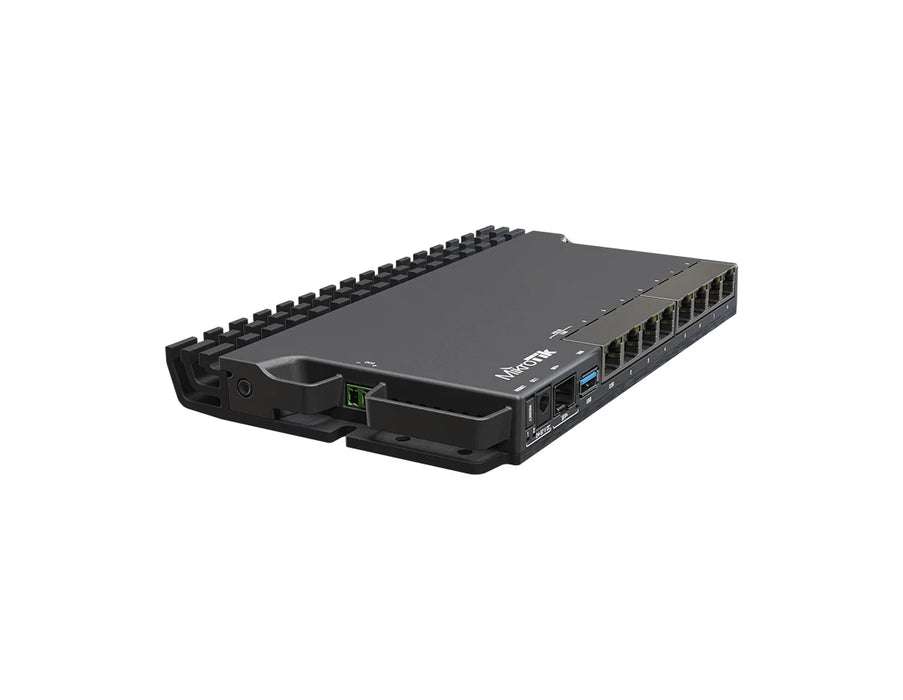

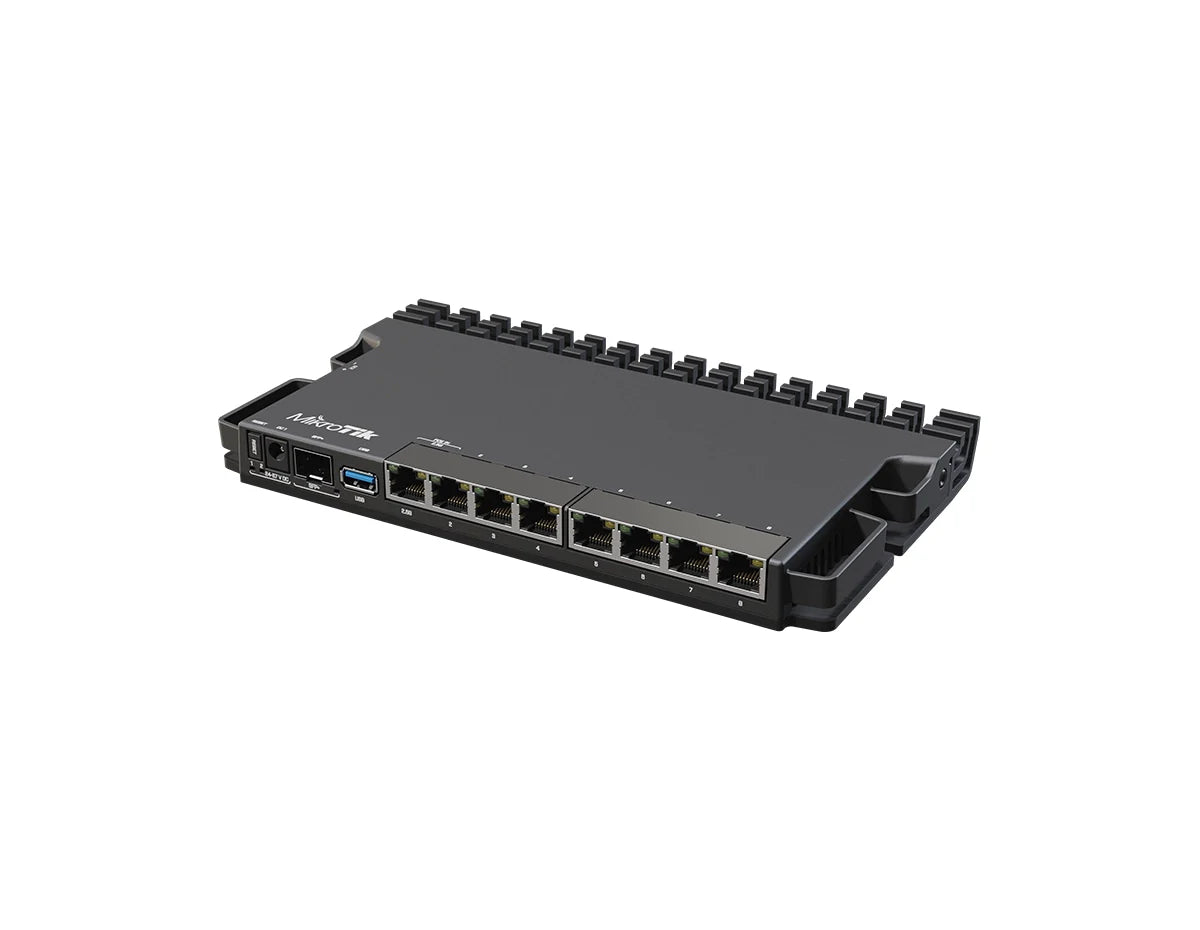

Mikrotik RB5009UG+S+IN Router
Clique ou role para ampliar
Toque ou belisque para ampliar
Mikrotik RB5009UG+S+IN Router
Mikrotik RB5009UG+S+IN Router

Mikrotik RB5009UG+S+IN Router

por Mikrotik
R$ 2.798,40
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • The ultimate heavy-duty home lab router with USB 3.0, 1G, and 2.5G Ethernet and a 10G SFP+ cage. You can mount four of these new routers in a single 1U rackmount space! Unprecedented processing power in such a small form factor
[/shortdesc]

[properties]

Properties MikroTik RB5009UG+S+IN
Description High-performance indoor router with 9 Gigabit Ethernet ports, one SFP+ port and one USB 3.0 port. Includes RouterOS Level 5 license and supports hardware encryption.
Product Family RB5000 Series
Product Type Ethernet Router
Ports
10/100/1000 Ethernet ports 7
2.5G Ethernet ports 1
SFP+ 1
Number of USB ports 1 USB 3.0 type A
Extras CPU temperature monitor
Dimensions 220 x 125 x 22 mm
Number of DC inputs 3 (PoE-IN, 2-pin terminal, DC jack)
DC jack input Voltage 24-57 V
2-pin terminal input Voltage 24-57 V
Max power consumption 20 W
Max power consumption without attachments 14 W
Cooling type Passive
PoE in 802.3af/at
PoE in input Voltage 24-57 V
Power adapter nominal current 1.5 A

[/properties][specifications]

Specifications RB5009UG+S+IN
Memory 1 GB
NAND Storage size 1 GB
CPU 88F7040 350-1400 (auto) MHz
CPU core count 4
Switch chip model 88E6393
OS RouterOS v7 level 5 license
MTBF Approximately 200.000 hours at 25C
Temperature -40°C to 60°C tested
Performance test results
Bridging
1518 byte
none (fast path) kpps: 811.3
Mbps: 9852.5
25 bridge filter rules kpps: 811.3
Mbps: 9852.5
512 byte
none (fast path) kpps: 2,333.7
Mbps: 9558.9
25 bridge filter rules kpps: 1526.7
Mbps: 6253.5
64 byte
none (fast path) kpps: 5545.3
Mbps: 3016.7
25 bridge filter rules kpps: 1488.2
Mbps: 809.6
Routing
1518 byte
none (fast path) kpps: 811.3
Mbps: 9852.5
25 simple queues kpps: 811.3
Mbps: 9852.5
25 ip filter rules kpps: 615.9
Mbps: 7479.1
512 byte
none (fast path) kpps: 2333.7
Mbps: 9558.9
25 simple queues kpps: 986.6
Mbps: 4041.0
25 ip filter rules kpps: 624.3
Mbps: 2557.1
64 byte
none (fast path) kpps: 4296.0
Mbps: 2337.0
25 simple queues kpps: 1001.1
Mbps: 544.6
25 ip filter rules kpps: 625.4
Mbps: 340.2
Certification CE, FCC, IC

[/specifications][accesories]

Accessories 24V 1.5A power adapter
4011 ears
K-55 screw kit
Optional Accessories Rackmount kit K-79

[/accesories]

Double the usual performance: we took your feedback from the MikroTik User Meetings to create the perfect home lab router: compact, powerful, with multiple powering options and efficient cooling.RB5009 has it all, and even more!

The board features 9 wired ports and a full-sized USB 3.0. Seven of the ports are Gigabit Ethernet, another one is 2.5 Gigabit Ethernet, and the last one is a 10G SFP+ cage. All the ports are connected to a powerful Marvell Amethyst family switch-chip with a 10 Gbps full-duplex line leading to the Marvell Armada Quad-core ARMv8 1.4 GHz CPU. Both CPU and the switch-chip are located on the bottom of the board - so the case acts as a massive heat-sink!

RB5009UG+S+IN can be powered in 3 different ways:

a) PoE-in from Ethernet port #1

b) DC Jack

c) 2-pin terminal on the side

Boards come with 1GB of DDR4 RAM and 1GB NAND storage. This combination of ports and components, compared to our other products in a similar form factor, provides almost double the performance in configurations with heavy CPU loads.

With a simple set of mounting accessories, you can mount FOUR of these routers in a single 1U rackmount space! No more server-room-Tetris, just pure productivity.
