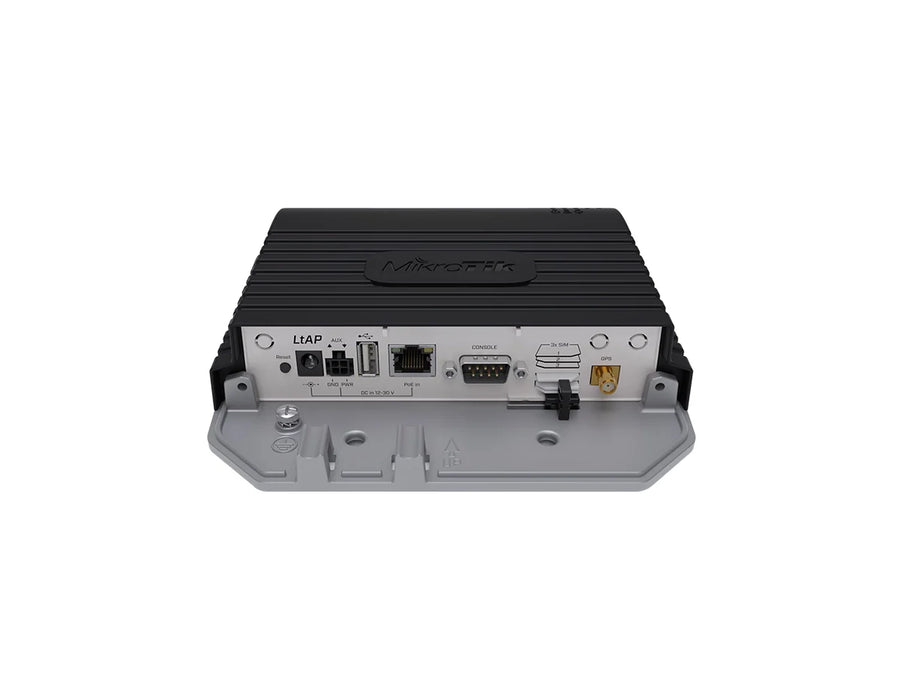

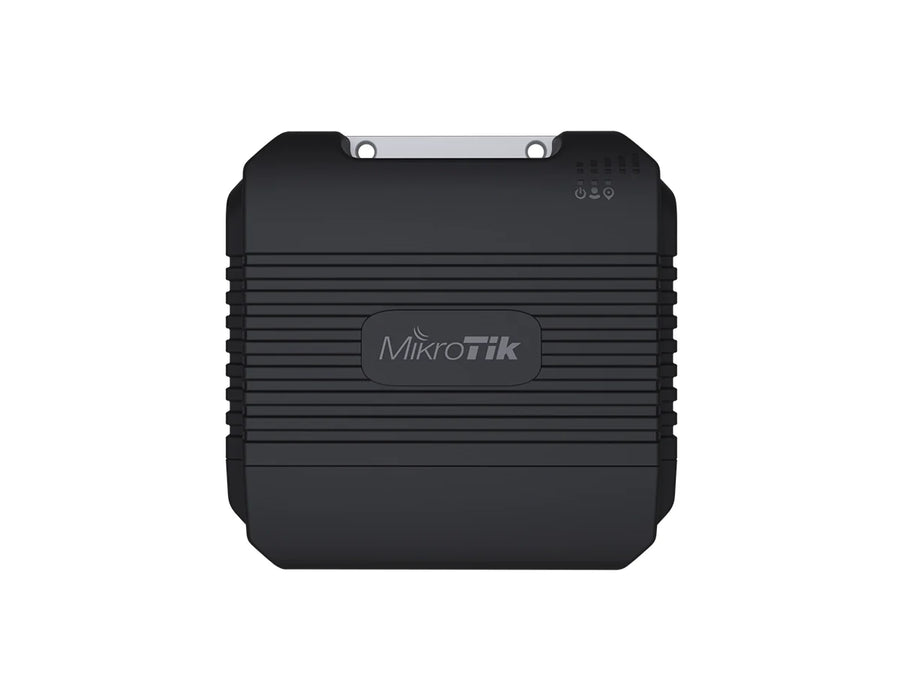

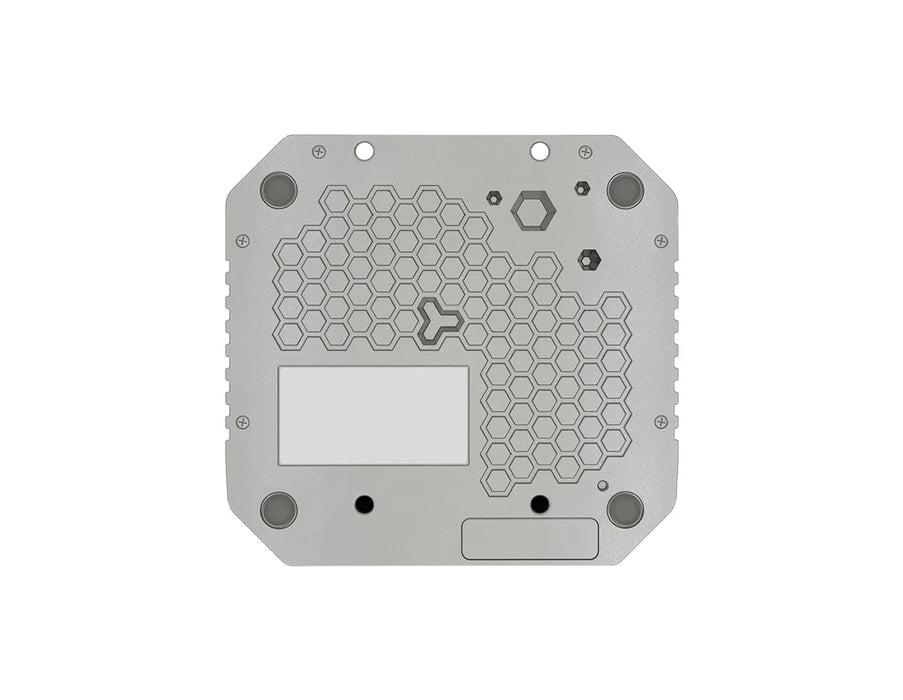

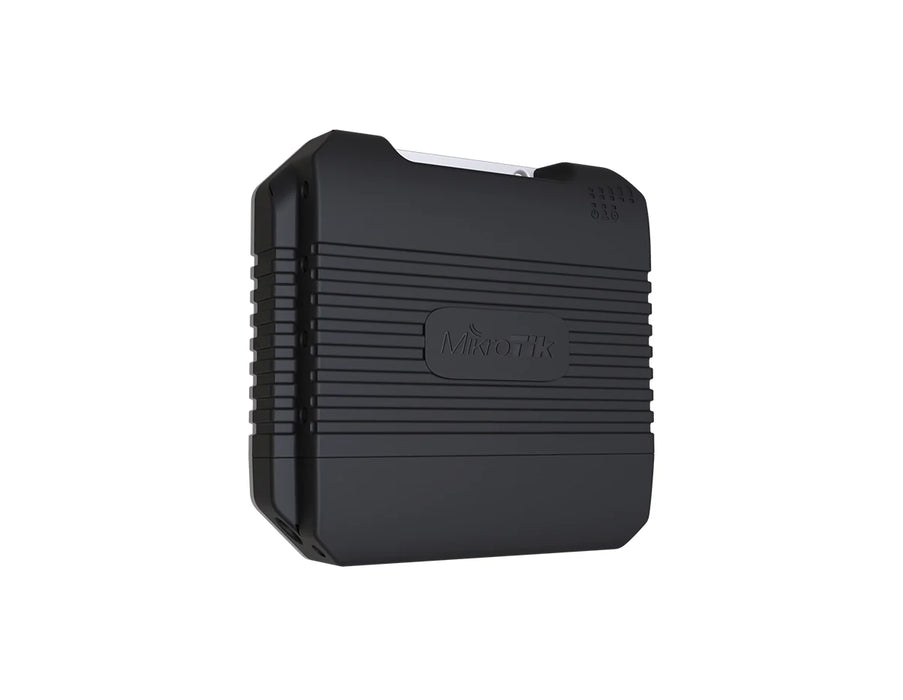

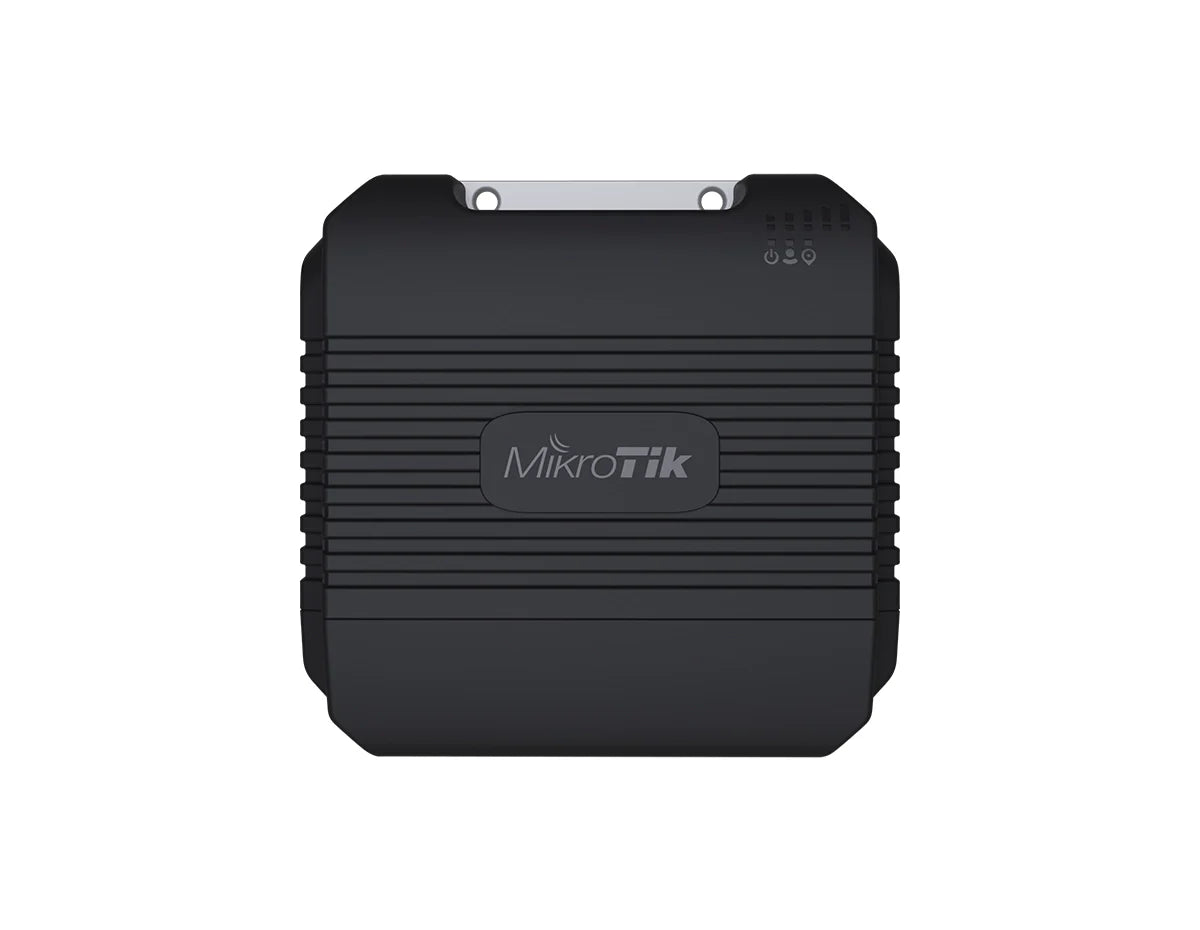

MikroTik LtAP LTE6 Kit (LtAP-2HnD&FG621-EA) |
| Description |
The MikroTik LtAP LTE6 Kit (LtAP-2HnD&FG621-EA) is a compact, high-speed wireless access point designed for outdoor and indoor use. It offers LTE Category 6 support, dual-band Wi-Fi, and dual Ethernet ports for reliable internet connectivity in remote locations. Ideal for rural internet, surveillance, and IoT applications. |
| Product Family |
MikroTik LtAP Wireless Access Point |
| Product Type |
Access Point |
| Key Features |
• Wireless access point with integrated LTE modem
• LTE Category 6 support for high-speed connectivity
• Dual-band Wi-Fi (2.4 GHz and 5 GHz) for versatile coverage
• Dual Ethernet ports for flexible network setups
• Compact and weatherproof design for outdoor use
• Ideal for rural internet, surveillance, and IoT applications |
[/properties] [specifications]
| Specifications |
MikroTik LtAP LTE6 kit (LtAP-2HnD&FG621-EA) |
| Product code |
LtAP-2HnD&FG621-EA |
| CPU |
Dual-core MT7621AT 880 MHz |
| CPU architecture |
MMIPS |
| Size of RAM |
128 MB |
| RAM type |
DDR3 |
| Storage |
16 MB, Flash |
| Number of 1G Ethernet ports |
1 |
| MiniPCIe slots |
2 |
| SIM slots |
3 |
| USB port |
1 USB 2.0 port type A |
| Wireless interface model |
AR9382 |
| Wireless |
802.11b/g/n dual-chain |
| Antenna gain |
2.5 dBi |
| GNSS |
GPS / GLONAS / Galileo / Beidou |
| LTE modem |
R11eL-FG621-EA |
| TAC |
86335904 |
| LTE Category |
6 (300Mbit/s Downlink, 50Mbit/s Uplink) |
| MIMO DL |
2x2 |
| MIMO UL |
1x1 |
| LTE FDD bands |
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) /28 (700 MHz) |
| LTE TDD bands |
38 (2600MHz) / 40 (2300MHz) / 41 (2500MHz) |
| 3G Category |
R8 (42.2Mbps Downlink, 11.2Mbps Uplink) |
| 3G bands |
1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 8 (900MHz) |
| Dimensions |
170 x 162 x 40 mm |
| Operating system |
RouterOS v7 only, License level 4 |
| Operating temperature |
-40°C to +70°C |
| Certification & Approvals |
| Certification |
CE, FCC, IC, E-MARK, EAC, ROHS |
| IP |
IP54 |
| Powering |
| Number of DC inputs |
3 (PoE-In, Automotive, DC jack) |
| PoE-In Input Voltage |
12-30 V |
| PoE-In Max current at Min voltage |
1.48 A |
| PoE-In Max current at Max voltage |
0.59 A |
| Automotive input Voltage |
12-27 V |
| Automotive Max current at Min voltage |
1.31 A |
| Automotive Max current at Max voltage |
0.59 A |
| DC jack input Voltage |
12-30 V |
| DC jack Max current at Min voltage |
1.31 A |
| DC jack Max current at Max voltage |
0.59 A |
| Power adapter nominal voltage |
24 V |
| Power adapter nominal current |
1.2 A |
| PoE-In |
Passive PoE |
| Max power consumption without attachments |
12 W |
| Max power consumption |
24 W |
| Wireless specifications (2.4 GHz) |
| 1MBit/s |
Transmit (dBm): 25
Receive Sensitivity: -100 |
| 11MBit/s |
Transmit (dBm): 25
Receive Sensitivity: -94 |
| 6MBit/s |
Transmit (dBm): 26
Receive Sensitivity: -96 |
| 54MBit/s |
Transmit (dBm): 23
Receive Sensitivity: -78 |
| MCS0 |
Transmit (dBm): 26
Receive Sensitivity: -96 |
| MCS7 |
Transmit (dBm): 22
Receive Sensitivity: -73 |
| Supported 2xCA LTE bands |
| 1+1/3/5/7/8/20/28 |
40+40 |
| 3+3/5/7/8/20/28 |
8+8 |
| 5+5/7 |
38+38 |
| 7+7/8/20/28 |
41+41 |
| Included parts |
• 24 V 1.2 A power adapter
• Screw set
• Automotive cable |
[/specifications] [accesories] [/accesories]
The LtAP-2HnD&FG621-EA is a member of the MikroTik LtAP series. The LtAP LTE6 kit is furnished with an integrated CAT6 cellular modem that delivers rapid 4G (LTE) connectivity, enabling download speeds of up to 300 Mbps, thereby guaranteeing constant connectivity regardless of location. The LtAP LTE6 kit boasts a range of functionalities, including three Mini SIM slots that permit seamless switching between cellular service providers, ensuring optimal connectivity and serving as a backup in the event of provider disruptions. Additionally, the device is equipped with a Gigabit Ethernet port to accommodate wired devices, facilitating swift and dependable data transmission.
Quick Specs:
- MT7621AT, 2 core, 880 MHz CPU
- 128MB RAM
- 1x 10/100/1000 Ethernet port
- 3x SIM Slots (3 Modem – Mini SIM) – 2x miniPCI-e slots
Please see the related tabs for the LtAP-2HnD&FG621-EA datasheet and compatible accessories.
