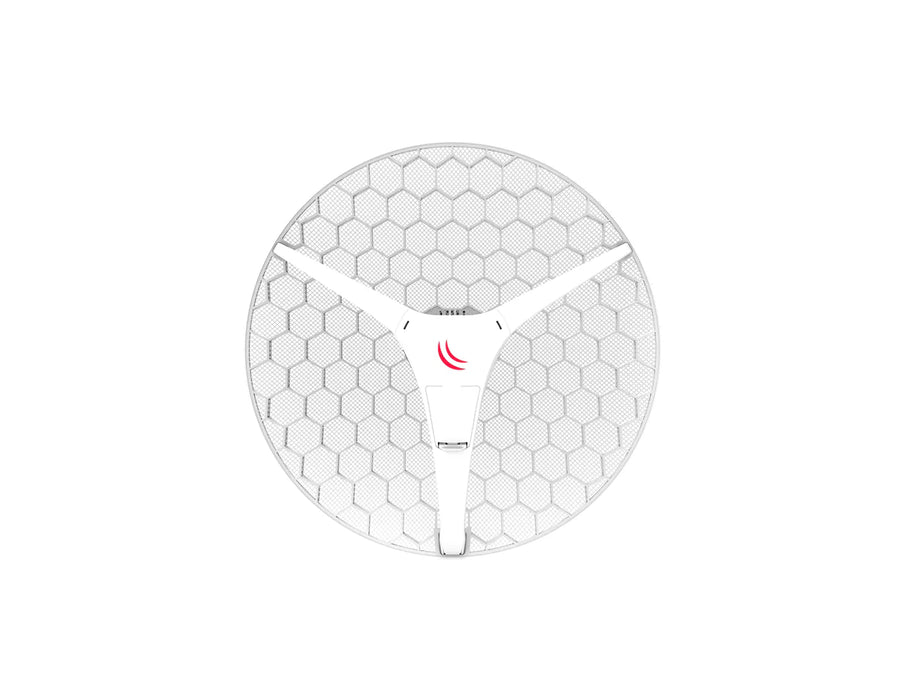

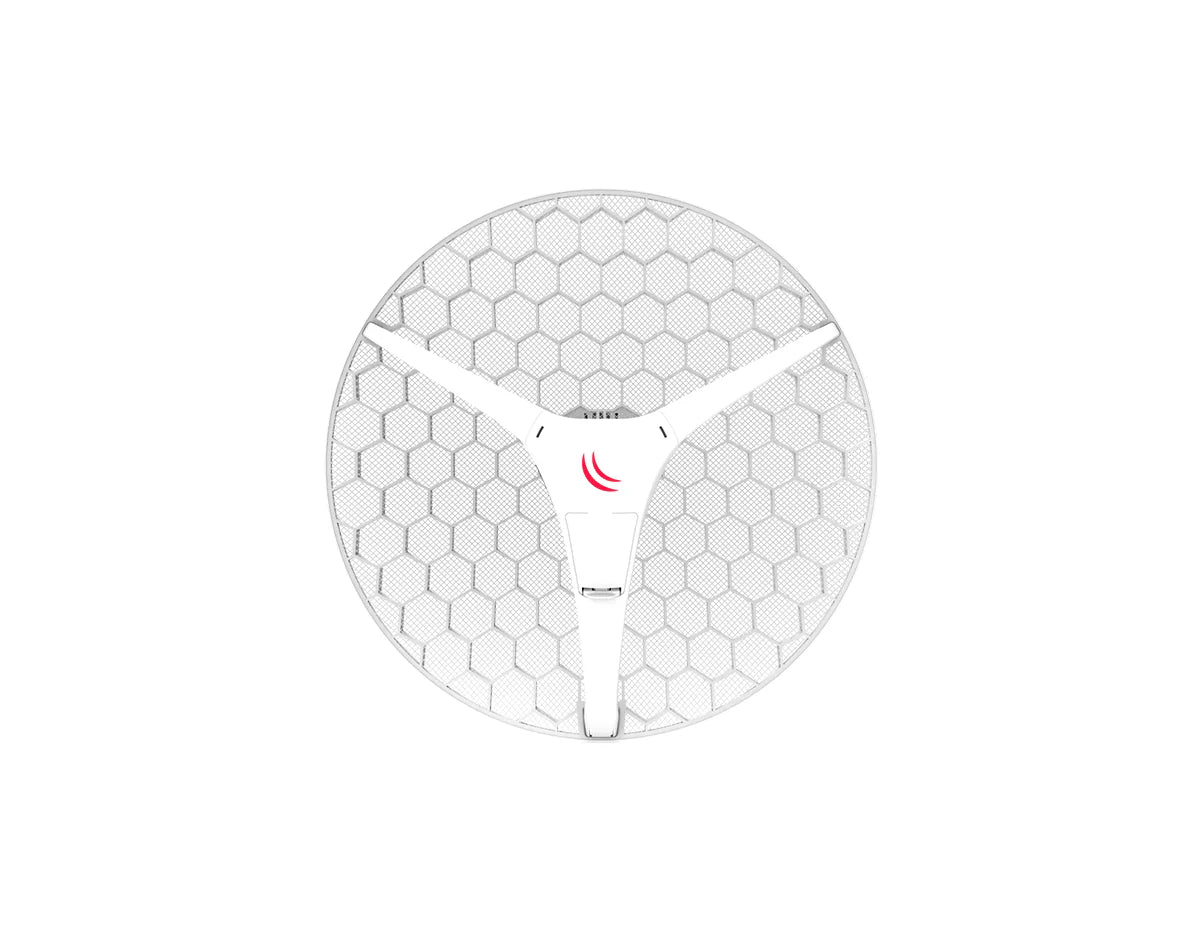

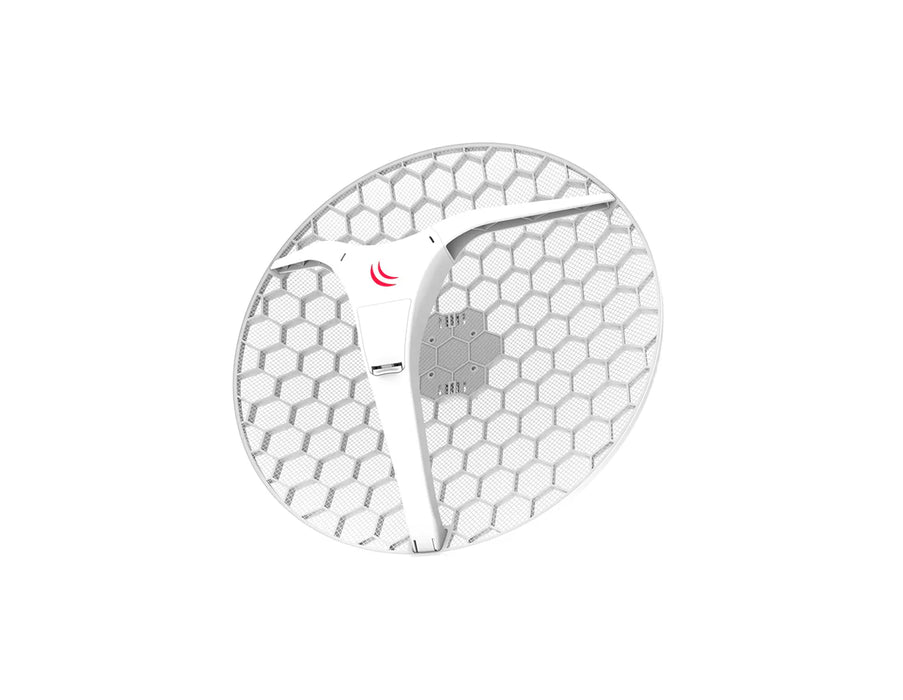

MikroTik LHG XL HP5 5GHz Wireless CPE Bridge Kit (RBLHG-5HPnD-XL4pack-US)
Clique ou role para ampliar
Toque ou belisque para ampliar
MikroTik LHG XL HP5 5GHz Wireless CPE Bridge Kit (RBLHG-5HPnD-XL4pack-US)
MikroTik LHG XL HP5 5GHz Wireless CPE Bridge Kit (RBLHG-5HPnD-XL4pack-US)

MikroTik LHG XL HP5 5GHz Wireless CPE Bridge Kit (RBLHG-5HPnD-XL4pack-US)

por Mikrotik
R$ 4.980,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc] 5GHz 802.11a/n wireless bridge, 27 dBi dual polarization antenna, dual chain radio, passive PoE powered, outdoor IP54 design, 4 unit kit [/shortdesc]

[properties]

Model MikroTik LHG XL HP5
SKU RBLHG-5HPnD-XL4pack-US
Product Type Wireless CPE / Point-to-Point Integrated Antenna
Wireless Standard 802.11a/n (Wi-Fi 4)
Frequency Band 5 GHz
Antenna Type Integrated dual polarization grid antenna
Antenna Gain 27 dBi
Wireless Chains 2
Maximum Wireless Data Rate 300 Mbit/s
Ethernet Port 1 x 10/100 Ethernet
CPU AR9344
CPU Frequency 600 MHz
RAM 64 MB
Storage 16 MB Flash
Operating System RouterOS
RouterOS License Level 3
Power Input Passive PoE
Input Voltage 10–28 V
Maximum Power Consumption 7 W
IP Rating IP54
Operating Temperature -40 C to 70 C
Dimensions O 550 x 245 mm
Wind Loading 186 N at 205 km/h
Certifications CE, FCC, IC, EAC, RoHS

[/properties]

[specifications]

Wireless Frequency Range USA: 5170–5250 MHz and 5725–5835 MHz
Transmit Power (6 Mbit/s) 28 dBm
Receive Sensitivity (6 Mbit/s) -96 dBm
Transmit Power (54 Mbit/s) 25 dBm
Receive Sensitivity (54 Mbit/s) -80 dBm
MCS0 Tx/Rx 28 dBm / -96 dBm
MCS7 Tx/Rx 24 dBm / -75 dBm
Ethernet Performance Test Up to 98.4 Mbps throughput with 1518 byte packets (fast path bridging/routing)
MTBF Approximately 100,000 hours at 25C
Cooling Passive
Mounting Pole mount via included metal rings
Assembly Shipped disassembled for compact transport
Maximum Link Distance Up to 40 km (point-to-point under optimal conditions)

[/specifications]

[accesories]

Included 24V 0.38A Power Adapter; PoE Injector; Two Metal Rings (mounting); K-LHG Installation Kit
Mounting Accessories Metal mounting rings included for pole installation
Optional Accessories LHG mount; solidMOUNT mounting adapter

[/accesories]

The MikroTik RBLHG-5HPnD-XL4pack-US LHG XL HP5 is a high-gain 5GHz wireless CPE designed for long distance point to point connectivity. Featuring a powerful dual-chain radio and a 27 dBi integrated grid antenna, this device delivers stable wireless links across large distances while maintaining reliable throughput. Its lightweight grid design minimizes wind load while ensuring efficient signal transmission with no cable losses between radio and antenna.

This kit includes four LHG XL HP5 units, making it ideal for network operators and WISPs deploying multiple outdoor wireless links. With RouterOS and high TX output power, the system enables flexible configuration for bridge links, client deployments, and extended wireless backhaul infrastructure.

  • High Gain 27 dBi Integrated Antenna: The large dual polarization grid antenna focuses signal transmission to deliver reliable long range wireless connectivity for point to point deployments.
  • Dual Chain 5GHz Wireless Radio: Built on 802.11a/n technology with dual chain architecture, enabling up to 300 Mbps wireless data rates for stable outdoor network performance.
  • Optimized Grid Design: Lightweight grid structure reduces wind load while maintaining high antenna gain and efficient RF performance for outdoor installations.
  • RouterOS with License Level 3: Advanced MikroTik RouterOS enables flexible configuration for wireless bridging, routing, and network management scenarios.
  • Passive PoE Powering: Simplifies outdoor deployment with passive PoE support and low power consumption of approximately 7W.
  • Long distance point to point wireless bridge links
  • Wireless ISP subscriber connections (CPE deployments)
  • Rural broadband and remote site connectivity
  • Outdoor wireless backhaul infrastructure
  • Campus or industrial facility building-to-building links
  • Wireless Standard: 5GHz 802.11a/n (Wi-Fi 4)
  • Maximum Wireless Data Rate: 300 Mbps
  • Antenna Gain: 27 dBi dual polarization integrated antenna
  • Wireless Chains: Dual chain radio
  • Ethernet Port: 1x 10/100 Ethernet
  • Processor: AR9344 CPU, 600 MHz
  • Memory: 64 MB RAM
  • Storage: 16 MB Flash
  • Power Input: Passive PoE 10–28 V
  • Maximum Power Consumption: 7 W
  • Operating Temperature: -40C to 70C
  • Outdoor Rating: IP54 weather resistant
  • Kit Contents: 4x LHG XL HP5 units, PoE injector, power adapter, mounting hardware

The MikroTik RBLHG-5HPnD-XL4pack-US provides powerful long range wireless connectivity for professional outdoor networks. Deploy high gain 5GHz links quickly and efficiently with this scalable four-unit CPE kit. Order today.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc] 5GHz 802.11a/n wireless bridge, 27 dBi dual polarization antenna, dual chain radio, passive PoE powered, outdoor IP54 design, 4 unit kit [/shortdesc]

[properties]

Model MikroTik LHG XL HP5
SKU RBLHG-5HPnD-XL4pack-US
Product Type Wireless CPE / Point-to-Point Integrated Antenna
Wireless Standard 802.11a/n (Wi-Fi 4)
Frequency Band 5 GHz
Antenna Type Integrated dual polarization grid antenna
Antenna Gain 27 dBi
Wireless Chains 2
Maximum Wireless Data Rate 300 Mbit/s
Ethernet Port 1 x 10/100 Ethernet
CPU AR9344
CPU Frequency 600 MHz
RAM 64 MB
Storage 16 MB Flash
Operating System RouterOS
RouterOS License Level 3
Power Input Passive PoE
Input Voltage 10–28 V
Maximum Power Consumption 7 W
IP Rating IP54
Operating Temperature -40 C to 70 C
Dimensions O 550 x 245 mm
Wind Loading 186 N at 205 km/h
Certifications CE, FCC, IC, EAC, RoHS

[/properties]

[specifications]

Wireless Frequency Range USA: 5170–5250 MHz and 5725–5835 MHz
Transmit Power (6 Mbit/s) 28 dBm
Receive Sensitivity (6 Mbit/s) -96 dBm
Transmit Power (54 Mbit/s) 25 dBm
Receive Sensitivity (54 Mbit/s) -80 dBm
MCS0 Tx/Rx 28 dBm / -96 dBm
MCS7 Tx/Rx 24 dBm / -75 dBm
Ethernet Performance Test Up to 98.4 Mbps throughput with 1518 byte packets (fast path bridging/routing)
MTBF Approximately 100,000 hours at 25C
Cooling Passive
Mounting Pole mount via included metal rings
Assembly Shipped disassembled for compact transport
Maximum Link Distance Up to 40 km (point-to-point under optimal conditions)

[/specifications]

[accesories]

Included 24V 0.38A Power Adapter; PoE Injector; Two Metal Rings (mounting); K-LHG Installation Kit
Mounting Accessories Metal mounting rings included for pole installation
Optional Accessories LHG mount; solidMOUNT mounting adapter

[/accesories]

Extend Long Distance Wireless Links with High Gain Precision

The MikroTik RBLHG-5HPnD-XL4pack-US LHG XL HP5 is a high-gain 5GHz wireless CPE designed for long distance point to point connectivity. Featuring a powerful dual-chain radio and a 27 dBi integrated grid antenna, this device delivers stable wireless links across large distances while maintaining reliable throughput. Its lightweight grid design minimizes wind load while ensuring efficient signal transmission with no cable losses between radio and antenna.

This kit includes four LHG XL HP5 units, making it ideal for network operators and WISPs deploying multiple outdoor wireless links. With RouterOS and high TX output power, the system enables flexible configuration for bridge links, client deployments, and extended wireless backhaul infrastructure.

Key Benefits & Features
  • High Gain 27 dBi Integrated Antenna: The large dual polarization grid antenna focuses signal transmission to deliver reliable long range wireless connectivity for point to point deployments.
  • Dual Chain 5GHz Wireless Radio: Built on 802.11a/n technology with dual chain architecture, enabling up to 300 Mbps wireless data rates for stable outdoor network performance.
  • Optimized Grid Design: Lightweight grid structure reduces wind load while maintaining high antenna gain and efficient RF performance for outdoor installations.
  • RouterOS with License Level 3: Advanced MikroTik RouterOS enables flexible configuration for wireless bridging, routing, and network management scenarios.
  • Passive PoE Powering: Simplifies outdoor deployment with passive PoE support and low power consumption of approximately 7W.
Ideal Use Cases
  • Long distance point to point wireless bridge links
  • Wireless ISP subscriber connections (CPE deployments)
  • Rural broadband and remote site connectivity
  • Outdoor wireless backhaul infrastructure
  • Campus or industrial facility building-to-building links
Technical Specifications
  • Wireless Standard: 5GHz 802.11a/n (Wi-Fi 4)
  • Maximum Wireless Data Rate: 300 Mbps
  • Antenna Gain: 27 dBi dual polarization integrated antenna
  • Wireless Chains: Dual chain radio
  • Ethernet Port: 1x 10/100 Ethernet
  • Processor: AR9344 CPU, 600 MHz
  • Memory: 64 MB RAM
  • Storage: 16 MB Flash
  • Power Input: Passive PoE 10–28 V
  • Maximum Power Consumption: 7 W
  • Operating Temperature: -40C to 70C
  • Outdoor Rating: IP54 weather resistant
  • Kit Contents: 4x LHG XL HP5 units, PoE injector, power adapter, mounting hardware
Build Reliable Long Distance Wireless Links

The MikroTik RBLHG-5HPnD-XL4pack-US provides powerful long range wireless connectivity for professional outdoor networks. Deploy high gain 5GHz links quickly and efficiently with this scalable four-unit CPE kit. Order today.
