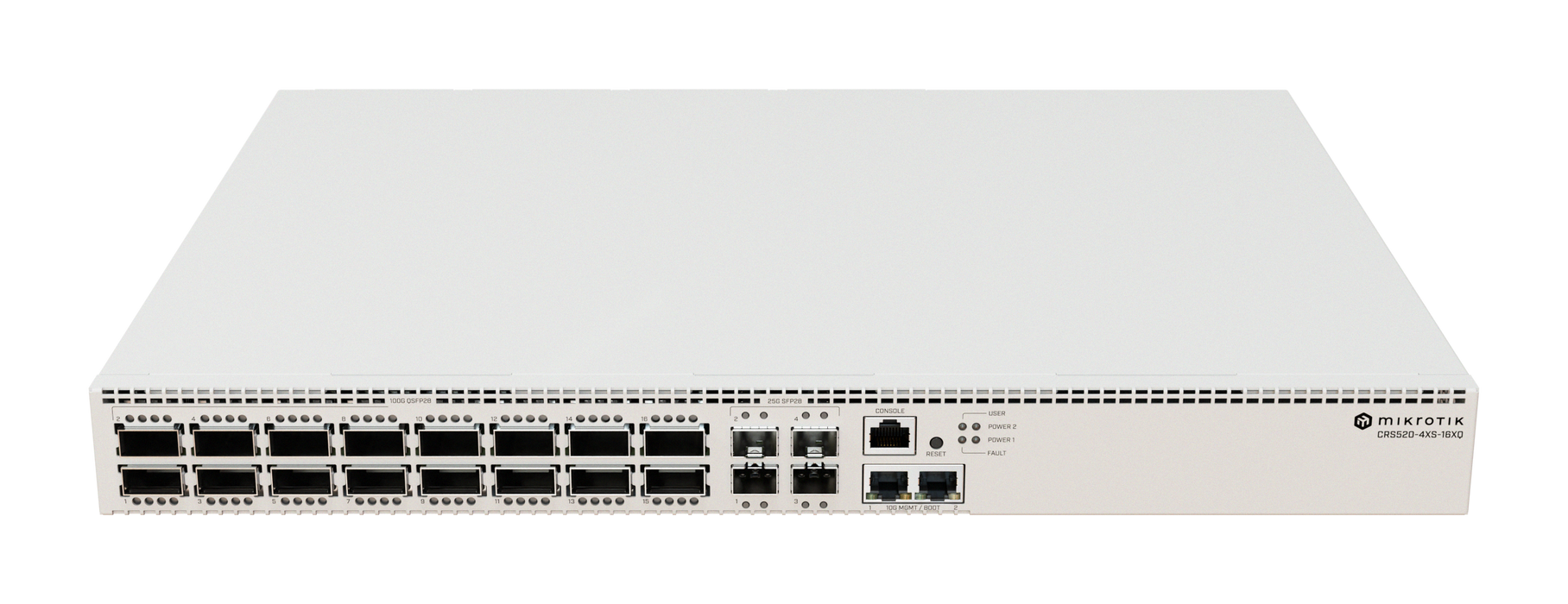

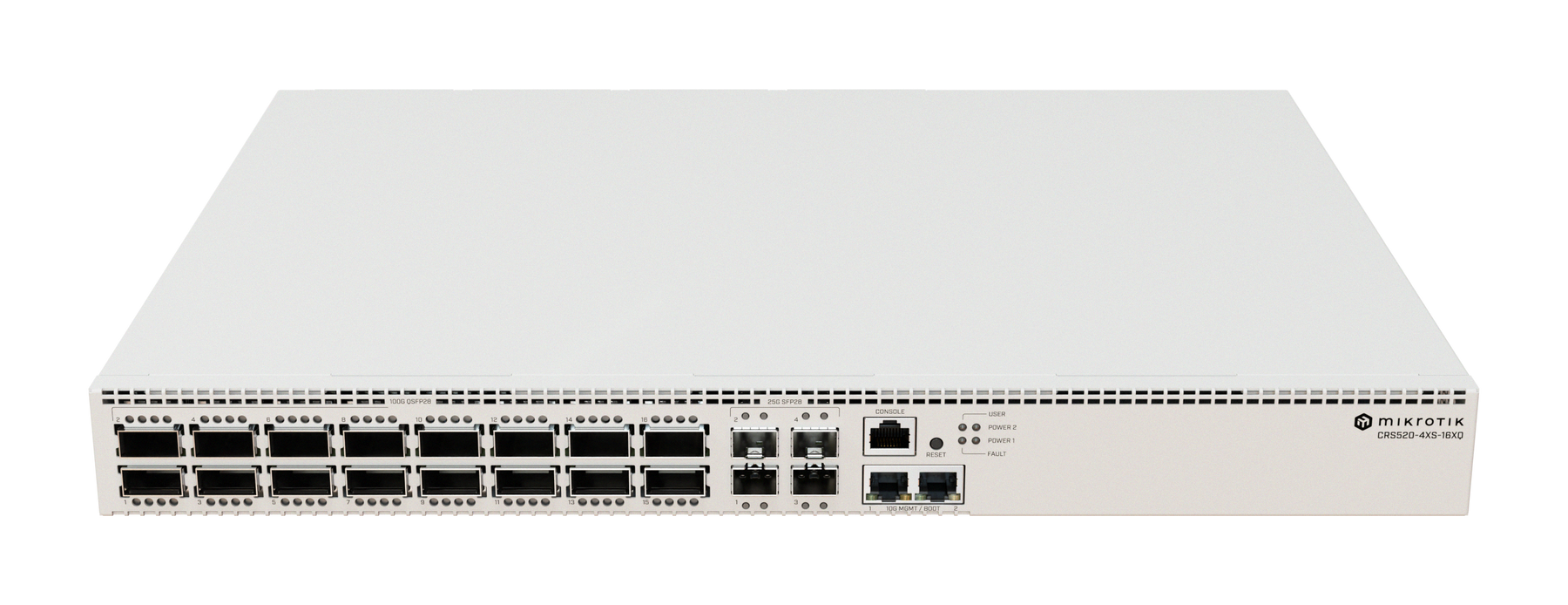

Mikrotik CRS520-4XS-16XQ-RM Managed Switch 16×QSFP28 4×SFP28
Mikrotik CRS520-4XS-16XQ-RM Managed Switch 16×QSFP28 4×SFP28

Mikrotik CRS520-4XS-16XQ-RM Managed Switch 16×QSFP28 4×SFP28

por Mikrotik
R$ 26.100,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • The MikroTik CRS520-4XS-16XQ-RM is a 20-port Layer 3 enterprise switch with 16×100G QSFP28 and 4×25G SFP28 ports, dual PSU slots, and a 2 GHz quad-core ARM CPU for high-performance data centers

[/shortdesc]

[properties]



Properties MikroTik CRS520-4XS-16XQ-RM Switch
Description Enterprise switch with 16x 100G QSFP28, 4x 25G SFP28, and 2x 10G Ethernet ports, powerful ARM CPU for routing capabilities.
Product Family MikroTik Cloud Router Switch Series
Product Type Enterprise Switch
Key Features         16 x 100G QSFP28 Ports
        4 x 25G SFP28 Ports
        2 x 10G Ethernet Ports
        Quad-Core 2 GHz ARM CPU
        4GB DDR4 RAM
        RouterOS v7, Level 5 License
        L3HW Offloaded Routing
        Hot-Swap Power Supplies & Fans
        Rack-Mountable

 [/properties]

[specifications]

Specifications MikroTik CRS520-4XS-16XQ-RM Switch
CPU Quad-Core AL52400 2 GHz ARM 64-bit
RAM 4 GB DDR4
Storage 128 MB NAND
Ethernet Ports 2 ports (10M / 100M / 1G / 10G)
25G SFP28 Ports 4 ports (1G / 2.5G / 10G / 25G)
100G QSFP28 Ports 16 ports (4x 1G/2.5G/10G/25G, 1x 40G/100G, 2x 50G)
Switch Chip Model 98CX8410
Operating System RouterOS v7, License Level 5
Dimensions 443 x 367 x 44 mm
Operating Temperature -20°C to +50°C
Max Power Consumption 150 W (without attachments 123 W)
Power Inputs 2 AC inputs (100-240V, 47-63Hz)
MTU Jumbo Frames (up to 9K bytes)

[/specifications]

[accesories] [/accesories]

Mikrotik CRS520-4XS-16XQ-RM Managed Switch 16×QSFP28 4×SFP28

The MikroTik CRS520-4XS-16XQ-RM is an ultra-fast, future-ready Layer 3 managed switch designed for high-bandwidth environments like data centers, broadcast facilities, and large enterprise networks. Featuring 16 high-speed 100G QSFP28 ports and 4 additional 25G SFP28 ports, it eliminates the need for multiple devices while maintaining exceptional throughput and flexibility. Powered by a 2 GHz quad-core ARM CPU and 4 GB of DDR4 RAM, it supports advanced routing protocols (OSPF, BGP), ACLs, jumbo frames, and Layer 3 hardware offloading. This unit includes hot-swappable dual power supplies and four hot-swappable fans, ensuring continuous uptime and serviceability.

  • High-Speed Connectivity: 16×100G QSFP28 and 4×25G SFP28 ports ideal for aggregation and backbone infrastructure
  • Advanced Performance: Quad-core 2 GHz ARM CPU with 4 GB RAM for handling routing and Layer 3 processing
  • Versatile Ethernet: Includes 2×10G Ethernet ports for management or data transport
  • Hot-Swappable Components: Dual PSU slots (AC 100–240V) and 4 fans allow uninterrupted maintenance
  • Layer 3 and Routing Support: Supports OSPF, BGP, ACLs, jumbo frames, and L3HW Offloading
  • Reliable Architecture: Built on the 98CX8410 switch chip with 128MB NAND storage
  • Durable and Certified: Certified with CE, EAC, and RoHS compliance; MTBF of approx. 200,000 hours
  • Future-Proofed: Regular software updates with no licensing fees for at least 5 years
  • Model: CRS520-4XS-16XQ-RM
  • CPU: Quad-core ARM AL52400, 2 GHz
  • RAM: 4 GB DDR4
  • Storage: 128 MB NAND
  • Operating System: RouterOS v7 (License Level 5)
  • Switch Chip: 98CX8410
  • Ports: 16 x 100G QSFP28, 4 x 25G SFP28, 2 x 10G Ethernet
  • Serial Console: RJ45
  • Power Supply: 2 × AC (100–240V, 50–60Hz), Hot-Swap
  • Power Consumption (Max): 150 W (220 W with both PSUs)
  • Cooling: 4 Hot-Swappable Fans
  • Operating Temperature: -20°C to 50°C
  • MTBF: ~200,000 hours at 25°C
  • Certifications: CE, EAC, RoHS
  • IP Rating: IP20
  • Included Accessories: 2x IEC cords, rackmount ears, cable management brackets, K-82 fastening set

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • The MikroTik CRS520-4XS-16XQ-RM is a 20-port Layer 3 enterprise switch with 16×100G QSFP28 and 4×25G SFP28 ports, dual PSU slots, and a 2 GHz quad-core ARM CPU for high-performance data centers

[/shortdesc]

[properties]



Properties MikroTik CRS520-4XS-16XQ-RM Switch
Description Enterprise switch with 16x 100G QSFP28, 4x 25G SFP28, and 2x 10G Ethernet ports, powerful ARM CPU for routing capabilities.
Product Family MikroTik Cloud Router Switch Series
Product Type Enterprise Switch
Key Features         16 x 100G QSFP28 Ports
        4 x 25G SFP28 Ports
        2 x 10G Ethernet Ports
        Quad-Core 2 GHz ARM CPU
        4GB DDR4 RAM
        RouterOS v7, Level 5 License
        L3HW Offloaded Routing
        Hot-Swap Power Supplies & Fans
        Rack-Mountable

 [/properties]

[specifications]

Specifications MikroTik CRS520-4XS-16XQ-RM Switch
CPU Quad-Core AL52400 2 GHz ARM 64-bit
RAM 4 GB DDR4
Storage 128 MB NAND
Ethernet Ports 2 ports (10M / 100M / 1G / 10G)
25G SFP28 Ports 4 ports (1G / 2.5G / 10G / 25G)
100G QSFP28 Ports 16 ports (4x 1G/2.5G/10G/25G, 1x 40G/100G, 2x 50G)
Switch Chip Model 98CX8410
Operating System RouterOS v7, License Level 5
Dimensions 443 x 367 x 44 mm
Operating Temperature -20°C to +50°C
Max Power Consumption 150 W (without attachments 123 W)
Power Inputs 2 AC inputs (100-240V, 47-63Hz)
MTU Jumbo Frames (up to 9K bytes)

[/specifications]

[accesories] [/accesories]

Mikrotik CRS520-4XS-16XQ-RM Managed Switch 16×QSFP28 4×SFP28

The MikroTik CRS520-4XS-16XQ-RM is an ultra-fast, future-ready Layer 3 managed switch designed for high-bandwidth environments like data centers, broadcast facilities, and large enterprise networks. Featuring 16 high-speed 100G QSFP28 ports and 4 additional 25G SFP28 ports, it eliminates the need for multiple devices while maintaining exceptional throughput and flexibility. Powered by a 2 GHz quad-core ARM CPU and 4 GB of DDR4 RAM, it supports advanced routing protocols (OSPF, BGP), ACLs, jumbo frames, and Layer 3 hardware offloading. This unit includes hot-swappable dual power supplies and four hot-swappable fans, ensuring continuous uptime and serviceability.

Key Features:
  • High-Speed Connectivity: 16×100G QSFP28 and 4×25G SFP28 ports ideal for aggregation and backbone infrastructure
  • Advanced Performance: Quad-core 2 GHz ARM CPU with 4 GB RAM for handling routing and Layer 3 processing
  • Versatile Ethernet: Includes 2×10G Ethernet ports for management or data transport
  • Hot-Swappable Components: Dual PSU slots (AC 100–240V) and 4 fans allow uninterrupted maintenance
  • Layer 3 and Routing Support: Supports OSPF, BGP, ACLs, jumbo frames, and L3HW Offloading
  • Reliable Architecture: Built on the 98CX8410 switch chip with 128MB NAND storage
  • Durable and Certified: Certified with CE, EAC, and RoHS compliance; MTBF of approx. 200,000 hours
  • Future-Proofed: Regular software updates with no licensing fees for at least 5 years
Technical Specifications:
  • Model: CRS520-4XS-16XQ-RM
  • CPU: Quad-core ARM AL52400, 2 GHz
  • RAM: 4 GB DDR4
  • Storage: 128 MB NAND
  • Operating System: RouterOS v7 (License Level 5)
  • Switch Chip: 98CX8410
  • Ports: 16 x 100G QSFP28, 4 x 25G SFP28, 2 x 10G Ethernet
  • Serial Console: RJ45
  • Power Supply: 2 × AC (100–240V, 50–60Hz), Hot-Swap
  • Power Consumption (Max): 150 W (220 W with both PSUs)
  • Cooling: 4 Hot-Swappable Fans
  • Operating Temperature: -20°C to 50°C
  • MTBF: ~200,000 hours at 25°C
  • Certifications: CE, EAC, RoHS
  • IP Rating: IP20
  • Included Accessories: 2x IEC cords, rackmount ears, cable management brackets, K-82 fastening set
