Mikrotik CRS317-1G-16S+RM Switch
Clique ou role para ampliar
Toque ou belisque para ampliar
Mikrotik CRS317-1G-16S+RM Switch
Mikrotik CRS317-1G-16S+RM Switch

Mikrotik CRS317-1G-16S+RM Switch

por Mikrotik
R$ 5.715,60
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x
[shortdesc]
  • Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies
[/shortdesc]

[properties]

Properties MikroTik CRS317-1G-16S+RM
Description Smart Switch, 1 x Gigabit LAN, 16 x SFP+ cages, Dual Core 800MHz CPU, 1GB RAM, 1U rackmount passive cooling case, Dual Power Supplies
Product Family CRS Series
Product Type Ethernet Switch
Quick Features Boot option for SwOS or RouterOS
Non-blocking Layer 2 switching capacity
128K host table
IEEE 802.1Q VLAN
Supports up to 4K simultaneous VLANs
Port isolation and Port security
MSTP
HW MPLS forwarding
SFP 1.25 and SFP+ 10Gbit module support
800 MHz dual core CPU
Dual power supplies
Broadcast storm control
Port mirroring of ingress/egress traffic
Rapid Spanning Tree Protocol (RSTP)
Link Aggregation (LACP)
Access Control List
MikroTik neighbour discovery
SNMP v2/v3
Rackmount and tabletop
Supports -20 to +60 C ambient temperatures
Passive cooling with automatic fan for high
temperatures
Ports
10/100/1000 Ethernet ports 1
SFP+ 16 (supports both 1.25 Gb SFP and 10 Gb SFP+ modules; modules are not included), DDMI support
Serial port 1 RJ45
Extras CPU temperature monitor
Beeper
Dimensions 443 x 224 x 44 mm
Number of AC inputs 2
AC input range 100-240
Max power consumption 44 W
Cooling type 2 fans

[/properties][specifications]

Specifications CRS317-1G-16S+RM
Memory 1 GB
Flash Storage size 16 MB
CPU 98DX8216 800 MHz
CPU core count 2
Switch chip model 98DX8216
OS RouterOS / SwitchOS
Ethernet test results
Bridging
64 byte
none (fast path) kpps: 355.2
Mbps: 181.9
25 bridge filter rules kpps: 98
Mbps: 50.2
512 byte
none (fast path) kpps: 361.2
Mbps: 1479.5
25 bridge filter rules kpps: 98.6
Mbps: 403.9
1518 byte
none (fast path) kpps: 268.3
Mbps: 3258.2
25 bridge filter rules kpps: 98.4
Mbps: 1195.0
Routing
64 byte
none (fast path) kpps: 315.4
Mbps: 161.5
25 simple queues kpps: 104.6
Mbps: 53.6
25 ip filter rules kpps: 103.9
Mbps: 53.2
512 byte
none (fast path) kpps: 309.8
Mbps: 1268.9
25 simple queues kpps: 104.4
Mbps: 427.6
25 ip filter rules kpps: 103.4
Mbps: 423.5
1518 byte
none (fast path) kpps: 254.4
Mbps: 3089.4
25 simple queues kpps: 104.6
Mbps: 1270.3
25 ip filter rules kpps: 104.6
Mbps: 1270.3
Switching results
64 byte
Non blocking Layer 2 throughput kpps: 239,583.3
Mbps: 122,666.7
Non blocking Layer 2 capacity kpps: 239,583.3
Mbps: 245,333.3
Non blocking Layer 1 throughput kpps: 239,583.3
Mbps: 161,000.0
Non blocking Layer 1 capacity kpps: 239,583.3
Mbps: 322,000.0
512 byte
Non blocking Layer 2 throughput kpps: 37,828.9
Mbps: 154,947.4
Non blocking Layer 2 capacity kpps: 37,828.9
Mbps: 309,894.7
Non blocking Layer 1 throughput kpps: 37,828.9
Mbps: 161,000.0
Non blocking Layer 1 capacity kpps: 37,828.9
Mbps: 322,000.0
1518 byte
Non blocking Layer 2 throughput kpps: 13,085.2
Mbps: 158,906.4
Non blocking Layer 2 capacity kpps: 13,085.2
Mbps: 317,812.7
Non blocking Layer 1 throughput kpps: 13,085.2
Mbps: 161,000.0
Non blocking Layer 1 capacity kpps: 13,085.2
Mbps: 322,000.0
MTBF Approximately 200.000 hours at 25C
Temperature -20°C to 60°C tested
Certification CE, EAC, ROHS

[/specifications][accesories]

Accessories
K10 screw kit
Rack ears
2x IEC cords

[/accesories]

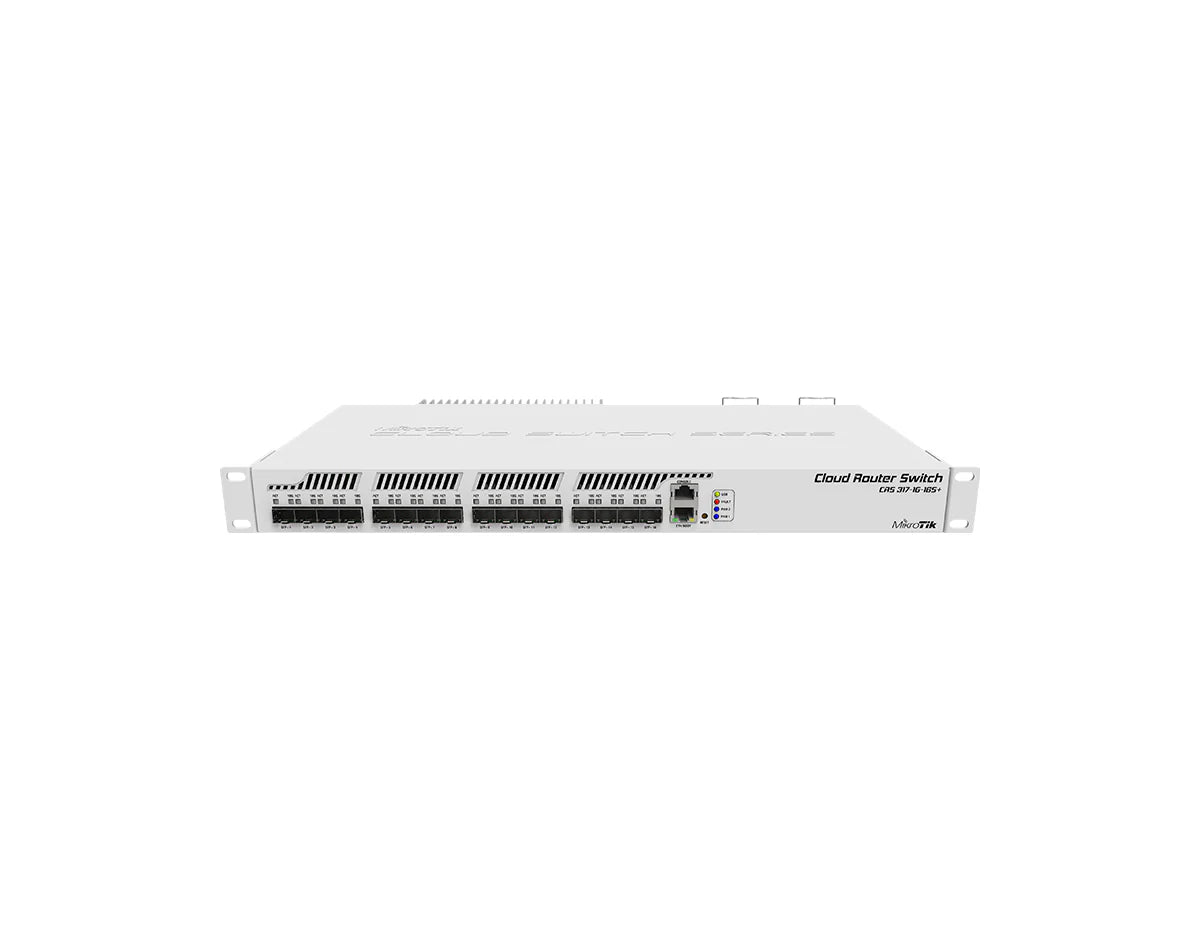

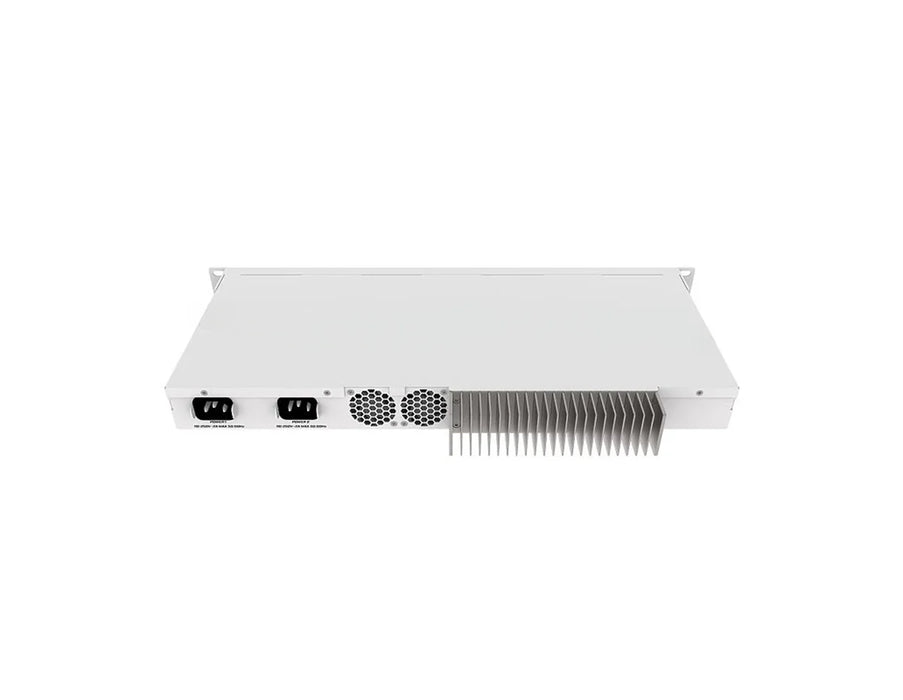

The CRS 317-1G-16S+RM is a rack-mountable switch that can be managed and includes Layer 3 capabilities. It is equipped with 16 SFP+ ports to facilitate high-performance 10GbE connectivity, along with a 1GbE copper port designated for management purposes. This device has dual redundant power supplies, which is common in harsh environments such as data centers and medical facilities. Its dependability is enhanced by the presence of two independent power sources. If one source fails, the second ensures the system continues functioning normally.

Quick Specs:

  • 1x 10/100/1000 Gigabit Ethernet ports
  • 16x 10G SFP+ ports uplink
  • Non-blocking Layer 2 switching capacity
  • Boot option for SwOS or RouterOS

Please see the related tabs for the CRS317-1G-16S+RM datasheet and compatible accessories.
