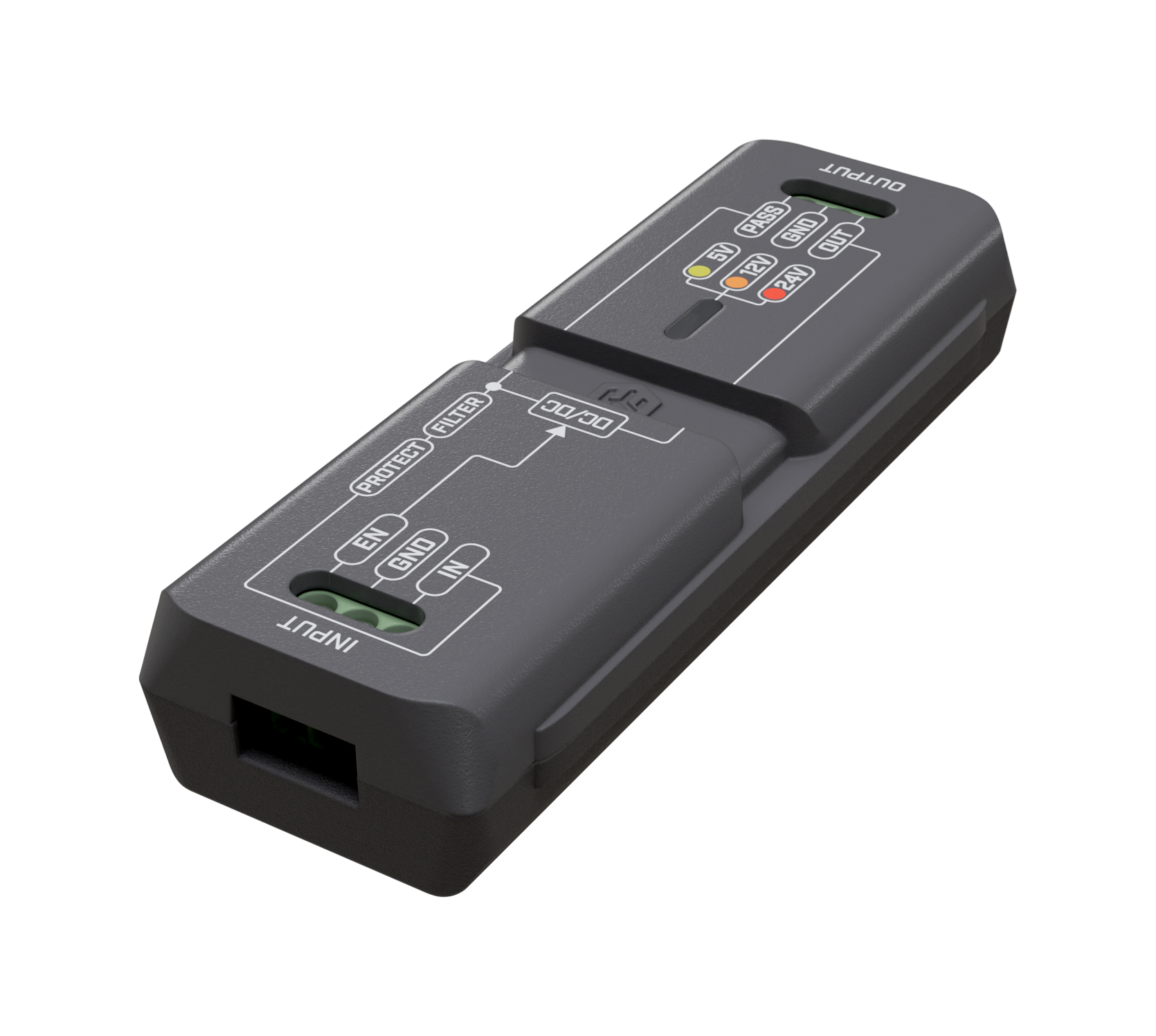

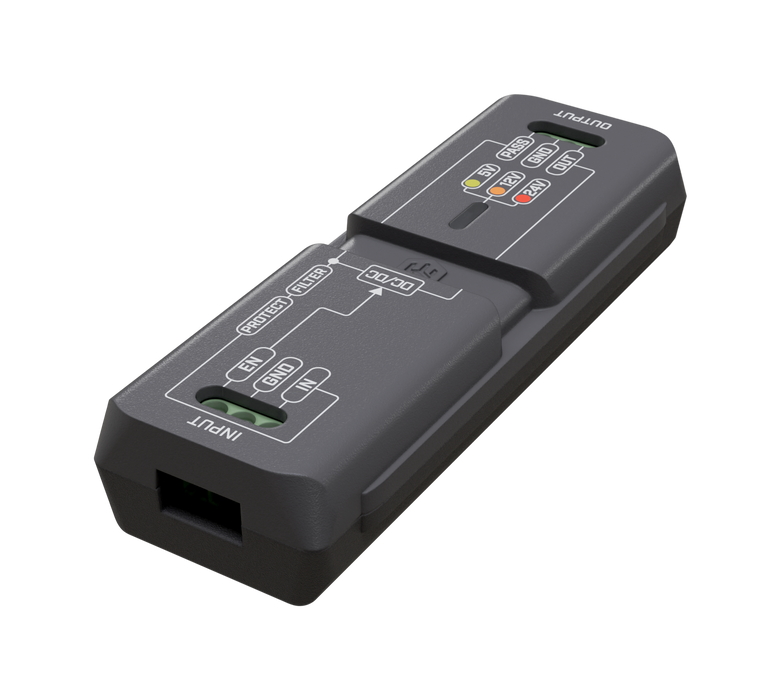

MikroTik Automotive Power Adapter (APA-1)
MikroTik Automotive Power Adapter (APA-1)

MikroTik Automotive Power Adapter (APA-1)

por Mikrotik
R$ 384,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

[shortdesc]

  • Provides an efficient way to manage excess voltage, preventing damage to connected devices, Blocks unwanted electrical impulses to provide stable power output, Input Voltage Range: 12 V - 48 V

[/shortdesc]

[properties]

Product Name APA-1
Description MikroTik Automotive Power Adapter, designed to provide a reliable power source for MikroTik networking devices in vehicles, supporting a wide input voltage range for automotive applications.
Input Voltage Range 10V to 30V DC
Output Voltage 24V DC
Output Current 1.2A
Power Rating 28.8W
Connector Type 2.1mm x 5.5mm barrel connector, center-positive
Cable Length 1 meter (3.28 feet)
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% non-condensing
Dimensions 7.8 cm x 3.0 cm x 2.0 cm (3.07 in x 1.18 in x 0.79 in)
Weight 0.12 kg (0.26 lb)
Compatibility Compatible with MikroTik devices requiring 24V input
Usage Ideal for powering MikroTik routers and networking equipment in automotive and mobile environments
Durability Rated for over 100,000 hours of operation in automotive conditions

[/properties]

[specifications]

Certifications CE, E-Mark, RoHS compliant
Environmental Safety Complies with RoHS 3 (Directive 2015/863/EU) for hazardous substances
EMC Compliance Meets EN 55025 and ISO 7637-2 for automotive electromagnetic compatibility
Overload Protection Includes protection against overcurrent and short-circuits
Efficiency Level >90% at full load
MTBF >200,000 hours at 25°C
Shock Resistance Tested to withstand 30 G for 11 ms
Vibration Resistance Tested to operate under vibrations of 10-500 Hz with 2.2 Grms
Power Factor >0.95 at full load
Heat Dissipation <10 BTU/hr
Installation Plug-and-play installation with automotive power sources
Cable Type Automotive-grade flexible power cable
Deployment Designed for use in vehicles, trucks, and other mobile environments
Reliability Tested to perform consistently in automotive temperature and vibration conditions

[/specifications]



Automotive Power Adapter

The APA-1 is a robust automotive power adapter designed to provide reliable protection for your LtAP and other sensitive devices in challenging vehicle environments. Equipped with overvoltage protection and a gas-discharge tube, the APA-1 prevents damaging voltage spikes that can occur during jump-starts, battery failures, or AC unit operation. With multiple safety layers, including transient voltage suppression (TVS) and active polarity protection, this power adapter ensures your devices remain protected from extreme voltage surges and reverse power connections.

  • Overvoltage Protection: Safeguards your devices from sudden voltage spikes caused by battery failures or electrical surges.
  • Gas-Discharge Tube: Provides an efficient way to manage excess voltage, preventing damage to connected devices.
  • Transient Voltage Suppressor (TVS): Adds a layer of protection against extreme voltage surges.
  • Active Polarity Protection: Ensures device safety even when power is applied in reverse.
  • Built-in Low-Pass Filter: Blocks unwanted electrical impulses to provide stable power output.
  • Pass-Through Mode: Allows for easy voltage regulation adjustments via jumper position or bypass input voltage regulation if not needed.
  • Product Code: APA-1
  • Number of DC Inputs: 1 (3-pin terminal)
  • Input Voltage Range: 12 V - 48 V
  • Max Power Consumption (with attachment): 49 W
  • Dimensions: 86 x 16 x 31 mm
  • Operating Temperature: -40°C to +85°C

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Descrição, características do produto

[shortdesc]

  • Provides an efficient way to manage excess voltage, preventing damage to connected devices, Blocks unwanted electrical impulses to provide stable power output, Input Voltage Range: 12 V - 48 V

[/shortdesc]

[properties]

Product Name APA-1
Description MikroTik Automotive Power Adapter, designed to provide a reliable power source for MikroTik networking devices in vehicles, supporting a wide input voltage range for automotive applications.
Input Voltage Range 10V to 30V DC
Output Voltage 24V DC
Output Current 1.2A
Power Rating 28.8W
Connector Type 2.1mm x 5.5mm barrel connector, center-positive
Cable Length 1 meter (3.28 feet)
Operating Temperature -40°C to 70°C (-40°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Humidity 5% to 95% non-condensing
Dimensions 7.8 cm x 3.0 cm x 2.0 cm (3.07 in x 1.18 in x 0.79 in)
Weight 0.12 kg (0.26 lb)
Compatibility Compatible with MikroTik devices requiring 24V input
Usage Ideal for powering MikroTik routers and networking equipment in automotive and mobile environments
Durability Rated for over 100,000 hours of operation in automotive conditions

[/properties]

[specifications]

Certifications CE, E-Mark, RoHS compliant
Environmental Safety Complies with RoHS 3 (Directive 2015/863/EU) for hazardous substances
EMC Compliance Meets EN 55025 and ISO 7637-2 for automotive electromagnetic compatibility
Overload Protection Includes protection against overcurrent and short-circuits
Efficiency Level >90% at full load
MTBF >200,000 hours at 25°C
Shock Resistance Tested to withstand 30 G for 11 ms
Vibration Resistance Tested to operate under vibrations of 10-500 Hz with 2.2 Grms
Power Factor >0.95 at full load
Heat Dissipation <10 BTU/hr
Installation Plug-and-play installation with automotive power sources
Cable Type Automotive-grade flexible power cable
Deployment Designed for use in vehicles, trucks, and other mobile environments
Reliability Tested to perform consistently in automotive temperature and vibration conditions

[/specifications]



Automotive Power Adapter

The APA-1 is a robust automotive power adapter designed to provide reliable protection for your LtAP and other sensitive devices in challenging vehicle environments. Equipped with overvoltage protection and a gas-discharge tube, the APA-1 prevents damaging voltage spikes that can occur during jump-starts, battery failures, or AC unit operation. With multiple safety layers, including transient voltage suppression (TVS) and active polarity protection, this power adapter ensures your devices remain protected from extreme voltage surges and reverse power connections.

Key Features:
  • Overvoltage Protection: Safeguards your devices from sudden voltage spikes caused by battery failures or electrical surges.
  • Gas-Discharge Tube: Provides an efficient way to manage excess voltage, preventing damage to connected devices.
  • Transient Voltage Suppressor (TVS): Adds a layer of protection against extreme voltage surges.
  • Active Polarity Protection: Ensures device safety even when power is applied in reverse.
  • Built-in Low-Pass Filter: Blocks unwanted electrical impulses to provide stable power output.
  • Pass-Through Mode: Allows for easy voltage regulation adjustments via jumper position or bypass input voltage regulation if not needed.
Technical Specifications:
  • Product Code: APA-1
  • Number of DC Inputs: 1 (3-pin terminal)
  • Input Voltage Range: 12 V - 48 V
  • Max Power Consumption (with attachment): 49 W
  • Dimensions: 86 x 16 x 31 mm
  • Operating Temperature: -40°C to +85°C
