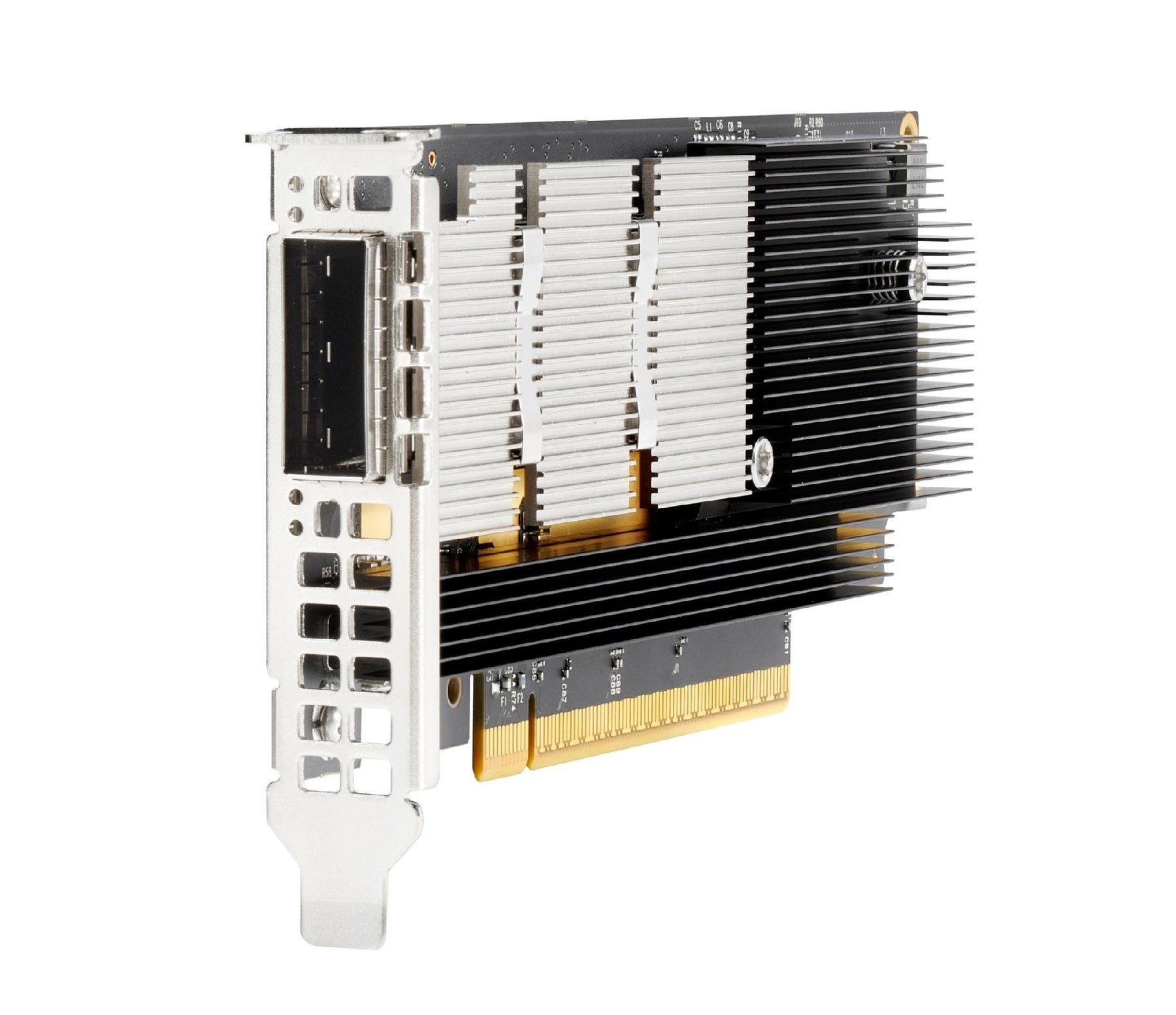

The MCX75310AAS-HEAT is the manufacturer part number for the Mellanox / NVIDIA ConnectX-7 NDR200 InfiniBand & 200GbE Single-Port OSFP PCIe Adapter Card. It is a high-performance network interface card (NIC) engineered for high-performance computing (HPC), hyperscale cloud platforms, and large-scale AI data center workloads
Accelerate Data-Driven Scientific Computing with In-Network Computing
The NVIDIA® ConnectX®-7 NDR 400 gigabits per second (Gb/s) InfiniBand host channel adapter (HCA) provides the highest networking performance available to take on the world's most challenging workloads. The ConnectX-7 InfiniBand adapter provides ultra-low latency, 400Gb/s throughput, and innovative NVIDIA In-Network Computing engines to deliver the acceleration, scalability, and feature-rich technology needed for high performance computing (HPC), artificial intelligence (AI), and hyperscale cloud data centers.
High performance computing and artificial intelligence have driven supercomputers into wide commercial use as the primary data processing engines enabling research, scientific discoveries and product development. These systems can carry complex simulations and unlock the new era of AI, where software writes software. NVIDIA InfiniBand networking is the engine of these platforms delivering breakthrough perf
- InfiniBand Trade Association (IBTA) Specification 1.5 compliant
- Remote direct-memory access (RDMA), send/receive semantics
- Hardware-based congestion control
- 16 million input/output (IO) channels
- 256 to 4Kbyte maximum transmission unit (MTU), 2Gbyte messages
- 8x virtual lanes (VL) + VL15
Product Specification:
|
| Host Interface: PCI Express 5.0 x16 |
| Product Type: 200Gigabit Ethernet Card |
| Manufacturer Part Number: MCX75310AAS-HEAT |
| Manufacturer Website Address: http://www.nvidia.com |
| Form Factor: Standup |
| Manufacturer: NVIDIA Corporation |
| Product Name: ConnectX-7 200Gigabit Ethernet Card |
| Product Line: ConnectX-7 |
| Brand Name: NVIDIA |
| Expansion Slot Type: OSFP |
| Maximum Data Transfer Rate: 200 Gbit/s |
| Media Type Supported: Optical Fiber |
| Total Number Of Ports: 1 |
| Bracket Height: HHHL |
| Feature1: InfiniBand Trade Association (IBTA) Specification 1.5 compliant |
| Feature2: Up to four ports |
| Feature3: Remote direct-memory access (RDMA), send/receive semantics |
| Feature4: Hardware-based congestion control |
| Feature5: Atomic operations |
| Feature6: 16 million input/output (IO) channels |
| Feature7: 256 to 4Kbyte maximum transmission unit (MTU), 2Gbyte messages |
| Feature8: 8x virtual lanes (VL) + VL15 |
