MD3304X | Motor disconnect switch, 3 P, 30 A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure | Square D

Motor disconnect switch, 3 P, 30 A, NEMA 1, 3, 3R, 4, 4X and 12 enclosure

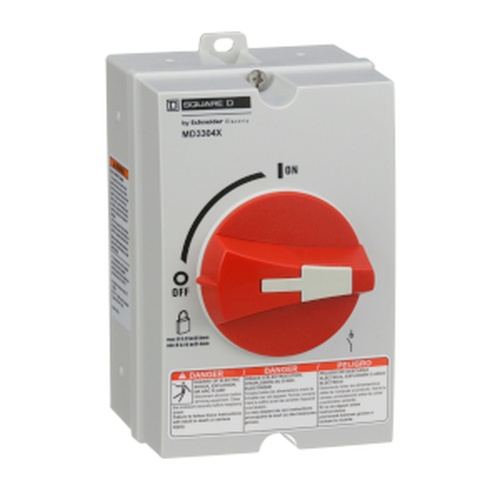

The MD motor disconnect switch is listed UL 508 Suitable for Motor Control (UL File E164864) and conforms to IEC standard 60947-3. It is in a compact NEMA 4X enclosure suitable for use in NEMA 1, 3, 3R, 4, 4X, and 12 applications. This three pole 30 A motor disconnect switch has a 7.5 HP rating at 240 VAC, a 20 HP rating at 480 VAC and a 25 HP rating at 6000VAC. The red handle interlock prevents the removal of the cover when the switch is in the ON position. This MD motor disconnect switch has an extremely small footprint. It is 6.38 inches tall, 3.9 inches wide and 4.37 deep. Switch is UL listed and CSA certified.

Range

MD

Product

Motor Disconnect Switch

Current Rating

30 A

Horsepower Rating

7.5 hp 220/240 V AC;20 hp 440/480 V AC;25 hp 600 V AC

Enclosure Rating

NEMA 4X

Certifications

UL Listed

Height

6.38 in (162.05 mm)

Width

3.90 in (99.06 mm)

Depth

4.37 in (111.00 mm)

Product Weight

1.50 lb(US) (0.68 kg)

Category

21734-TESYS VLS DISCONNECT SWITCHES

Discount Schedule

CP1

GTIN

3606480190223

Returnability

Yes

Country of origin

TN

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.92 in (12.5 cm)

Package 1 Width

5.20 in (13.2 cm)

Package 1 Length

7.17 in (18.2 cm)

Package 1 Weight

23.49 oz (666.0 g)

Unit Type of Package 2

S04

Number of Units in Package 2

18

Package 2 Height

11.81 in (30.0 cm)

Package 2 Width

15.75 in (40.0 cm)

Package 2 Length

23.62 in (60.0 cm)

Package 2 Weight

29.19 lb(US) (13.24 kg)

Unit Type of Package 3

P06

Number of Units in Package 3

72

Package 3 Height

30.31 in (77.0 cm)

Package 3 Width

31.50 in (80.0 cm)

Package 3 Length

23.62 in (60.0 cm)

Package 3 Weight

135.50 lb(US) (61.46 kg)

Warranty

18 months
