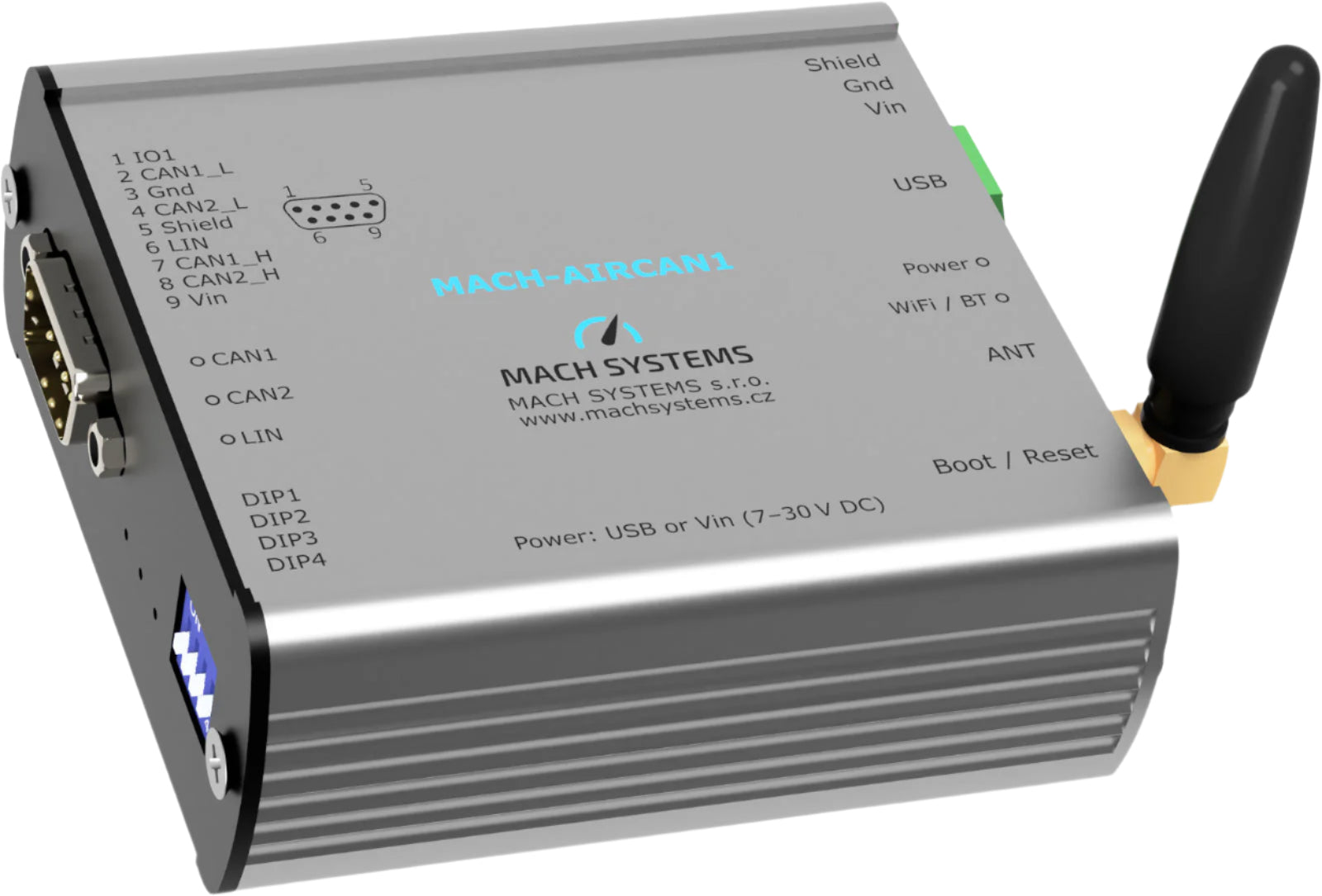

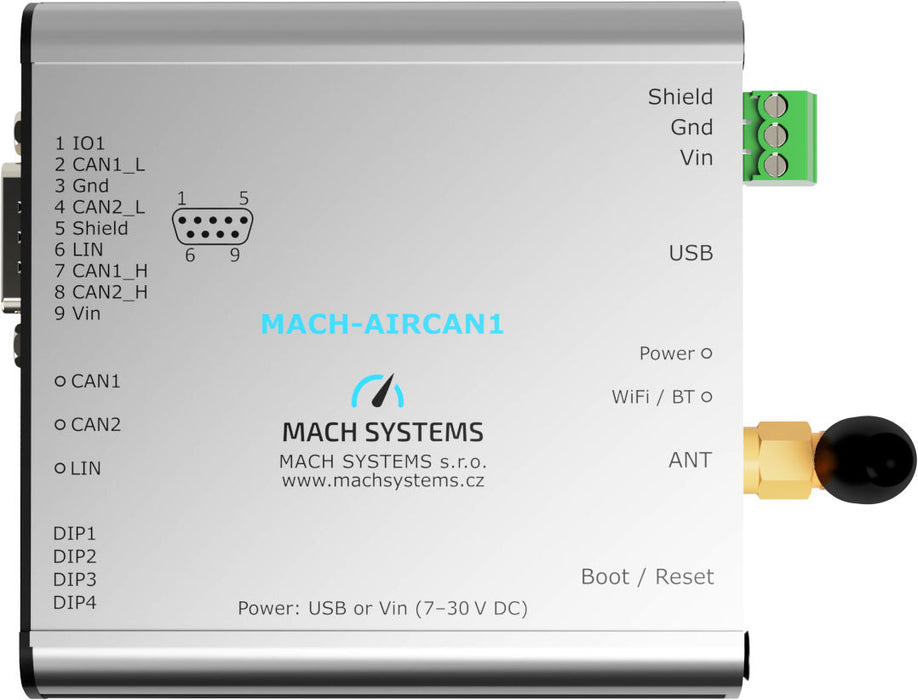

MA-MACH-AIRCAN1

The wireless interface features two CAN channels with CAN FD support, one LIN channel, 2.4 GHz WiFi with support for both access point and client modes, Bluetooth 5, a USB 2.0 port, an analogue input, and a digital output. Its embedded web server allows for easy configuration and real-time monitoring.

The device offers an open communication protocol via WiFi, Bluetooth, and USB, providing seamless access to CAN(/FD) and LIN channels. It simplifies integration of wireless connectivity into existing systems. Additionally, two MACH-AIRCAN1 devices can be paired to create a CAN(/FD)-WiFi-CAN(/FD) bi-directional bridge, enabling the connection of two separate CAN(/FD) networks through a wireless tunnel.

For custom applications, a free C-language SDK is available for firmware development. This enables user applications to run directly on the MACH-AIRCAN1, and to use all the device’s peripherals.

Specifications:

• WiFi (IEEE 802.11b/g/n) with AP and client modes
• Bluetooth 5
• 2x CAN channel with CAN FD support
• CAN FD baud rate up to 8 MBaud
• 1x LIN channel
• Support of LIN master/slave mode and master/classic checksum
• Analogue input and digital output
• Embedded web server for configuration and monitoring
• Communication protocol to access CAN and LIN channels over WiFi and Bluetooth
• Two devices can be paired to realize a wireless CAN(/FD)-CAN(/FD) bridge
• C-language SDK for user application development
• USB virtual COM port
• USB or externally powered
• Aluminum enclosure

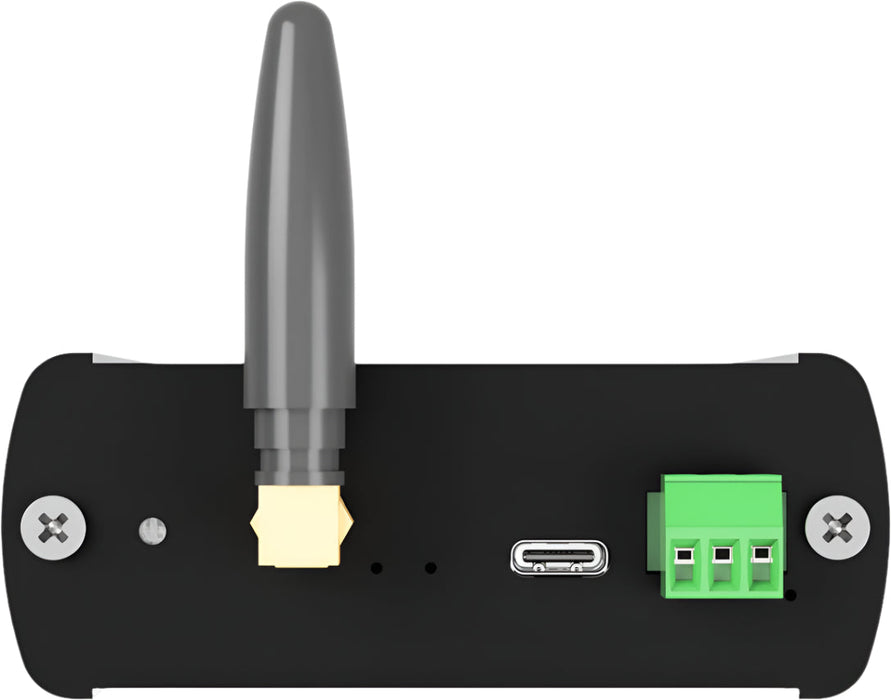

• SMA connector for WiFi/Bluetooth antenna
• DIN rail mounting possibility

Use Cases:

• WiFi to CAN(/FD) and LIN bus interface
• Bluetooth to CAN(/FD) and LIN bus interface
• Wireless CAN(/FD)-CAN(/FD) bridge
• USB to CAN(/FD) and LIN bus interface
• Users can develop a custom firmware based on the C language SDK
