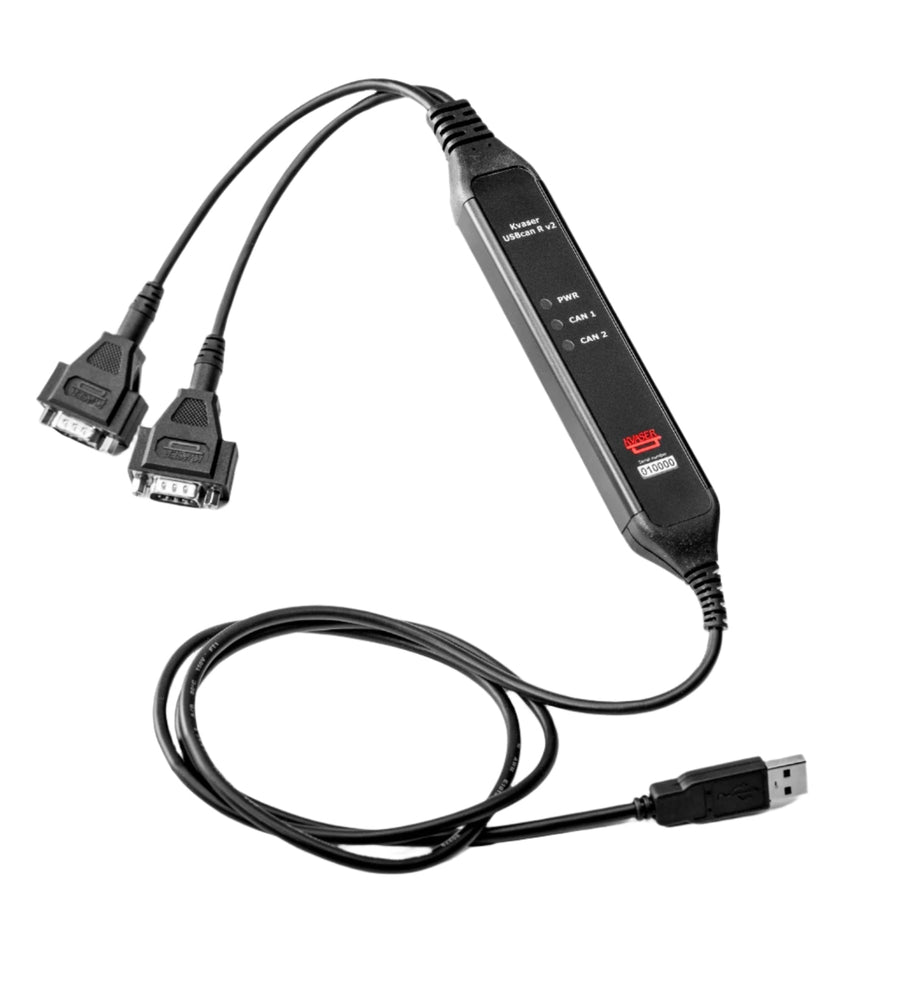

Kvaser USBcan R v2 2xHS
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan R v2 2xHS
Kvaser USBcan R v2 2xHS

Kvaser USBcan R v2 2xHS

por Kvaser AB
R$ 12.756,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

It is a robust, easy to carry device designed for high-end applications. With quick reaction times and high data throughput, the Kvaser USBcan R v2 is perfect for rapid ECU re-flashing, advanced bus analyzers and efficient development work.

EAN# 73-30130-00920-2
  • Connect to two CAN channels simultaneously using just one device
  • IP65 rated lightweight aluminium housing
  • Capable of sending up to 15000 messages per second, per channel, each time-stamped with 100 microsecond accuracy
  • Quick and easy plug-and-play installation
  • Supports High Speed CAN (ISO 11898-2) up to 1Mbit/s
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Power is taken from the USB bus
  • Detection of error frames
  • LED lights alert user to device status
  • 100% compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet
  • Operating temperature ranges from -40 to 70°C
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 50-1000 kbit/s
Silent mode No
Error frame generation No
Error counters reading No
Weight 176 grams
Timestamp resolution 100
Buffers No
Maximum message rate, send 15000 mps
Maximum message rate, receive 15000 mps
Sound No
Current Consumption ~ 5V and 130mA powered from the USB
Dimensions (WxLxH) 30x200x20 mm
Datasheet
Kvaser USBcan R v2 2xHS Datasheet
Kvaser USBcan R v2 User's Guide
Kvaser USBcan R v2 User's Guide
Version V3.4.210216
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux
Version V1.7.153
Kvaser Firmware Update Tool
TFirmware Update tool for most Kvaser devices.
Version V4.24.477
Kvaser Canlib Android Library
Kvaser CANlib Android Library
Version V1.2.0
Linux SDK library
Linux SDK library.
Version V5.35.477
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.17.748
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.35.477
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contains a driver for the virtual CAN bus.
Version V5.35.477
Kvaser CANKing
A free of charge general-purpose CAN bus monitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version V6.18.106
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.35.477
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
Cleanup
Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
