Kvaser USBcan R
Kvaser USBcan R

Kvaser USBcan R

por Kvaser AB
Desconto de 12%
R$ 14.388,00
R$ 12.660,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

End Of Life:

Replacement for this product is the: Kvaser USBcan R v2 2xHS - SKU #: KV-00920-2

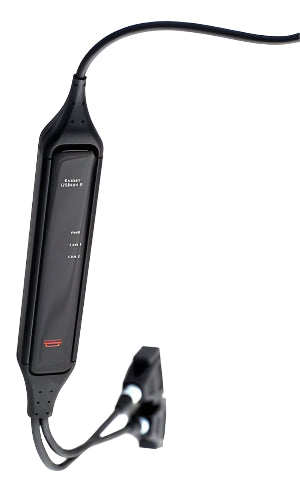

The Kvaser USBcan R provides two CAN bus interfaces through a single USB connection.

It is a robust, easy to carry device designed for high-end applications. With quick reaction times and high data throughput, the Kvaser USBcan R is perfect for rapid ECU re-flashing, advanced bus analyzers and efficient development work.
  • IP67 rated lightweight aluminum housing
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Low power consumption
  • Polyurethane cabling for extreme environments
  • Galvanic isolation of the CAN bus driver stage to protect the hardware>
  • 100% compatible with applications written for all Kvaser hardware with Kvaser's CANlib
  • Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable
  • Interfaces the CAN bus with two 9-pin D-SUB connectors
  • Designed for USB 2.0, backward compliant with USB 1.1
  • Quick and easy Plug-and-Play installation
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 20-1000 kbit/s
Silent mode No
Error frame generation No
Error frame detection Yes
Weight 200 grams
Timestamp resolution 100
On board buffer Yes
Maximum message rate, send 15000
Maximum message rate, receive 15000
Sound No
Clock synchronization N/A
Dimensions (WxLxH) 30x200x20 mm (1.2x7.9x0.8in.)
Datasheet
Kvaser USBcan R Datasheet
Kvaser USBcan R Users Guide
Kvaser USBcan R User's Guide
Version V1.0.0
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux
Version V1.7.153
Kvaser Firmware Update Tool
TFirmware Update tool for most Kvaser devices.
Version V4.24.477
Kvaser Canlib Android Library
Kvaser CANlib Android Library
Version V1.2.0
Linux SDK library
Linux SDK library.
Version V5.35.477
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.17.748
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.35.477
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contains a driver for the virtual CAN bus.
Version V5.35.477
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version V6.18.106
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.35.477
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
Cleanup
Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
