Kvaser USBcan Pro 5xHS (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xHS (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xHS (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xHS (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xHS (EOL)
Kvaser USBcan Pro 5xHS (EOL)

Kvaser USBcan Pro 5xHS (EOL)

por Kvaser AB
R$ 19.788,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

EOL PRODUCT:

The new version is the: Kvaser USBcan Pro 5xCAN.

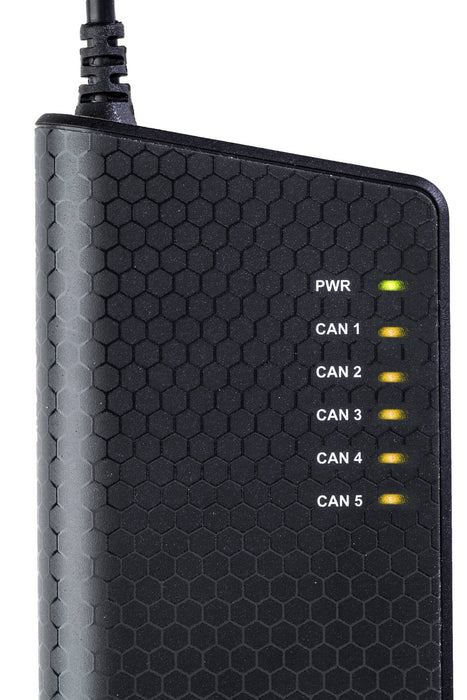

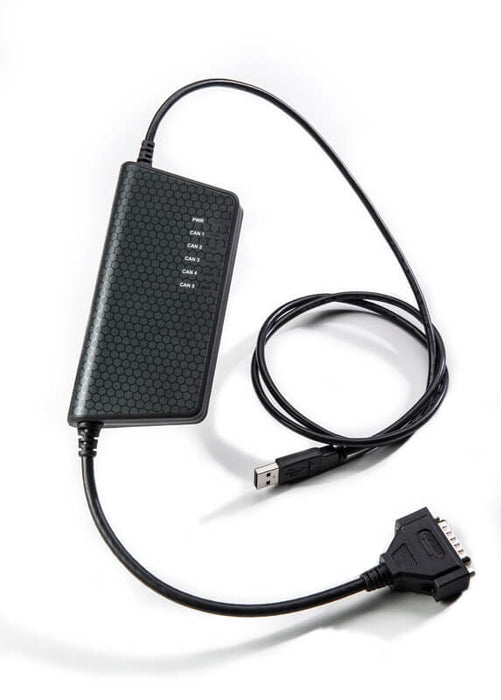

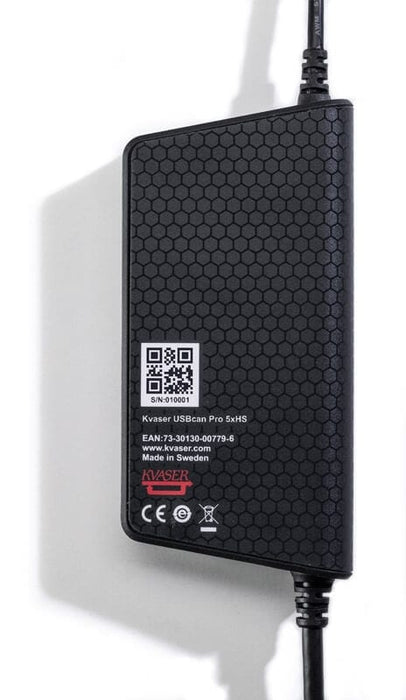

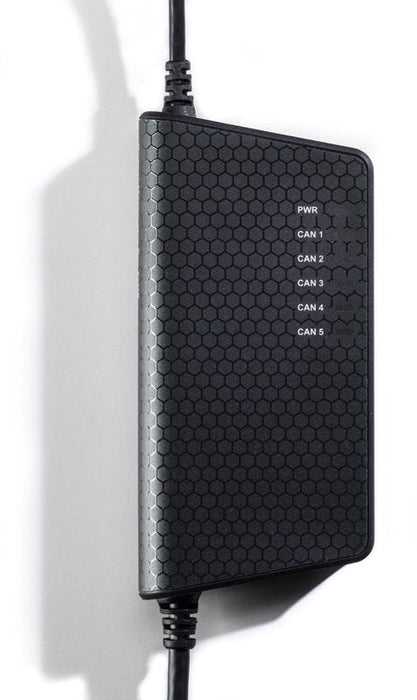

The Kvaser USBcan Pro 5xHS is a five channel, high performance, USB-to-CAN bus interface that provides a quick and flexible way to connect your PC to multiple CAN bus, in real-time. With all channels configured for High-Speed CAN (ISO 11898-2), the Kvaser USBcan Pro 5xHS handles transmission and reception of standard and extended CAN messages on the bus with a high time stamp precision. This device is CAN FD ready. This interface can run user-developed scripts, written in the Kvaser t programming language. T programs run directly on the Kvaser USBcan Pro 5xHS make it possible to react much quicker to CAN bus events – for example, to speed up file transfer protocols such as CCP/XCP or ISO15765 by off-loading timing sensitive code to a script in USBcan Pro 5xHS, or to simulate missing hardware. The feature could also be used for implementing timing sensitive protocols, such as when a message needs to be sent at precise 5 ms intervals.
  • CAN FD ready.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Power is taken from the USB bus.
  • Galvanic isolation.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Fully compatible with J1939, CANopen, NMEA 2000.
  • Kvaser MagiSync provides automatic time synchronization between several PC-to-bus interfaces connected to the same PC.
  • Programming functionality to support interface mode e.g. Optimize protocol handling, pre-filter CAN messages directly on the interface, or simulate missing hardware.
  • Simultaneous operation of multiple devices.
  • Five CAN channels integrated in a single 26-pin HD D-SUB connector.

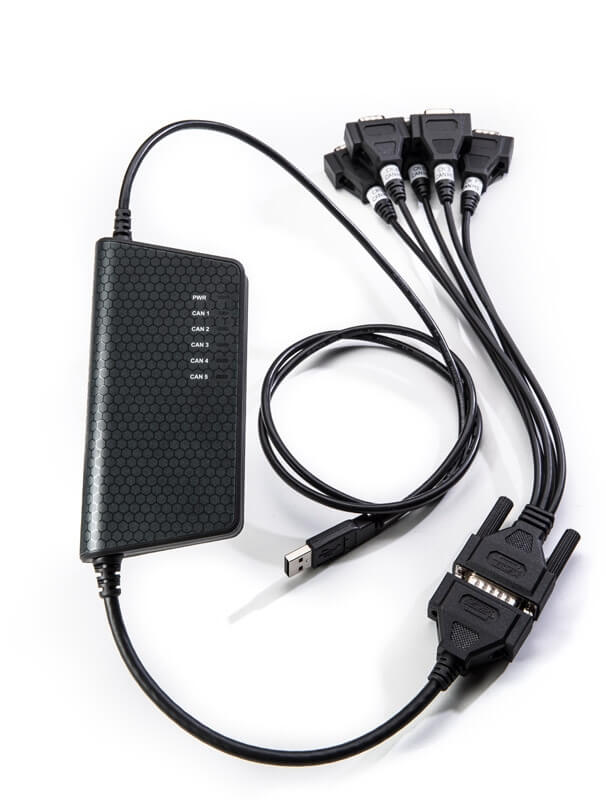

  • Includes 5 channel breakout cable.
  • 2-Year Warranty.
  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 40-1000 kbit/s
Silent mode Yes
Error frame generation Yes
Error counters reading Yes
Weight 150 g
Timestamp resolution 100
On board buffer Yes
Maximum message rate, send 20,000
Maximum message rate, receive 20.000
Sound No
Clock synchronization N/A
Dimensions Length: 170 mm (6.7"), Height: 25 mm (1.0")
Datasheet
USBcan Pro 5xHS Datasheet
USBcan Pro 5xHS Users Guide
USBcan Pro 5xHS User's Guide
Version V3.6.220215
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.10.477
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.38.841
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version V5.38.841
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.27.841
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.20.360
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.38.841
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.21.288
