Kvaser USBcan Pro 5xCAN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xCAN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xCAN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xCAN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xCAN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Pro 5xCAN
Kvaser USBcan Pro 5xCAN

Kvaser USBcan Pro 5xCAN

por Kvaser AB
R$ 22.620,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

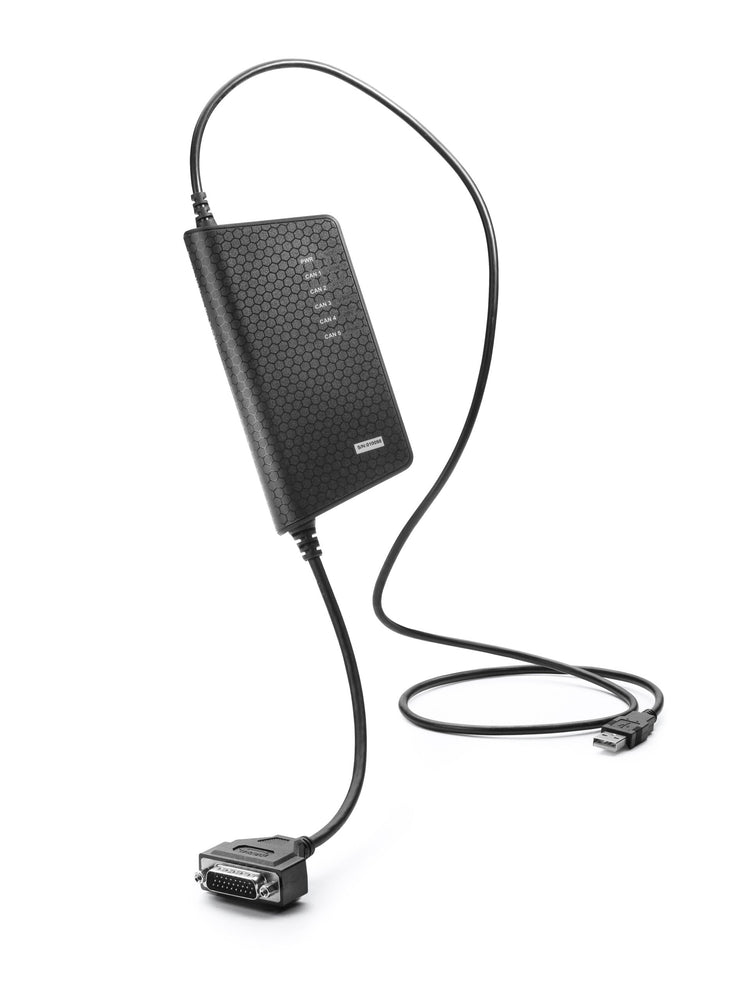

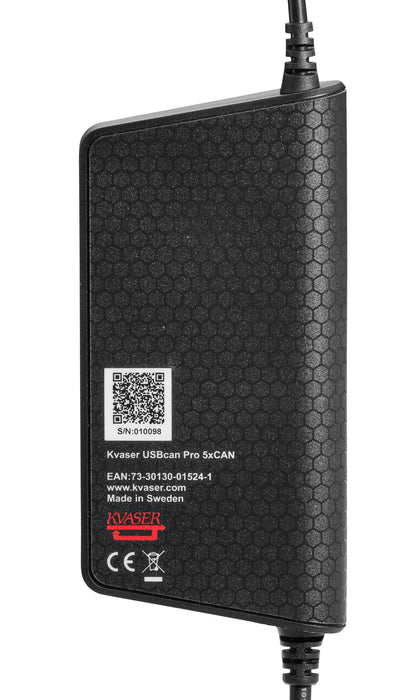

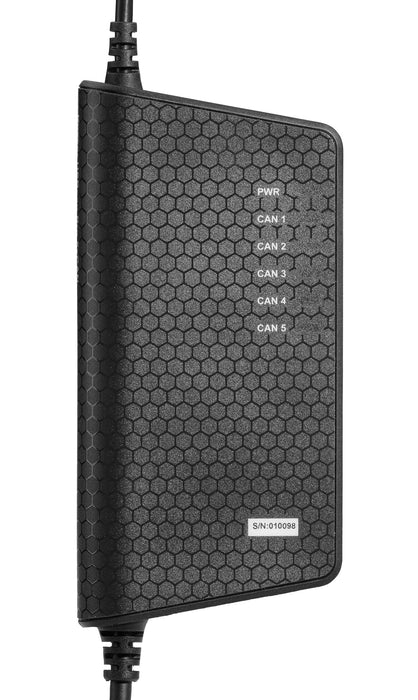

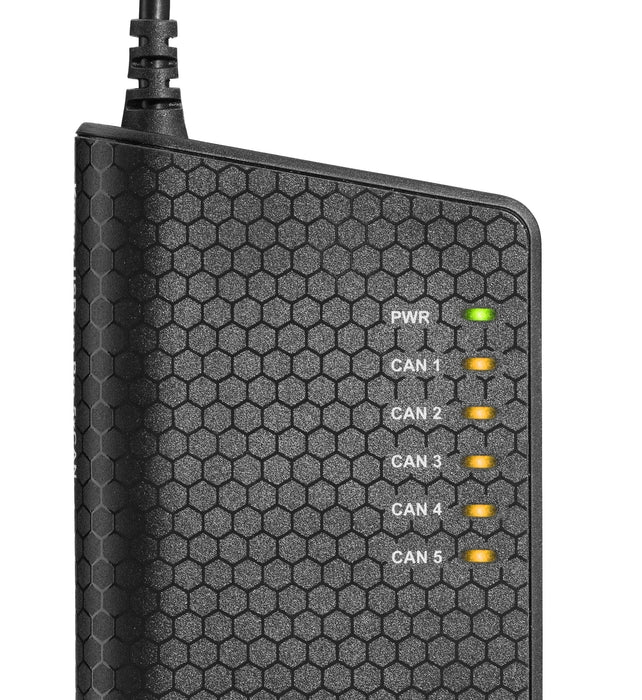

The Kvaser USBcan Pro 5xCAN is a fully programmable, plug-and-play USB to CAN interface supporting high-speed CAN FD up to 8 Mbit/s, with automatic time synchronization and full compatibility with Kvaser CANlib, designed for seamless multi-channel performance and analysis.

Kvaser USBcan Pro 5xCAN is a small, yet advanced, portable multi-channel USB to CAN real time interface that handles transmission and reception of Classic CAN and CAN FD messages on the CAN bus with a high timestamp precision. The Kvaser USBcan Pro 5xCAN is compatible with applications that use Kvaser‘s CANlib.

Features include t programming and MagiSync™, which makes it possible to synchronize time stamps across multiple Kvaser MagiSync™-enabled devices without requiring extra wires.

EAN# 73-30130-01524-1
  • Multi-channel USB CAN interface with Kvaser t programmability.
  • 20 000 msg/s per channel, each timestamped with a resolution of 1 μs.
  • Kvaser MagiSync™ – automatic time synchronization.
  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Industrial grade temperature range, −40 oC to +85 oC.
  • Galvanic isolation.
  • Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Simultaneous operation of multiple devices.
  • Power is taken from the USB bus.

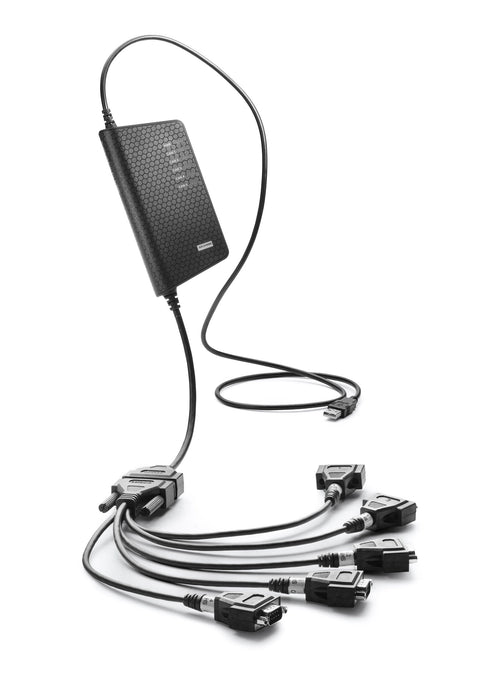

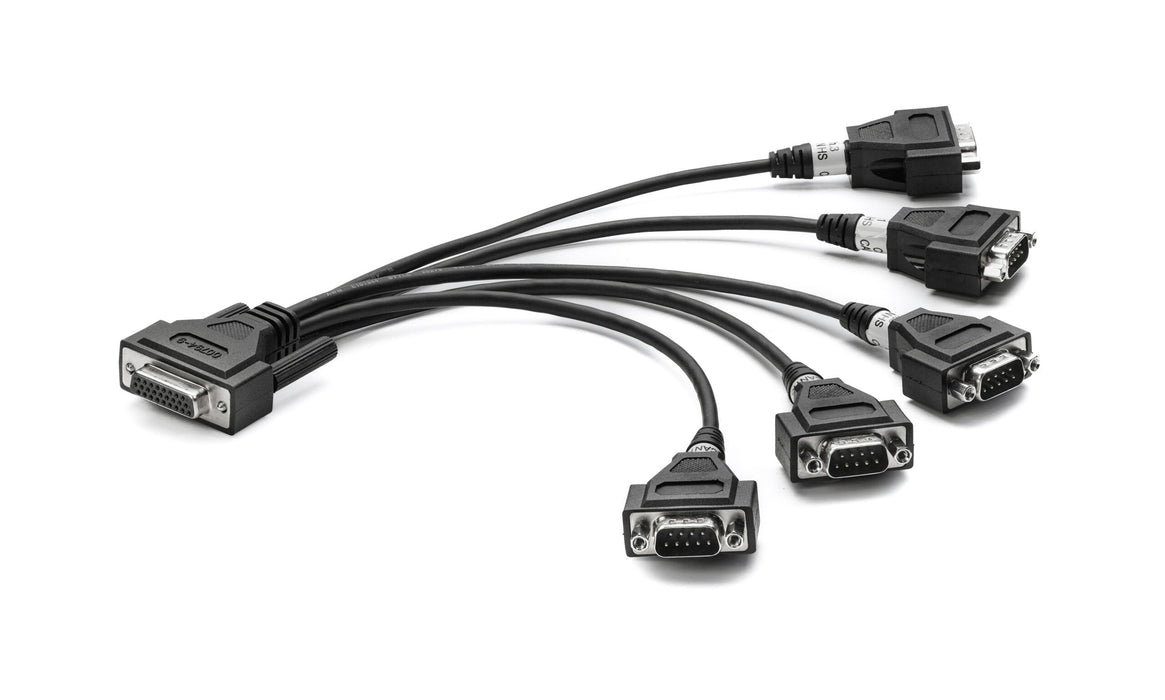

  • Includes a 4-channel breakout cable.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 40-1000 kbit/s
CAN FD Bitrate Up to 8 Mbit/s
Categories Interfaces, Hardware, CAN
Certificates CE, RoHS
Channels 4
Connectors 26-pin HD D-SUB
Current Consumption max 500 mA
Error Counters Reading Yes
Interfaces USB
OS Linux, Win 7, Win 8, Win 10
Silent mode Yes
Error frame generation Yes
Error counters reading Yes
Weight 150 g
Timestamp resolution (µs) 1 µs
Messages Per Second, Sending 20,000 mps
Message Per Second, Receive 20,000 mps
Sound No
Temp Range -40 °C to +85 °C
Dimensions Length: 170 mm (6.7"), Height: 20 mm (1.0")
Kvaser USBcan Pro 4xHS User's Guide
Kvaser USBcan Pro 4xHS User's Guide
Version V1.1.211114
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux
Version V1.9.322
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices.
Version V5.37.686
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Version V5.37.686
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.26.686
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.19.205
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.20.210
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.37.686

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Fully programmable - plug-and-play USB to CAN interface

The Kvaser USBcan Pro 5xCAN is a fully programmable, plug-and-play USB to CAN interface supporting high-speed CAN FD up to 8 Mbit/s, with automatic time synchronization and full compatibility with Kvaser CANlib, designed for seamless multi-channel performance and analysis.

Kvaser USBcan Pro 5xCAN is a small, yet advanced, portable multi-channel USB to CAN real time interface that handles transmission and reception of Classic CAN and CAN FD messages on the CAN bus with a high timestamp precision. The Kvaser USBcan Pro 5xCAN is compatible with applications that use Kvaser‘s CANlib.

Features include t programming and MagiSync™, which makes it possible to synchronize time stamps across multiple Kvaser MagiSync™-enabled devices without requiring extra wires.

EAN# 73-30130-01524-1
  • Multi-channel USB CAN interface with Kvaser t programmability.
  • 20 000 msg/s per channel, each timestamped with a resolution of 1 μs.
  • Kvaser MagiSync™ – automatic time synchronization.
  • Supports CAN FD, up to 8 Mbit/s (with correct physical layer implementation).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Industrial grade temperature range, −40 oC to +85 oC.
  • Galvanic isolation.
  • Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet.
  • Simultaneous operation of multiple devices.
  • Power is taken from the USB bus.
  • Includes a 4-channel breakout cable.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 40-1000 kbit/s
CAN FD Bitrate Up to 8 Mbit/s
Categories Interfaces, Hardware, CAN
Certificates CE, RoHS
Channels 4
Connectors 26-pin HD D-SUB
Current Consumption max 500 mA
Error Counters Reading Yes
Interfaces USB
OS Linux, Win 7, Win 8, Win 10
Silent mode Yes
Error frame generation Yes
Error counters reading Yes
Weight 150 g
Timestamp resolution (µs) 1 µs
Messages Per Second, Sending 20,000 mps
Message Per Second, Receive 20,000 mps
Sound No
Temp Range -40 °C to +85 °C
Dimensions Length: 170 mm (6.7"), Height: 20 mm (1.0")
Kvaser USBcan Pro 4xHS User's Guide
Kvaser USBcan Pro 4xHS User's Guide
Version V1.1.211114
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux
Version V1.9.322
Kvaser Linux Drivers and SDK
Linux drivers and SDK for most Kvaser devices.
Version V5.37.686
Kvaser DIADEM driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also contains a driver for a virtual CAN bus, for testing and evaluation when you don't have access to a physical CAN bus.
Version V5.37.686
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.26.686
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.19.205
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.20.210
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.37.686
