Kvaser USBcan Light 4xHS
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Light 4xHS
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser USBcan Light 4xHS
Kvaser USBcan Light 4xHS

Kvaser USBcan Light 4xHS

por Kvaser AB
R$ 9.540,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

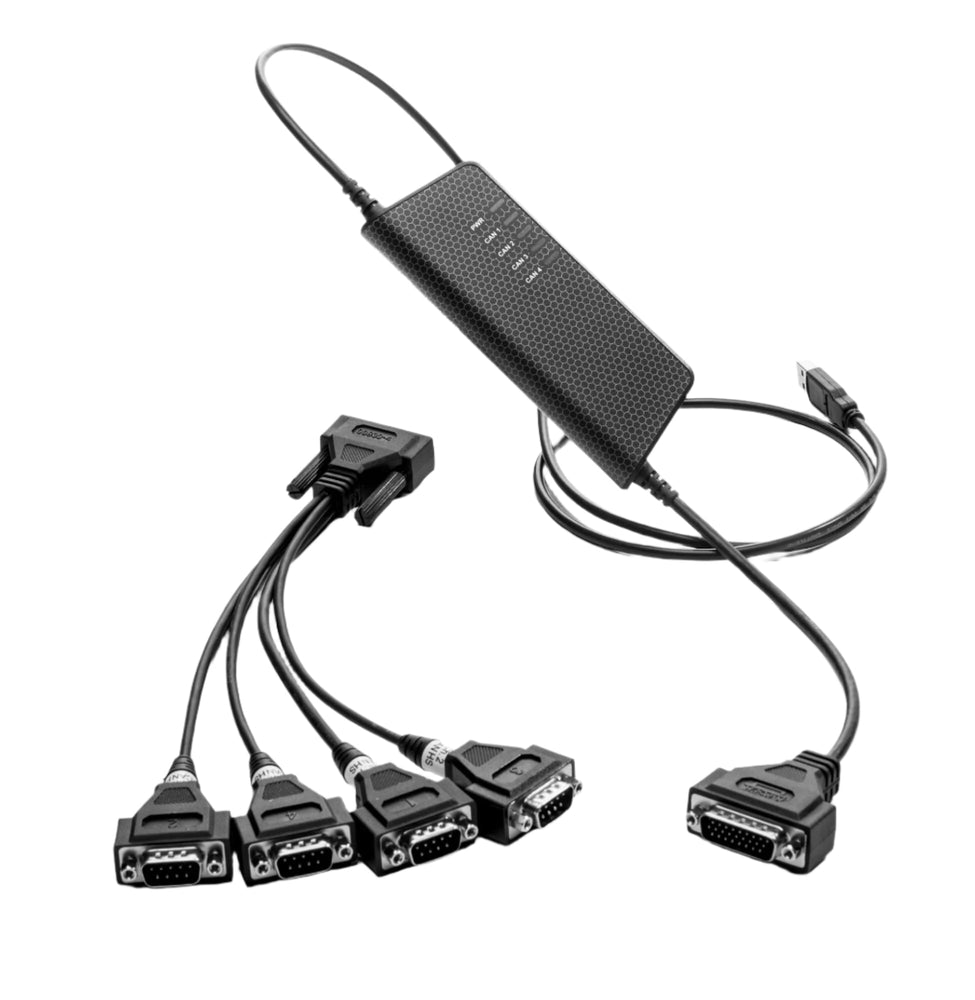

 This USB to quad channel CAN interface comes with galvanic isolation as standard and features a USB connector at one end and four high speed CAN channels in a single 26-pin HD D-SUB CAN connector at the other. This CAN interface comes with an HD26-4xDS9 splitter that can be used to connect to four separate 9pin DSUB connectors.

EAN# 73-30130-00831-1
  • Low-cost USB CAN interface.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Power is taken from the USB bus.
  • Galvanic isolation.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Simultaneous operation of multiple devices.
  • Includes 4 channel breakout cable.
  • Support for SocketCAN, see elinux.org for details.

Warranty

2-Year Warranty. See our General Conditions and Policies for details.

Support

Free Technical Support on all products available by contacting support@kvaser.com.

Software

  • Documentation, software and drivers can be downloaded for free at www.kvaser.com/downloads.
  • Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic.
  • All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types!
  • J2534 Application Programming Interface available.
  • RP1210A Application Programming Interface available.
  • On-line documentation in Windows HTML-Help and Adobe Acrobat format.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 50-1000 kbit/s
Channels 4
Current Consumption Max 500mA
Connectors 26-pin HD D-SUB
Silent mode No
Error frame generation No
Error Counters Reading No
Interfaces USB
Weight 150 grams
Temp Range -20 °C to +70 °C
Timestamp resolution (µs) 100 µs
On board buffer Yes
Maximum message rate, send 8000 mps
Maximum message rate, receive 8000 mps
Sound No
Dimensions (LxH) 170x20 mm
Material PA66
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Datasheet
Kvaser USBcan Light 4xHS Datasheet
Kvaser USBcan Light 4xHS Users Guide
Kvaser USBcan Light 4xHS User's Guide<
Version V4.4.220215/td>
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.10.477
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.38.841
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contains a driver for the virtual CAN bus.
Version V5.38.841
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.27.841
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.20.360
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.38.841
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.21.288
