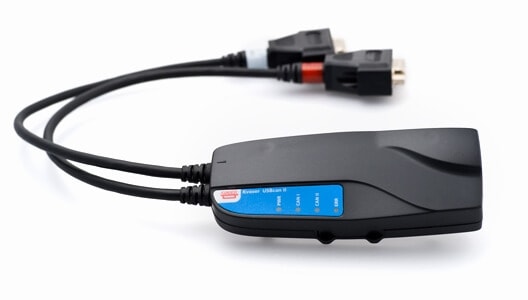

Kvaser USBcan II HS/SWC (EOL)
Kvaser USBcan II HS/SWC (EOL)

Kvaser USBcan II HS/SWC (EOL)

por Kvaser AB
R$ 7.500,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

EOL PRODUCT: (Limited to sock on hand)

Kvaser's USBcan II HS/SWC is a dual-channel CANbus interface adapter featuring a standard USB 1.1 connection which is upward compatible with USB 2.0. This CAN-to-USB interface has an auto-transmit function for placing messages on the CANbus at set intervals.

This adapter comes in different configurations whereas the first CAN channel is for high-speed CAN, with the second CAN channel providing a single-wire CAN port (part# KV-00231-9).

EAN# 73-30130-00231-9
  • The Kvaser USBcan II provides a dual channel CAN bus interface through a standard USB interface.
  • The USBcan II can be ordered with two high-speed channels, with one high-speed and one low-speed or with one-high speed and one single-wire CAN.
  • Kvaser USBcan II is a flexible way of communicate with the CAN bus through a desktop PC or laptop.
  • The USBcan II device is a USB 1.1 device. It also works with USB 2.0 in full-speed mode, i.e. 12 Mbit/s.
  • It contains the powerful M16C microcontroller from Mitsubishi with two built-in CAN controllers.
  • It handles CAN messages with 11 bit (CAN 2.0A) as well as 29 bit (CAN 2.0B) identifiers.
  • Remote frames can be sent and received without restrictions.
  • USBcan II can detect and generate error frames on the CAN bus.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation No
Bitrate 20-1000 kbit/s
Channels 2
Current Consumption 5V and ca. 130mA if powered from the USB side. Ca. 850mW (9 – 30V DC) if powered from the CAN bus connector
Connectors DSUB 9
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 150 grams
Timestamp resolution (µs) 30 µs
On board buffer Yes
Maximum message rate, send 6000 mps
Maximum message rate, receive 12000 mps
Sound No
Clock synchronization N/A
Dimensions (WxLxH) 50x90x25 mm (2.0x3.5x1.0in.)
Material PC-ABS
OS Win XP, Linux, Win 7, Win Vista, Win 10, Win 8
Datasheet
Kvaser USBcan II HS/SWC Datasheet
Kvaser Userguide USBcanII
Userguide for USBcan II
Version V8.2.0
Kvaser USBcan Comparison Table
Kvaser USBcan Product Comparison Table
Kvaser USBcanII Firmware
Firmware update for USBcan II (plastic housing).
Version V3.7.115
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.17.748
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.35.477
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V1vaser DIADEM Driver9.3.0
Kvaser NIAdem driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version V5.35.477
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version V6.18.106
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.35.477
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
Cleanup
Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
