Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)
Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)

Kvaser Mini PCI Express 2xHS v2 (2 CH) (EOL)

por Kvaser AB
R$ 8.076,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

This product is EOL and not intended for new designs.

The recommended replacement is the Kvaser Mini PCI Express 2xCAN v3 (KV-01417-6).

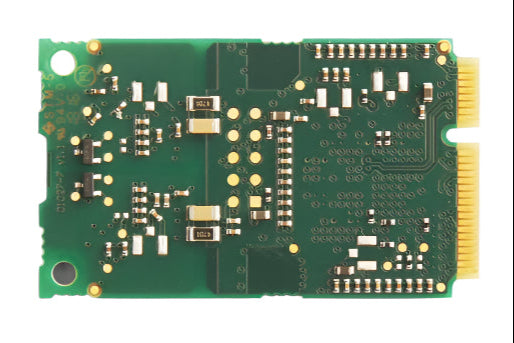

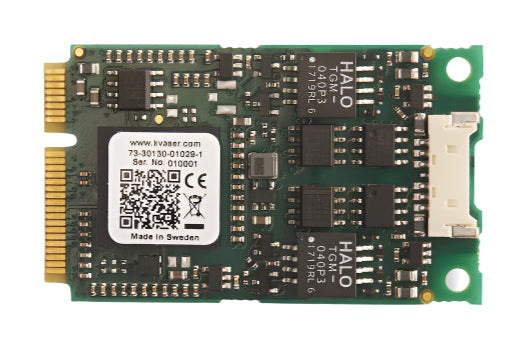

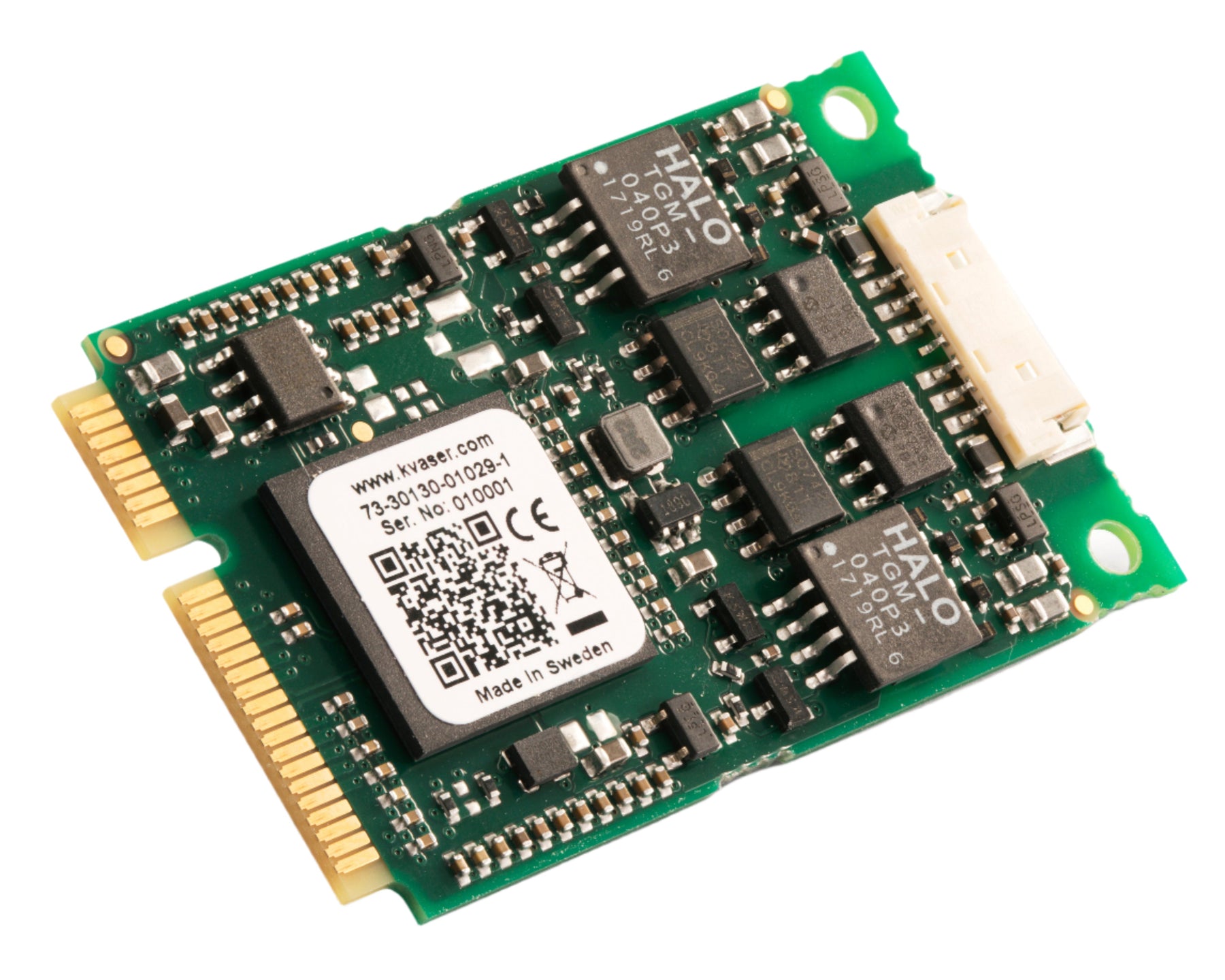

Measuring just 30 x 51mm, the Kvaser Mini PCI Express 2xHS v2 Card is a highly integrated CAN insert board that adds two high speed CAN or CAN FD channels to any standard computer board with mini PCI Express capability.

Offering silent mode, error frame detection and generation and a time stamp accuracy of 1 µs, the small form factor board fits any embedded data acquisition systems but is particularly suitable for fleet management to monitor key parameters such as fuel economy, engine speed, braking and accelerator pressure, and gearshift patterns. (Also available in a single-channel version.)

Major features of the Kvaser Mini PCI Express 2xHS v2:

  • CAN FD support
  • Fully compliant to the PCIe bus specification 1.2, Type F2 form factor (Full-Mini with bottom-side keep outs).
  • Supports a bit rate from 50 to 8000 kbit/s and a CAN transfer rate up to 20000 messages/s.
  • Time stamp accuracy is 1 µs

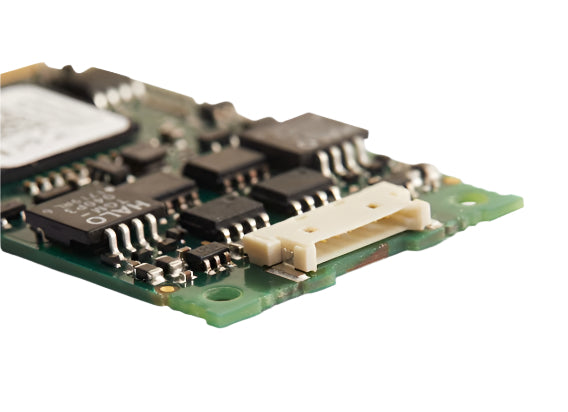

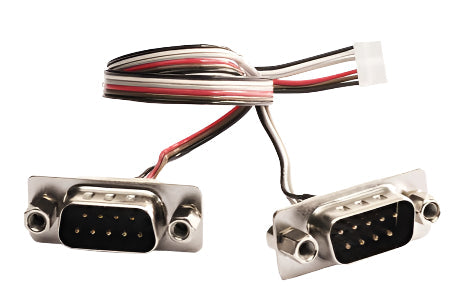

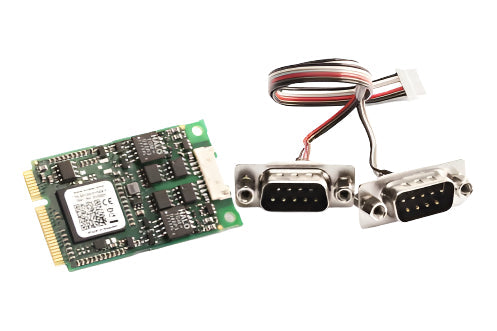

  • Low profile 4-pin Molex compatible connector, compliant with mPCIe height restrictions. Includes Molex to DSUB9 cable adapter.
  • Complies with EN 61000-6-2:2005, specifying EMC immunity for industrial environments.
  • Operates over the industrial temperature range of -40 to +85°C.
  • Kvaser’s free of charge CANLIB SDK can be used to develop software for the Mini PCI Express HS board.
  • Support for Linux, in the form of drivers and a dedicated SDK, are available as a separate download.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 50-8000 kbit/s
Silent mode Yes
Error frame generation Yes
Error frame detection Yes
Weight 5 grams
Timestamp resolution 1 μs
On board buffer N/A
Maximum message rate, send 20000
Maximum message rate, receive 20000
Sound No
Clock synchronization N/A
Temperature range -40°C to +85°C
Dimensions (WxLxH) 30x51x5mm
Data Sheet
Kvaser Mini PCI Express 2xHS v2 (2 CH) Datasheet
Install Guide
Getting Started Guide
Version V1.0.0
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version 1.0.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contain a driver for the virtual CAN bus.
Version 5.6.0
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version 5.3.889
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately
Version 5.6.0
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version 6.1.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version 5.3.0
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
Cleanup
Driver removal program. This program will remove the CAN driver (version 3.9 or older) from your computer. This program will not work with driver 4.0 or later. Use it only if you need to remove an old version of the driver from your computer.
Version 3.9c
