Kvaser M.2 PCIe 4xCAN

Kvaser M.2 PCIe 4xCAN

por Kvaser AB
Desconto de 17%
R$ 8.748,00
R$ 7.260,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

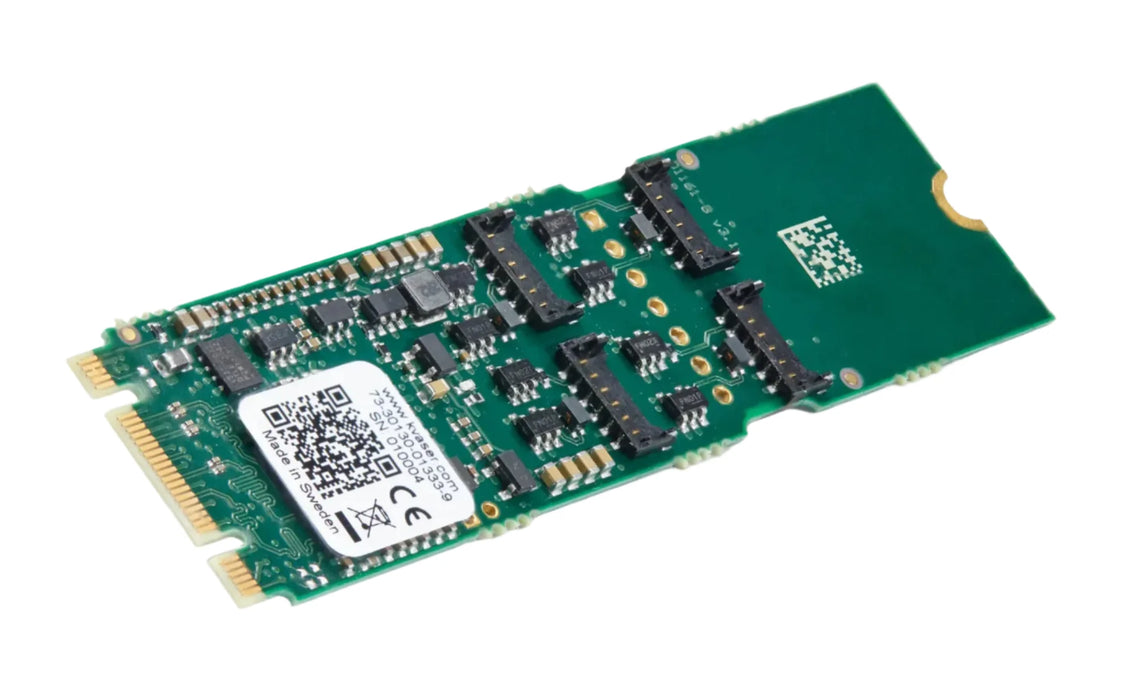

Kvaser M.2 PCIe 4xCAN is a highly integrated embedded CAN board that adds four high speed CAN/CAN FD channels to any host computer with PCI Express connectivity and an available B or M keyed M.2 slot.

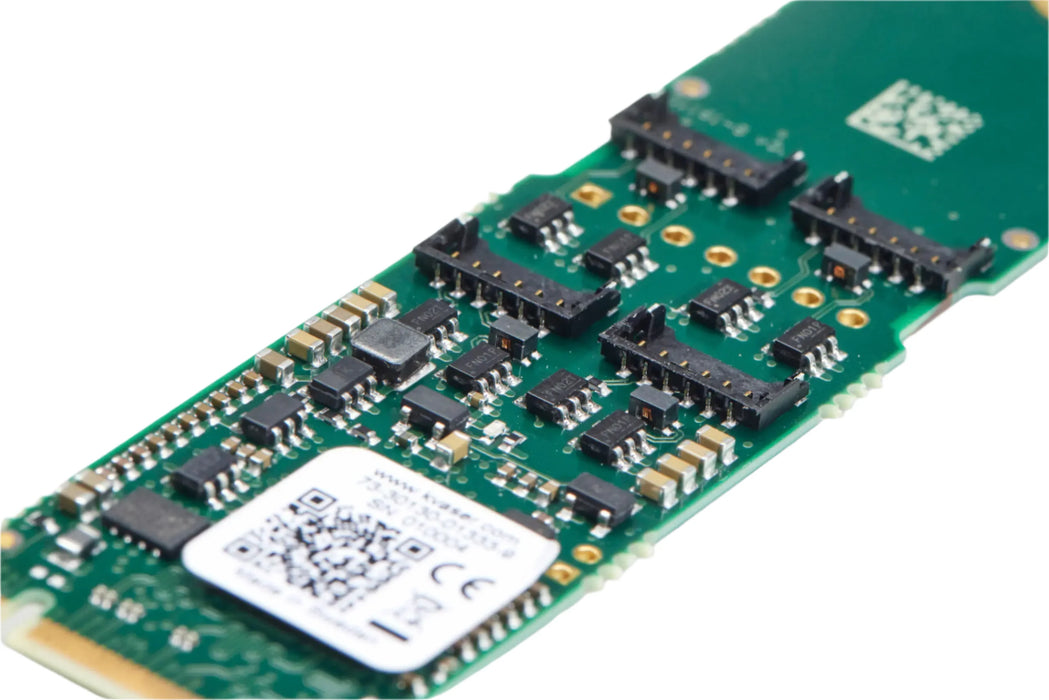

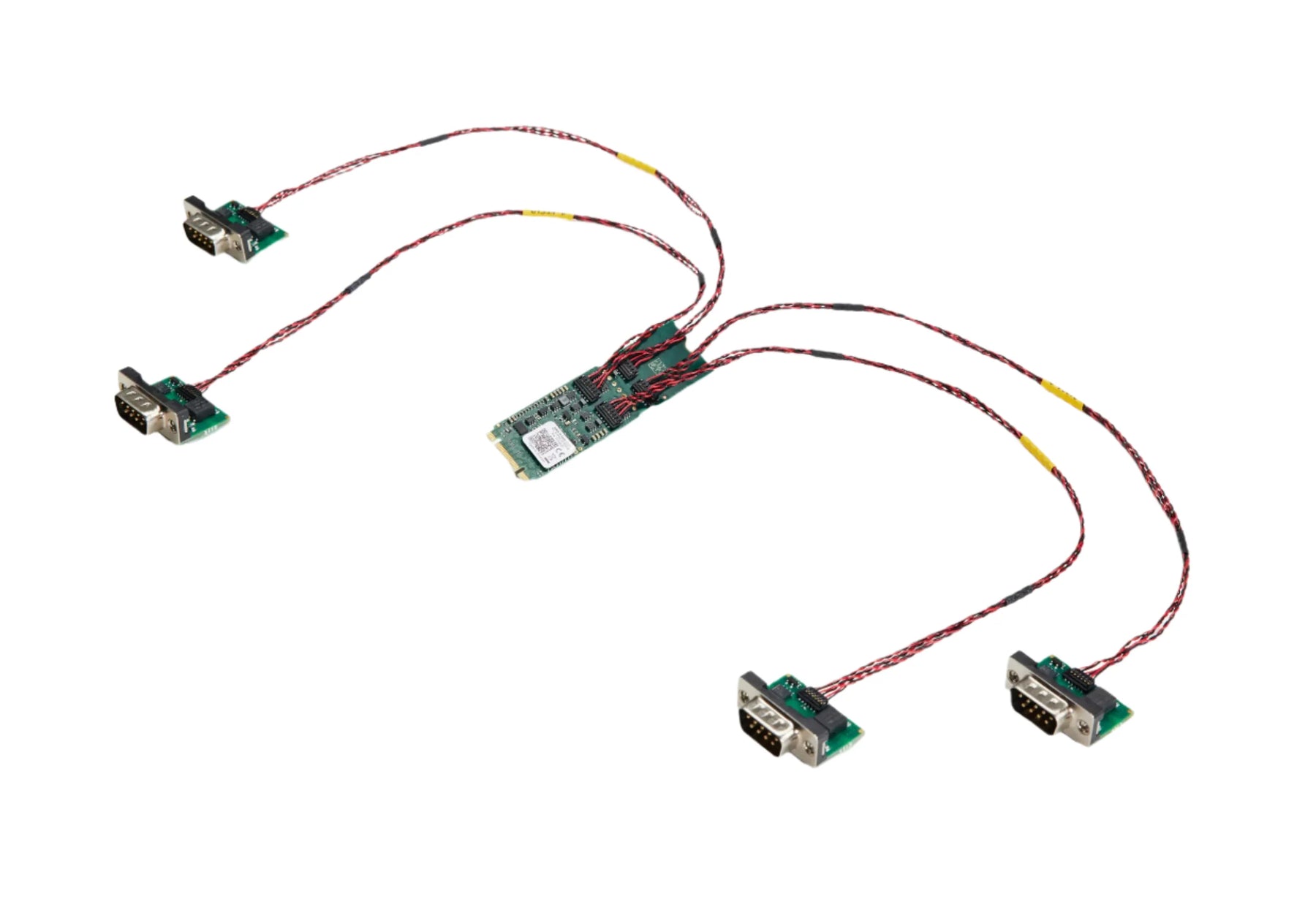

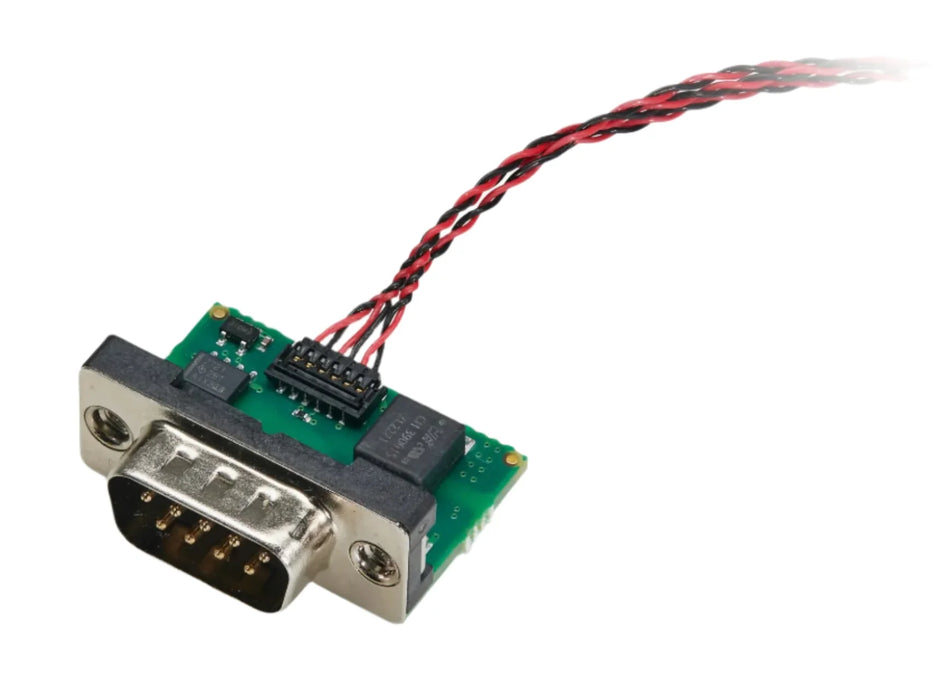

This CAN interface board has a particularly compact footprint, thanks to an M.2 card size of 22 x 80 mm and industry-leading height of just 2 mm. Unique to the Kvaser M.2 PCIe 4xCAN is that the CAN transceivers are distributed (off-board), allowing them to be located closer to the CAN networks themselves. This layout maximizes signal quality and integrity.

With a timestamp resolution of just 1 μs and a maximum message rate of 20000 msg/s per channel, plus advanced features such as silent mode, error frame detection and generation, this advanced board with distributed CAN transceivers can be integrated in a wide range of embedded systems.

DOWNLOADS:

·        Download Datasheet A4- Download

·        Download Datasheet US Letter- Download

·        Version 1.3.250521 - Download

·        User's Guide for Kvaser M.2 PCIe 4xCAN Version 1.0.240925 - Download

·        User’s Guide for Kvaser CanKing 7- CanKing 7 User's Guide

·        Select the version of CanKing 7 Download

Kvaser DIADEM Driver:



This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. Download

 Version 5.49.188 - Download Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also con

Version 5.49.188 - Download

Kvaser Linux Drivers and SDKLinux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.

EAN# 73-30130-01333-9

TECH SPECS:

Interfaces: M.2 CAN FD Bitrate: Up to 8 Mbit/s Timestamp Resolution (µs): 1 µs Error Frame Generation: Yes Galvanic Isolation: Yes Silent Mode: Yes Regulatory Compliance: CE, FCC Temp range: -40 °C to 85 °C t script: No Categories: Interfaces, Hardware, CAN Channels: 4 Weight: 42g Connectors: DSUB 9
Operating System:
  • Windows 7 (IA-32 and x86-64),
  • Windows 8 (IA-32 and x86-64),
  • Windows 10 (IA-32 and x86-64),
  • Windows 11 (x86-64),
  • Linux

DESCRPTION

Major Features:

  • B+M keyed M.2 PCI Express CAN interface with four channels.
  • Distributed and modular CAN modules minimizing the signal integrity impact when connected to CAN-bus systems.

  • Compact footprint, ideal for embedded applications, thanks to the M.2 card size of 22 x 80 mm.
  • Supports CAN FD, up to 8 Mbit/s.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • Supports simultaneous usage of multiple Kvaser interfaces and SocketCAN.
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension. Support Free Technical Support on all products available by contacting support@kvaser.com. Software Documentation, software and drivers can be downloaded for free at kvaser.com/download. Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic. All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types. J2534 Application Programming Interface available. RP1210A Application Programming Interface available. On-line documentation in Windows HTML-Help and Adobe Acrobat format.

Frete grátis. Clique em SOLICITAR COTAÇÃO PROPOSTA para enviar sua cotação e receber nossa proposta em seu email. Faturamos a prazo, desconto para pagamento à vista. Impostos inclusos, parcelamos em até 12x sem juros no cartão.

Produtos originais, garantimos a compatibilidade. Somos especialistas em TI. Atendemos e fornecemos para todo o Brasil.

Emitimos NFe, nota fiscal eletrônica. Enviamos ou retira os produtos na cidade de São Paulo, SP. Compre com segurança e procedência. Produtos com garantia, temos experiência e suporte. Somos especialistas em TI.

Por favor clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Estabelecemos parcerias com revendas. Somos distribuidores e temos preços diferenciados. Fornecemos para revendas de todo o Brasil.

Oferecemos opcionalmente o faturamos direto para seu cliente com fidelização para sua empresa (vendas e atendimento exclusivo seu) e com comissionamento (pagamos comissão pela intermediação) para a revenda.

Clique em Solicitar proposta. Desta forma receberá a proposta em seu email.

Compact embedded board with four distributed CAN/CAN FD channels (modules)

Kvaser M.2 PCIe 4xCAN is a highly integrated embedded CAN board that adds four high speed CAN/CAN FD channels to any host computer with PCI Express connectivity and an available B or M keyed M.2 slot.

This CAN interface board has a particularly compact footprint, thanks to an M.2 card size of 22 x 80 mm and industry-leading height of just 2 mm. Unique to the Kvaser M.2 PCIe 4xCAN is that the CAN transceivers are distributed (off-board), allowing them to be located closer to the CAN networks themselves. This layout maximizes signal quality and integrity.

With a timestamp resolution of just 1 μs and a maximum message rate of 20000 msg/s per channel, plus advanced features such as silent mode, error frame detection and generation, this advanced board with distributed CAN transceivers can be integrated in a wide range of embedded systems.

DOWNLOADS:

·        Download Datasheet A4- Download

·        Download Datasheet US Letter- Download

·        Version 1.3.250521 - Download

·        User's Guide for Kvaser M.2 PCIe 4xCAN Version 1.0.240925 - Download

·        User’s Guide for Kvaser CanKing 7- CanKing 7 User's Guide

·        Select the version of CanKing 7 Download

Kvaser DIADEM Driver:



This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser. Download

 Version 5.49.188 - Download Kvaser Drivers for Windows

Windows drivers for all our CAN hardware. Please check the release notes for information on which Windows versions are supported. The package also con

Version 5.49.188 - Download

Kvaser Linux Drivers and SDKLinux drivers and SDK for most Kvaser devices. For using Kvaser proprietary API. Do not install if using SocketCAN.

EAN# 73-30130-01333-9

TECH SPECS:

Interfaces: M.2 CAN FD Bitrate: Up to 8 Mbit/s Timestamp Resolution (µs): 1 µs Error Frame Generation: Yes Galvanic Isolation: Yes Silent Mode: Yes Regulatory Compliance: CE, FCC Temp range: -40 °C to 85 °C t script: No Categories: Interfaces, Hardware, CAN Channels: 4 Weight: 42g Connectors: DSUB 9
Operating System:
  • Windows 7 (IA-32 and x86-64),
  • Windows 8 (IA-32 and x86-64),
  • Windows 10 (IA-32 and x86-64),
  • Windows 11 (x86-64),
  • Linux

DESCRPTION

Major Features:

  • B+M keyed M.2 PCI Express CAN interface with four channels.
  • Distributed and modular CAN modules minimizing the signal integrity impact when connected to CAN-bus systems.

  • Compact footprint, ideal for embedded applications, thanks to the M.2 card size of 22 x 80 mm.
  • Supports CAN FD, up to 8 Mbit/s.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
  • High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application. For software support please see our Technical Associates products and our Software Download page (www.kvaser.com).
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • Supports simultaneous usage of multiple Kvaser interfaces and SocketCAN.
Warranty
2-Year Warranty. See our General Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year Warranty Extension. Support Free Technical Support on all products available by contacting support@kvaser.com. Software Documentation, software and drivers can be downloaded for free at kvaser.com/download. Kvaser CANLIB SDK is a free resource that includes everything you need to develop software for the Kvaser CAN interfaces. Includes full documentation and many program samples, written in C, C++, C#, Delphi, and Visual Basic. All Kvaser CAN interface boards share a common software API. Programs written for one interface type will run without modifications on the other interface types. J2534 Application Programming Interface available. RP1210A Application Programming Interface available. On-line documentation in Windows HTML-Help and Adobe Acrobat format.
