Kvaser Leaf v3 CB
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Leaf v3 CB
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Leaf v3 CB
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Leaf v3 CB
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Leaf v3 CB
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Leaf v3 CB
Kvaser Leaf v3 CB

Kvaser Leaf v3 CB

por Kvaser AB
Desconto de 5%
R$ 4.440,00
R$ 4.212,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

This item replaces the: Kvaser Leaf Light HS v2 CB

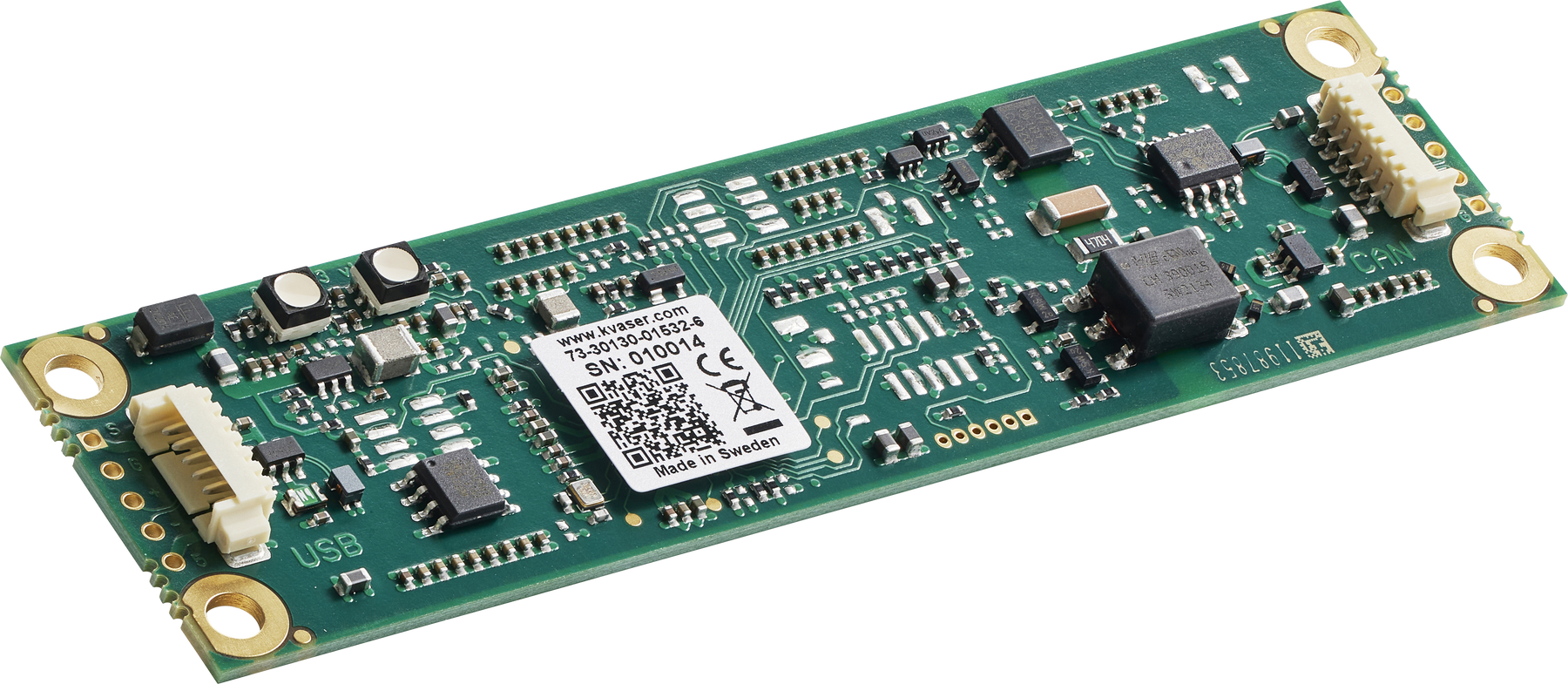

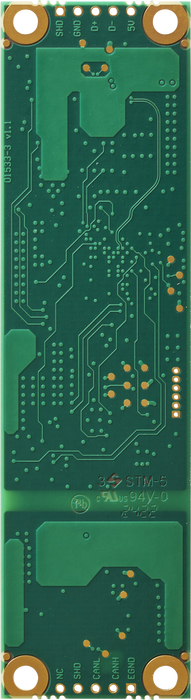

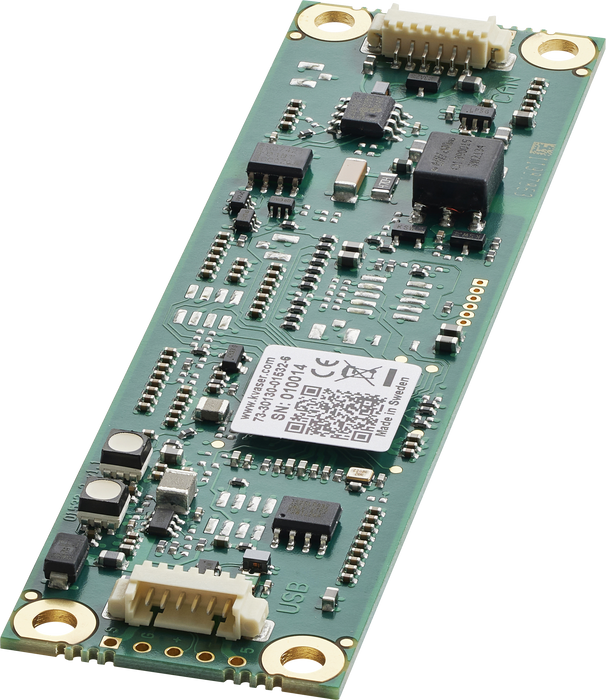

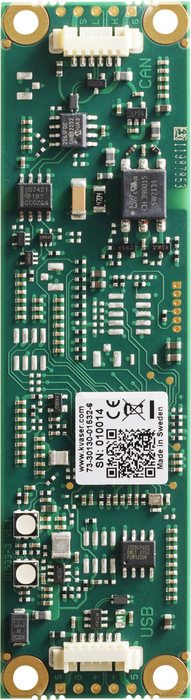

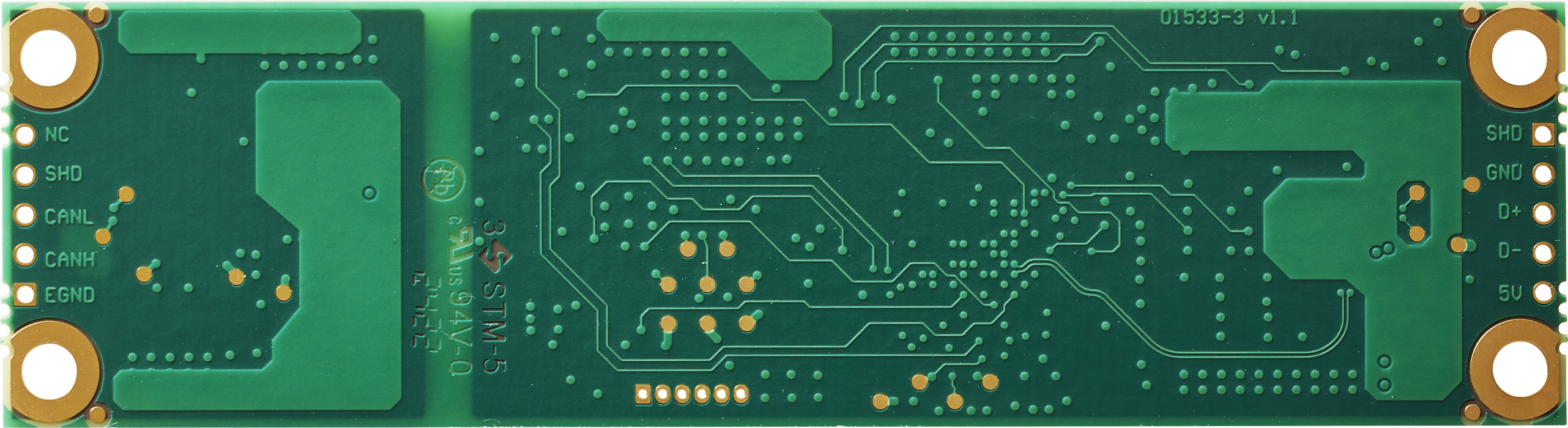

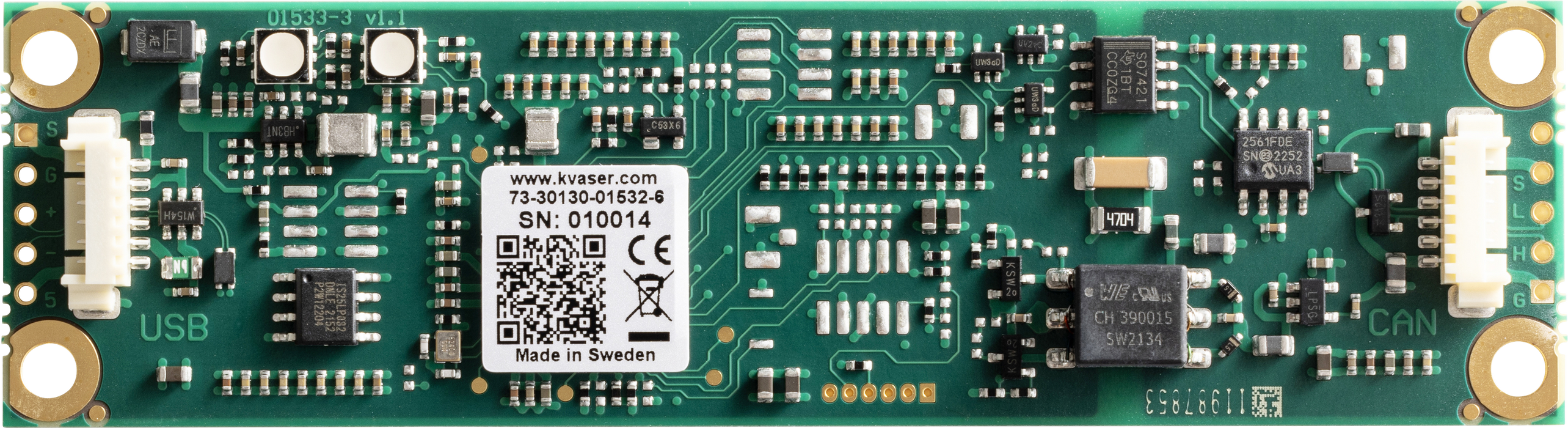

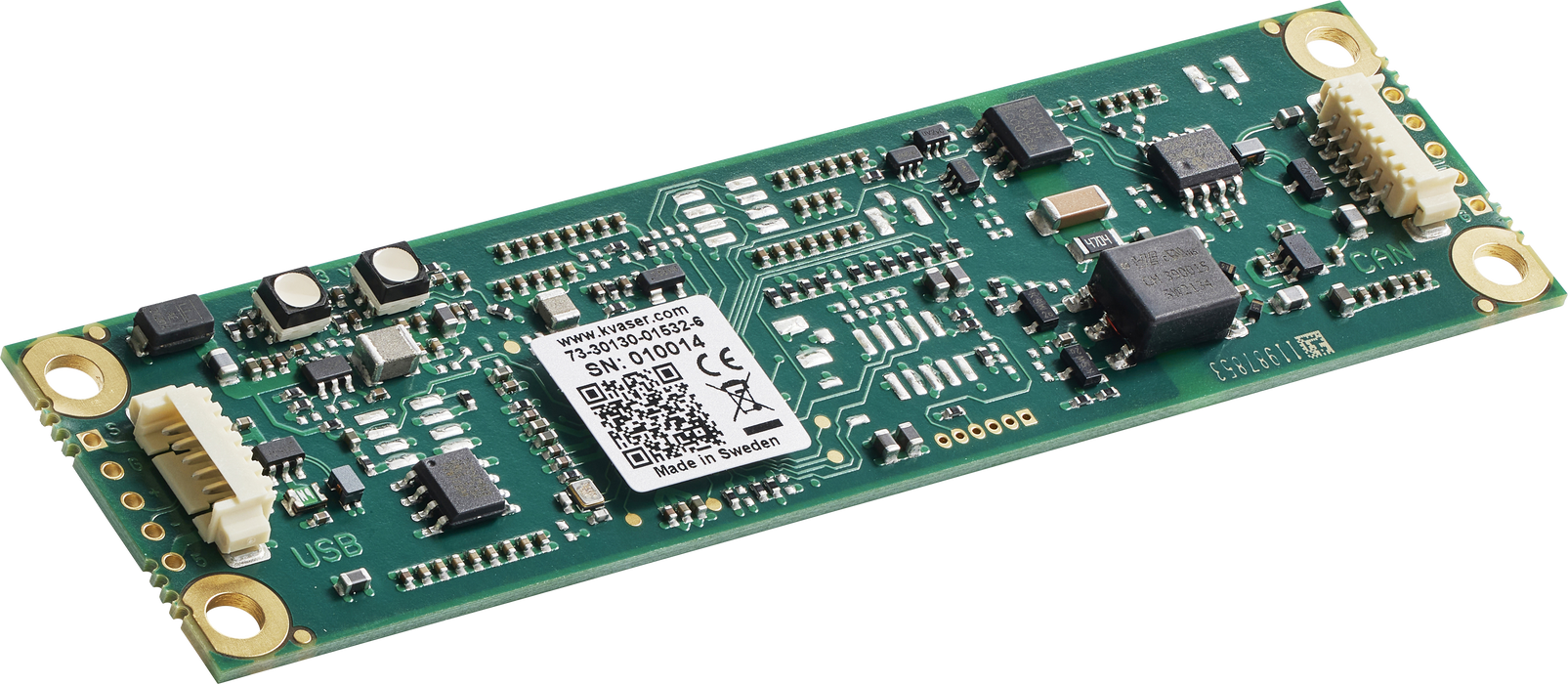

The Kvaser Leaf v3 CB is the circuit board version of Kvaser's popular single-channel, high speed, USB-to-CAN bus interface, the Kvaser Leaf v3. This board boasts a timestamp precision of 50 µs and support for a wide CAN bit rate range from 20 kbit/s to 1 Mbit/s. The message rate has been boosted significantly to 20,000 msg/s.

While remaining the industry standard for reliable and low-cost CAN interfaces, the Kvaser Leaf v3 CB introduces an important feature beyond support for CAN FD. Silent mode allows this interface to be used to listen to a CAN bus without transmitting. Find out more about silent mode here.

EAN# 73-30130-01532-6
  • Powered through the USB connector.
  • Supports CAN FD, up to 8 Mbit/s.
  • Quick and easy plug-and-play installation.
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • Supports silent mode for analysis tools – listen to the bus without interfering.
  • 20000 msg/s, each timestamped with a resolution of 50 µs.
  • Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
  • Support for SocketCAN.
  • Support simultaneous usage of multiple Kvaser interfaces.
  • Compatible with J1939, CANopen, NMEA 2000® and DeviceNet. Higher layer protocol translation handled by the user’s application.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 20-1000 kbit/s
Silent mode Yes
Error frame generation No
Error counters reading No
Messages per second (send/receive) 20000 mps
Temp Range -20...+70 deg C
Time Stamp R (µs) 50 µs
Maximum message rate, send 20000
Maximum message rate, receive 20000
Sound No
Current Draw max 500mA
Dimensions (LxH) 100x5 mm
Datasheet
Kvaser USBcan Pro 2xHS v2 CB Datasheet
Kvaser USBcan Pro 2xHS v2 CB User's Guide
Kvaser USBcan Pro 2xHS v2 CB User's Guide
Version V3.3.220215
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.10.477
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.38.841
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version V4.1.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contains a driver for the virtual CAN bus.
Version V5.38.841
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.27.841
Kvaser Canlib Android Library
Kvaser CANlib Android Library
Version V1.2.0
Linux SDK Library
Linux SDK library.
Version V5.38.841
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.20.360
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V19.3.0
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Libraries, header files, sample programs for e.g. C, C++, C#, Visual Basic and Delphi, documentation, and more. Note: you need to download and install the appropriate device drivers separately.
Version V5.38.841
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.21.288
