Kvaser Leaf Light Rugged HS
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Leaf Light Rugged HS
Kvaser Leaf Light Rugged HS

Kvaser Leaf Light Rugged HS

por Kvaser AB
R$ 6.336,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

EOL PRODUCT: (Limited to sock on hand)

Replacement for this product is the: Kvaser Leaf Light Rv2 or Kvaser U100-SKU #: KV-01173-1

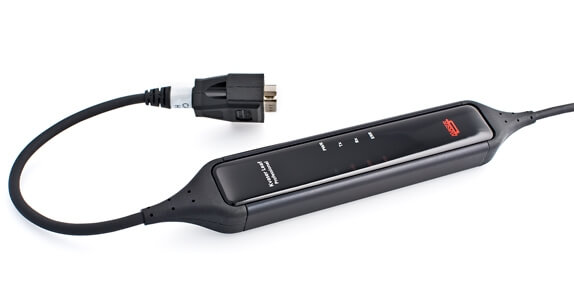

Kvaser Leaf Light Rugged HS (with Galvanic Isolation) is a one channel USB interface for CAN. In hostile environments where dust and water are the norm, the IP67 rated housing assures reliable protection.
  • IP67 rated lightweight aluminum housing
  • Polyurethane cabling for extreme environments
  • CAN messages are time-stamped with a precision of 100 microseconds
  • Handles up to 8000 messages per second
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers
  • Supports data and remote frames
  • Detects error frames
  • Very good EMC performance
  • Fully compatible with all higher layer protocols including J1939 and CANopen
  • Equipped with a 110 cm (44 in.) long USB cable and a 30 cm (12 in.) long CAN cable
  • Interfaces the CAN bus with a 9-pin D-SUB connector
  • Galvanically isolated CAN bus driver
  • Designed for USB 2.0, backward compliant with USB 1.1
  • Low power-consumption
  • Temperature range -40 °C - +85 °C
  • Quick and easy Plug-and-Play installation
  • 100% software compatible with applications written for all Kvaser hardware with Kvaser CANlib SDK
  • A practically unlimited number of Kvaser Leaf's can be connected via standard USB hubs for simultaneous use on a single PC
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 5-1000 kbit/s
Silent mode No
Error frame generation No
Error frame detection Yes
Weight 100 grams
Timestamp resolution 100
On board buffer Yes
Maximum message rate, send 8000
Maximum message rate, receive 8000
Sound No
Clock synchronization N/A
Dimensions (WxLxH) 30x200x20 mm (1.2x7.9x0.8in.)
Kvaser Leaf User's Guide
User's Guide for the Kvaser Leaf Light
Version 11.0.0
Kvaser Leaf Light Rugged HS Datasheet
Datasheet for the Kvaser Leaf Light Rugged HS
Version 2013
Kvaser Leaf Installation Guide
Kvaser Leaf Installation Guide
Version 4.1.0
Kvaser DIADEM Driver
This free driver for National Instrument's DIAdem supports all CAN hardware from Kvaser.
Version 1.0.0
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contains a driver for the virtual CAN bus.
Version 5.6.0
Kvaser Leaf V2 Firmware
Firmware Kvaser Leaf Light V2
Version 3.2.302
Kvaser CANKing
A free of charge general-purpose CAN bus momnitor. Works with all CAN interfaces from Kvaser. Windows 200 and later recommended.
Version 5.3.889
Kvaser CANlib SDK
Software development kit - everything you need to develop software for the Kvaser CAN and LIN interfaces. Link libraries, header files, sample programs, Microsoft Visual Basic and Borland Delphi components, documentation, and more. Note: you need to download and install the appropriate device drivers separately
Version 5.6.0
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView version for all Kvaser CAN hardware.
Version 6.1.0
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version 5.3.0
Remove old drivers
Driver removal program. This program will remove the CAN driver (version 3.2 or older) from your computer. This is a version intended for those who have installed CANLIB 3.2 or older. Use it only if you need to remove an old version of the driver from your computer. Contact technical support if you have any questions.
Version 3.9c
