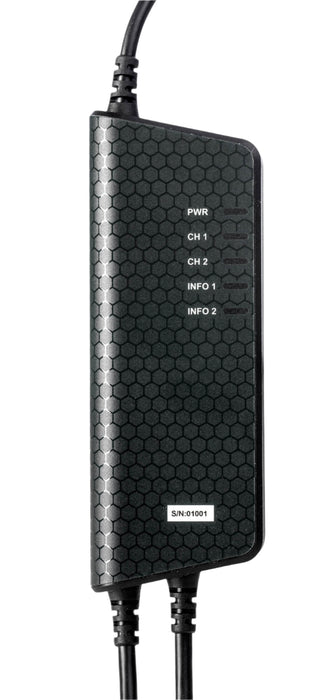

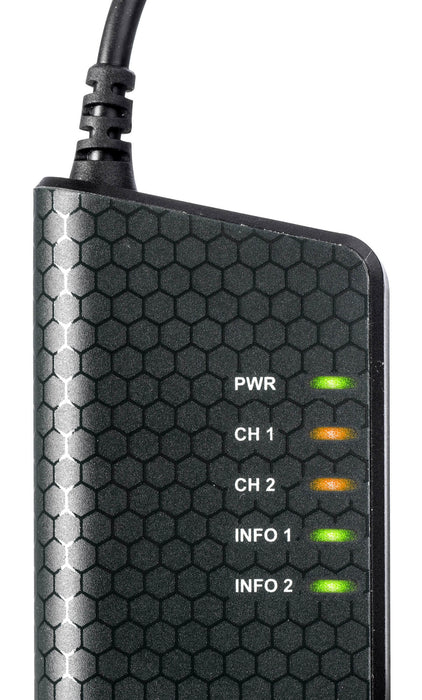

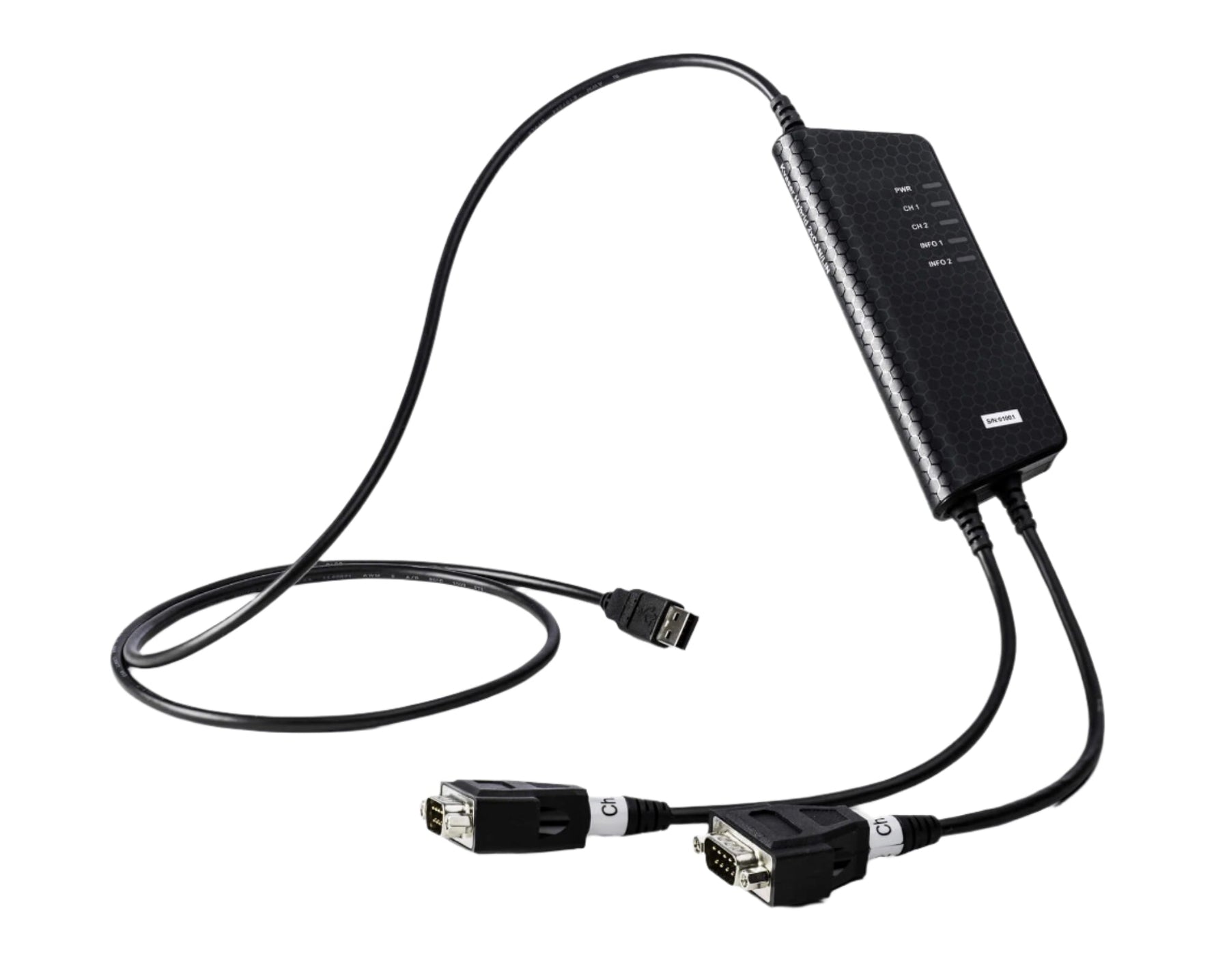

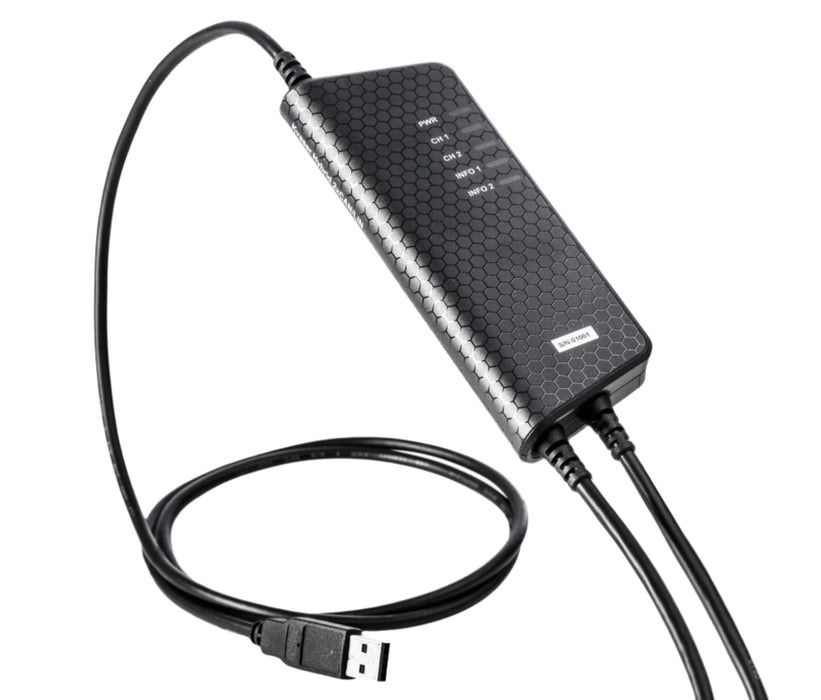

Kvaser Hybrid 2xCAN/LIN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Hybrid 2xCAN/LIN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Hybrid 2xCAN/LIN
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Hybrid 2xCAN/LIN
Kvaser Hybrid 2xCAN/LIN

Kvaser Hybrid 2xCAN/LIN

por Kvaser AB
R$ 9.672,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

This makes the Kvaser Hybrid 2xCAN/LIN a must-have "universal interface" for every engineer involved in automotive communications. With a standard USB connector and two CAN/LIN channels in two separate 9-pin D-SUB connectors, this interface can connect a PC to two CAN buses, two LIN buses, or one CAN and one LIN bus.

Both channels support CAN FD, up to 5 Mbit/s (with proper physical layer), when in CAN mode. The Kvaser Hybrid is fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet—plus it works with Kvaser’s universal API.

EAN# 73-30130-00965-3

An essential tool for automotive engineers, CAN and LIN can now be configured using a single tool. Easy access, from climate control to calibration, using one device. This compact, high-performance interface uses a standard USB connector and two high-speed CAN or LIN channels in separate 9-pin D-SUB CAN connectors. Each channel can be configured for either CAN or LIN, allowing multiple configurations tailored to your needs.

  • Hybrid USB CAN/LIN interface.
  • Supports CAN FD, up to 5 Mbit/s (with proper physical layer)
  • Supports High-Speed CAN (ISO 11898-2) up to 1Mbit/s.
  • Supports CAN 2.0 A and CAN 2.0 B active.
  • Quick and easy plug-and-play installation.
  • Supports LIN 2.2.
  • Power is taken from the USB bus.
  • LIN reference power detection.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Fully compatible with applications written for other Kvaser CAN hardware with Kvaser CANlib.
  • Galvanically isolated bus drivers.
  • Extended operating temperature ranges from -40 to 85 °C.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Bitrate 40-1000 kbit/s (CAN); 1-20 kBit/s (LIN)
Silent mode No
Error frame generation No
Error frame detection Yes
Weight 170 g
Timestamp resolution 50 microsecs
On board buffer Yes
Maximum message rate, send 20,000
Maximum message rate, receive 20,000
Sound No
Clock synchronization N/A
Dimensions (WxLxH) 50x170x20 mm (body incl. strain relief)
Datasheet
Kvaser Hybrid 2xCAN/LIN Datasheet
Kvaser Hybrid 2xCAN/LIN User's Guide
Userguide for Kvaser Hybrid 2xCAN/LIN
Version V2.6.220215
Kvaser SocketCAN Device Drivers
Kvaser SocketCAN Drivers for Linux.
Version V1.10.477
Kvaser Linux Driver and SDK
Linux driver and SDK for Kvaser PCIcan/PCIcanx, Kvaser PCIcanII, Kvaser PC104+, Kvaser PCIcanx II, Kvaser USBcan II, Kvaser Memorator*, Kvaser Leaf family, Kvaser Memorator Pro**, Kvaser USBcan Pro and VirtualCAN. For LAPcan and LAPcan II, you should use version 4.2 of the driver. (*) only with USBcanII functionality, (**) only with USBcan Pro functionality
Version V5.38.841
Kvaser Drivers for Windows
Windows drivers for all our CAN hardware. Please check release notes for information on which Windows versions are supported. It also contains a driver for the virtual CAN bus.
Version V5.38.841
Kvaser Firmware Update Tool
Firmware Update tool for most Kvaser devices.
Version V4.27.841
Kvaser Canlib Android Library
Kvaser CANlib Android Library
Version V1.2.0
Python module
The Canlib module is a Python wrapper for Kvaser CANlib SDK.
Version V1.20.360
Kvaser LabView VI Library for CAN
Library for National Instrument's LabView. Version for all Kvaser CAN hardware.
Version V19.3.0
XTM, Free LIN Viewer
A free of charge LIN bus viewer. This demo version only operates in slave mode and only monitors the LIN bus. Works with Kvaser Leaf Professional LIN and Hybrid family of products.
Version V3.8.36
Kvaser CANKing
A free of charge, general-purpose CAN bus monitor. It works with all CAN interfaces from Kvaser and also with the virtual CAN bus.
Version V6.21.288
