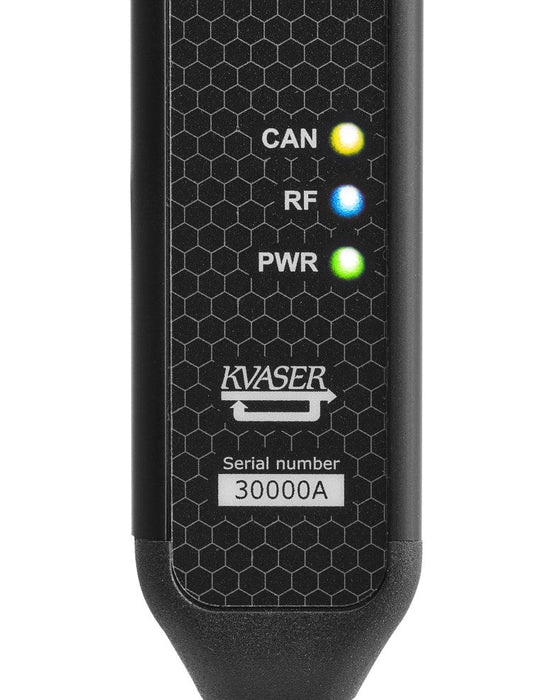

Kvaser Air Bridge Light HS M12 (FCC)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Air Bridge Light HS M12 (FCC)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Air Bridge Light HS M12 (FCC)
Clique ou role para ampliar
Toque ou belisque para ampliar
Kvaser Air Bridge Light HS M12 (FCC)
Kvaser Air Bridge Light HS M12 (FCC)

Kvaser Air Bridge Light HS M12 (FCC)

por Kvaser AB
R$ 11.940,00
Frete gratis para todo o Brasil
  • Compra 100% segura
  • Produtos originais com garantia
  • Emitimos NFe • Faturamos a prazo
  • Site seguro · SSL

Compre com segurança, procedência e garantia. Fornecemos para todo o Brasil, faturamos a prazo no boleto e emitimos NFe (nota fiscal eletrônica). Despachamos ou retiramos em São Paulo, SP. Produtos originais, valores unitários. Temos experiência e suporte.

Formas de pagamento
Pix VISA elo Hiper AMEX PayPal ate 12x

The Kvaser Air Bridge Light HS M12 comprises of a preconfigured pair of plug-and-play units, with integrated antennas and rugged housings, the Kvaser Air Bridge Light HS M12 ensure the rapid exchange of raw CAN data in situations that make wired connection unsuitable or challenging, such as CAN cabling that experiences high environmental abrasion.

Employing a proprietary 2.4G radio and frequency hopping mechanism, the Kvaser Air Bridge Light HS controls the data rate, radio packet format, output power and pairing method to achieve predictable latencies, without sacrificing stability or range. Transmission range is as much as 70 m, with a maximum data rate of 1200 messages per second and a packet latency of 4.8ms. This makes the Air Bridge effective in infrastructure and control applications, where accurate message delivery times are essential, and a viable alternative for optical cable in some situations.

There are two versions: (Both share the same functionality but have different radio transmission schemes due to regulatory differences.)

(01141-0) Kvaser Air Bridge Light HS M12 is approved for the European Union, while (01148-9) Kvaser Air Bridge Light HS M12 (FCC) complies with US certification.


Warranty

Support

Certifications

  • The Kvaser Air Bridge Light HS (FCC) (EAN: 73-30130-01008-6) has been tested and found to comply with part 15 of FCC Rules. See User Guide for full FCC Compliance Information Statement.

EAN# 73-30130-01148-9

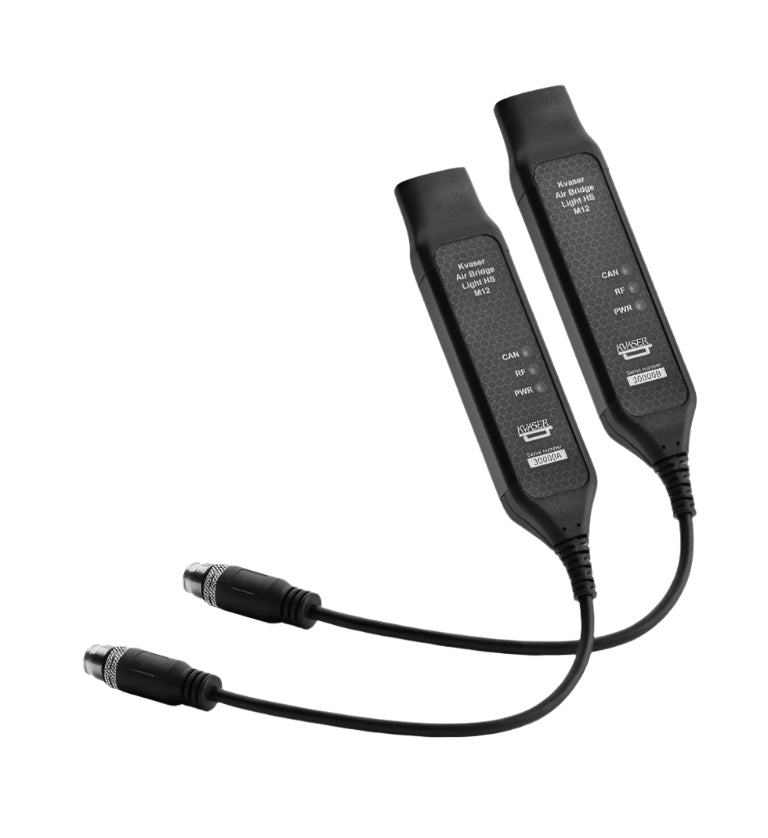

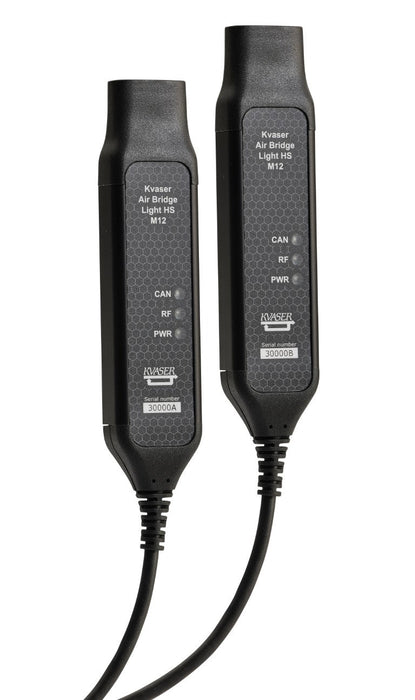

  • A preconfigured pair of units that create a point-to-point radio link between two CAN networks.
  • 2.4 GHz proprietary protocol.
  • Internal antenna design, antenna output power max 18 dBm.
  • Automatic baud rate detection (125K, 250K, 500K, 1M).
  • Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifiers.
  • High-Speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s.
  • Power supplied through the CAN bus interface.
  • Rugged aluminum housing.

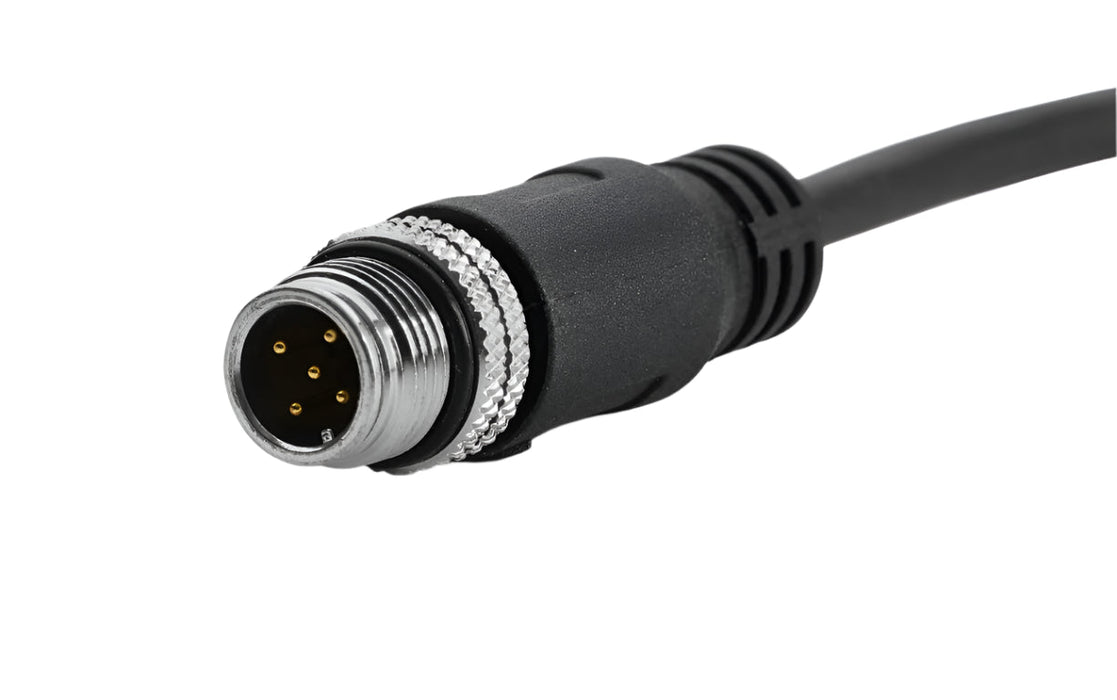

  • Dust and water-resistant M12 connector on each unit.
  • Plug and play, driver-free, and configuration-free.
  • Fully compatible with J1939, CANopen, NMEA 2000 and DeviceNet.
  • Extended operating temperature ranges from -40 to +70 °C.
  • Note: Error Frames and Arbitration information are not transmitted by the Air Bridge units across the wireless link.
Property Value
The information herein is subject to change without notice.
Galvanic Isolation Yes
Categories LIN, CABLES, DIN Rail, Interfaces, Hardware, Dataloggers, CAN, Accessories
Certificates CE, RoHS
Channels 1
Connectors M12 5 pin
Current Consumption Allowed operating voltage 9 V-36V DC. Maximum input voltage 48 V DC. Approx. 2 W.
Silent mode No
Weight 200 g
Messages Per Second, Sending 1,200 mps
Message Per Second, Receive 1,200 mps
Sound No
Temp Range -40 °C to +70 °C
Dimensions Length: 151 mm, Height: 17 mm
Material Aluminum
Kvaser Air Bridge Installation Guide
Kvaser Air Bridge Installation Guide
Version V1.0.211122
Kvaser Air Bridge System Integration Guide
Kvaser Air Bridge System Integration Guide
Version V1.0.211122
Kvaser Air Bridge Light HS User's Guide
Kvaser Air Bridge Light HS/HS (FCC) User's Guide
Version V4.0.211114
Datasheet
Kvaser Air Bridge Light HS M12 (FCC) Datasheet
