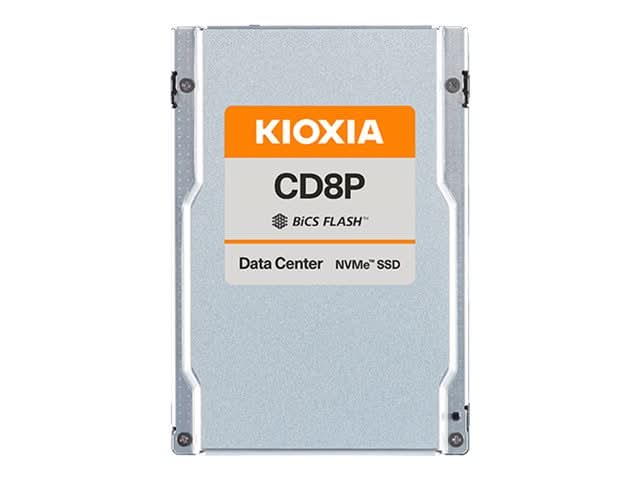

Kioxia KCD81PUG7T68 CD8P-R 7.68TB 2.5-in PCIe 5.0 NVMe Internal SSD

The KCD81PUG7T68 2.5-inch NVMe SSD manufactured by Kioxia as part of their CD8P-R Series. It delivers 7.68TB of high-performance storage with PCIe 5.0 x4 interface, BiCS FLASH TLC memory, up to 12,000 MB/s sequential read, 5,500 MB/s sequential write, 2,000,000/200,000 IOPS random read/write, 1 DWPD endurance, and enterprise-grade reliability with 2,500,000 hours MTTF.

Specifications

Model Number:  KCD81PUG7T68

Brand: Kioxia

Alt Part Number(s):  KCD81PUG7T68

Product Type:  Solid State Drive

Technical Description

Brand:  Kioxia

Model:  KCD81PUG7T68

Series:   CD8P-R

Storage Capacity: 7.68TB

Form Factor: 2.5-inch, 15mm thickness

Interface: PCIe 5.0, NVMe 2.0

Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)

Flash Memory Type: BiCS FLASH TLC

Sustained 128 KiB Sequential Read: 12,000 MB/s

Sustained 128 KiB Sequential Write: 5,500 MB/s

Sustained 4 KiB Random Read: 2,000,000 IOPS

Sustained 4 KiB Random Write: 200,000 IOPS

Supply Voltage: 12 V ± 10 %, 3.3 V ± 15 %

Power Consumption (Active): 21 W typ.

Power Consumption (Ready): 5 W typ.

MTTF: 2,500,000 hours

Drive Writes Per Day (DWPD): 1

Temperature (Operating): 0°C to 73°C

Temperature (Non-operating): -40°C to 85°C

Humidity (Operating): 5 % to 95 % R.H.

Vibration (Operating): 21.27 m/s² (2.17 gRMS) (5 to 800 Hz)

Shock (Operating): 9.8 km/s² (1,000 G) (0.5 ms)
