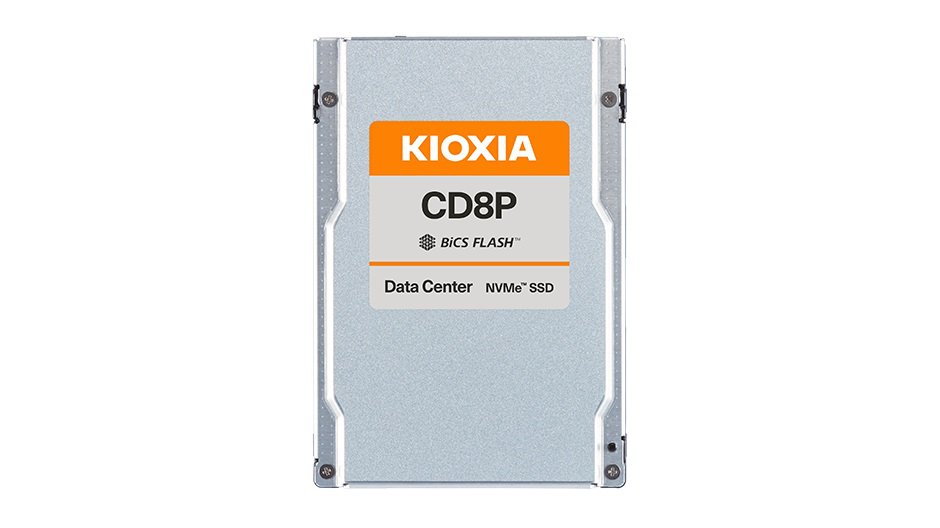

Kioxia KCD81PUG3T84 3.84TB 2.5-in 15mm PCIe 5.0 NVMe 2.0 BiCS FLASH TLC Enterprise SSD

Kioxia KCD81PUG3T84 is a 3.84TB 2.5-inch enterprise SSD with PCIe 5.0 NVMe 2.0 interface, delivering up to 12,000 MB/s sequential read and 5,500 MB/s sequential write speeds. It offers 1 DWPD endurance, up to 1.9M IOPS random read, 200K IOPS random write, and high reliability with 2.5M hour MTTF, wide operating temperature, and shock and vibration tolerance.

Specifications

Model Number:  KCD81PUG3T84

Brand: Kioxia

Alt Part Number(s):  KCD81PUG3T84

Product Type: Solid State Drive

Technical Description

Brand: Kioxia

Model:  KCD81PUG3T84

Capacity: 3.84 TB

Form Factor: 2.5-inch, 15mm thickness

Interface: PCIe 5.0, NVMe 2.0

Maximum Interface Speed: 128 GT/s (PCIe Gen5 x4)

Flash Memory Type: BiCS FLASH TLC

Sustained 128 KiB Sequential Read: 12,000 MB/s

Sustained 128 KiB Sequential Write: 5,500 MB/s

Sustained 4 KiB Random Read: 1,900K IOPS

Sustained 4 KiB Random Write: 200K IOPS

Supply Voltage: 12 V +/- 10 %; 3.3 V +/- 15 %

Power Consumption (Active): 19 W typ.

Power Consumption (Ready): 5 W typ.

MTTF: 2,500,000 hours

DWPD: 1

Thickness: 15 mm +0 / -0.5 mm

Width: 69.85 mm +/- 0.25 mm

Length: 100.45 mm Max

Weight: 130 g Max

Temperature (Operating): 0 °C to 76 °C

Temperature (Non-operating): -40 °C to 85 °C

Humidity (Operating): 5 % to 95 % R.H.

Vibration (Operating): 21.27 m/s² {2.17 Grms} (5 to 800 Hz)

Shock (Operating): 9.8 km/s² {1,000 G} (0.5 ms)
